Signature American Freedom 20" 4 Tower Frame Machine

SKU AF9014204
$50,278.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

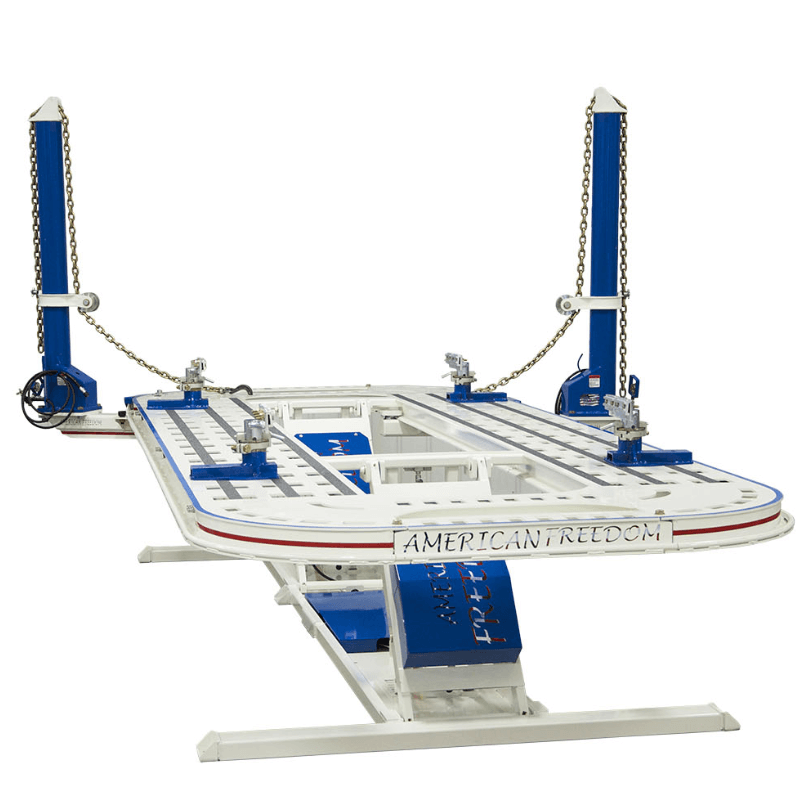

Star A Liner Signature AF 9014204 20" 4 Tower Frame Machine – Heavy-Duty American Freedom Frame Rack

The Star A Liner Signature AF 9014204 20" 4 Tower Frame Machine is a professional-grade solution for precise, efficient, and safe vehicle frame repair. Proudly made in the U.S.A., this durable frame rack is built to handle a wide variety of vehicles while maintaining dependable performance. With its design closely mirroring traditional frame machines, technicians can operate it with minimal training, helping shops boost productivity right away.

This 4-tower model features 20-foot treadways and an 88-inch total bed width, giving you the space to work on vehicles from compact cars to large trucks. Its centralized hydraulic system, operated by a handheld remote with 25 feet of cord, allows full mobility around the vehicle during repairs for optimal precision.

Engineered for heavy-duty work, the AF 9014204 offers a 10,000 lb lift capacity with dual hydraulic systems rated at 10 and 5 tons, ensuring it can handle demanding repair tasks. The 31-inch working height provides ergonomic comfort for technicians, reducing strain during long repair sessions. Built to last, this frame machine combines strength, safety, and versatility to deliver consistent results for every repair job.

4 Tower Frame Machine AF 9014204 Specification

  • Length of bed (top): 20 ft. (610 cm)

  • Length with towers extended: 24 ft. 3 in. (739 cm)

  • Width of bed: 88 in. (224 cm)

  • Width with towers extended: 14 ft. 4 in. (437 cm)

  • Width of treadway: 28 in. (71 cm)

  • Width between treadways: 32 in. (81 cm)

  • Overall height: 9 ft. 3 in. (282 cm)

  • Working height: 31 in. (79 cm)

  • Hydraulics: 10 & 5 ton (9 & 4.5 metric ton) (5 tower machine)

  • Power required: 120v, 20 amp dedicated service

  • Optional tower configurations: 3, 4, or 5 towers

  • Lift capacity: 10,000 lbs

AF 20" 4 Tower Frame Machine Special Features

  • U.S.A. made, high-quality frame machine for professional repairs

  • 4-tower configuration with optional 3 or 5 tower setups

  • Centralized hydraulic system with handheld remote for mobility

  • Wide treadways and 88-inch bed width for versatile vehicle sizes

  • 10,000 lb lift capacity for heavy-duty repair operations

  • Ergonomic 31-inch working height for technician comfort

  • Rugged construction for long-term shop use and reliability

Signature American Freedom Manual

Star A Liner Signature AF 9014204 Catalog   Signature AF 9014204 Catalog
