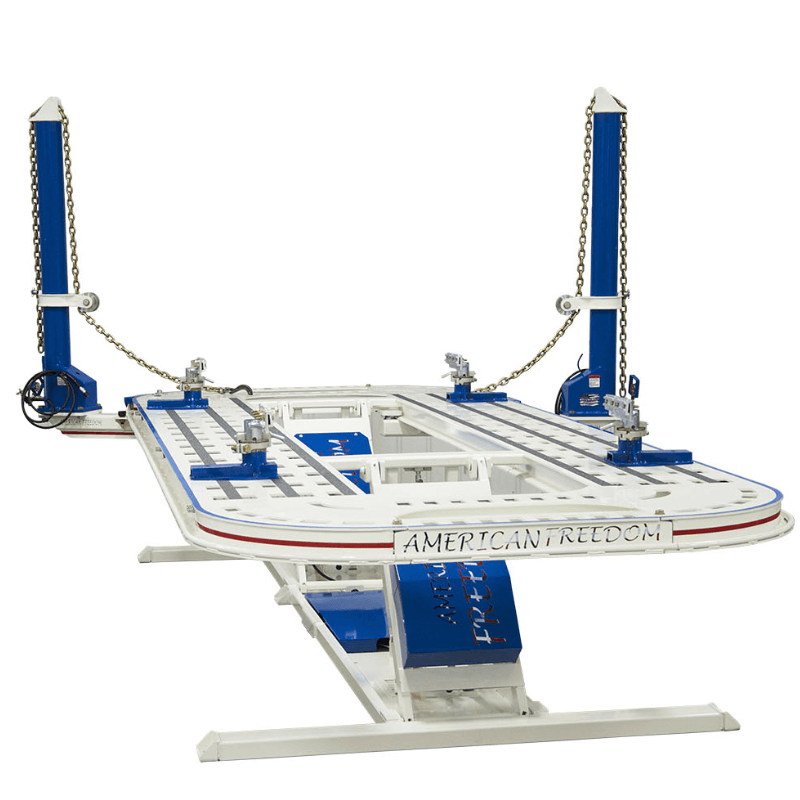

The Star A Liner Signature AF 9014223 22" 3 Tower Frame Machine is engineered for professional auto body shops seeking durability, versatility, and precision. Proudly made in the U.S.A., this heavy-duty frame rack is designed to handle the toughest collision repair jobs with ease. Its solid construction ensures long-lasting performance, while the 22-foot treadways and 88-inch bed width accommodate a wide range of vehicle sizes, from compact cars to larger trucks.
With its three-tower configuration, this machine provides exceptional pulling power and flexibility for multiple angles of repair. The centralized hydraulic system, operated via a 25-foot corded handheld remote, allows technicians to move freely around the vehicle while maintaining full control of the repair process. This layout streamlines workflow, reduces downtime, and boosts shop productivity.
The AF 9014223 is built with the technician in mind, offering a familiar frame machine design that requires minimal training. Its impressive lift capacity of 10,000 lbs and reliable hydraulic performance make it an ideal choice for shops that demand precision and strength. Whether working on light repairs or extensive frame straightening, this model delivers consistent, professional results every time.
Length of Bed: 22 ft. (671 cm)
Length w/ Towers Extended: 26 ft. 3 in. (800 cm)
Width of Bed: 88 in. (224 cm)
Width w/ Towers Extended: 14 ft. 4 in. (437 cm)
Width of Treadway: 28 in. (71 cm)
Width Between Treadways: 32 in. (81 cm)
Overall Height: 9 ft. 3 in. (282 cm)
Working Height: 31 in. (79 cm)
Hydraulics: 10 & 5 ton (9 & 4.5 metric ton)
Power Required: 120V, 20 amp dedicated service
Optional Tower Configurations: 3, 4, or 5 tower
Lift Capacity: 10,000 lbs
Proudly made in the U.S.A. for unmatched quality and durability
22-foot treadways and wide 88-inch bed for various vehicle sizes
Three-tower setup for flexible pulling angles and precision repairs
Centralized hydraulic system with 25-foot corded remote control
High lift capacity of 10,000 lbs for heavy-duty collision work
Familiar design for quick technician training and easy adoption
Built to improve efficiency, safety, and shop productivity
Star A Liner Signature AF 9014223 Catalog
