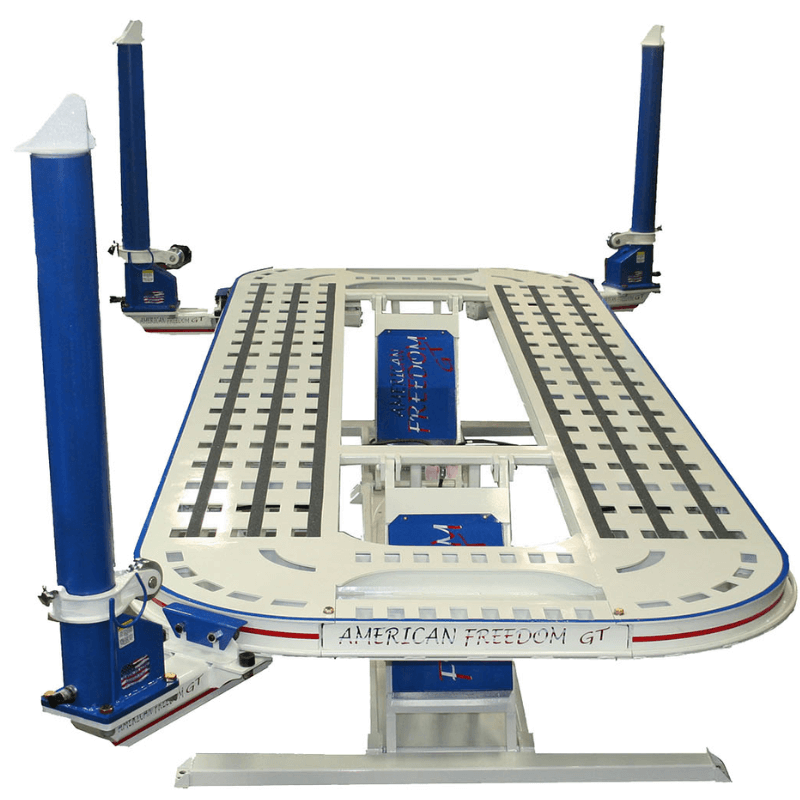

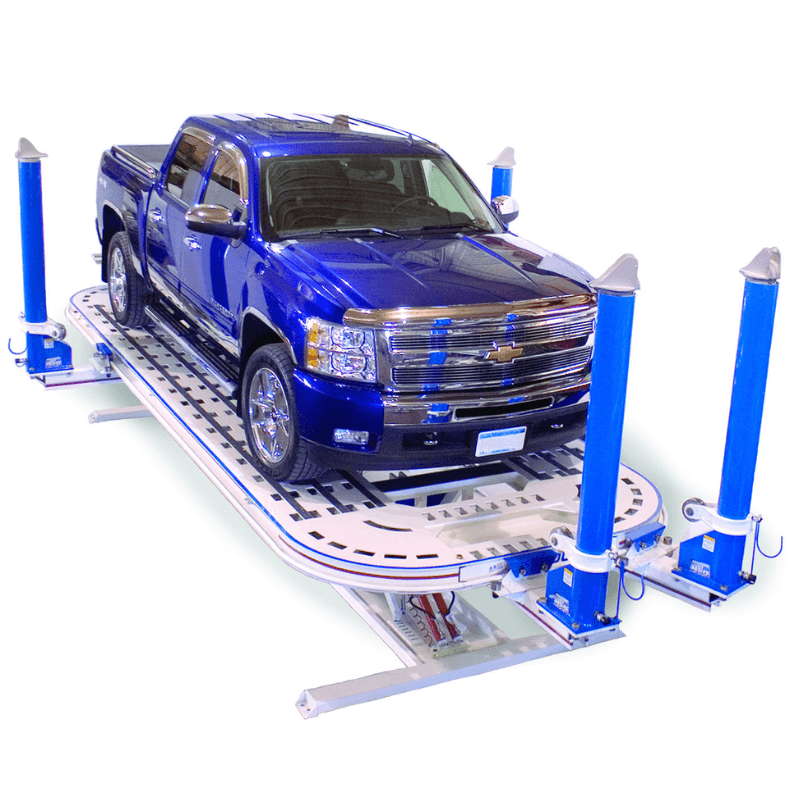

The American Freedom GT 2-Tower Frame Machine is designed to deliver professional-grade precision and unmatched versatility for collision repair shops. Built for heavy-duty performance, this advanced system features a wide 92-inch platform and a lifting capacity of up to 12,000 lbs, making it ideal for handling today’s larger, heavier vehicles. Whether you’re working on standard sedans, SUVs, or light trucks, the Freedom GT ensures secure positioning and reliable operation every time.
Engineered with productivity in mind, the Freedom GT’s adjustable working height — from as low as 12 inches to as high as 42 inches — provides exceptional access for technicians. Its electric-over-hydraulic system offers powerful 10-ton pulling force for precise frame straightening and damage correction. With two robust towers and a 360-degree pulling range, this frame machine delivers flexibility and efficiency to meet the demands of any auto body repair job.
Durable, dependable, and built to last, the Signature AF 9014232 is more than just a frame machine — it’s a complete repair solution. Its robust construction withstands heavy use in high-volume shops, while its user-friendly controls reduce setup time and improve workflow. Investing in the American Freedom GT means investing in consistent, high-quality results for years to come.
Length of Bed (Top): 22 ft.
Length with Towers Extended: 26 ft. 11 in.
Width of Bed: 92 in.
Width with Towers Extended: 12 ft. 6 in.
Width of Treadway: 28.5 in.
Width Between Treadways: 35.5 in.
Overall Height: 9 ft. 11 in. (Towers Lowered: 9 ft. 1 in.)
Loading Height: 12 in.
Working Height: 12 in. to 42 in.

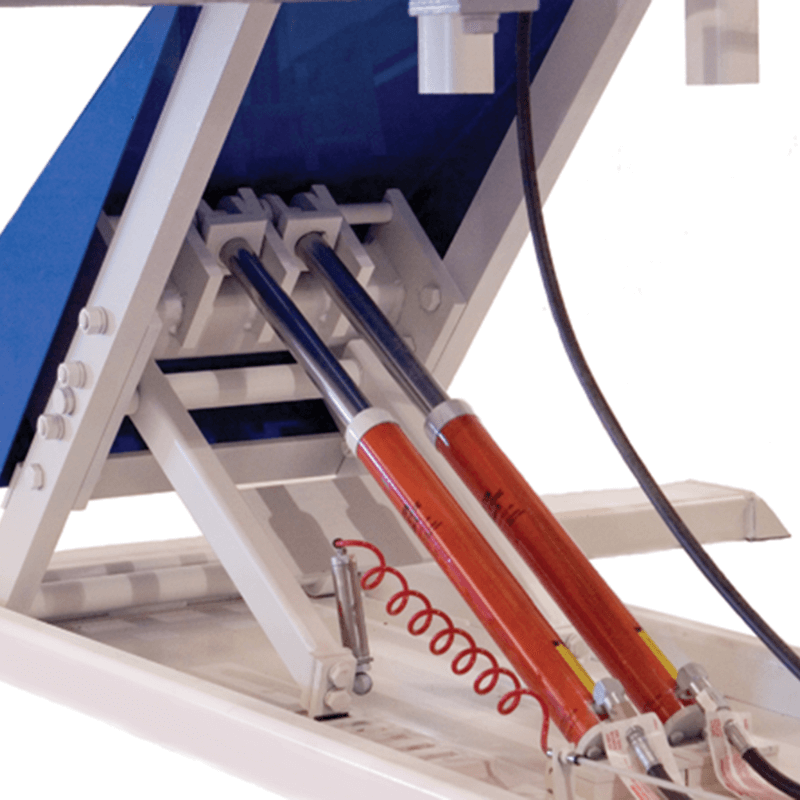

Hydraulics: 10-ton, electric-over-hydraulic system
Power Requirement: 120V, 20 amp dedicated service
Tower Configuration: 2 towers
Tie Downs: 222
Lift Capacity: 12,000 lbs.
Heavy-duty 12,000 lb. lift capacity for larger vehicles
Wide 92-inch platform accommodates a variety of models
Adjustable working height from 12" to 42" for optimal access
Electric-over-hydraulic 10-ton pulling power for precise repairs
Dual-tower configuration with 360° pulling capability
Rugged construction built for high-volume repair shops
Easy-to-use controls reduce setup time and increase efficiency
Ideal for collision repair, frame straightening, and bodywork
Signature AF 9014232 GT 3 Catalog
