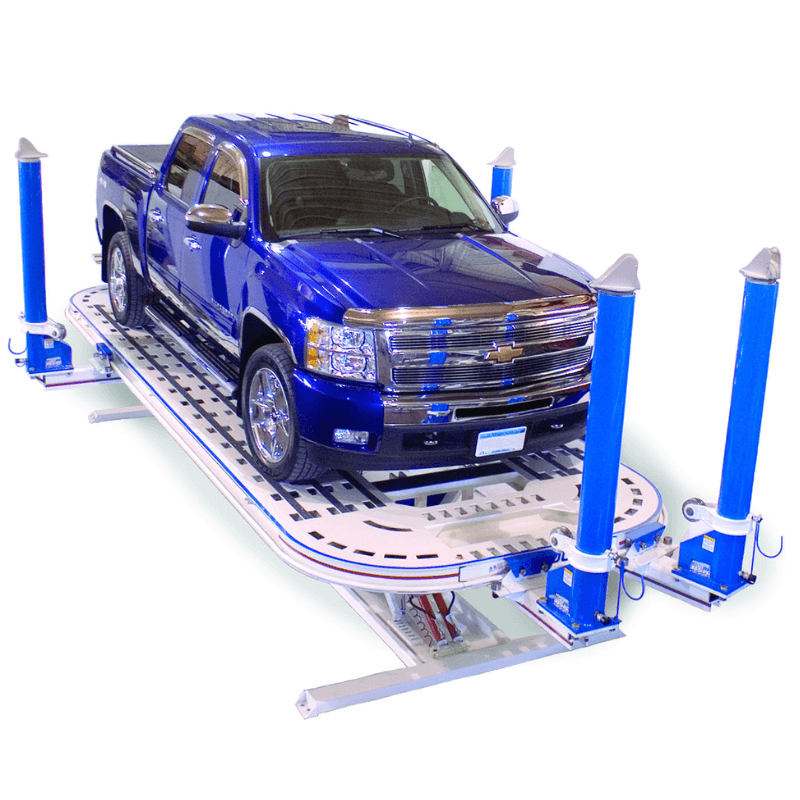

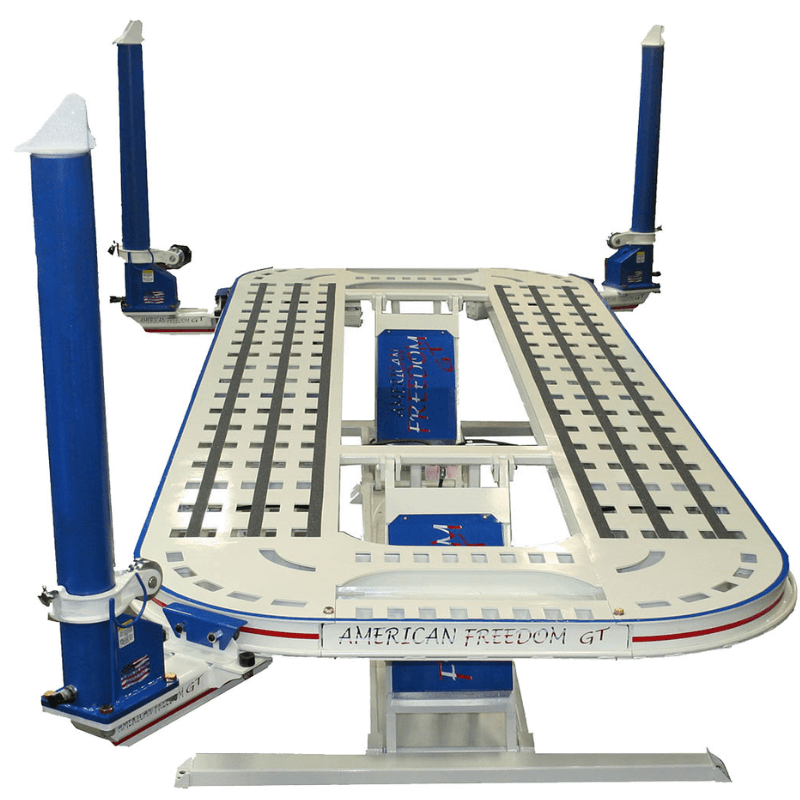

The Signature AF GT 4 Tower Frame Machine delivers exceptional strength, precision, and versatility for professional auto body repair shops. Designed with a massive 12,000-pound lift capacity, a 92-inch wide platform, and a tower configuration that allows for full access and superior pulling power, this machine can handle today’s heavier and wider vehicles with ease.
Built for durability and efficiency, the Freedom GT 4 Tower is engineered with all-electric-over-hydraulic controls for smooth operation, consistent performance, and minimal maintenance. Its low 12-inch loading height improves accessibility for various vehicles, while the adjustable working height of up to 42 inches ensures optimal ergonomics for technicians.
Whether you’re working on frame straightening, collision repair, or structural adjustments, this frame machine provides the strength and flexibility needed to keep your shop running at maximum productivity. Designed for reliability, speed, and heavy-duty applications, it’s an investment that pays off in increased throughput and satisfied customers.
Length of bed (top): 22 ft. (671 cm)
Length with towers extended: 26 ft. 11 in. (820 cm)
Width of bed: 92 in. (234 cm)
Width with towers extended: 12 ft. 6 in. (381 cm)
Width of treadway: 28.5 in. (72 cm)
Width between treadways: 35.5 in. (98 cm)
Overall height: 9 ft. 11 in. (302 cm)
Tower heads lowered: 9 ft. 1 in. (277 cm)
Loading height: 12 in. (30 cm)
Working height: 12 in. (30 cm) to 42 in. (107 cm)

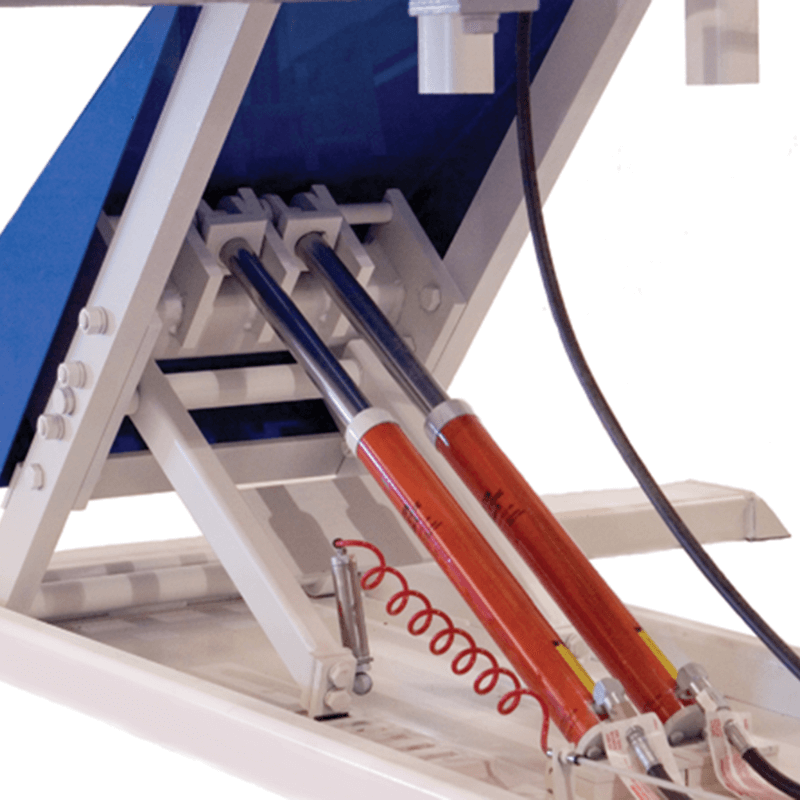

Hydraulics: 10 ton (9 metric ton), all electric over hydraulic
Power requirement: 120v, 20 amp dedicated service
Tower configuration: 4 towers
Tie downs: 222
Lift capacity: 12,000 lbs.
Heavy-duty 12,000 lbs capacity for handling larger, heavier vehicles
Four-tower design for enhanced pulling versatility and access
92-inch wide platform for compatibility with wider vehicles
Adjustable working height up to 42 inches for optimal technician comfort
Low 12-inch loading height for easy vehicle placement
Electric-over-hydraulic controls for smooth, reliable operation
Built for professional collision repair and frame straightening
Designed for long-term durability and shop productivity
