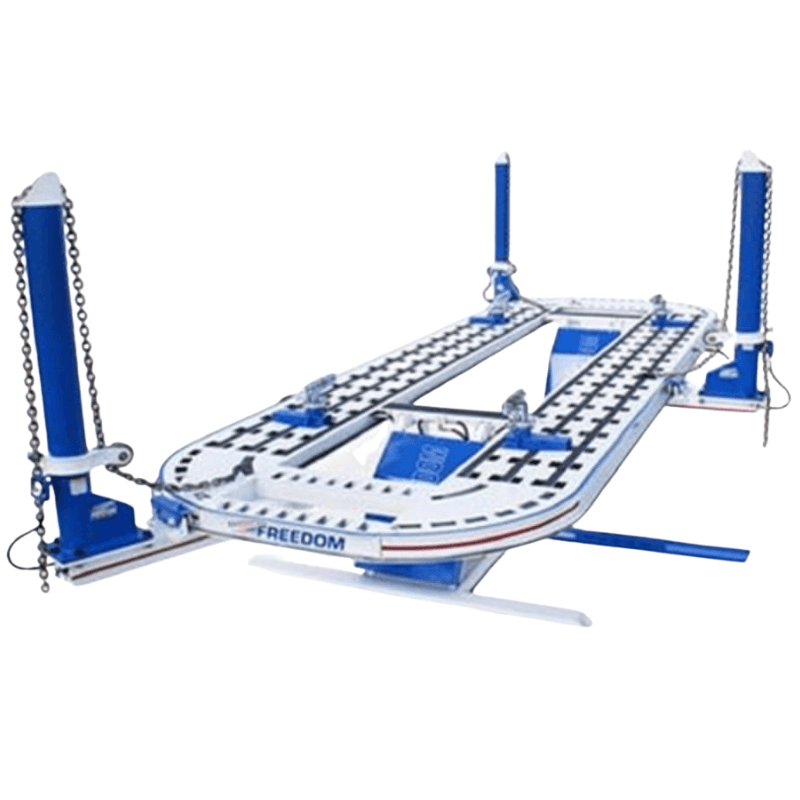

The Signature American Freedom 22 Ft. Frame Machine is the gold standard for collision repair shops that demand American-built quality, versatility, and unmatched pulling performance. Proudly Made in the USA, this heavy-duty frame rack is designed for everything from unibody cars to light- and medium-duty trucks. Featuring movable towers that ride smoothly on a precision track, it gives technicians maximum flexibility to position pulling power exactly where it’s needed.
This model comes in a 3-tower configuration for optimal coverage, but is also available in 2- or 4-tower setups to suit your shop’s specific needs. Its quick-connect no-drip hydraulic couplers make setup fast and clean, while the powerful 10-ton hydraulic system delivers the force required for even the most challenging repairs. The adjustable working height from 14 inches to 42 inches ensures comfort for technicians, reducing strain and improving workflow efficiency.
Whether you’re straightening a car frame after a minor collision or realigning the chassis of a full-size pickup, the American Freedom’s rugged steel construction and Made-in-America craftsmanship guarantee long-lasting durability. This is the only frame machine of its kind built on U.S. soil so when you choose the Signature American Freedom, you’re investing in proven performance and supporting American manufacturing.
Part ID: 9014223
Bed Length (top): 22 ft.
Length with Towers Extended: 24 ft. 1 in.
Bed Width: 88 in.
Width with Towers Extended: 11 ft. 4 in.
Treadway Width: 26.5 in.
Width Between Treadways: 35.5 in.
Overall Height: 9 ft. 11 in.
Tower Heads Lowered Height: 9 ft. 1 in.
Loading Height: 12 in.
Working Height: 14 in. to 42 in. adjustable
Hydraulics: 10 ton – all electric-over-hydraulic or all air-over-hydraulic
Power Requirement (electric-over-hydraulic model): 120V, 20 amp, dedicated service
Optional Tower Configurations: 2, 3, or 4 towers
Tie Downs: 222 total
Proudly Made in the USA
Heavy-duty 22 ft. bed for cars, trucks, and SUVs
3-tower configuration (2 and 4 available)
Quick-connect no-drip hydraulic couplers (8 total)
Movable towers glide on precision track
Adjustable working height from 14" to 42"
Powerful 10-ton hydraulic system
Electric-over-hydraulic or air-over-hydraulic options
Built for high-volume collision repair shops
AF 22 Catalog
