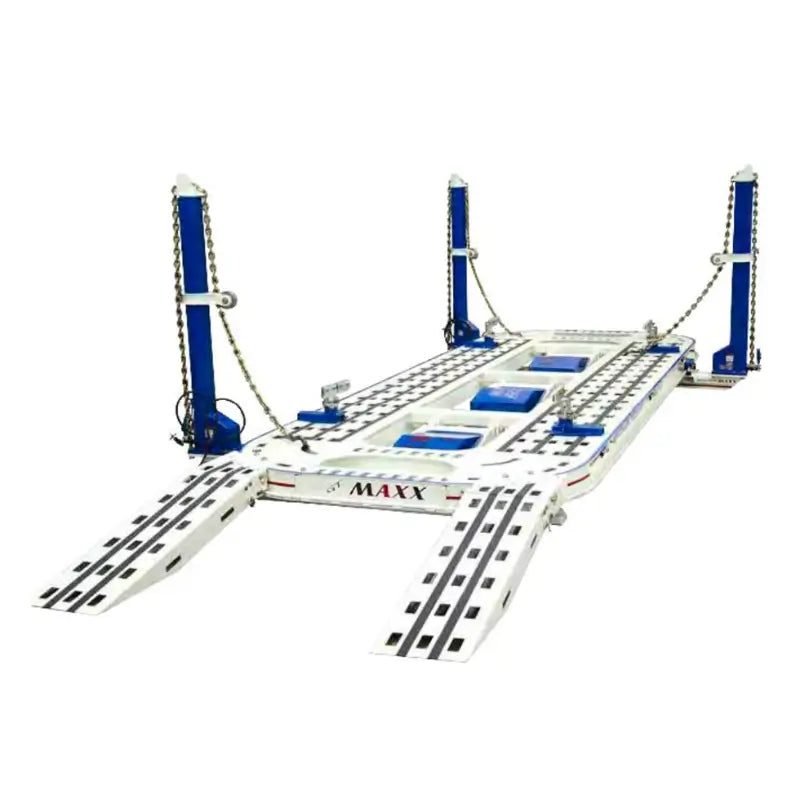

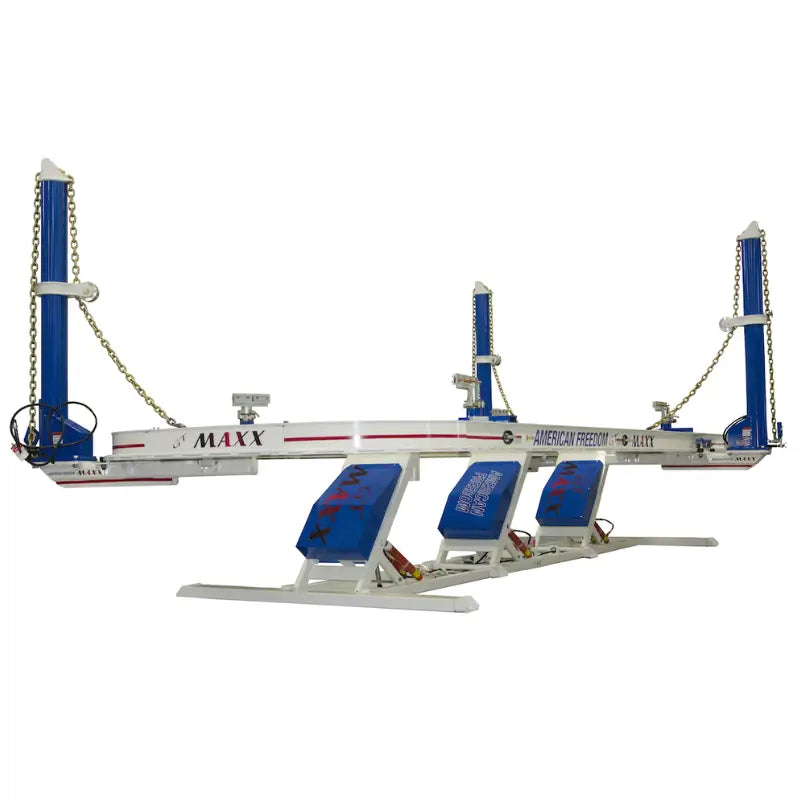

When it comes to heavy-duty auto body frame repairs, the Signature American Freedom GT MAXX 24' 3-Tower Frame Machine delivers unmatched performance, versatility, and reliability. Designed for maximum technician efficiency, this powerhouse allows you to inspect, repair, and restore vehicles with confidence.
Built with a 22-foot treadway and a total bed width of 96 inches, this machine accommodates a wide variety of vehicle sizes, from compact cars to large trucks. Its three robust pulling towers, each with 10-ton hydraulic capacity, allow for 360° pulling capability, ensuring you can tackle the toughest structural repairs. The centralized hydraulic system, operated by a 25-foot corded handheld remote, offers complete mobility and precision control.
Whether you're a high-volume collision repair center or a professional body shop looking to expand your capabilities, the GT MAXX is engineered to boost productivity, reduce setup time, and keep your workflow smooth. With optional configurations for 2, 3, or 4 towers, you can customize your setup to match your workload.
Length of Bed (Top): 22 ft.
Length with Towers Extended: 26 ft. 11 in.
Width of Bed: 96 in.
Width with Towers Extended: 12 ft. 9 in.
Width of Treadway: 30.5 in.
Width Between Treadways: 35 in.
Overall Height: 9 ft. 11 in.
Loading Height: 14 in.
Working Height: 16 in. up to 42 in.
Hydraulics: 10 ton, all electric over hydraulic
Power Requirement: 120V, 20 amp dedicated service
Optional Tower Configurations: 2, 3, or 4 towers
Tie Downs: 222
Lift Capacity: 15,000 lbs.
Heavy-duty 3-tower design for maximum pulling versatility
22-foot treadway accommodates a wide range of vehicle sizes
Centralized hydraulic system for quick and easy adjustments
Handheld remote with 25-foot cord for greater mobility
Adjustable working height from 16 to 42 inches
Accommodates optional 2, 3, or 4 tower configurations
360° pulling capability for precision frame alignment
15,000 lb. lift capacity for heavy vehicles
Rugged steel construction built for long-term use
Ideal for collision repair shops and high-production facilities
American Freedom GT MAXX Catalog
