Stratus SAE-C10X, 2 Post 5 Ton Car Lift - Extra Wide

SKU SAE-C10XE
  • Free Shipping
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Better Business Bureau (BBB) Accredited
$3,728.00

Delivery Options

Free delivery is available for this product!

Do you have a forklift (or similar) ready to unload upon delivery?

Notify me when back in stock

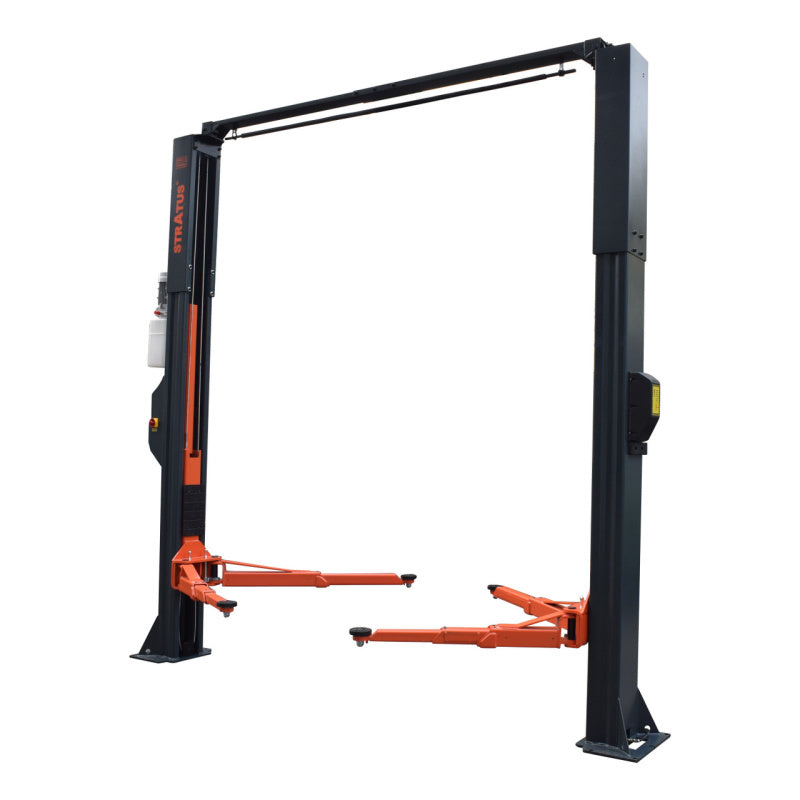

SAE-C10X 2 Post Lift by Stratus

Meet the Stratus 2-In-1 Clear Floor Car Lift SAE-C10X! This impressive 2 Post Clear Floor Car Hoist combines both asymmetric and symmetric lifting capabilities, offering unmatched versatility for any garage or workshop. With a robust 10,000 lbs capacity, it is engineered to handle even the heaviest of vehicles effortlessly. The direct drive system is powered by a single point manual release, providing optimal control and ease of use. Its extra-wide design allows for accommodating vehicles of all shapes and sizes, making it a truly adaptable and reliable choice for automotive professionals.

Designed with a clear floor, the Stratus 2-In-1 Clear Floor Car Lift SAE-C10X ensures an unobstructed workspace underneath the car, enhancing productivity and safety. The clear floor design not only maximizes your workspace but also ensures easy access to all parts of the vehicle. This feature, combined with its impressive lifting strength and versatile lifting capabilities, makes it the perfect addition to any professional or home garage. Whether you're working on routine maintenance or more complex repairs, this lift provides the stability and convenience you need to get the job done efficiently.

2 Post Lift SAE-C10X Specification:

  • Capacity: 10,000 LBS
  • Overall Height - A: 153 9/16”
  • Overall Width - B: 20 1/2”
  • Overall Length - C: 150 13/16”
  • Max Lifting Height with Adaptors - D: 83 1/16”
  • Min Lifting Height with Adaptors - E: 10 7/16”
  • Max Lifting without Adaptors - F: 76 3/4”
  • Min Lifting without Adaptors - G: 3 15/16”
  • Lifting Time: ~50 seconds
  • Width between Columns - H: 124”
  • Drive Clearance - I: 112 3/16”
  • Front Arm Reach Max - J: 68 1/2”
  • Front Arm Reach Min - K: 35 7/16”
  • Rear Arm Reach Max - L: 47 9/16”
  • Rear Arm Reach Min - M: 23 5/8”
  • Motor: 3 HP, 220V, 60 HZ, 1ph
  • Oil: AW32 or AW46
  • Breaker: 30A
  • Weight: 1,719 LBS
  • Dimension: 114” L x 29” W x 35” H
  • Concrete: 6” – 3000 PSI

SAE-C10X 2 Post Lift Specification

  • Extra wide drive through: 112"
  • Heavy duty 14-folds columns
  • Clear floor
  • Symmetric & Asymmetric 2-in-1 design
  • Electric safety lock release
  • Direct drive
  • 4 Screw-up rubber pads
  • 4 x 4" (100 MM) truck adapters included
  • 4 x 3-stage arms
  • 2 top limiter switches
  • Anti-surge valves
  • Automatic arms restraints
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
  • Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

Stratus SAE-C10X Documentation:

2 Post Lift SAE-C10X Product Manual  Stratus SAE-C10X 2 Post Car Lift Product Manual


2 Post Lift SAE-C10X Installation Instruction  Stratus SAE-C10X 2 Post Lift Installation Instruction

THIS UNIT INCLUDES FREE SHIPPING!

*An $425 freight fee is required for locations in OR, WA, ID, MT, ND, SD, ME After initial purchase, a separate link will be sent to complete your transaction.

      We are not your average online store!

      • No Sales Tax - Except CA, FL, IN, MI, & OH

      • Products Ship in 3-5 Business Days

      • Free Warehouse Pickup Options

      Forklifts and Lift Gates

      All of our Single Post, 2 Post, and 4 Post Lifts* require a forklift (or similar) to unload.  Tire Changers and Balancers and other small items allow for a lift gate service (At no additional charge) Lift gate service will lower your order to street level.  How do I know if a forklift is required? See the drop down options that show when you're attempting to place an order.

      What if I don't have a forklift at my location and my order requires it?

      This is a common question and here's some alternatives:

      • We can deliver to a local freight terminal near you.  Typically this is within 30-60 minutes away depending on location.  We will find a location - Contact Us
      • Do you have a buddy that owns a forklift and we can ship it there?  Does your place of work have a forklift?  Select this location as the delivery address.
      • Warehouse pickup - This is always an option but depends how far you're willing to drive.
      • Rent a forklift - This is the least favorable option but may be necessary.  We always schedule the delivery so this should minimize the days required to rent.

      Can I hand unload my order if I don't have a forklift?

      No, sorry, the truck drivers don't allow for this.  2 things: Liabilities and the time it takes to unload - truck drivers can't wait, even if you have an army of help.

      How do I know if my order requires a forklift or if a lift gate service is available?

      See the drop down options that show when you're attempting to place an order.

      Residential Deliveries

      Yes, we deliver to residential addresses!

      Will the freight company contact me to schedule the delivery?

      Yes, the freight company will call you ahead of time to schedule the delivery to ensure you are available to receive/unload your order.

      Warehouse Pickup (No Freight Charge)

      Warehouse pickup is available for almost all of our brands.  Warehouse locations are listed on each product page.  At checkout, select "Pickup" and choose the warehouse you'd like to pickup from.  Upon ordering, we will send an email with the pickup form/number.

      Freight Terminals

      If you don't have a forklift at your location, we can find you a freight terminal in your area and they will load your trailer onsite.  (Typically 30-60 minute drive away, depending on location) Special note: Some orders are so large they ship on a flatbed by themselves, in these cases a freight terminal delivery is not an option.  The product page will state whether this is the case.

      Flat Rate Shipping and Freight Quotes

      Most of our products have a flat rate shipping fee. However, if you see a note that says "Contact us to see if we can ship for less" then this means we're able to quote for a better price.  Contact Us now!

      *The X1 Triumph 4 post can deliver with lift gate

      Stratus Lifts SAE-C10XE Reviews
