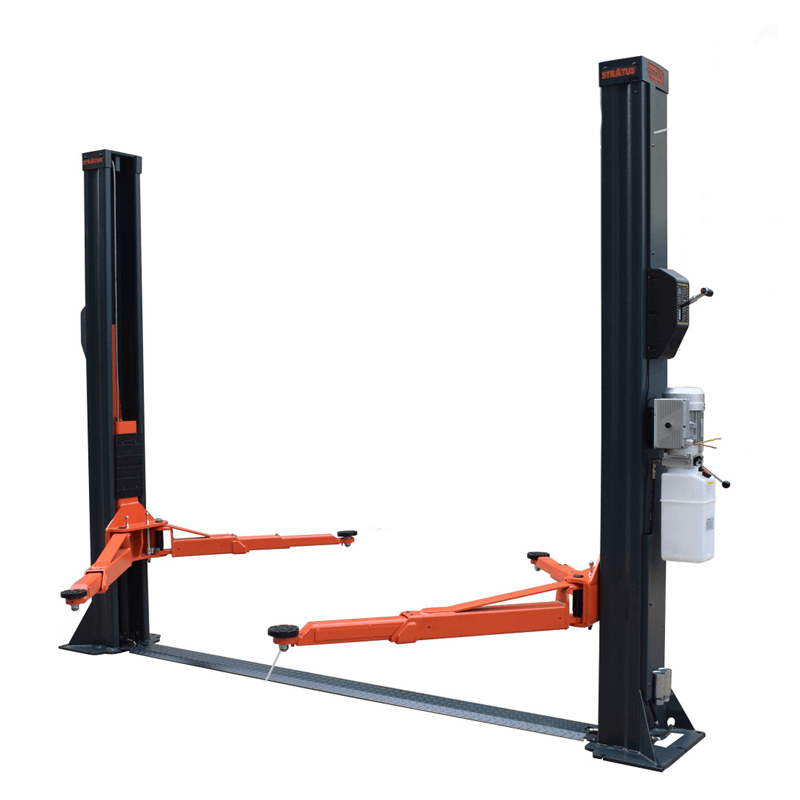

The SAE-FX10X Car Lift is a robust automotive lifting solution designed for versatility and reliability. With a lifting capacity of 10,000 lbs, it offers a maximum lifting height of 83 1/6" (2110 mm) with adaptors and a minimum lifting height of 10 7/6" (265 mm), making it suitable for a wide range of vehicle types and sizes. This lift operates efficiently with a rise time of approximately 50 seconds, facilitated by a 3 HP motor operating at 220V. Its dimensions of 144 7/8" (3680 mm) in length, 20 1/2" (520 mm) in width, and an overall height of 112" (2845 mm) ensure ample space for maneuvering vehicles during service. The lift's construction includes a powder-coated finish in Granite Gray and Rein orange, offering durability and corrosion resistance.
Equipped with a base plate/open top design, the SAE-FX10X features convenient single-point manual release and a top limiter switch for added safety during operation. It meets stringent safety standards, having undergone dynamic testing at 115% of its rated capacity and static testing at 150% rated capacity. This lift also incorporates a reliable hydraulic system compatible with AW32 or AW46 oil and operates efficiently under a breaker requirement of 30A. Ideal for professional automotive workshops, the SAE-FX10X combines robust engineering with user-friendly features to enhance workflow and ensure reliable vehicle servicing.
Stratus SAE-F10X Car Lift Product Manual
