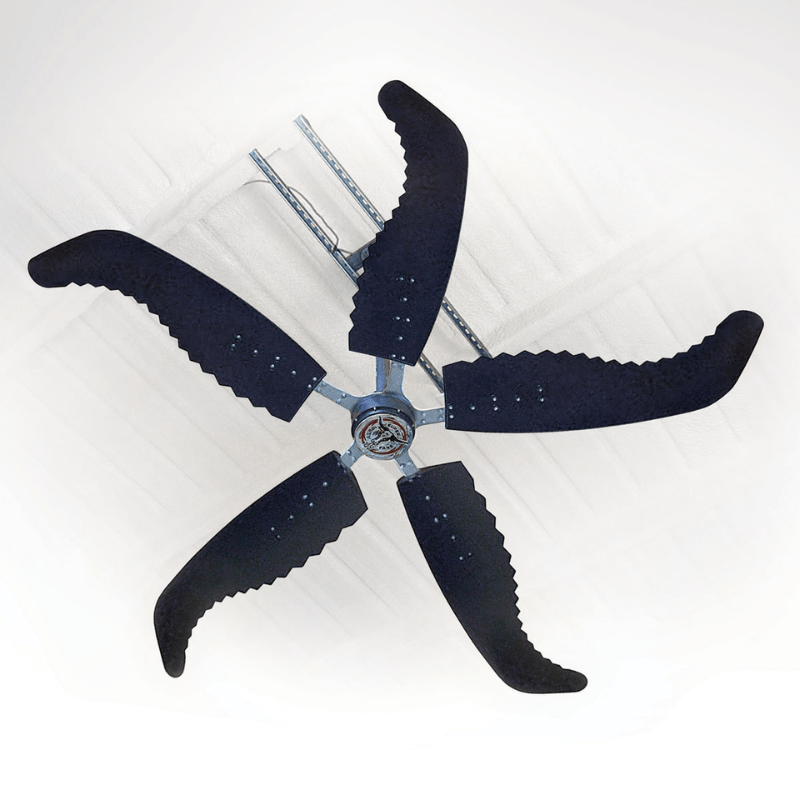

Super Duty Fans SD10PRO+ 5-Bladed HVLS Industrial Fan

SD10PRO+ 10 Ft 5 Blade HVLS Industrial Ceiling Fan

Poor airflow in large buildings can create hot zones, stuffy conditions, and uncomfortable working environments that reduce productivity. When air circulation is inconsistent, cooling systems run longer and energy costs increase. The Super Duty Fans SD10PRO+ is engineered to move high volumes of air efficiently across wide commercial spaces, helping maintain a more comfortable environment while lowering operating strain on HVAC systems.

Designed with a rugged 5-blade configuration, the SD10PRO+ combines lightweight high-strength composite blades with a powerful Permanent Magnet Synchronous Motor for dependable performance. Its Variable Frequency Drive controller provides smooth adjustable speed control, while the large 10 ft diameter creates wide airflow coverage for warehouses, arenas, manufacturing plants, gyms, barns, and distribution centers. This fan is an ideal solution for businesses needing reliable industrial airflow with energy-efficient operation.

Industrial Fan SD10PRO+ Specification

• Model: SD10PRO+

• Fan Type: HVLS Industrial Ceiling Fan

• Blade Count: 5 Blades

• Airfoil Diameter: 10 ft

• Airfoil Material: Injection Molded Poly Resin Fiber Blend

• Airfoil Width: 6" – 11"

• Recommended Spacing: 50 ft

• Maximum Coverage Area: 12,125 sq ft

• Sound Level (High): Under 55 dBA

• Hanging Weight: 115 lbs

• Maximum Torque: 31 ft/lb

• Motor Type: Permanent Magnet Synchronous Motor (PMSM)

• Horsepower Rating: 1.0 HP

• Operating Temperature Range: 32°F – 140°F

• 110V–120V Single Phase: 15.1 A

• 208V–240V Single Phase: 9.4 A

• 208V–240V Three Phase: 5.6 A

• 400V–480V Three Phase: 2.8 A

• Input Power: 110V, 1 Phase

• Main Controller: Variable Frequency Drive, IP66 Rated

• Fire & Sprinkler Compliance: NFPA 13 & NFPA 72

• Warranty: 10 Years Mechanical / 5 Years Motor / 1 Year VFD

SD10PRO+ 5-Bladed HVLS Industrial Fan Special Features

• 5 blade HVLS fan for high-volume airflow

• Covers areas up to 12,125 sq ft

• Quiet operation under 55 dBA

• Energy-efficient low power usage

• PMSM motor for long service life

• Adjustable speed VFD controller included

• Durable composite blade construction

• Helps reduce heating and cooling costs

• Ideal for industrial and commercial buildings

• NFPA compliant for sprinkler systems

• Enhanced + performance version

SD10PRO+ Manuals

  Super Duty Fans SD10PRO+ Spec Sheet
