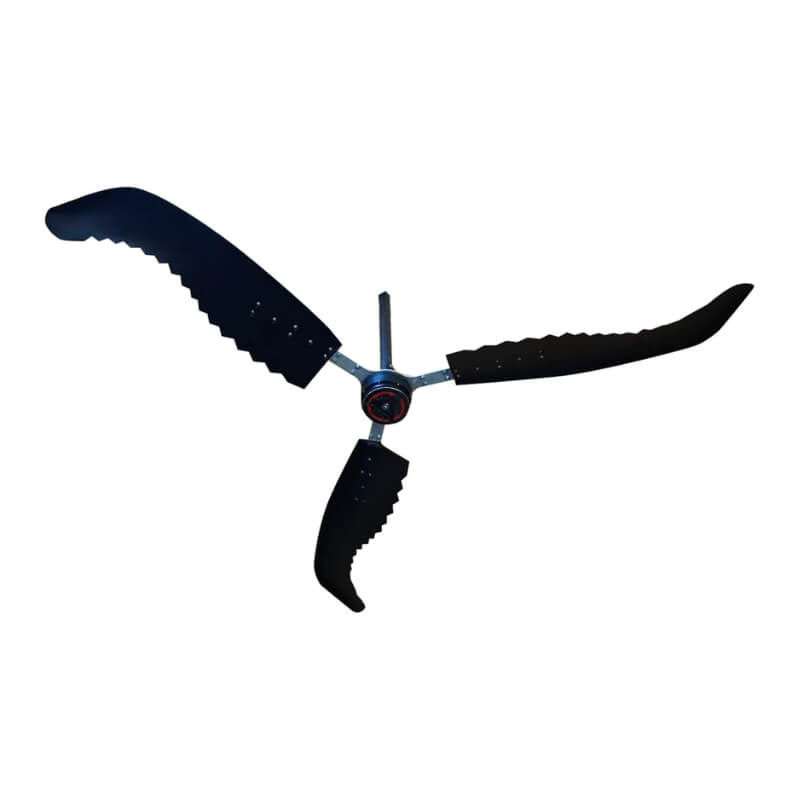

The SD15 3-Blade Ceiling Fan from Super Duty Fans delivers exceptional performance and efficiency with fewer components. Powered by a robust 750-watt Permanent Magnet Synchronous Motor, this 15’ HVLS fan generates airflow equal to or greater than 5-blade models, thanks to its advanced aerodynamic blade design. Operating quietly at up to 85 RPM, it’s ideal for warehouses, gymnasiums, shops, or any facility seeking reliable airflow with minimal energy usage.
Despite its large coverage area of 12,300 ft², installation is quick and straightforward with the telescoping down rod and factory pre-assembled blades and hubs. The included VFD controller runs on standard 110V, converting input to 220V 3-phase power for efficient motor operation, while offering smooth, reversible speed control. Optional guy wire kit available for enhanced stability.
Diameter: 15 ft
Number of Blades: 3
Overall Weight: 116 lbs
Max Speed: 85 RPM
Motor Power: 1.0 HP (750 W)
Min. Input Power: 110 V @ 6.2 A
Coverage Area: 12,300 ft²
Radius of Effect: 55 ft
Minimum Clearance: 3 ft
Dual-plane hub system for whisper-quiet, high-volume airflow
Six injection-molded blades with 30 patent-pending aerodynamic enhancements
Telescoping down rod—no cutting or drilling required
VFD converts 110 V single-phase to 220 V 3-phase with ramp-up to minimize amp spikes
IP20 controller; optional IP67 enclosure for harsh environments
Fire-suppression relay compatibility
Guy-wire stability system (included)
Custom high-adhesion blade-painting options for bulk orders
Pre-assembled blades and hubs for faster installation
Warranties: 10 years (mechanical), 5 years (motor), 1 year (VFD)
