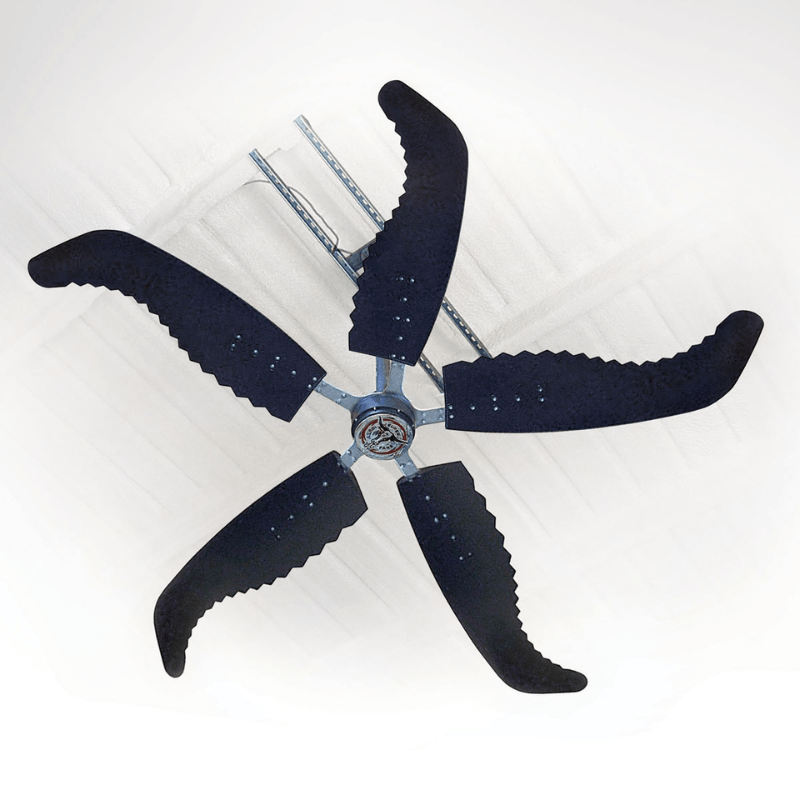

Super Duty Fans SD15PRO+ 5-Bladed HVLS Industrial Fan

SD15PRO+ 15 Ft 5 Blade HVLS Industrial Ceiling Fan

Maintaining consistent airflow in expansive buildings can be difficult, especially in warehouses, arenas, production plants, and agricultural facilities where stagnant air and heat buildup are common. Poor circulation can create uncomfortable conditions, reduce productivity, and increase reliance on expensive HVAC systems. The Super Duty Fans SD15PRO+ is built to solve these issues with powerful high-volume low-speed airflow designed for large commercial environments.

With its efficient 5-blade design and large 15 ft diameter, the SD15PRO+ moves massive amounts of air across broad spaces while using minimal electricity. Constructed with durable injection molded poly resin fiber blades and powered by a Permanent Magnet Synchronous Motor, this fan delivers reliable long-term performance. The Variable Frequency Drive controller provides smooth adjustable speed control, making it ideal for warehouses, gyms, barns, manufacturing facilities, hangars, and distribution centers seeking dependable comfort and energy savings.

Industrial Fan SD15PRO+ Specification

• Model: SD15PRO+

• Fan Type: HVLS Industrial Ceiling Fan

• Blade Count: 5 Blades

• Airfoil Diameter: 15 ft

• Airfoil Material: Injection Molded Poly Resin Fiber Blend

• Airfoil Width: 7" – 12"

• Recommended Spacing: 70 ft

• Maximum Coverage Area: 20,000 sq ft

• Sound Level (High): Under 55 dBA

• Hanging Weight: 140 lbs

• Maximum Torque: 42 ft/lb

• Motor Type: Permanent Magnet Synchronous Motor (PMSM)

• Horsepower Rating: 1.5 HP

• Operating Temperature Range: 32°F – 140°F

• 110V–120V Single Phase: 18.4 A

• 208V–240V Single Phase: 10.2 A

• 208V–240V Three Phase: 6.3 A

• 400V–480V Three Phase: 3.1 A

• Input Power: 110V, 1 Phase

• Main Controller: Variable Frequency Drive, IP66 Rated

• Fire & Sprinkler Compliance: NFPA 13 & NFPA 72

• Warranty: 10 Years Mechanical / 5 Years Motor / 1 Year VFD

SD15PRO+ 5-Bladed HVLS Industrial Fan Special Features

• 5 blade HVLS fan for large-scale airflow

• Covers areas up to 20,000 sq ft

• Quiet operation under 55 dBA

• Energy-efficient low power consumption

• Heavy-duty PMSM motor for dependable service

• Variable speed VFD controller included

• Durable composite blade construction

• Reduces heating and cooling costs

• Ideal for industrial and commercial spaces

• NFPA compliant for sprinkler systems

• Enhanced + performance version exclusive online

SD15PRO+ Manuals

  Super Duty Fans SD15PRO Spec Sheet

  Super Duty Fans SD15PRO Brochure
