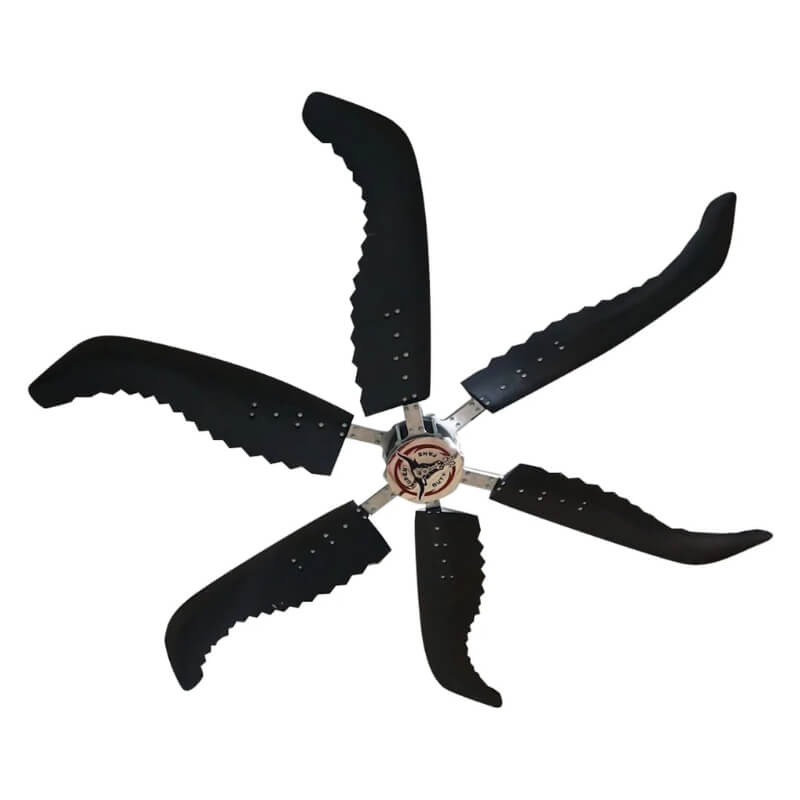

SD20HO High-Volume, Low-Speed Ceiling Fan by Super Duty Fans

The Super Duty SD20HO is the workhorse of our HVLS (High-Volume, Low-Speed) ceiling fan lineup, engineered to outperform even 24-foot models with smarter design. Its 1,500 W Permanent Magnet Synchronous Motor (PMSM) and integrated variable frequency drive (VFD) convert standard 220 V single-phase input into seamless 3-phase power, delivering up to 55 RPM with minimal amp spikes. The six dual-hub blades, injection-molded from a proprietary polymer, feature 30 patent-pending refinements—from trailing-edge serrations and leading-edge vortex generators to raked tips and built-in pitch contours—for maximum airflow across 22,650 ft². A telescoping down rod eliminates cutting or drilling, and the rugged guy-wire system ensures stability in even the most demanding industrial environments.

Durability and versatility are built in. The IP20 controller (upgradeable to IP67) offers on/off, variable-speed, and reversible airflow, accepts fire-suppression relays, and mounts neatly on any wall. Hubs and down rods arrive in sleek aluminum, while the motor and mounts sport a satin-black finish; blades ship in black but can be custom-painted in high-adhesion colors for large orders. Pre-assembly of blades, hubs, and mounting hardware streamlines installation.

Ceiling Fan SD24HO Specification

  • Diameter: 20 ft

  • Number of Blades: 6

  • Overall Weight: 178 lbs

  • Max Speed: 55 RPM

  • Motor Power: 2.0 HP (220 V, converted to 3 Ph)

  • Input Power: 220 V, 1 Phase

  • Coverage Area: Up to 22,650 ft²

  • Radius of Effect: 85 ft

  • Min. Drop Clearance: 3 ft

SD24HO Ceiling Fan Special Features

  • Six dual-hub blades with 30 patent-pending aerodynamic enhancements

  • Telescoping down rod—no cutting or drilling required

  • VFD with factory-set ramp-up minimizes amp spikes and over-torque

  • IP20 controller; optional IP67 enclosure for harsh environments

  • Fire-suppression relay compatibility

  • Guy-wire stability system (included on HO models)

  • Custom blade-painting options for large orders

  • Aluminum-finished hubs and rods; satin-black motor and mounts

  • Pre-assembled blades and hubs for faster installation

  • Warranties: 10 years (mechanical), 5 years (motor), 1 year (VFD)

SD24HO Manuals

Coming Soon
