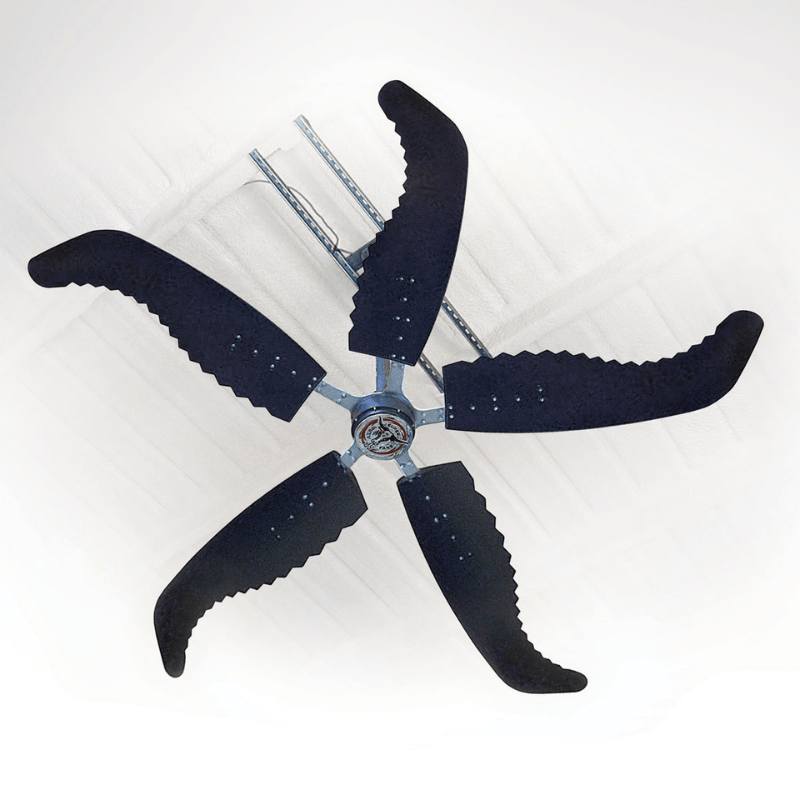

Super Duty Fans SD20PRO+ 5-Bladed HVLS Industrial Fan

SD20PRO+ 20FT HVLS Industrial Ceiling Fan High Output Airflow System

Large industrial facilities often suffer from stagnant air, uneven temperatures, and high cooling costs because traditional HVAC systems and standard fans cannot effectively move air across massive open spaces. This leads to discomfort, reduced productivity, and inefficient energy usage in warehouses, factories, and commercial environments.

The SD20PRO+ 20FT HVLS Industrial Ceiling Fan is engineered to eliminate these issues with high-volume, low-speed airflow designed to cover up to 22,650 sq ft. Powered by a 2.0 HP PMSM motor with VFD control, it delivers powerful yet energy-efficient circulation, improving comfort while reducing HVAC load and operating costs in large-scale facilities.

Industrial Fan SD20PRO+ Specification

• Model: SD20PRO+

• Fan Type: HVLS Industrial Ceiling Fan

• Diameter: 20 ft

• Blade Count: 6 blades

• Airfoil Material: Injection Molded Poly Resin Fiber Blend

• Airfoil Width: 8” – 15”

• Recommended Spacing: 90 ft

• Maximum Coverage Area: 22,650 sq ft

• Sound Level: <55 dBA (High)

• Hanging Weight: 179 lbs

• Max Torque: 52 ft/lb

• Motor Type: Permanent Magnet Synchronous Motor (PMSM)

• Motor HP: 2.0 HP

• Operating Temp Range: 32°F – 140°F (0°C – 60°C)

• Input Power: 220V, 1 Phase

• Controller: Variable Frequency Drive (IP66 Rated)

SD20PRO+ 5-Bladed HVLS Industrial Fan Special Features

• High-output HVLS airflow system for large industrial spaces

• Covers up to 22,650 sq ft per unit

• Energy-efficient 2.0 HP PMSM direct drive motor

• Ultra-quiet operation (<55 dBA) for workplace comfort

• 6-blade aerodynamic injection-molded design

• Advanced vortex generator blade technology

• Telescoping down rod for easier installation flexibility

• Guy wire stabilization system included

• Forward and reverse airflow control via VFD

• Fire suppression system compatible controller

• IP66-rated industrial control protection

• Engineered for warehouses, factories, gyms, and hangars
