Super Duty Fans SD24HO High-Volume, Low-Speed Ceiling Fan

SKU SD24HO
$5,995.00
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Do you have a forklift (or similar) ready to unload upon delivery?

Notify me when back in stock

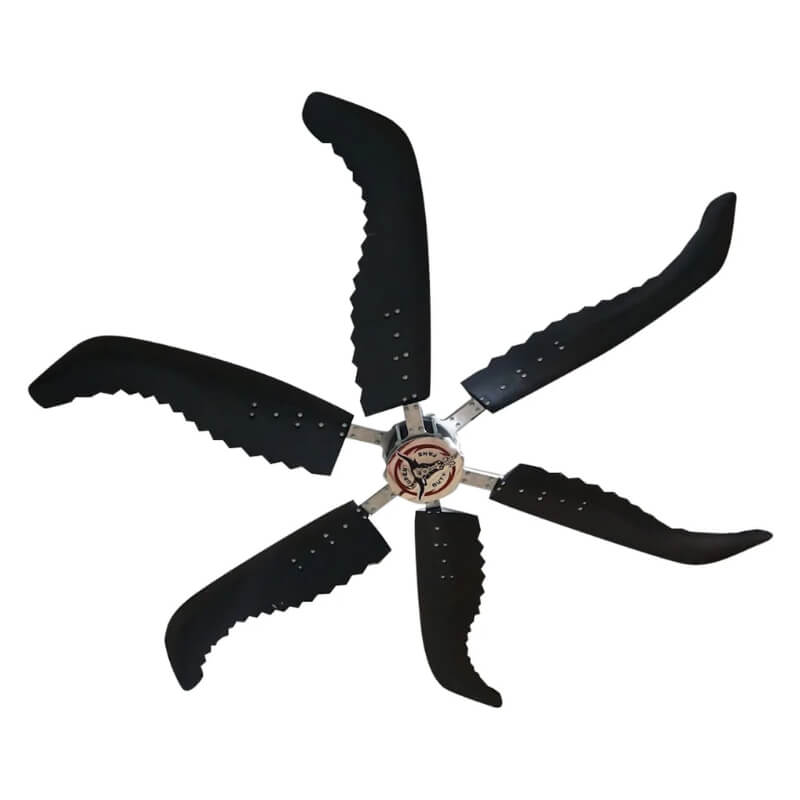

SD24HO High-Volume, Low-Speed Ceiling Fan by Super Duty Fans

Our Super Duty SD24HO is the pinnacle of HVLS (High-Volume, Low-Speed) ceiling fans, engineered to outperform every 24-foot competitor. Its 1,800 W Permanent Magnet Synchronous Motor (PMSM) paired with a variable frequency drive (VFD) delivers a smooth ramp-up to 45 RPM, slashing amp spikes and over-torque.

The innovative six-blade design, each blade injection-molded with 30 patent-pending features—including trailing-edge serrations, leading-edge vortex generators, raked tips, and built-in pitch contours—pushes air across up to 28,200 ft². With smart engineering like a telescoping down rod for easy height adjustment, this fan moves more air than any other 24-foot model on the market at a fraction of the price.

Beyond raw power, the SD24HO prioritizes durability and versatility. A guy-wire system (included on all HO models) ensures rock-solid stability, while the IP20 controller—upgradeable to IP67—accepts fire-suppression relays and runs on standard 14/4 wiring.

Hubs and down rods arrive in aluminum finish, with satin-black motor and mounts; blades ship in black but can be custom-painted in high-adhesion colors for large orders. Backed by a 10-year mechanical warranty, 5-year motor warranty, and 1-year VFD warranty, the SD24HO is built to keep your facility comfortable and efficient for years to come.

Ceiling Fan SD24HO Specification

  • Diameter: 24 ft

  • Number of Blades: 6

  • Overall Weight: 232 lbs

  • Max Speed: 45 RPM

  • Motor Power: 2.4 HP (220 V, 3 Ph)

  • Input Power: 200–220 V, 3 Ph

  • Coverage Area: Up to 28,200 ft²

  • Radius of Effect: 85 ft

  • Min. Drop Clearance: 3 ft

SD24HO Ceiling Fan Special Features

  • Injection-molded polymer blades with 30 patent-pending aerodynamic enhancements

  • Variable frequency drive for smooth, reversible speed control

  • Telescoping down rod—no cutting or drilling required

  • Guy-wire stability system (included on HO models)

  • IP20 controller; optional IP67 enclosure for harsh environments

  • Fire-suppression relay compatibility

  • Blades paintable in custom high-adhesion colors for volume orders

  • Aluminum-finished hubs and rods; satin-black motor and mounts

  • Warranties: 10 years (mechanical), 5 years (motor), 1 year (VFD)
