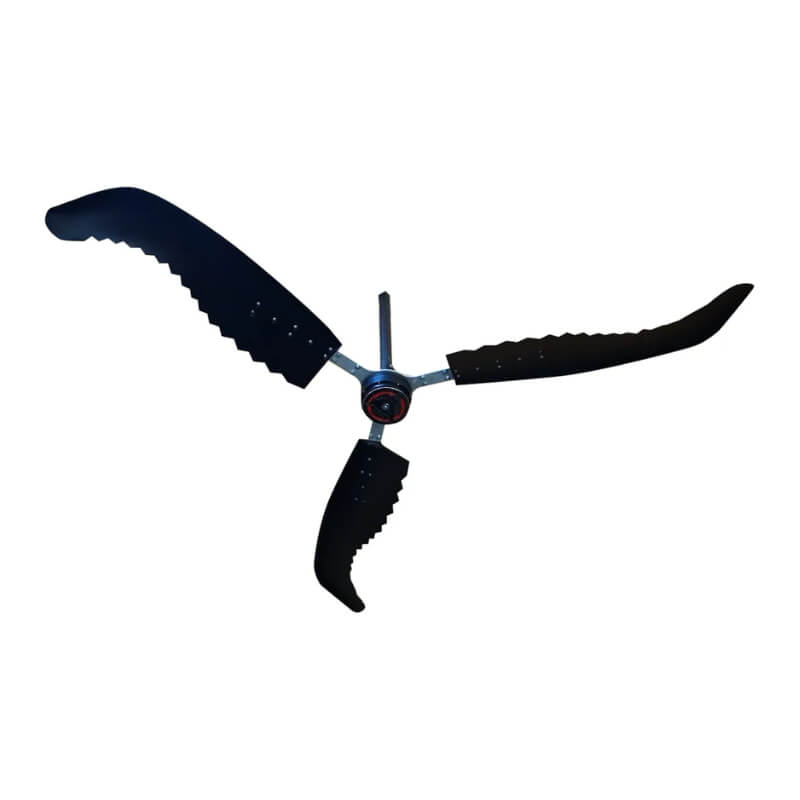

Compact yet incredibly powerful, the SD7 3-Blade Ceiling Fan is designed to deliver high-performance airflow in tighter or lower-ceiling spaces. Despite its smaller 7-foot diameter, it utilizes the same cutting-edge technology as its larger counterparts—including a 400-watt Permanent Magnet Synchronous Motor (PMSM), energy-efficient operation, and a full-featured Variable Frequency Drive (VFD) controller. This ceiling fan is perfect for workshops, garages, retail spaces, or smaller industrial areas where efficient air movement is still a priority.
Each of the three high-tech blades features a proprietary polymer composition and 30 patent-pending elements that optimize performance and minimize noise. These include trailing-edge graduated serrations, leading-edge vortex generators, and a raked blade tip. The result is a quiet yet powerful fan that effectively distributes airflow over a wide 45-foot radius.
Installation is designed to be fast and user-friendly. The blades come pre-balanced and pre-assembled with attachment arms, and the down rod features a telescoping design that eliminates the need for custom cutting or drilling. The included wall-mounted VFD controller requires just 110V input, converting it to 220V 3-phase to drive the motor. Speed and direction (reversible) are adjustable, with soft ramp-up settings to protect the fan and circuit.
Diameter: 7 ft
Number of Blades: 3
Overall Weight: 77 lbs
Max Speed: 150 RPM
Motor Power: 0.75 HP (400 W)
Min. Input Power: 110 V @ 5.8 A
Coverage Area: 9,500 ft²
Radius of Effect: 45 ft
Minimum Clearance: 2 ft
Advanced 3-blade design with aerodynamic enhancements for superior air movement
Ultra-efficient PMSM motor with IP65 rating and direct drive for reliability and low maintenance
IP20-rated VFD controller with optional IP67 enclosure, speed/direction controls, and fire suppression relay compatibility
Pre-assembled components and telescoping down rod simplify installation
Modern finish: aluminum hubs/down rods, satin black motor/mounts, and black blades (custom colors available for volume orders)
Mechanical Components: 10 Years
Motor: 5 Years
VFD Controller: 1 Year
