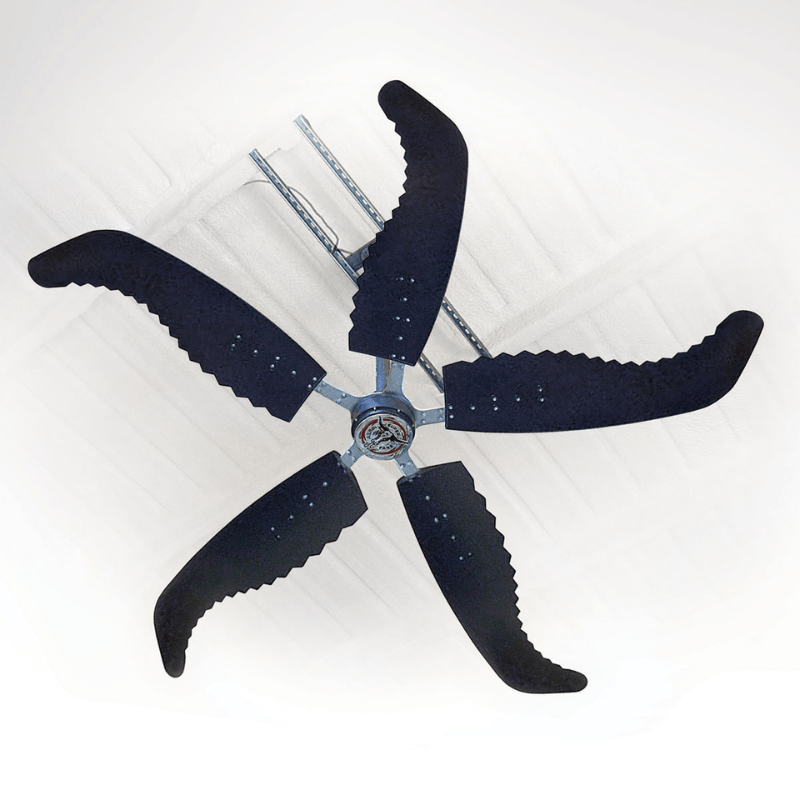

Super Duty Fans SD7PRO+ 5-Bladed HVLS Industrial Fan

SD7PRO+ 7 Ft 5 Blade HVLS Industrial Ceiling Fan

Large buildings, warehouses, gyms, and commercial spaces often struggle with poor airflow, uncomfortable hot spots, and rising energy costs caused by inefficient ventilation systems. Standard ceiling fans simply cannot move enough air to cool wide open areas effectively. The Super Duty Fans SD7PRO+ is designed to solve these issues with powerful HVLS technology that circulates massive volumes of air quietly and efficiently.

Built with a durable 5-blade system and advanced injection molded poly resin fiber blades, the SD7PRO+ delivers excellent airflow coverage while using minimal power. Its Permanent Magnet Synchronous Motor (PMSM) provides dependable high-efficiency performance, while the Variable Frequency Drive controller allows smooth speed control and reliable operation. Ideal for warehouses, arenas, production facilities, agricultural buildings, and fitness centers, this fan improves comfort, supports productivity, and helps reduce HVAC strain.

Industrial Fan SD7PRO+ Specification

• Model: SD7PRO+

• Fan Type: HVLS Ceiling Fan

• Blade Count: 5 Blades

• Airfoil Diameter: 7 ft

• Airfoil Material: Injection Molded Poly Resin Fiber Blend

• Airfoil Width: 5" – 8"

• Recommended Spacing: 40 ft

• Maximum Coverage Area: 11,500 sq ft

• Sound Level (High): Under 55 dBA

• Hanging Weight: 105 lbs

• Maximum Torque: 27 ft/lb

• Motor Type: Permanent Magnet Synchronous Motor (PMSM)

• Horsepower Rating: 1.0 HP

• Operating Temperature Range: 32°F – 140°F

• 110V–120V Single Phase: 7.6 A

• 208V–240V Single Phase: 3.9 A

• 208V–240V Three Phase: 3.4 A

• 400V–480V Three Phase: 2.0 A

• Input Power: 110V, 1 Phase

• Main Controller: Variable Frequency Drive, IP66 Rated

• Fire & Sprinkler Compliance: NFPA 13 & NFPA 72

• Warranty: 10 Years Mechanical / 5 Years Motor / 1 Year VFD

SD7PRO+ 5-Bladed HVLS Industrial Fan Special Features

• 5 blade HVLS fan design for powerful air movement

• Covers areas up to 11,500 sq ft

• Energy-efficient operation with low power usage

• Quiet performance under 55 dBA

• Heavy-duty PMSM motor for long life

• Variable speed control with VFD controller

• Durable molded composite blades

• Helps reduce HVAC operating costs

• Ideal for industrial and commercial buildings

• NFPA compliant for sprinkler systems

• Long-term multi-year warranty protection

SD7PRO+ Manuals

  SD7PRO+ Spec Sheet
