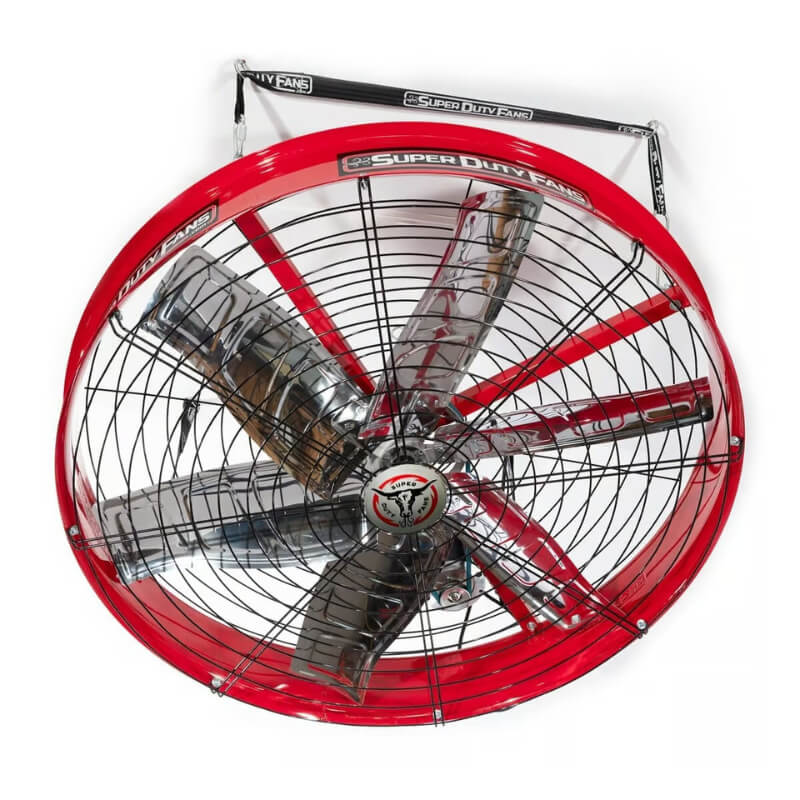

Experience unparalleled airflow with the Super Duty SD5V industrial ceiling fan, engineered for expansive warehouses, production lines, and commercial spaces. Powered by a totally-enclosed 1.5 HP TEFC inverter motor and a VFD wall-mounted speed control, the SD5V delivers massive, reliable ventilation year-round. Its variable speed feature stirs warm air during winter and maximizes cooling in summer, all while operating in extreme conditions for years without compromise.
Designed for optimal performance at 18–30 feet mounting height (minimum 10 feet clearance from floor and 3 feet from ceiling), the SD5V creates a consistent breeze over large areas. For production lines, install multiple fans in series at a 30° angle—spacing each unit 60 feet apart—to channel fresh air through your facility. Choose between Krupp stainless steel blades for a 60′ wide diffused pattern or red composite lineal blades for a high-velocity 120′ long throw, both at no extra cost.
Weight: 134 lbs
Motor: 1.5 HP / 120 V Inverter Motor / Class F Insulation / TEFC / UL
Diameter: 59″
Controls: Variable Speed VFD 115/230 VAC (115 V input standard)
Mounting System: Quad-strap system with four 48″ web straps (4,300 lb capacity each), four eyebolts, four carabiners
Power Cord: 12′ input lead for controller; 3-wire, 16 gauge SJOOW with UL-listed 3-prong plug
Blades: 6 Krupp stainless steel, balanced and grooved for noise reduction
Shroud: Formed steel, powder-coated gloss red
Noise Level: 43.4 dB (measured 20′ from fan center at 20′ height)
Drive: Belt drive with cast pulley and high-performance Kevlar belt
Blade Options: Krupp stainless steel or red lineal distance composite
Heavy-Duty TEFC Motor: Fully-enclosed design for longevity in extreme environments
Variable Speed VFD Control: Season-specific airflow settings for heating and cooling needs
Dual Blade Choices: Wide, diffused airflow or narrow, long-distance throw at no additional cost
Optimized Hanging Height: Ideal 18–30 ft installation for maximum coverage
Series Installation Ready: Align fans at 30° angle with 60 ft spacing for efficient ventilation
Noise-Reducing Design: Grooved blades and balanced assembly for quieter operation
Durable Construction: Powder-coated shroud and Kevlar-reinforced belt drive for reliability
