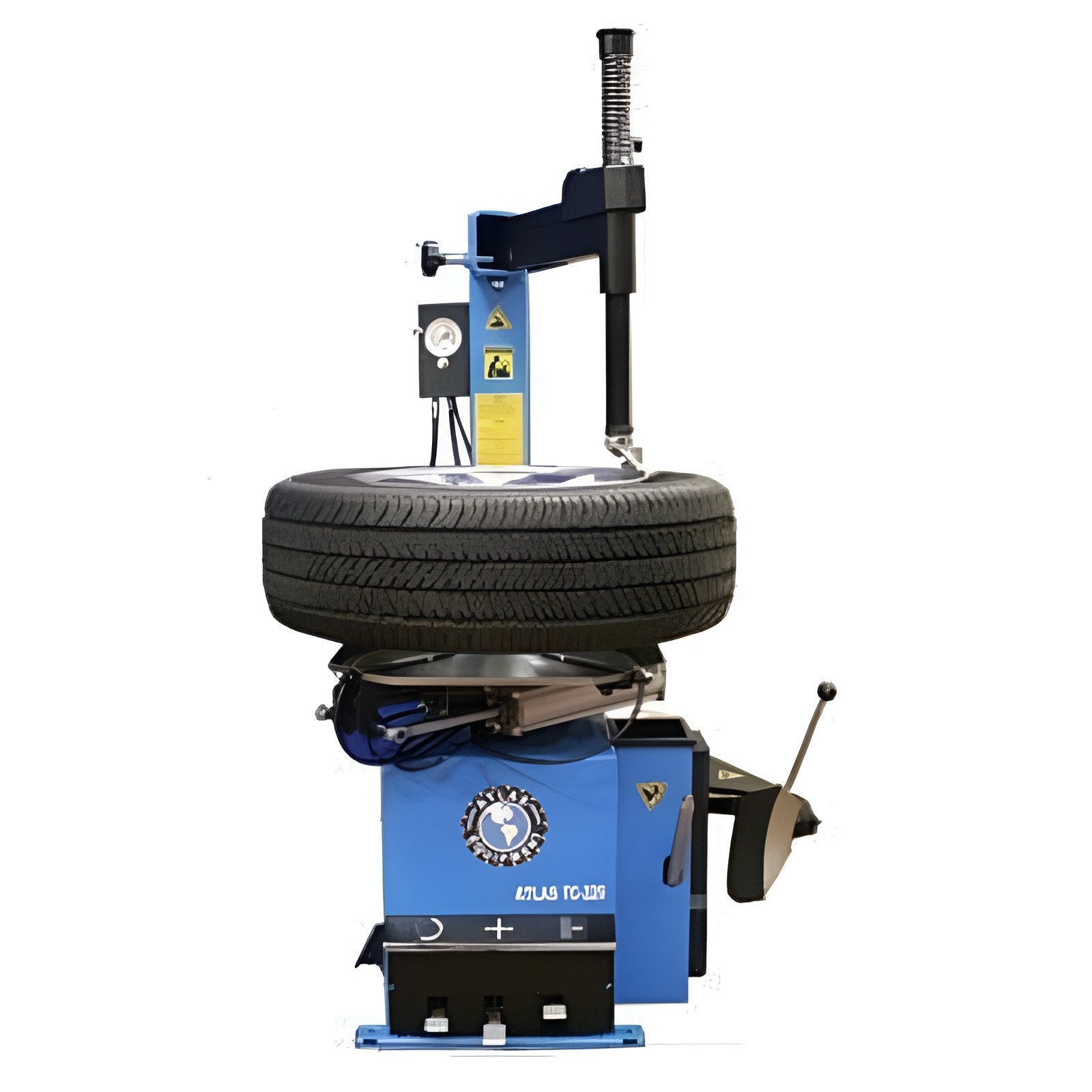

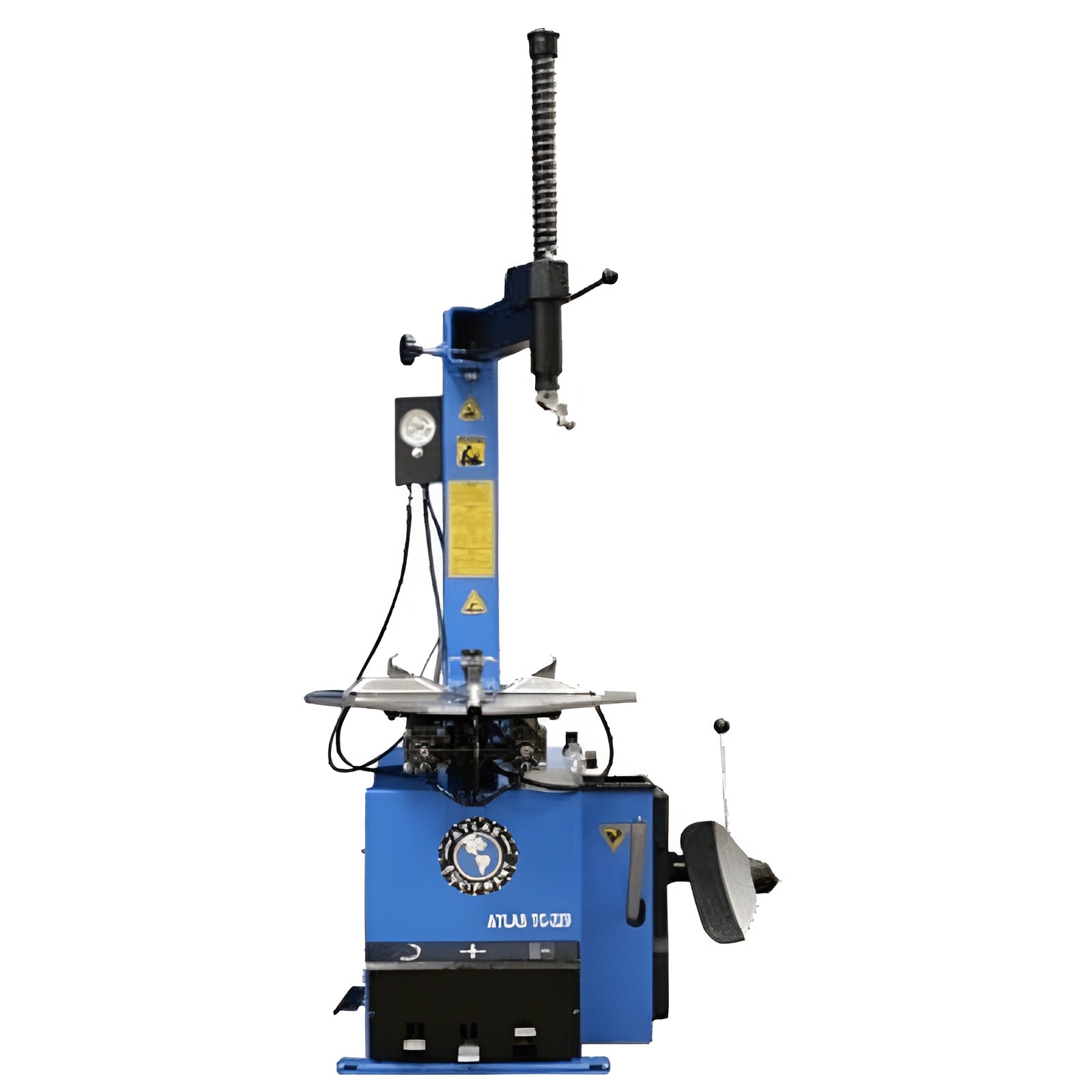

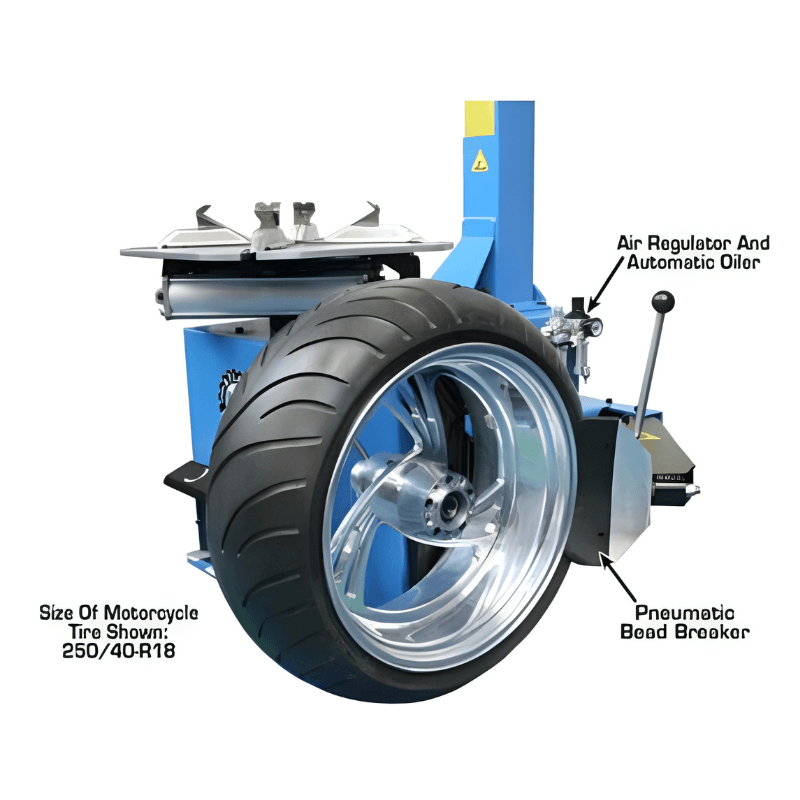

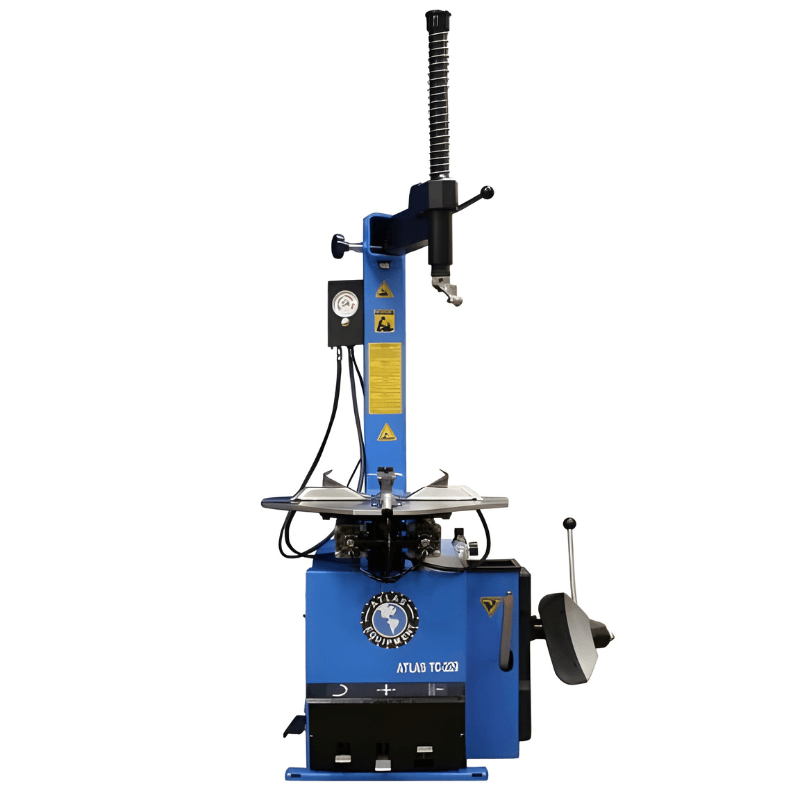

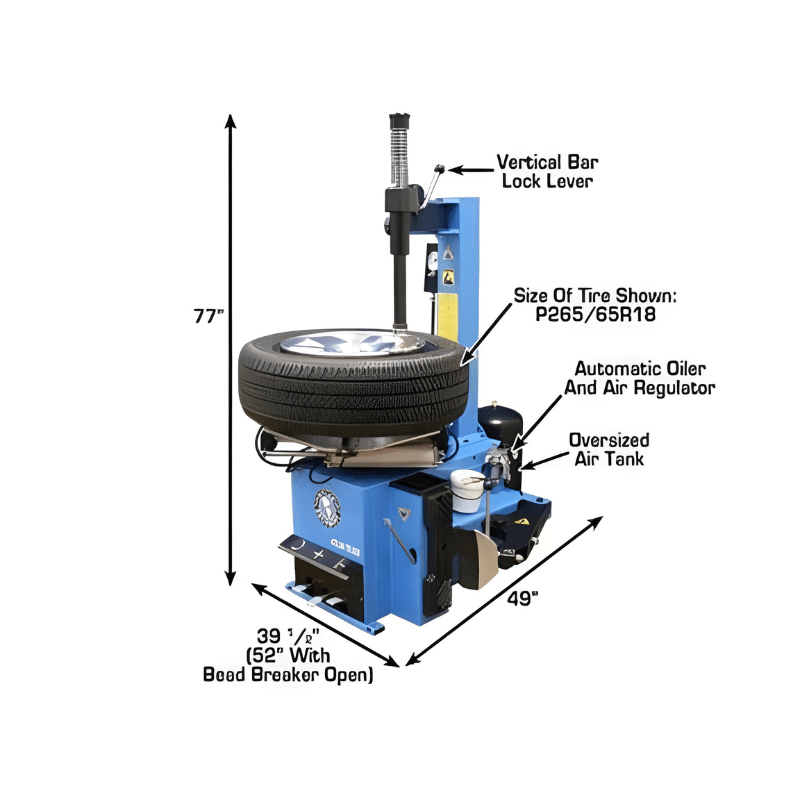

TC229 Tire Changer By Atlas
Yearning for a tire-changing process that’s quick, efficient, and hassle-free? Enter the Atlas® TC229 rim clamp tire changer, designed to make your life easier! Ideal for homeowners, small commercial garages, and ATV/motorcycle dealerships, this robust machine features an innovative "Beadblaster" system that effortlessly inflates challenging tires. With a maximum tire diameter of 39 inches and a maximum wheel width of 13 inches, the TC229 is versatile enough to handle a variety of tasks.
The TC229 is built for precision and reliability. It accommodates both alloy and steel wheels, ensuring your rims stay safe during the process. The powerful bead breaker, with a force of 5,500 lbs, can tackle even the toughest rusted beads, while the adjustable turntable jaws provide an optimal clamping range across three positions. The external locking rim dimensions range from 9 3/4" to 23 1/4", and the internal locking dimensions range from 11 5/8" to 25 1/4". With a robust 1 HP table motor delivering 885 ft/lbs of rotating torque, you can confidently take on any tire-changing job.
Tire Changer TC229 Specification:
- Rims: Steel, Aluminum, Alloy

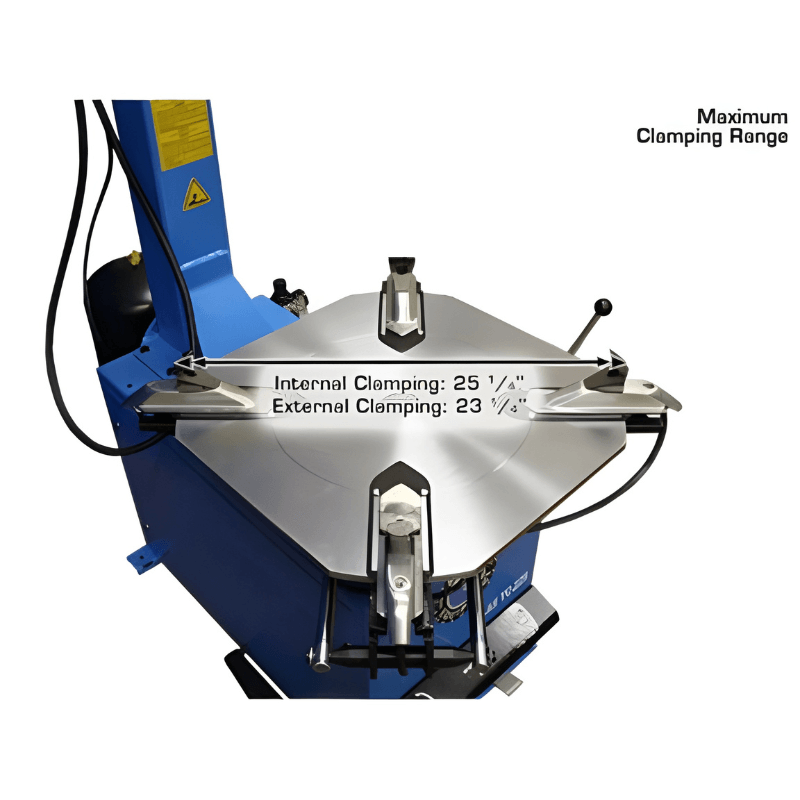

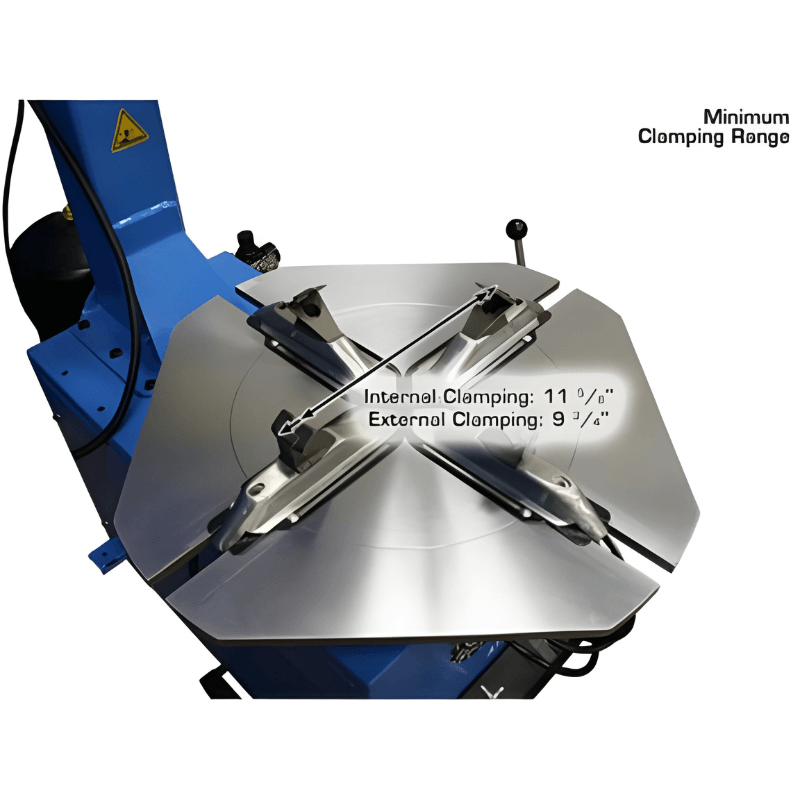

- External Locking Rim Dimension (3 Positions): 1) 9 3/4" - 21 5/8" 2) 10 3/4" - 22 1/2" 3) 11 5/8" - 23 1/4"
- Internal Locking Rim Dimension (3 Positions): 1) 11 5/8" - 23 1/4" 2) 12 5/8" - 24 1/4" 3) 13 1/2" - 25 1/4"
- Maximum Tire Diameter: 39"
- Maximum Wheel Width (Bead Breaker): 13"

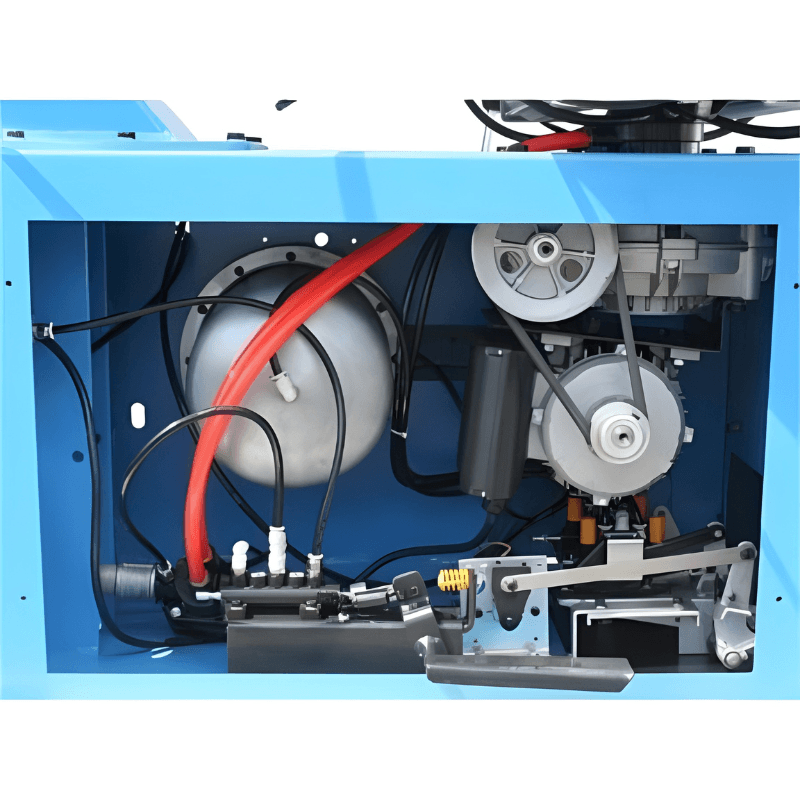

- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs
- Bead Breaker: 5,500 LB. Force
- Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
- Operating Voltage: 110volt

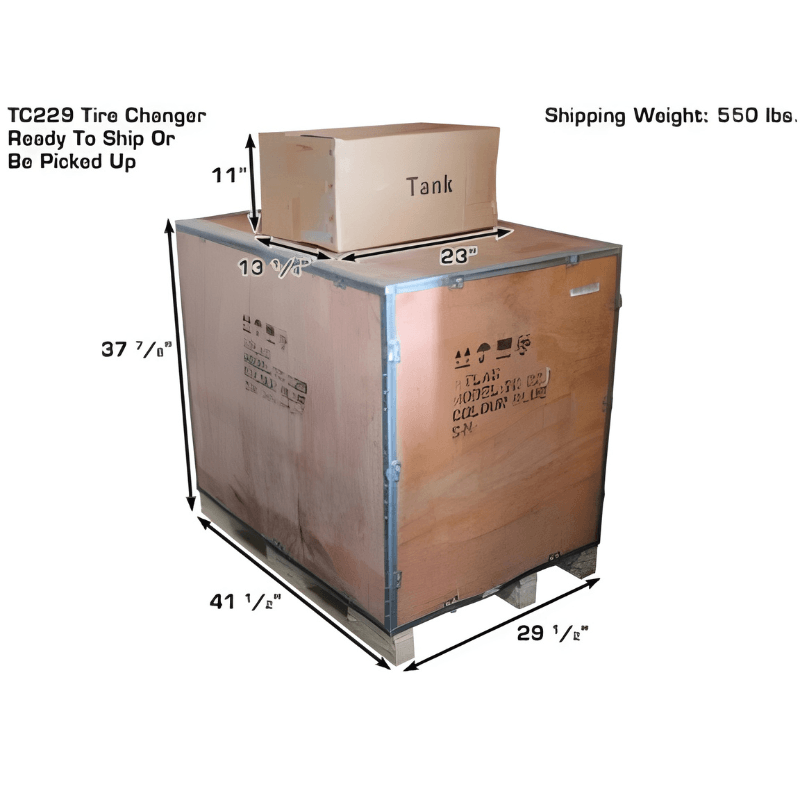

- Shipping Weight: 550 lbs.
TC229 TC229 Special Features:

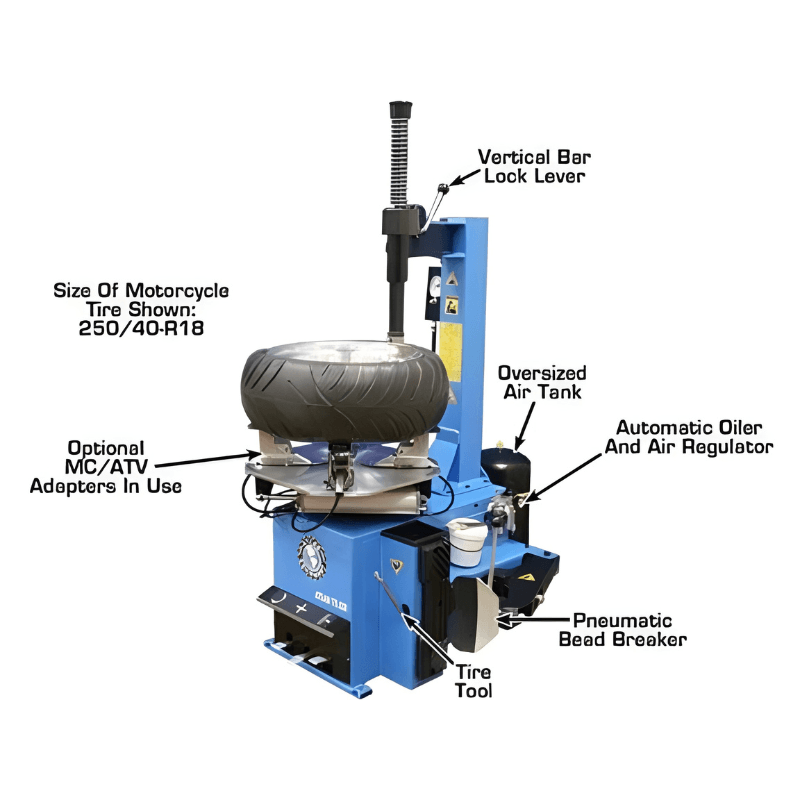

- Rim Clamp/Swing Arm Tire Changer
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable

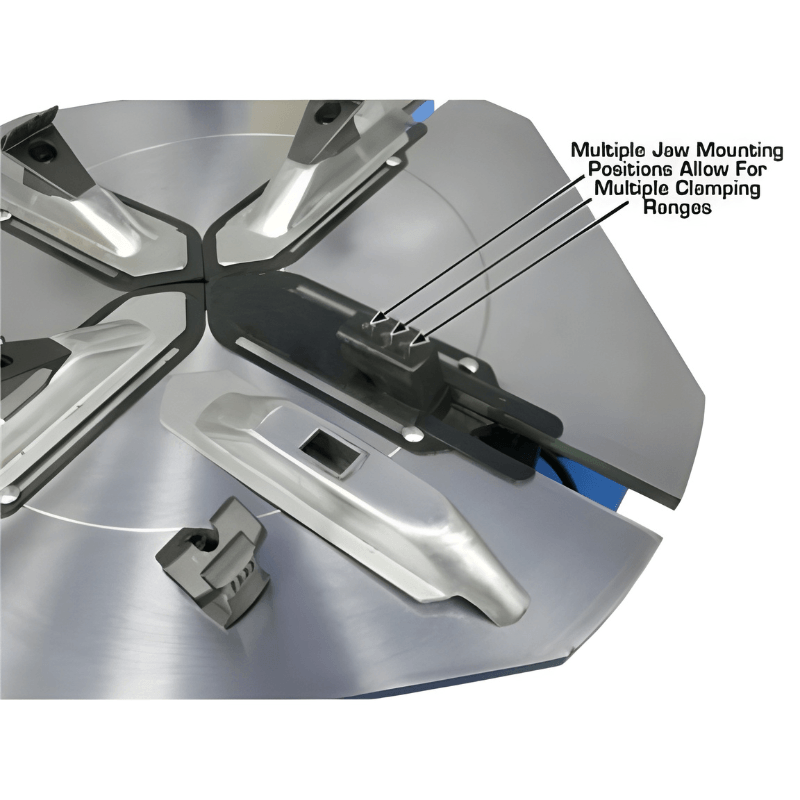

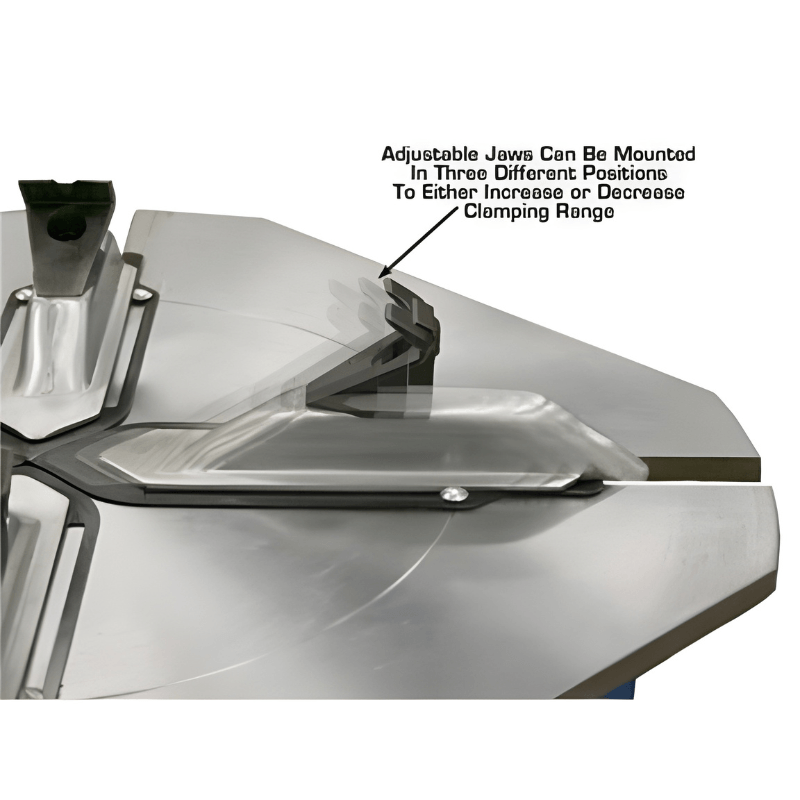

- Adjustable jaws, three mounting positions

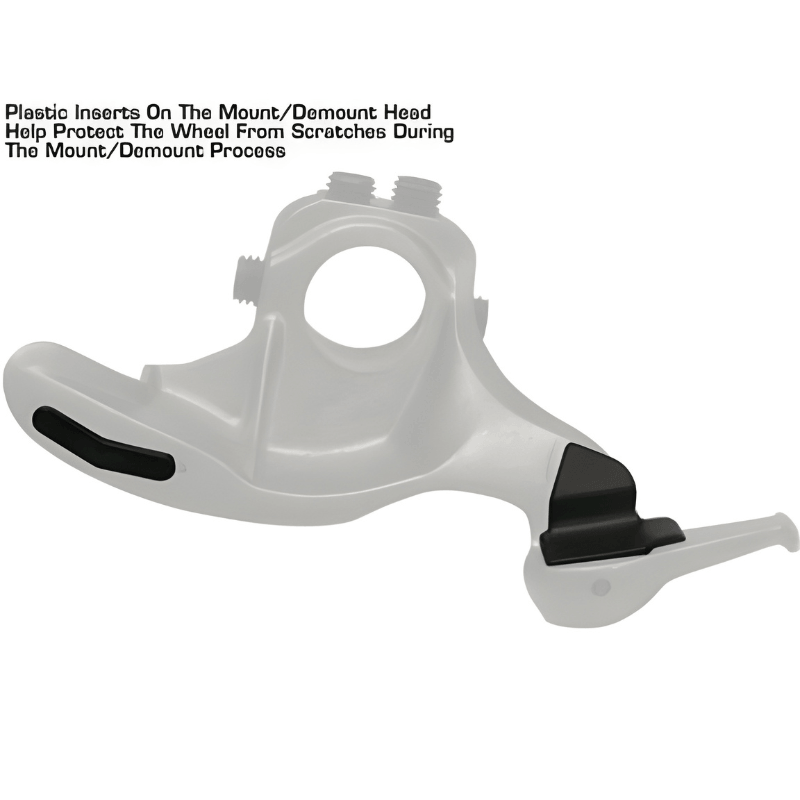

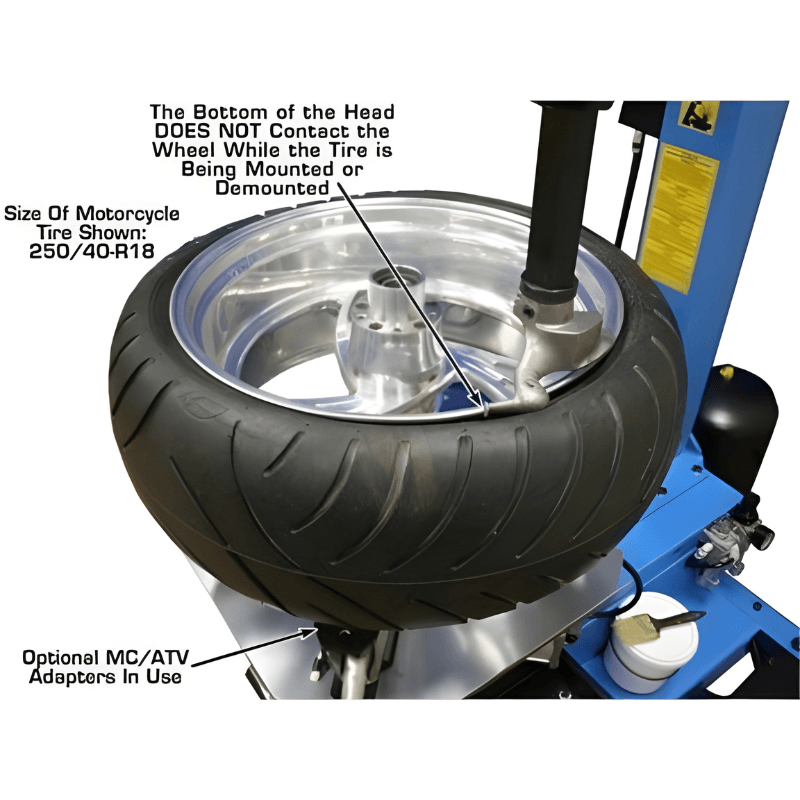

- Metal mount/demount head w/ metal roller or replaceable plastic inserts

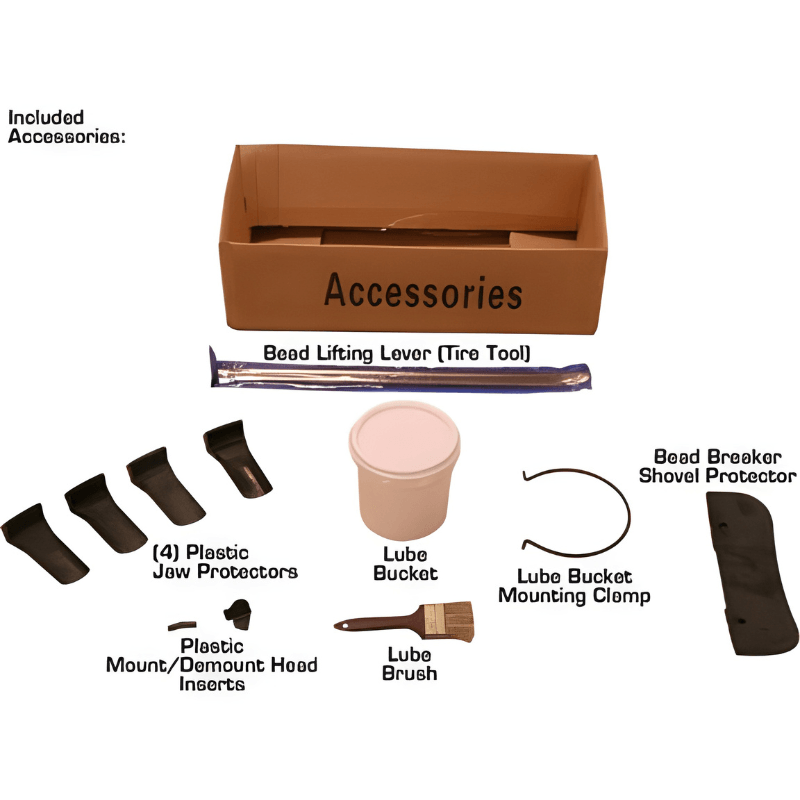

- Column mounted inflator box w/ gauge Included

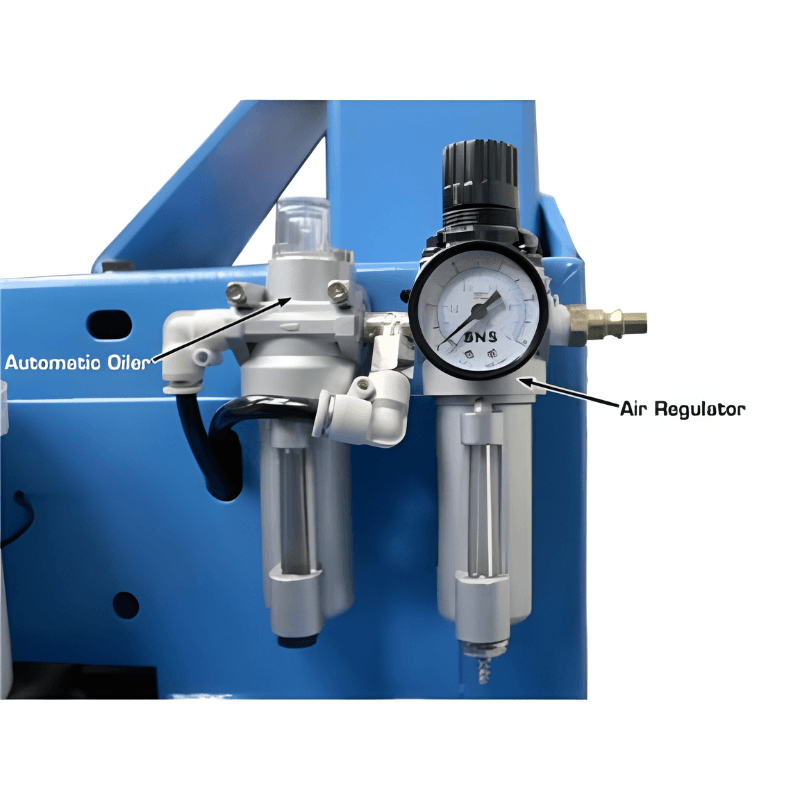

- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included

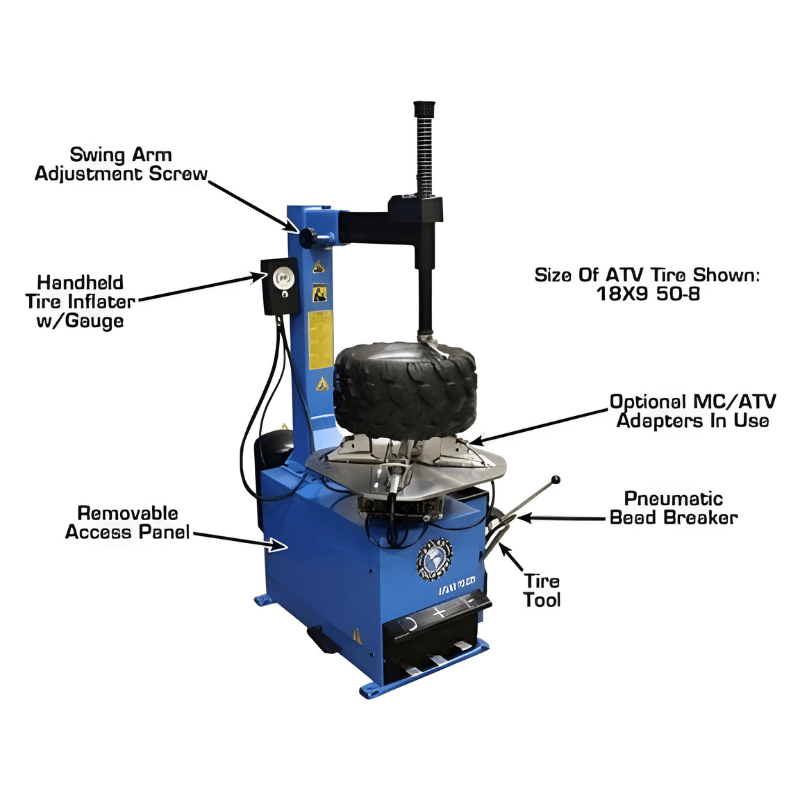

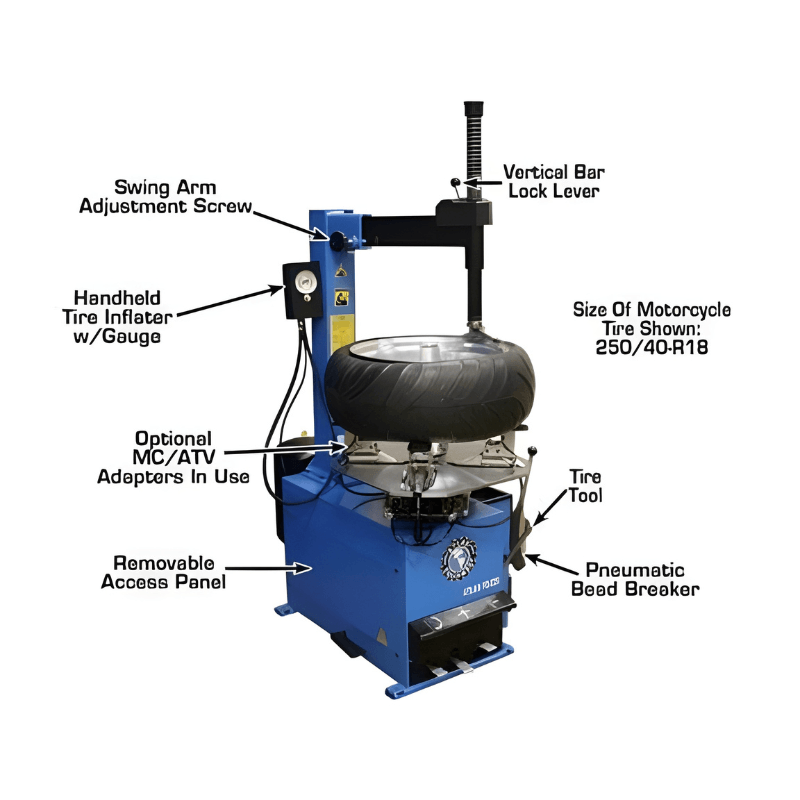

- Motorcycle and ATV adapters available (sold separately)

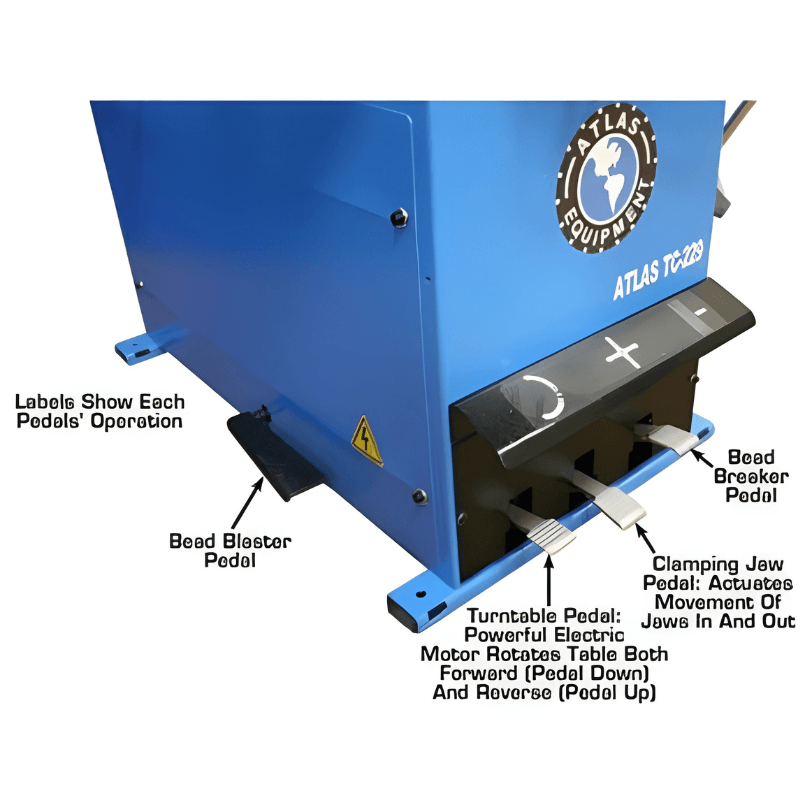

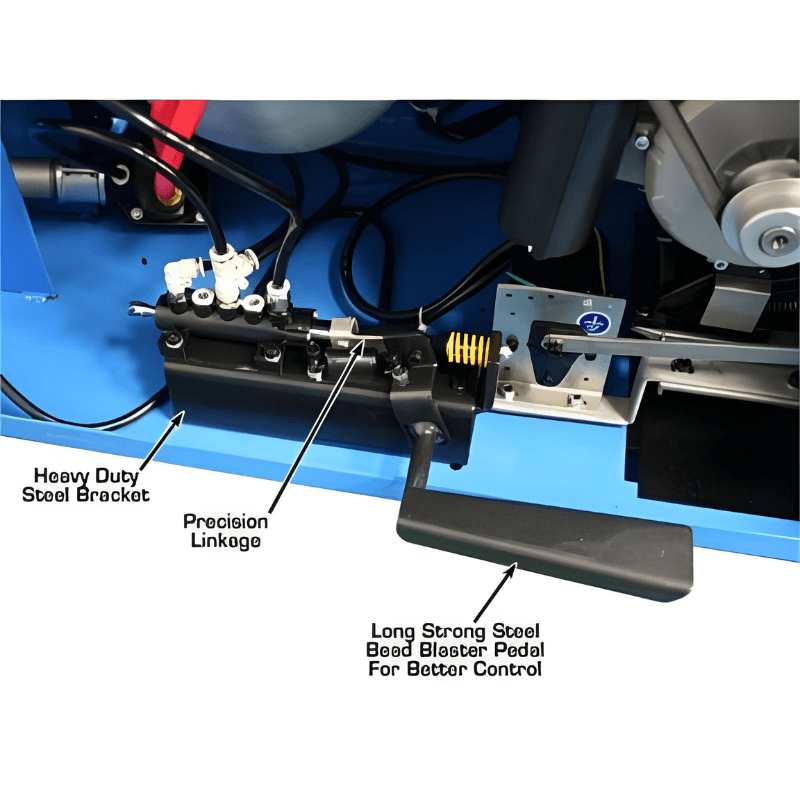

- Built in “Beadblaster”

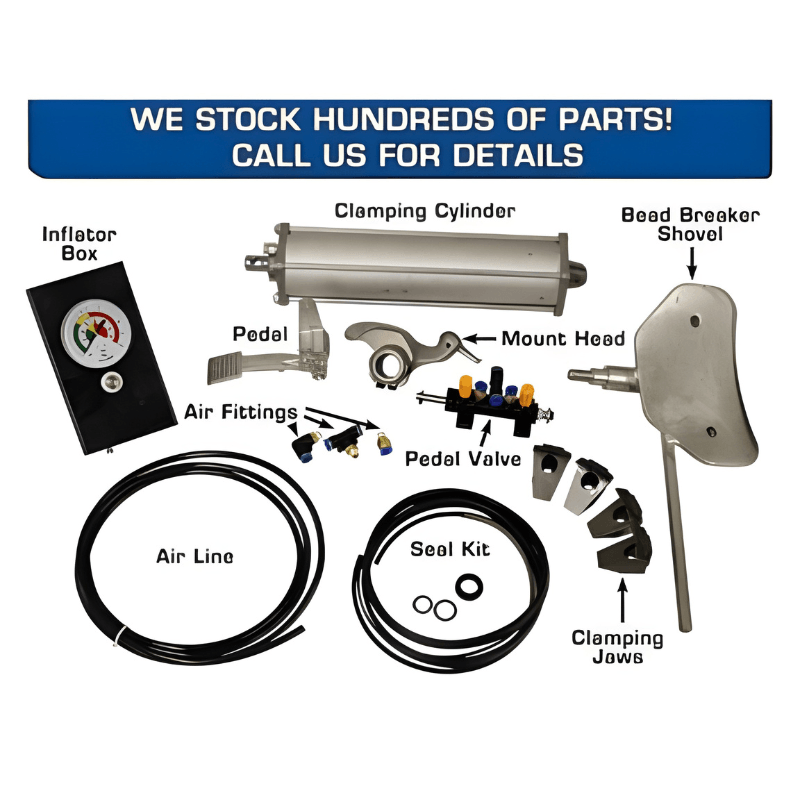

- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
- Optional item(Sold Separately)
- Deluxe ATV Adapters

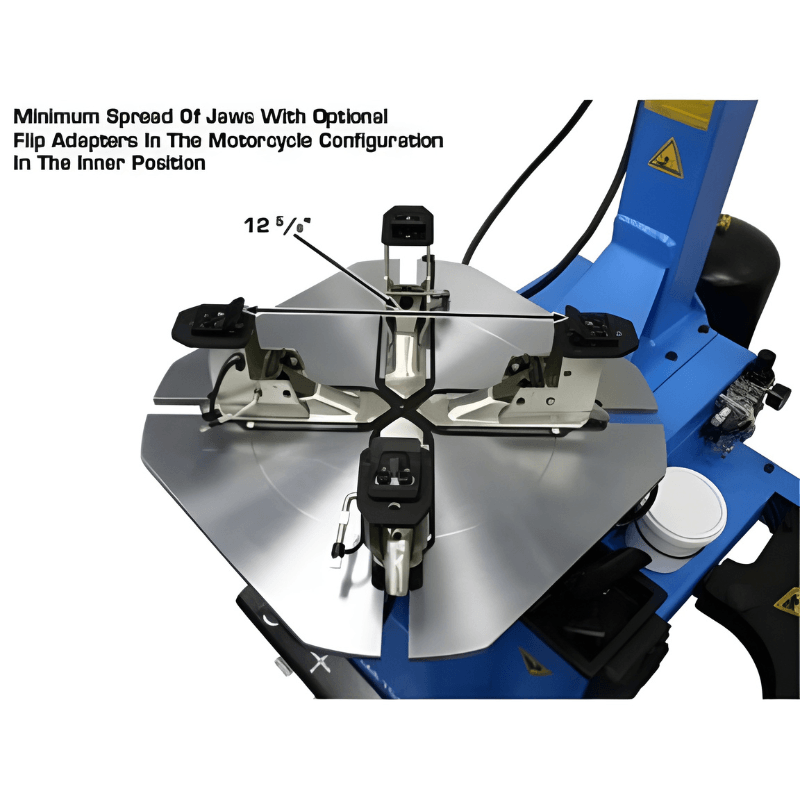

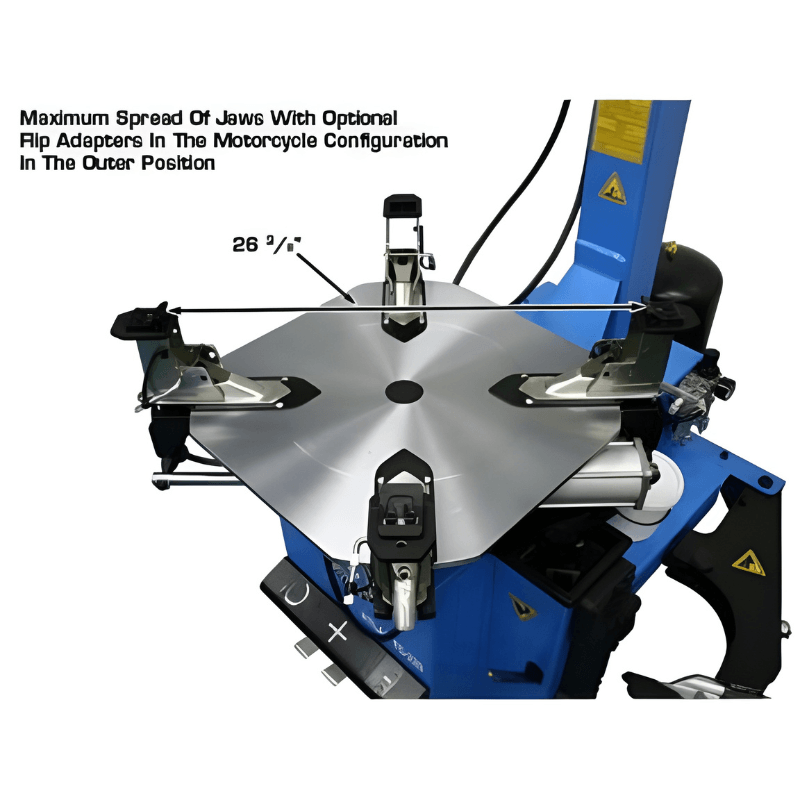

- Motorcycle-ATV Flip Adapters
- Deluxe Motorcycle Adapters
Atlas TC229 Documentation:
Atlas TC229 Tire Changer Product Manual
