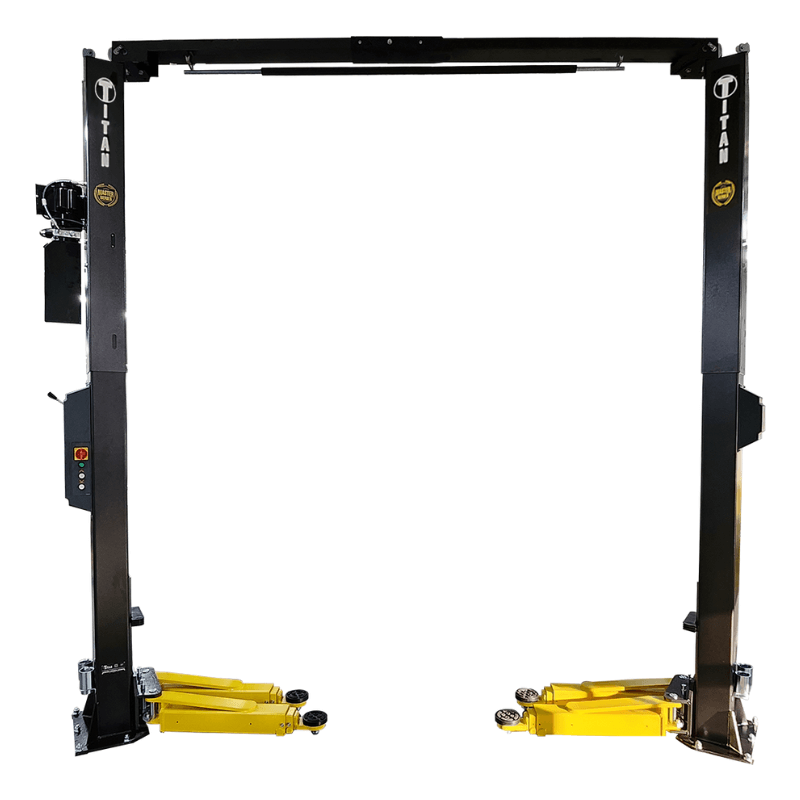

Titan HD2P-12KMSC 12,000lb 2 Post Lift - Master Series

HD2P-12KMSC 12,000lb 2 Post Lift by Titan

Looking for a heavy-duty 2-post lift that delivers unmatched strength, flexibility, and safety? The Titan HD2P-12KMSC Master Series 12,000 lb Two-Post Lift is engineered to meet the demands of both professional automotive shops and serious home enthusiasts. Built for superior performance, this lift features a 12,000 lb lifting capacity and direct-drive hydraulic cylinders for smooth, reliable operation. With the ability to configure the columns in either symmetric or asymmetric layouts, this lift easily adapts to various garage designs and vehicle types, making it a versatile solution for servicing everything from passenger cars to light trucks.

The HD2P-12KMSC is equipped with a premium Bucher Hydraulics power unit, single-point safety lock release, and overhead shut-off bar with limit switch for enhanced protection. User-friendly features like single-button operation, electrical disconnect, and two selectable lift heights (154” or 176”) make daily operation simple and efficient. Finished in a rugged powder-coated hammered dark coating and backed by an industry-leading warranty package, this Titan Master Series lift delivers long-term reliability, safety, and exceptional value.

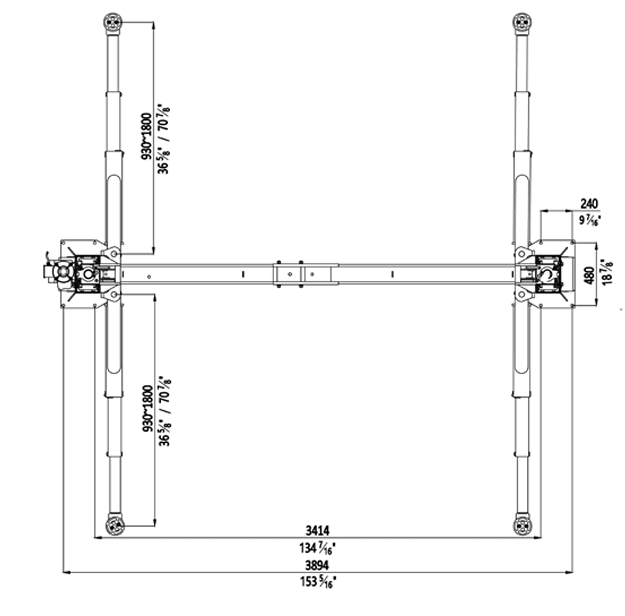

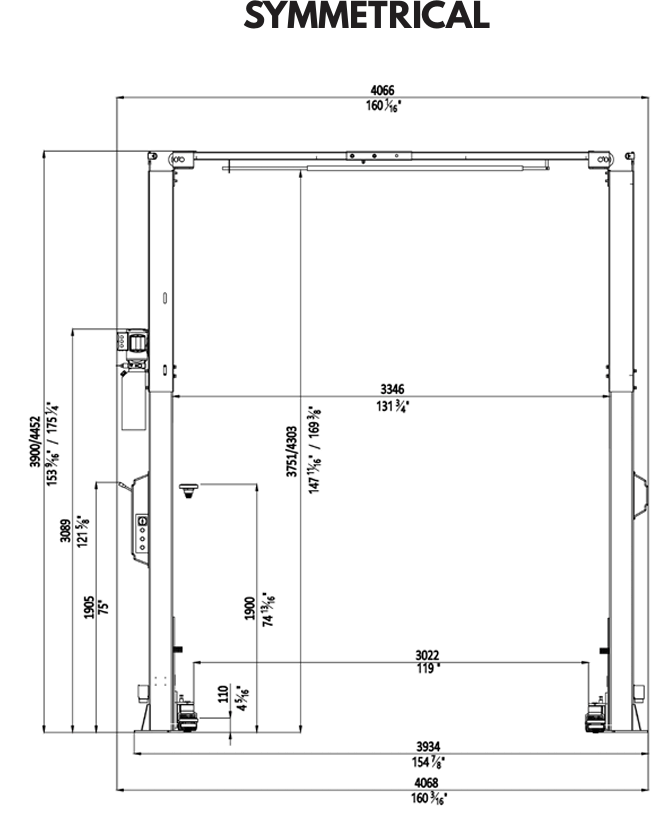

Symmetrical Column Configuration Specifications

• Lifting Capacity: 12,000 lb

• Outside of Baseplates (Width): 154-7/8”

• Inside of Columns (Width): 131-3/4”

• Overall Width w/ Motor: 160-3/16”

• Drive-Thru Clearance: 119”

• Lifting Height: 4-5/16” – 74-13/16”

• Overall Height: 153-9/16” or 175-1/4”

• Power Unit: 220V, 60Hz, 1Ph, 2.2kW

• Shipping Dimensions: 113"L x 23"W x 47"H - 2,190lbs

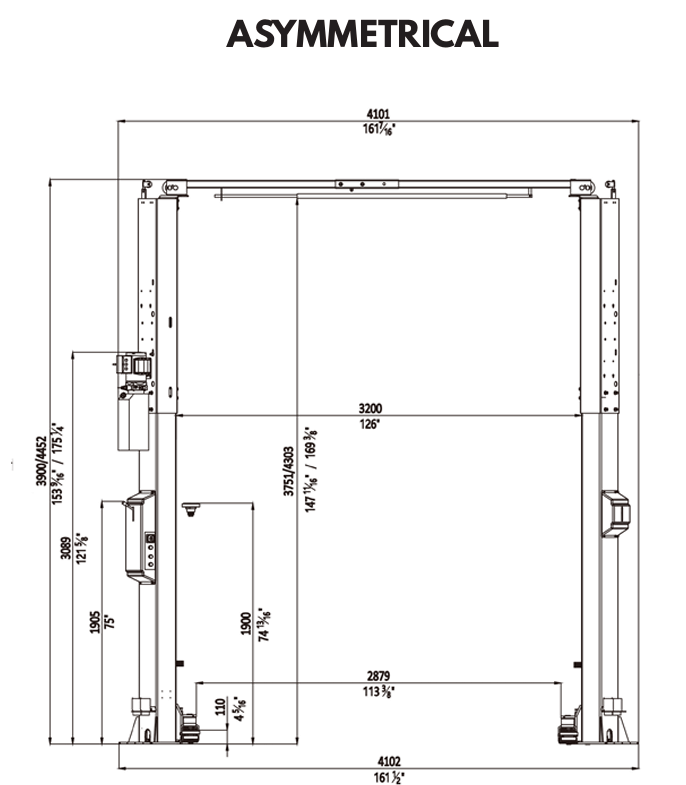

Asymmetric Column Configuration Specifications

• Lifting Capacity: 12,000 lb

• Outside of Baseplates (Width): 161-1/2”

• Inside of Columns (Width): 126”

• Overall Width w/ Motor: 161-1/2”

• Drive-Thru Clearance: 113-3/8”

• Lifting Height: 4-5/16” – 74-13/16”

• Overall Height: 153-9/16” or 175-1/4”

• Power Unit: 220V, 60Hz, 1Ph, 2.2kW - Motor: 3 HP

• Shipping Dimensions: 113"L x 23"W x 47"H - 2,190lbs

HD2P-12KMSC 12,000lb 2 Post Lift Features

• 12,000 lb lifting capacity

• Symmetric or asymmetric column configurations

• Two lift height options: 154” or 176”

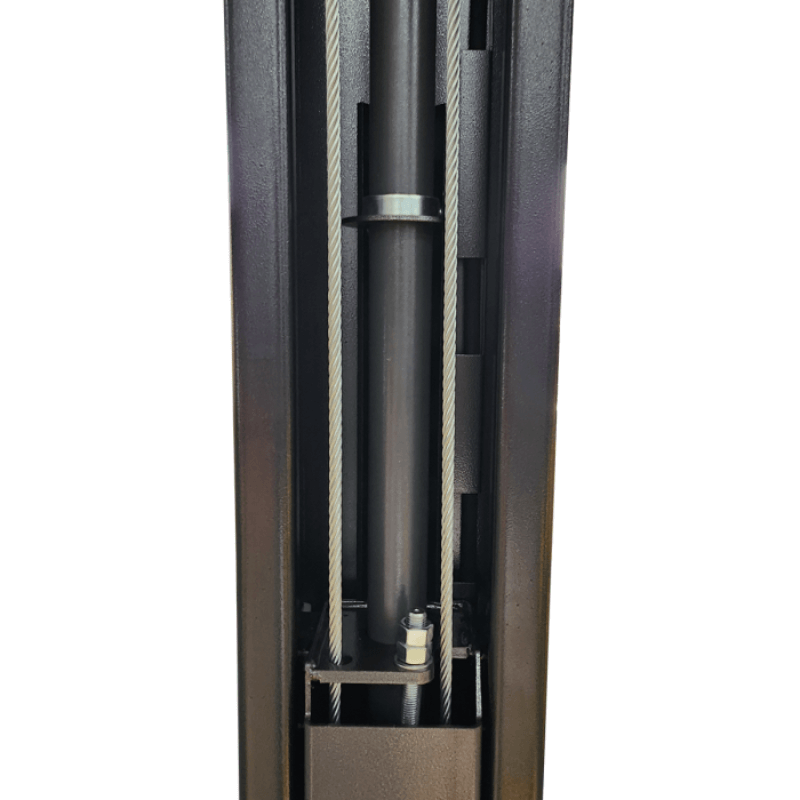

• Direct-drive hydraulic cylinders for smooth and powerful lifting

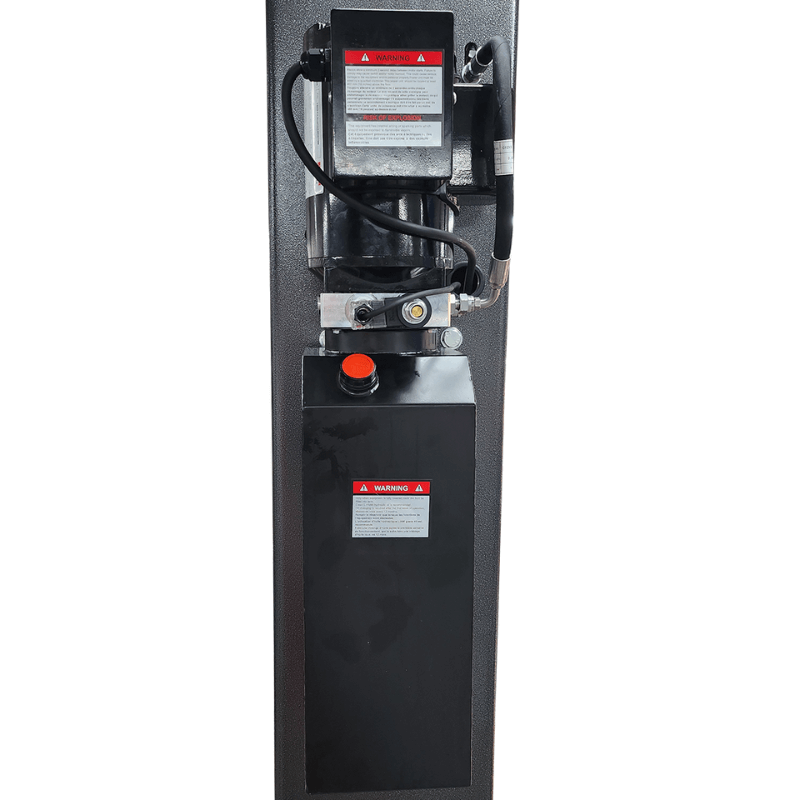

• Premium Bucher Hydraulics power unit

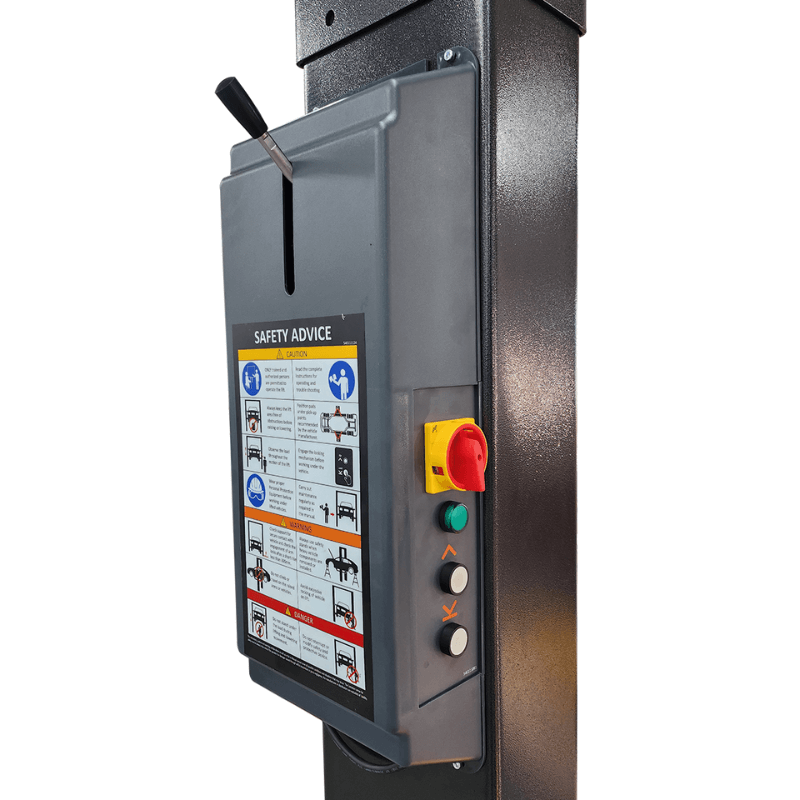

• Single-button operation for easy use

• Power-on green LED indicator

• Single-point safety lock release

• Overhead shut-off bar with limit switch

• Carriage limit switch for additional safety

• Single-lever lowering mechanism

• Electrical disconnect included

• Serviceable arm restraint locks

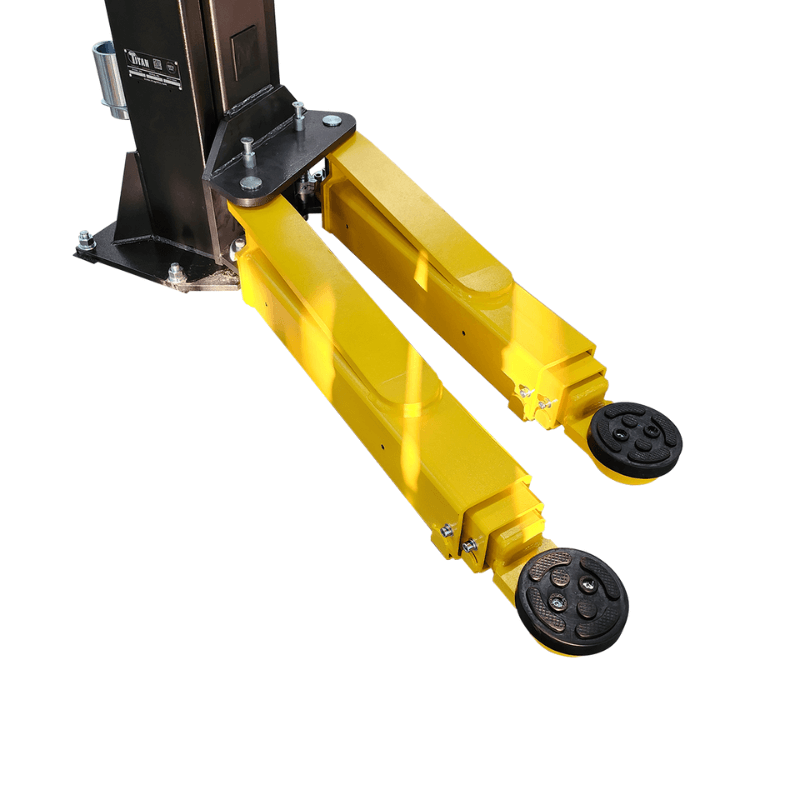

• Four 3-stage lift arms for superior reach and versatility

• European-style carriages for precise lifting

• Thread-up lifting pads for easy height adjustments

• 4” truck adapters included

• Rubber door guards for vehicle protection

• Steel hydraulic oil reservoir for long-term durability

• Powder-coated hammered dark finish

• 5-Year Structural Warranty

• 2-Year Electric / Hydraulic Warranty

• Lifetime Warranty on Nylon Slide Blocks

HD2P-12KMSC Manual

   HD2P-12KMSC Installation and Operations Manual

  HD2P-12KMSC Spec Sheet
