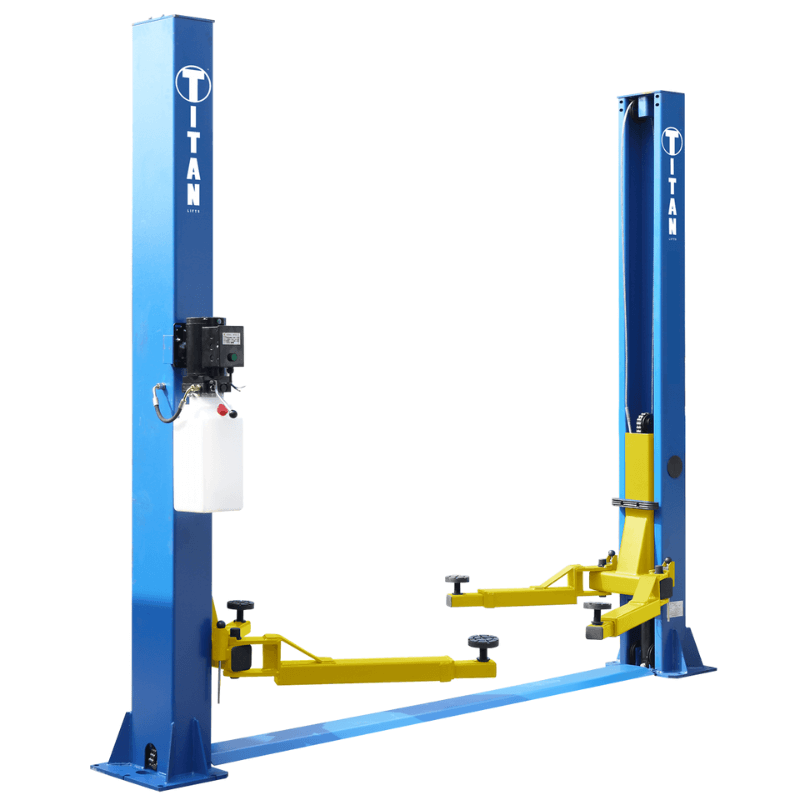

Titan HD2P-9000AF 2-Post Lift Gen-2

HD2P-9000AF 2-Post Lift Gen-2 by Titan

The HD2P-9000AF 2-Post Lift Gen-2 by Titan is a commercial-grade automotive lift designed to meet the demands of professional service shops and dedicated auto enthusiasts. Built for strength and reliability, this 9,000 lb. capacity lift provides exceptional performance for a wide range of vehicles. Its symmetric arm design ensures balanced lifting, while the dual 3” cylinders and low-friction chain rollers allow for smooth and controlled operation. The low-profile floorplate protects hoses and cables, enhancing both safety and convenience. With a 220V power unit, this lift is adaptable to most commercial applications, making it a versatile addition to any garage or workshop.

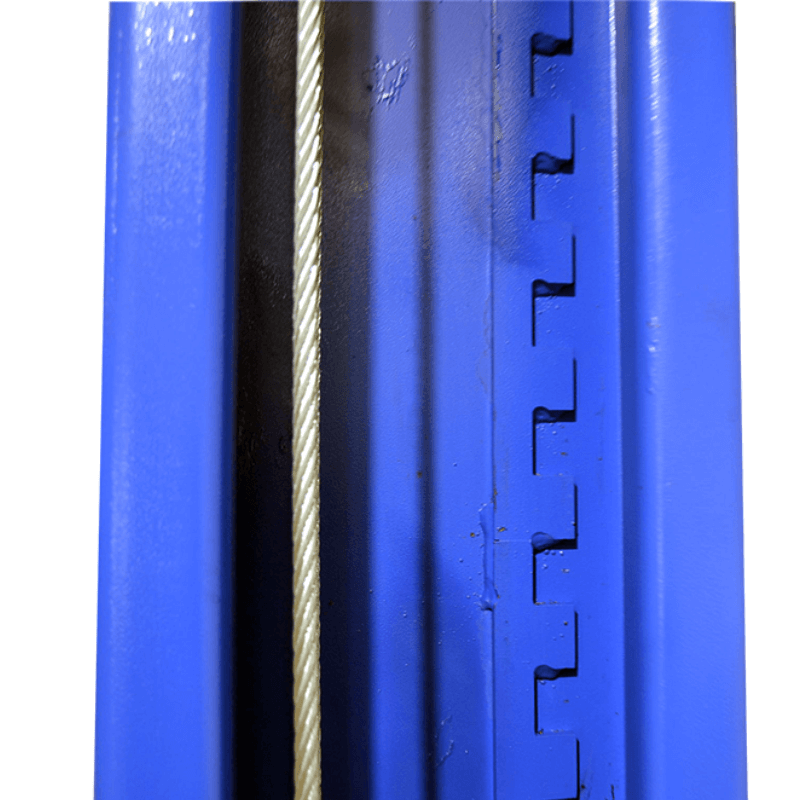

Engineered for durability, the Titan 2-post lift features heavy-duty leaf chains, steel pulleys, and a high-strength cable equalization system, ensuring years of trouble-free service. To maintain structural integrity, it requires installation on a concrete floor with a minimum thickness of 4 inches at 3,000 PSI strength. The rubber door guards help prevent damage to vehicles, while the stackable truck adapters and automatic arm restraints make lifting safer and more efficient. Finished with a durable powder-coated coating, this lift is built to withstand daily wear and tear, making it a reliable and long-lasting solution for vehicle maintenance and repair.

2 Post Lift HD2P-9000AF Specifications

• Overall Height: 112"

• Overall Width: 134-5/8"

• Width Between Posts: 110-3/8"

• Drive-Thru Width: 100-5/8"

• Minimum Pad Height: 4-5/8"

• Maximum Pad Height: 72-3/4"

• Lifting Speed: 45 seconds

• Lifting Capacity: 9,000 lb

• Concrete Requirements: Minimum of 4"-3000psi

• Power Unit: 220V / 1PH / 60Hz / 20 AMP

• Motor: 3HP

• Shipping Length: 115"L x 19"W x 45"H - 1,300lbs

HD2P-9000AF 2-Post Lift Special Features

• Commercial-grade construction for professional and personal use

• 9,000 lb lifting capacity to accommodate a variety of vehicles

• Symmetric arm design for balanced and secure lifting

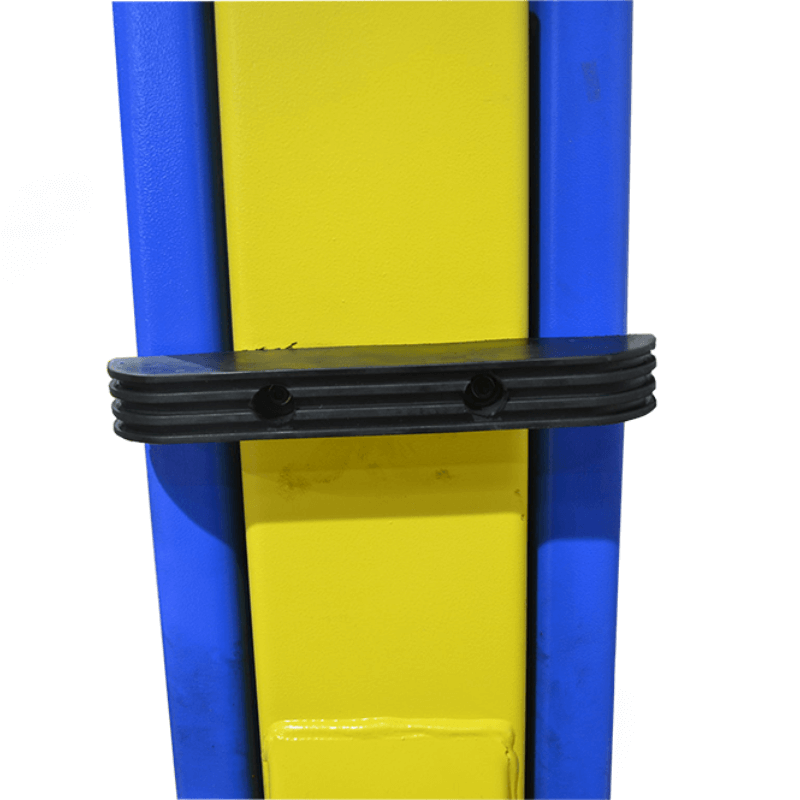

• Rubber door guards to protect vehicles from accidental contact

• Dual-point safety release for enhanced operational safety

• Durable powder-coated finish for long-lasting corrosion protection

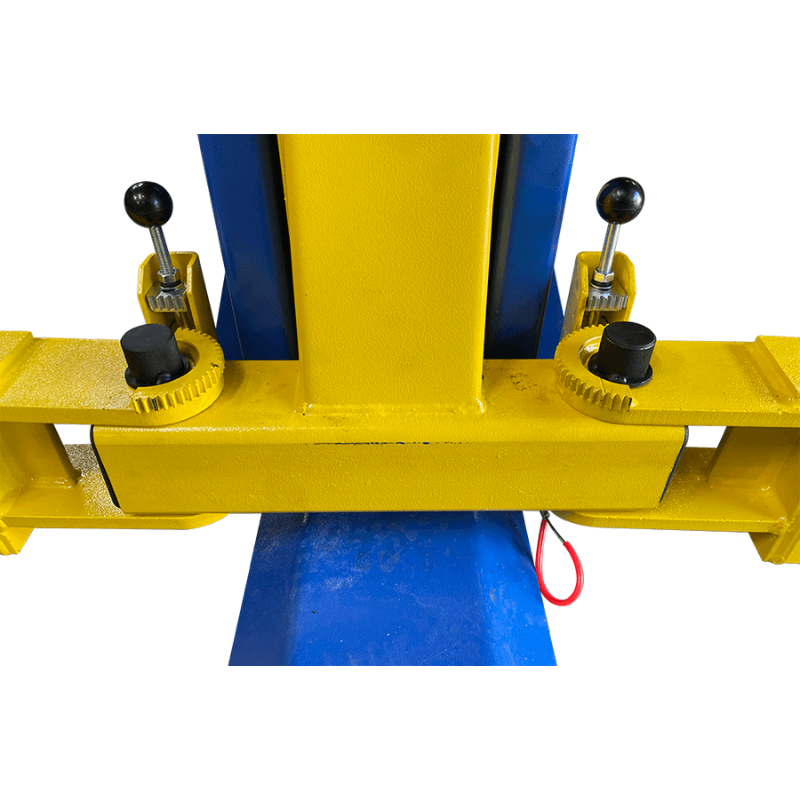

• Low-profile lifting arms with automatic arm restraints for added safety

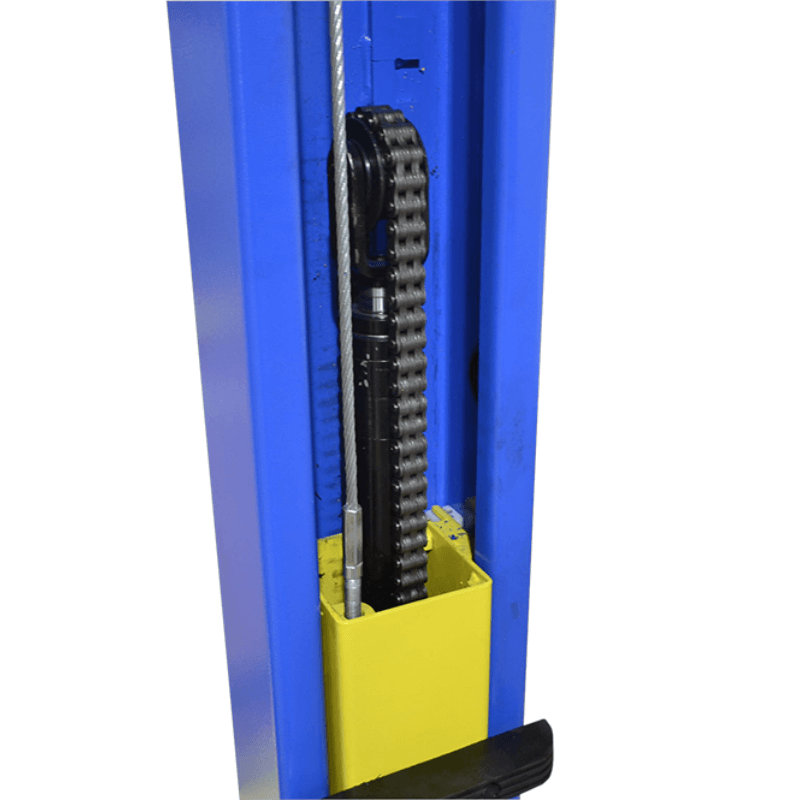

• Dual 3” hydraulic cylinders with low-friction chain rollers for smooth, reliable lifting

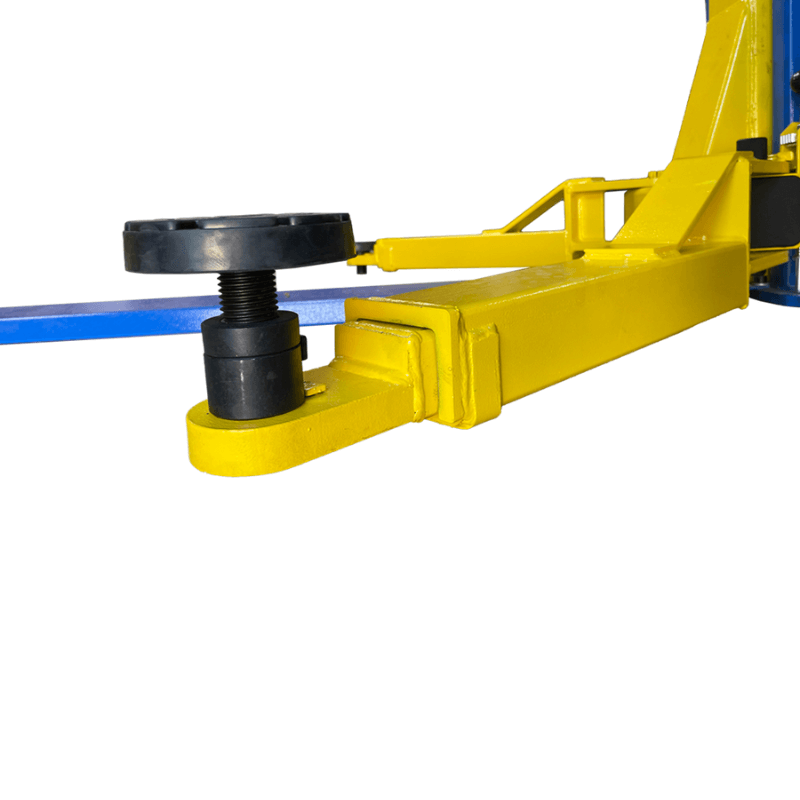

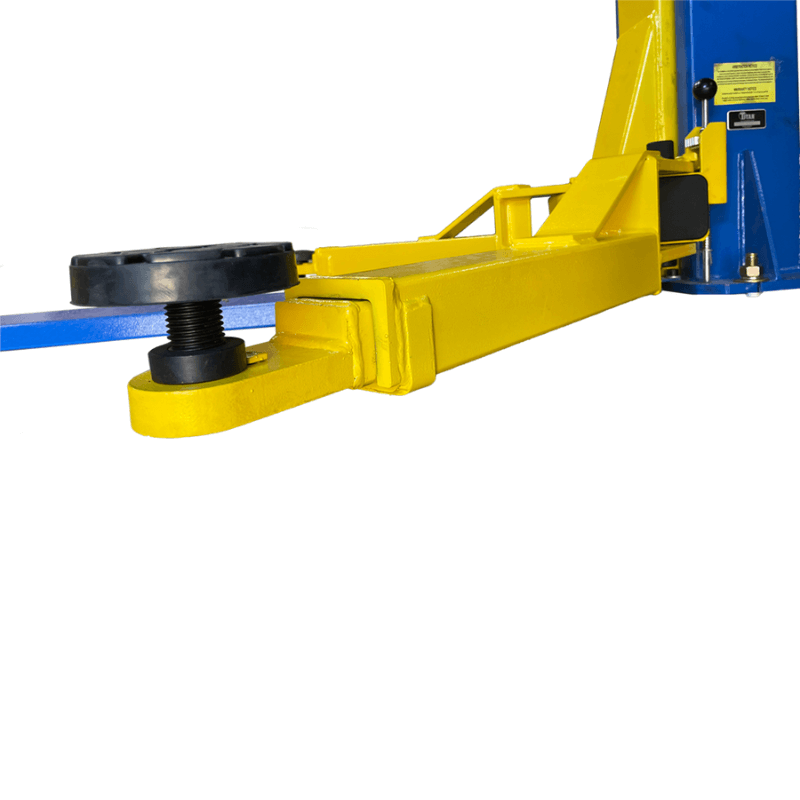

• Threaded lifting pads for easy height adjustment

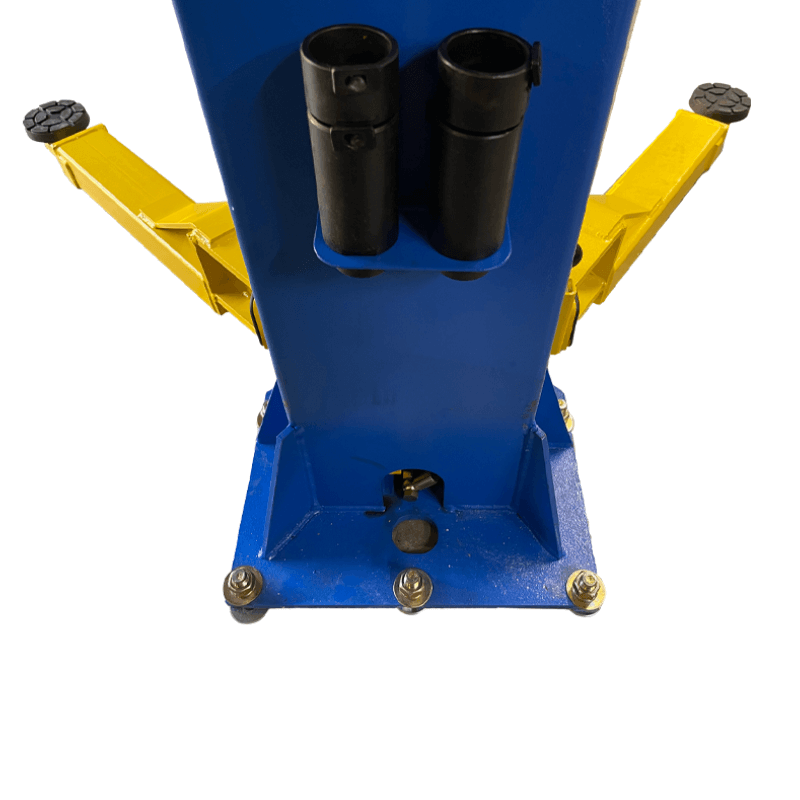

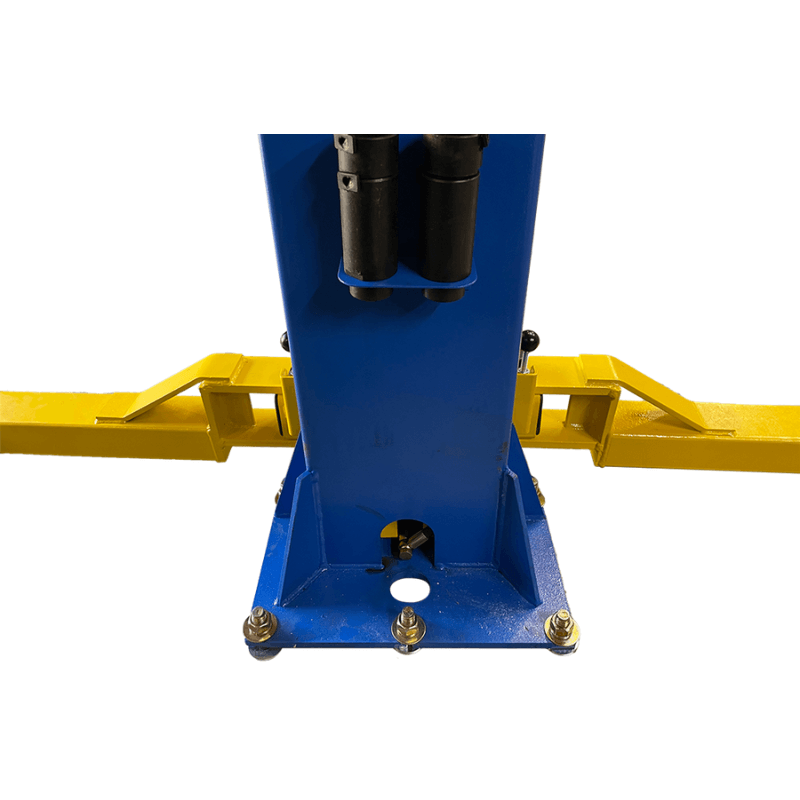

• Stackable truck adapters to accommodate different vehicle sizes

• Low-profile floorplate to protect hoses and cables from damage

• Space-saving power unit mounting bracket for an organized workspace

• Sleek internal hose routing with integrated hose guards to reduce clutter

• Anchor bolt kit included for secure installation

• Warranty - 5 Year Structural / 1 Year Parts

HD2P-9000AF Manual

  Titan HD2P-9000AF Manual

   Titan HD2P-9000AF Brochure
