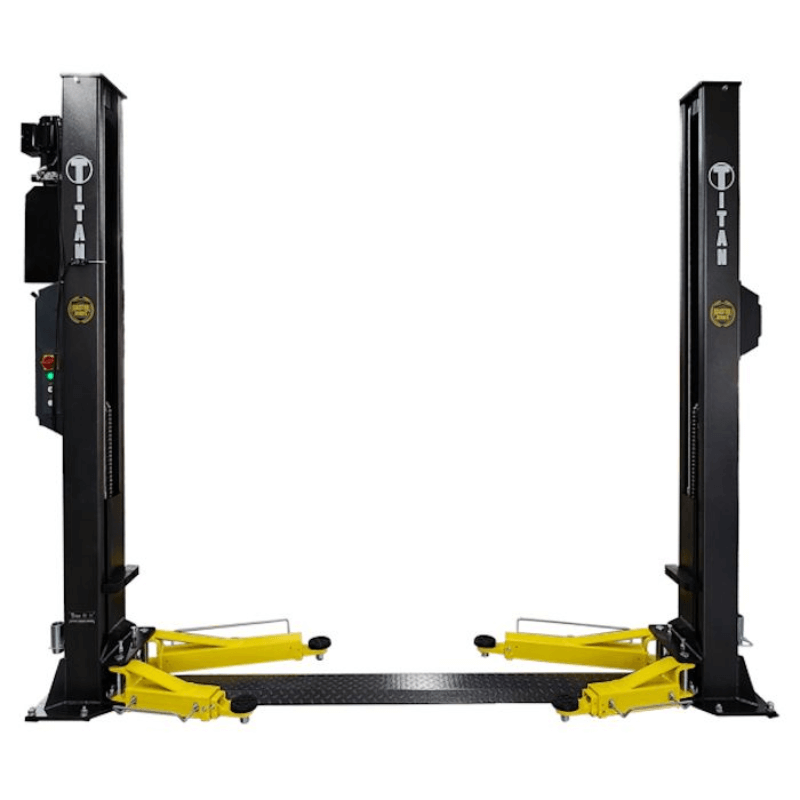

Titan HD2P-9KMSF 9,000lb 2 Post Lift - Floor Plate

SKU TTN*HD2P-9KMSF
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Typically Ships in 3-7 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
Save $320.00
Original Price $3,020.00
Current Price $2,700.00

Delivery Options

Flat Rate Shipping Fee Based on Nationwide Averages - Call or text us for a custom delivery quote based on your address!

Notify me when back in stock

HD2P-9KMSC 9,000lb 2 Post Lift - Floor Plate by Titan

Craving that pro-garage vibe without leaving your home? The Titan HD2P-9KMSC 9,000lb 2-Post Lift with Floor Plate has got you covered. Designed for both seasoned mechanics and hardcore car enthusiasts, this beast offers a 9,000 lb lifting capacity and a max lift height of 81-3/4” with adapters, making it perfect for just about any vehicle. Got a low-clearance garage? No worries – the floor plate design ensures stability while keeping everything low and accessible. And thanks to its direct-drive hydraulic cylinders, you’ll experience smooth, reliable lifting every time.

What’s cool about this lift? It’s packed with handy extras like 3-stage front arms for better reach, threaded lifting pads for fine-tuning, and a single-point lock release for quick, easy operation. Safety isn’t an afterthought either – it comes with an overhead shut-off bar, carriage limit switch, and steel toe-guards to keep you and your ride safe. Plus, the durable textured powder-coated finish means it’ll look sharp and stay tough, even after years of use.

2 Post Lift HD2P-9KMSC Specifications

    • Type: Floor Plate / Asymmetric
    • Lifting Capacity: 9,000 lb
    • Lifting Time: 50-60 seconds
    • Overall Height: 140-1/2" (Cylinders extend 7” through top plates at max height)
    • Width Between Posts: 111-1/2"
    • Drive-Thru Width: 100-3/4"
    • Low Pad Height: 3-3/4"
    • Lifting Height: 74-1/4” (81-3/4" with truck adapters and threaded pad mounts)
    • Power Unit: 220V / 1Ph / 60Hz

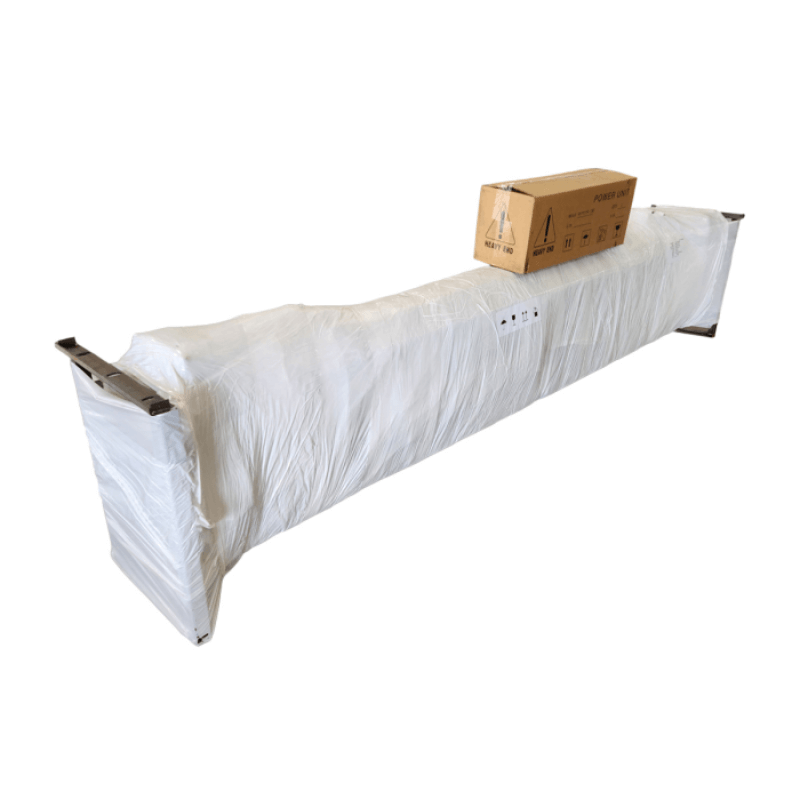

    • Shipping Dimensions:
      • Length: 142"
      • Width: 22"
      • Height: 42"
      • Weight: 1,380 lb

    HD2P-9KMSC 9,000lb 2 Post Lift Special Features

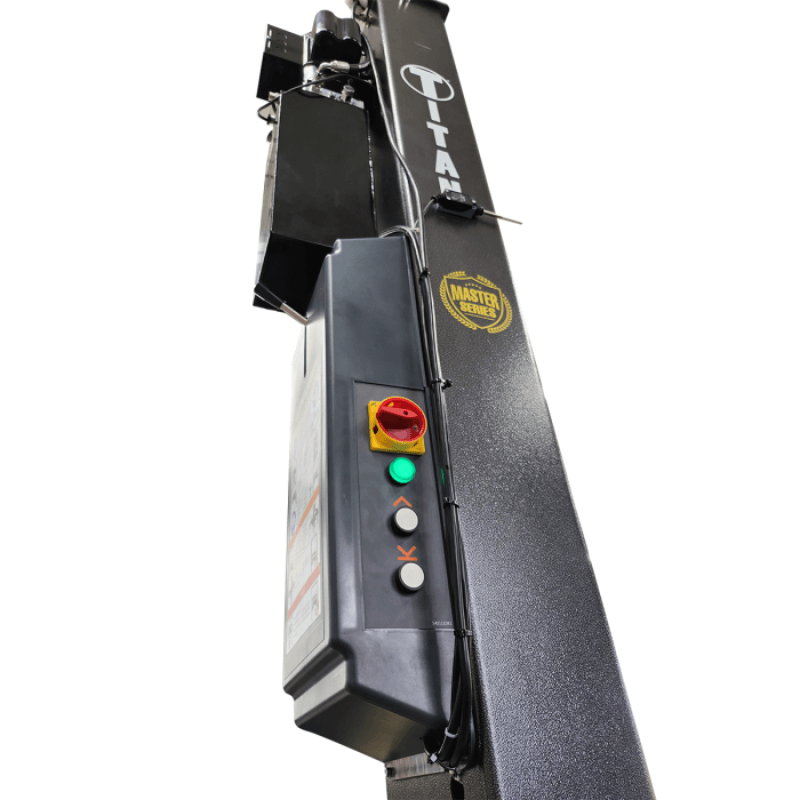

      • Power on Green LED
      • Single button operation
      • Included Electrical disconnect
      • Single lever lowering

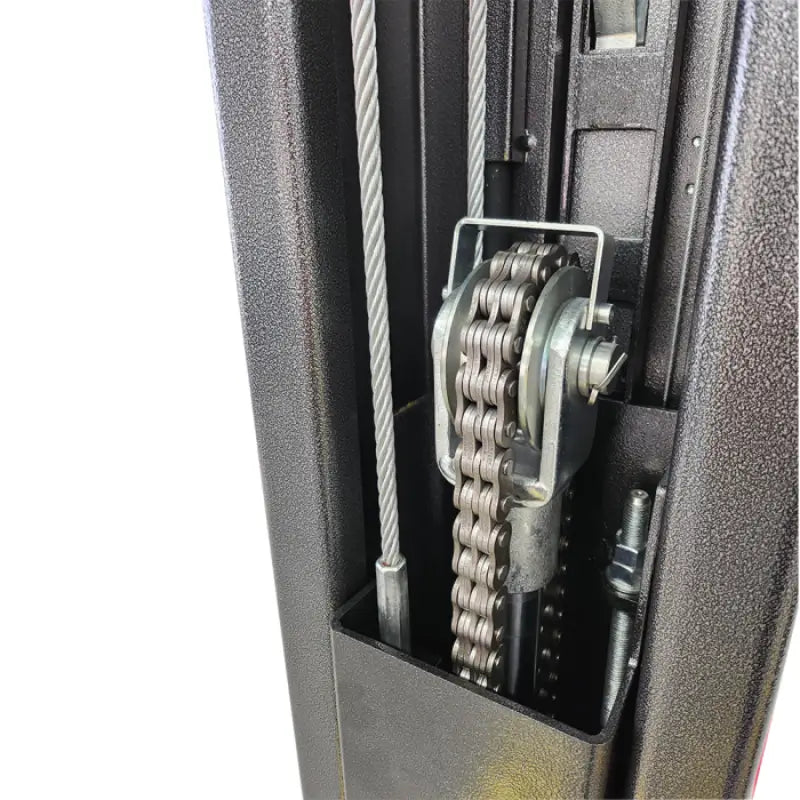

      • Chain Over Roller Hydraulic Cylinders
      • Serviceable Arm Restraint Locks
      • Thread-up Lifting Pads
      • Carriage Limit Switch

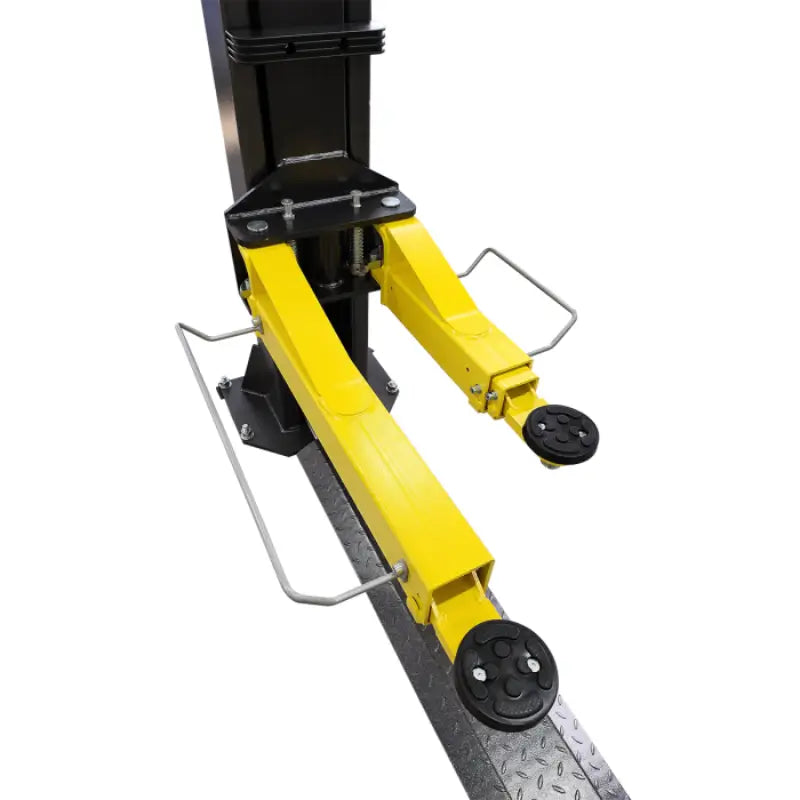

      • 3-Stage Front Arms
      • Single-Point Lock Release
      • European Style Carriages

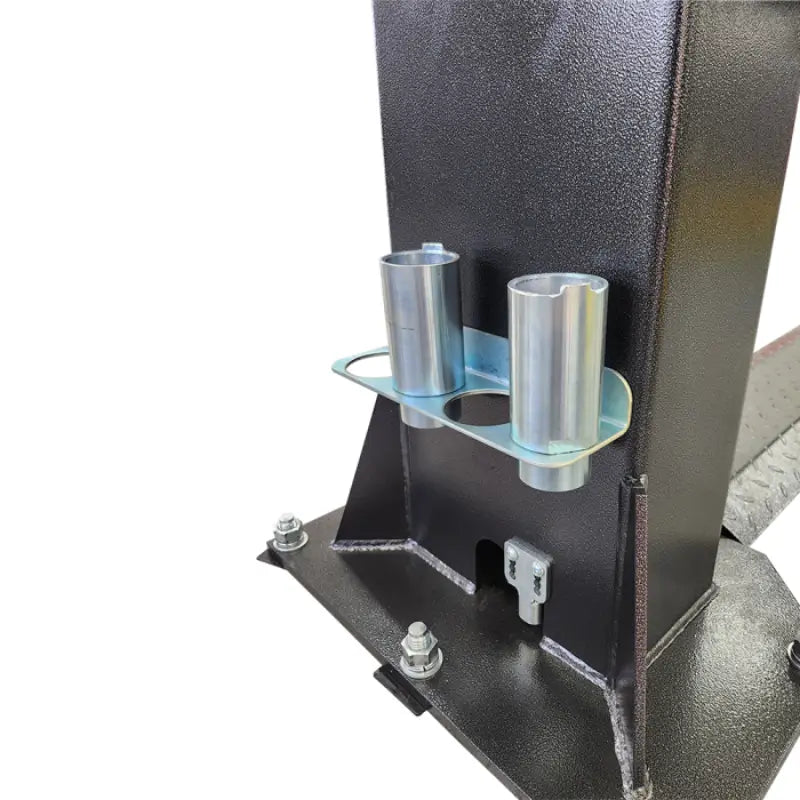

      • 4” Truck Adapters
      • Rubber Door Guards
      • Steel Toe-guards
      • Steel Hydraulic Oil Reservoir
      • 5 Year Structural Warranty
      • 2 Year Electric/Hydraulic Warranty
      • Lifetime Warranty on Nylon Slide Blocks
      • Durable Textured Powder-coated Finish

      Titan HD2P-9KMSC  Document

      Titan HD2P-9KMSC Installation and Operations Manual   Titan HD2P-9KMSC Installation and Operations Manual

      Titan HD2P-9KMSC Product Brochure   Titan HD2P-9KMSC Product Brochure
