Titan HD4P-12000 12,000lb 4 Post Car Lift

SKU HD4P-12000
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Typically Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$5,611.00

Delivery Options

Notify me when back in stock

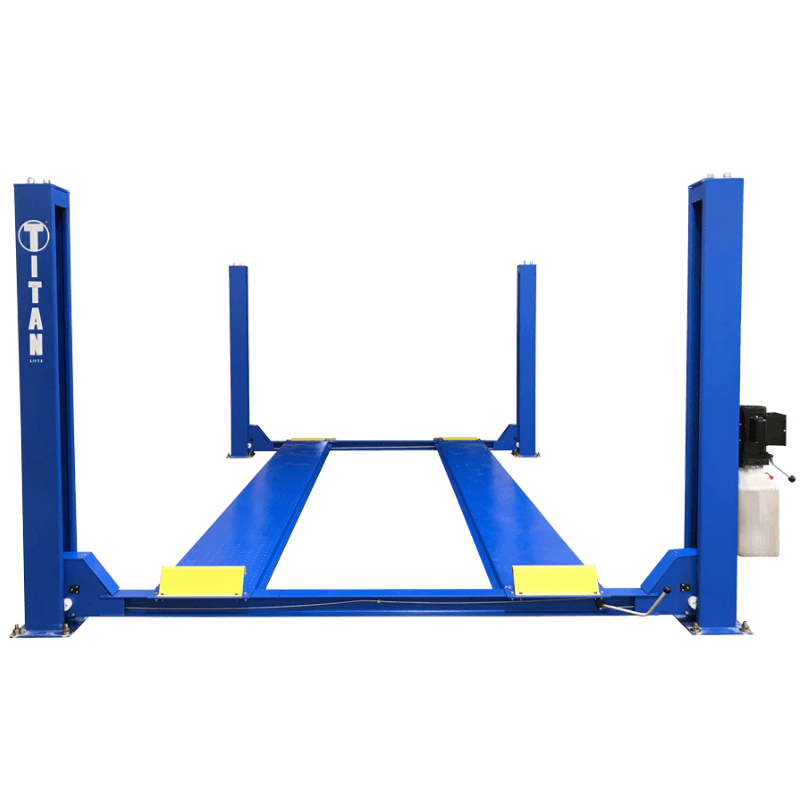

Titan HD4P-12000 4-Post Lift – Heavy-Duty Power for Professional-Grade Lifting

The Titan HD4P-12000 4-Post Lift is a powerful and professional-grade lifting solution designed for heavy-duty vehicle maintenance and storage. With an impressive 12,000 lb. lifting capacity, this commercial-grade lift is ideal for automotive shops and serious enthusiasts who require strength, stability, and efficiency. Unlike traditional lifts, the HD4P-12000 features a unique under-runway cylinder storage design, eliminating the need for a power beam and enhancing workspace accessibility. Its cable-driven system ensures smooth and reliable lifting performance, while the single-lever release and integrated safety locks provide effortless operation and secure positioning. Whether you're servicing commercial trucks, SUVs, or larger vehicles, this lift delivers unparalleled lifting power in a solid, four-post configuration.

4-Post Lift HD4P-12000 Specifications

  • Overall Height: 88 inches
  • Overall Width: 137 inches
  • Overall Length: 195.25 inches
  • Lifting Speed: 51 seconds
  • Max Lifting Height: 67 inches
  • Lowered Runway Height: 6 inches
  • Width Between Columns: 118.5 inches
  • Max Drive-Thru Clearance: 104.5 inches
  • Max Clearance Under Runway: 63 inches
  • Runway Width: 19.25 inches
  • Width Between Runways: 48 inches
  • Runway Length (No Ramp): 191.25 inches
  • Ramp Length: 38 inches
  • Load Capacity: 12,000 lbs
  • Concrete Requirement: 4" Reinforced @ 3,000 PSI
  • Power Supply: 220V-1PH-60HZ-20AMP

Shipping Information

  • Shipping Length: 196 inches
  • Shipping Width: 25 inches
  • Shipping Height: 43 inches
  • Shipping Weight: 2,320 lbs

HD4P-12000 4-Post Lift Special Features

      • 12,000 lb. lifting capacity for commercial and heavy-duty vehicles
      • No power beam design with an under-runway cylinder storage for better workspace access
      • Cable-driven system for consistent and reliable lifting
      • Single-lever release with automatic safety locks for secure operation
      • Wide 104.5-inch drive-thru clearance for easy vehicle entry and exit
      • Durable diamond-plate runways for enhanced traction and safety
      • Spacious 63-inch under-runway clearance for easy access to vehicle underside
      • Fast 51-second lifting speed for efficient workflow
      • 220V power system for strong and consistent lifting performance
      • Built for professional use with reinforced concrete installation requirements

      HD4P-12000 Manual

      Titan HD4P-12000 Installation and Operations Manual   Titan HD4P-12000 Manual
