Titan SBJ-MS 4400lbs Sliding Bridge Jack Master Series

SJ-35 3,500 lb Sliding Bridge Jack by Titan

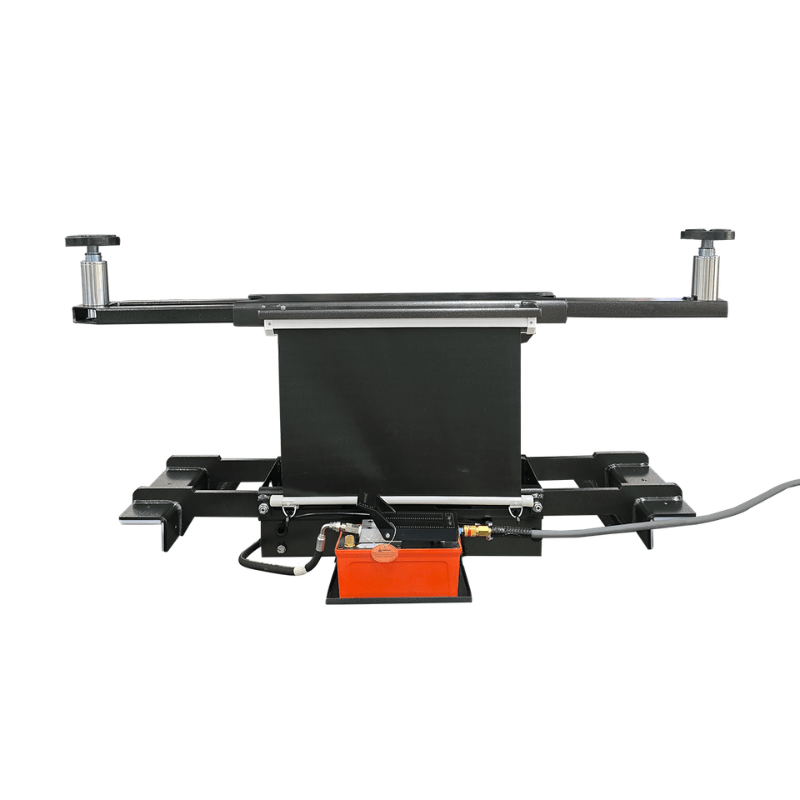

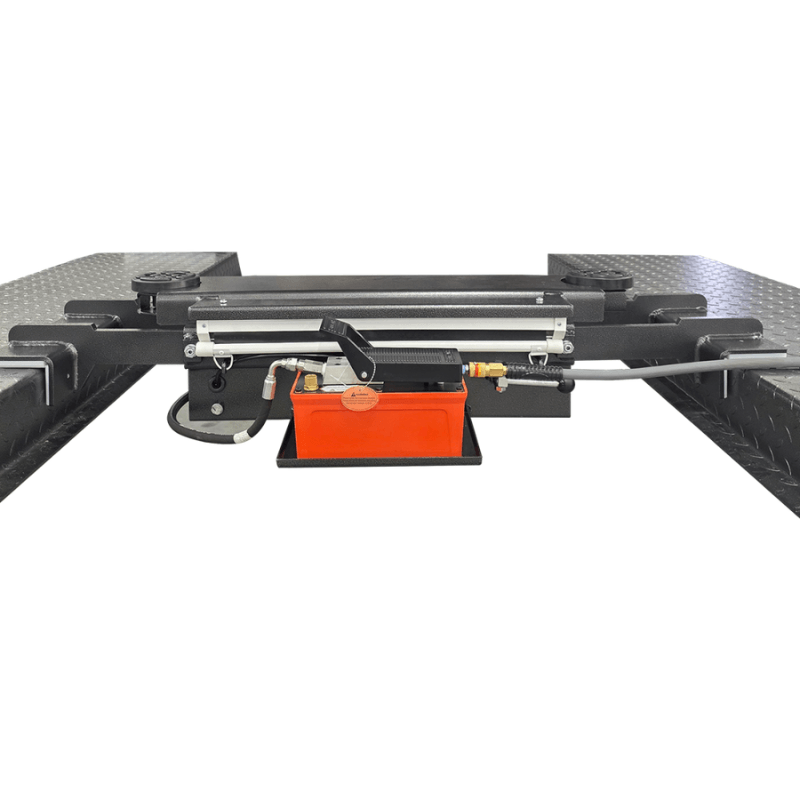

The Titan SBJ-MS Master Series Sliding Bridge Jack is a 4,400 lb pneumatic-powered jack designed to add wheel-free service capability to compatible Titan four-post lifts. It allows technicians to raise the front or rear of a vehicle directly from the lift runways for wheel, tire, brake, suspension, and other service work.

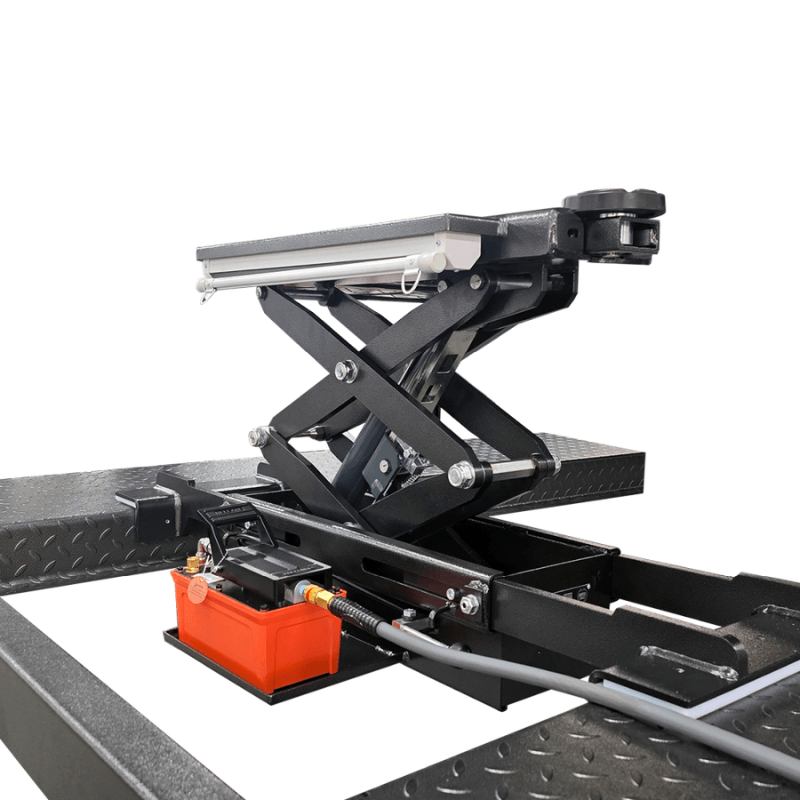

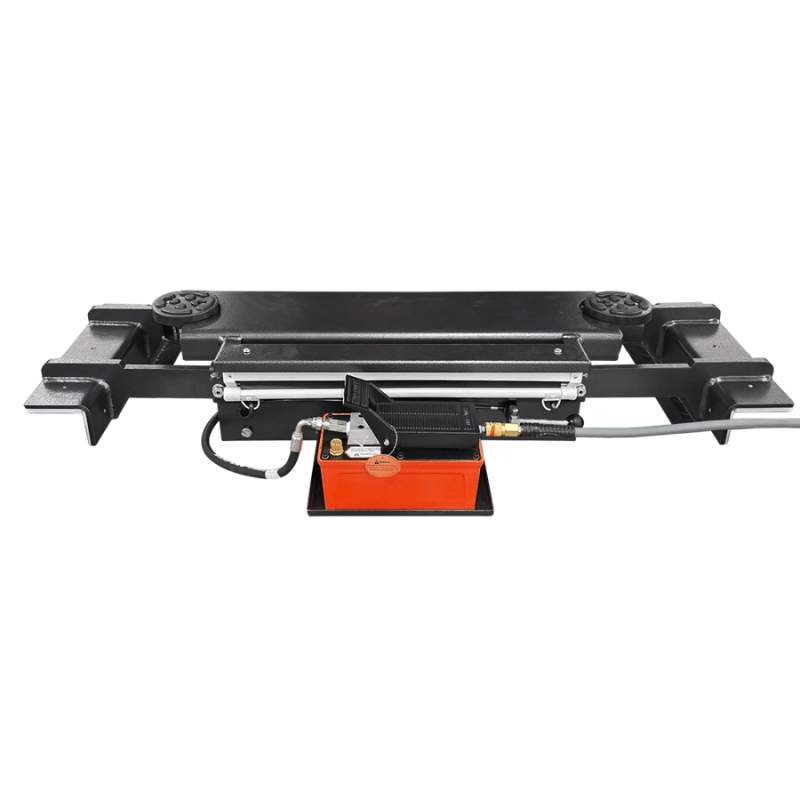

The SBJ-MS uses a scissor-style air-over-hydraulic lifting system and two telescoping arms that allow the jack to slide between the lift runways for convenient positioning. Multiple locking positions and included height adapters provide flexibility for different vehicle lifting points and service requirements.

The jack is compatible with Titan 7K, 7K-XLT, 8K, 8K-XLT, and 9K four-post lifts. It includes four height adapters and two thread-up adapters, providing additional lifting height when needed.

Sliding Bridge Jack SBJ-MS Specifications

• Brand: Titan
• Model: SBJ-MS
• Product Type: Sliding Bridge Jack
• Series: Master Series
• Lifting Capacity: 4,400 lbs

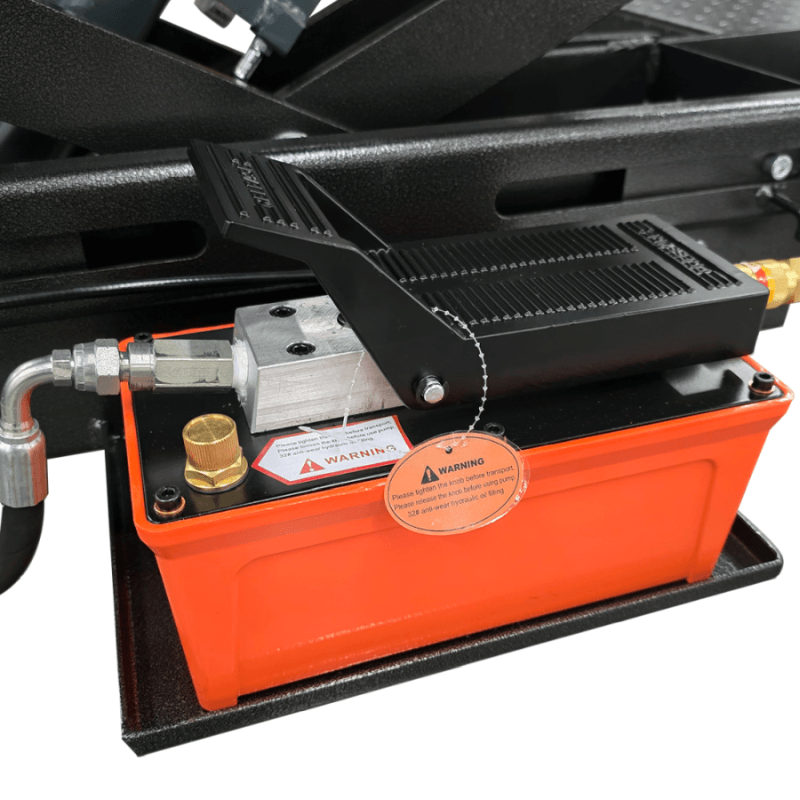

• Operation: Air-Operated / Air-Over-Hydraulic
• Minimum Lowered Height with Thread-Up Adapter: 4.5"
• Raised Lock Position #1: 7"
• Raised Lock Position #2: 12.5"
• Raised Lock Position #3: 16.25"
• Raised Lock Position #4: 19.75"
• Minimum Pad Width: 31.5" center-to-center
• Maximum Pad Width: 58.5" center-to-center
• Short Height Adapter: 2-3/8"
• Tall Height Adapter: 4"
• Thread-Up Adapter: 1-5/8"
• Maximum Stacked Adapter Height: 8"
• Shipping Length: 43"
• Shipping Width: 25"
• Shipping Height: 14"
• Shipping Weight: 380 lbs

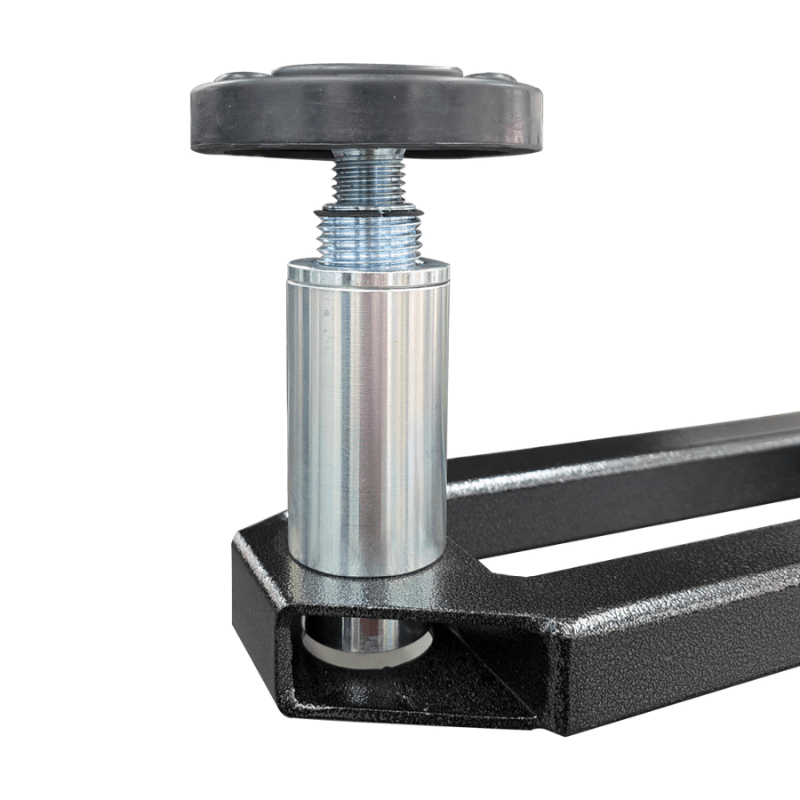

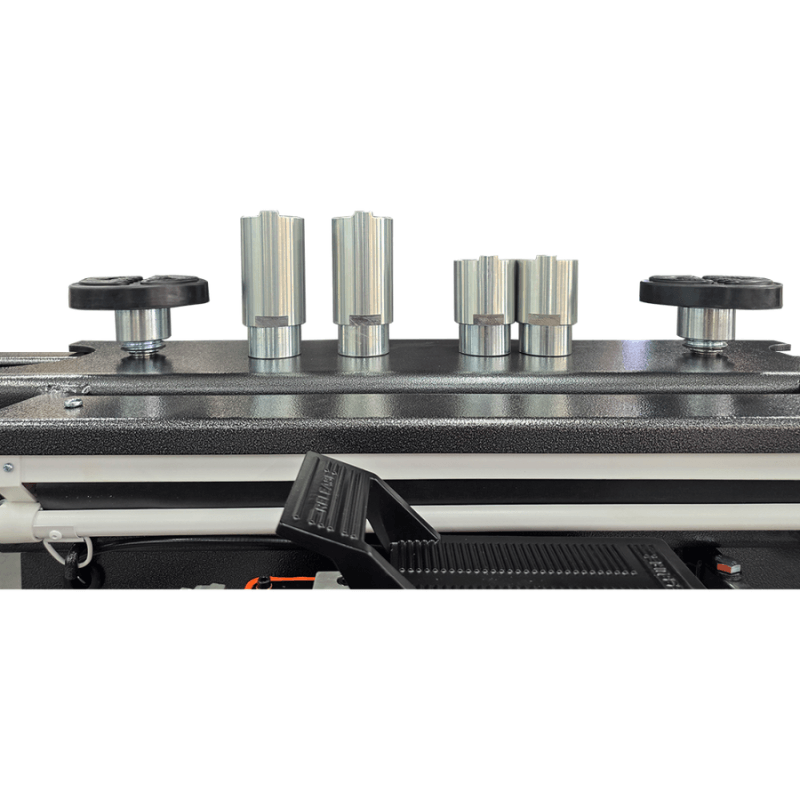

Height Adapters

• Short Adapter: 2-3/8"
• Tall Adapter: 4"
• Thread-Up Adapter: 1-5/8"
• Stacked Adapters / Thread-Up Maximum Height: 8"

SBJ-MS 4400lbs Sliding Bridge Jack Special Features

• 4,400 lb lifting capacity
• Pneumatic air-over-hydraulic operation

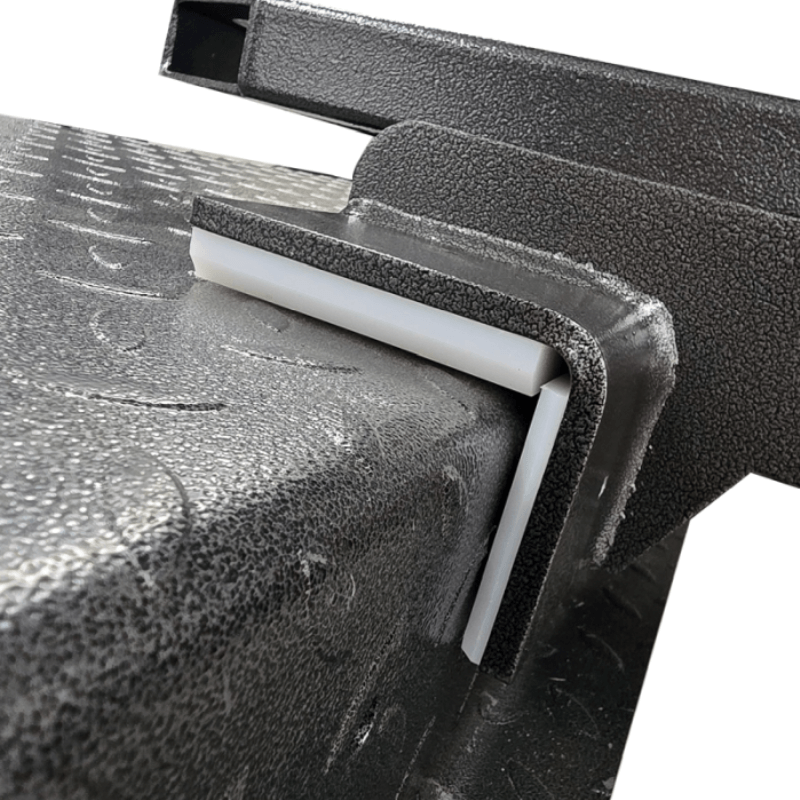

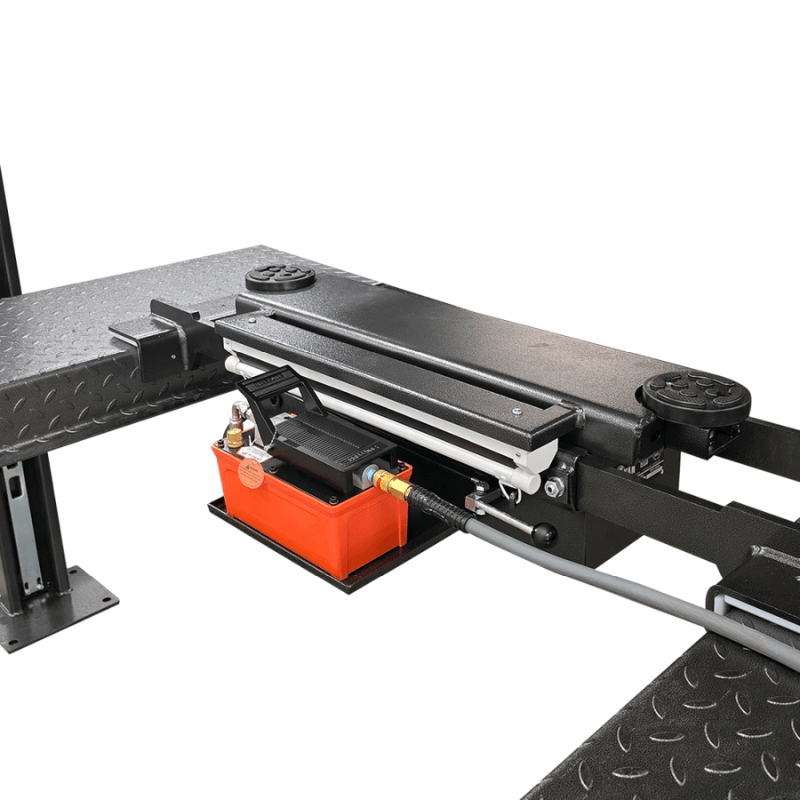

• Sliding bridge design for easy positioning between lift runways
• Designed for Titan four-post lifts
• Compatible with Titan 7K, 7K-XLT, 8K, 8K-XLT, and 9K lifts

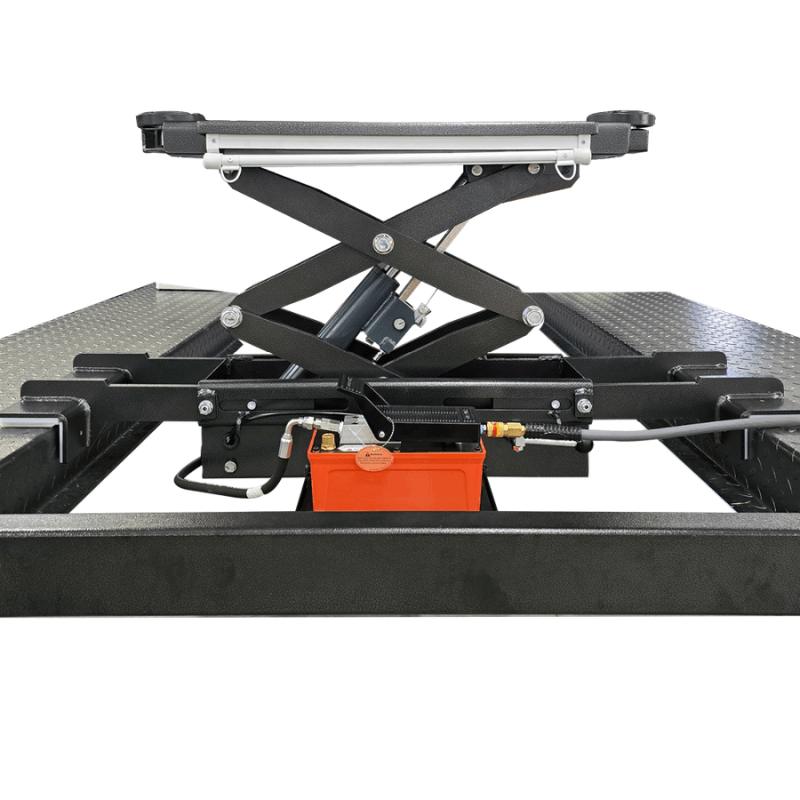

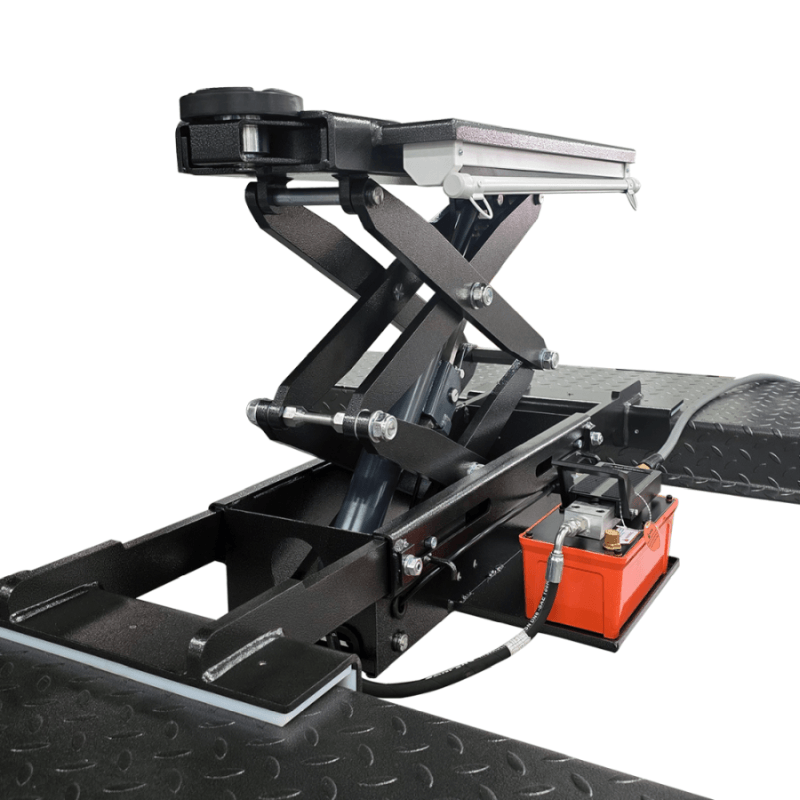

• Scissor-style lifting mechanism
• Two telescoping arms
• Helps raise the front or rear of a vehicle off the runways
• Provides wheel-free access for wheel and suspension service
• Multiple raised locking positions
• Includes four height adapters
• Includes two thread-up adapters
• Stackable adapters provide up to 8" maximum height
• Adjustable pad width accommodates different vehicle widths
• Heavy-duty design for professional automotive service

Titan SBJ-MS Manual

  Titan SBJ-MS Installation and Operations Manual
