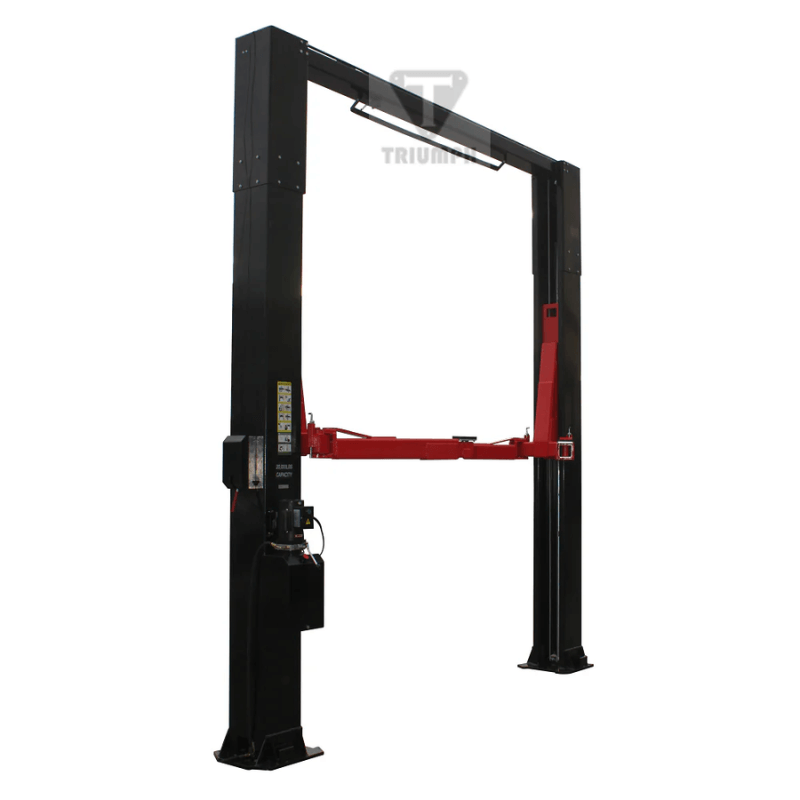

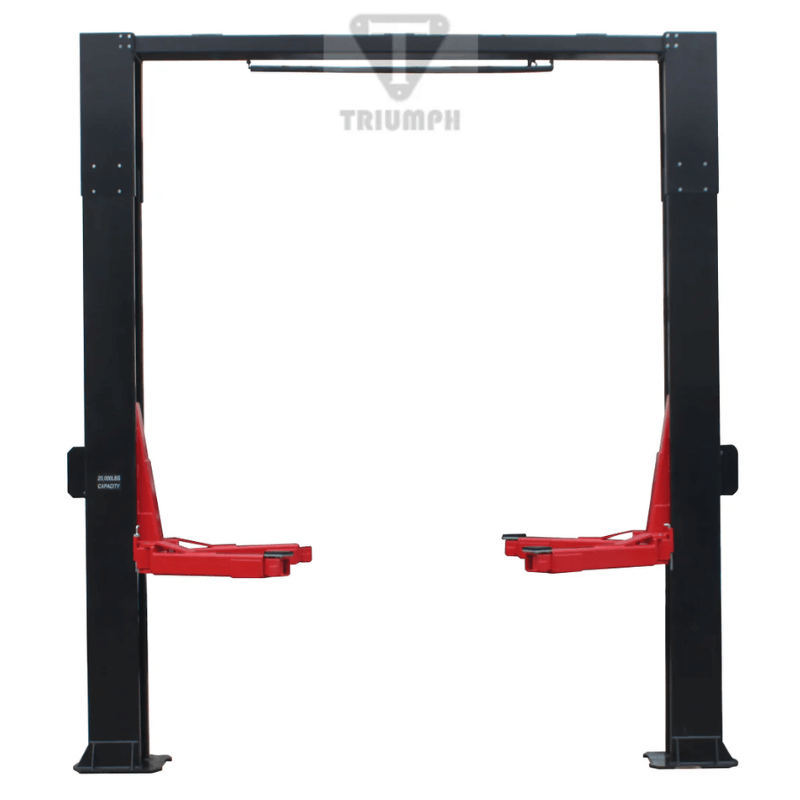

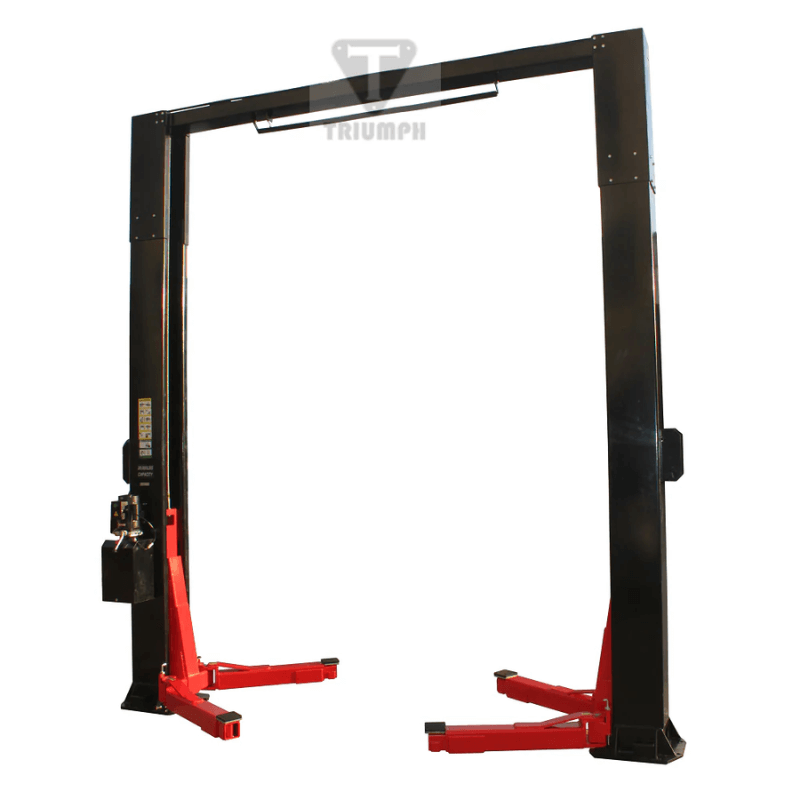

NTO-20S 20,000 lb Two Post Auto Lift by Triumph
Need a lift that doesn’t flinch at the sight of a massive truck? Meet the Triumph NTO-20S—your new heavyweight champion with a 20,000 lb lifting capacity! Don’t settle for anything less. Upgrade to the Triumph NTO-20S today and make your shop the envy of every other mechanic on the block. What? Why, you ask?
This isn't just another lift—it’s a beast. With a towering height of 170.5" and a higher-than-average 74" lifting height, the NTO-20S isn’t afraid to reach new heights. It's ISO 9001 and CE Certified, meaning it's built like a vault and won’t let you down… literally. Imagine lifting a 20,000 lb truck like it's a bag of groceries. The NTO-20S does just that, with its direct drive cylinders and an electrical override automatic safety shut-off that screams, "Safety first, but make it quick!" Add a 40-second lift time and a generous 113" drive-through width, and you've got a lift that means business.
2 Post Auto Lift Triumph NTO-20S Specifications:
- Capacity: 20,000 lbs
- Overall Height: 170.5"
- Overall Width: 155"
- Lifting Height: 74"
- Distance Between Posts: 124"
- Drive Through Width: 113"
- Lowered Height: 6"
- Base Plate Size: 21"x20"
- Lift Time: 40 Seconds
- Voltage: 220 Volt
- Horsepower: 3 HP
- Concrete Requirement: 6" Slab, 4,000 PSI
- Style: Overhead
- Lock Release: Single Point
- Electric Safety Cutoff: Yes
NTO-20S 20,000 lb 2 Post Auto Lift Special Features:
- High-capacity lift with 20,000 lb capability
- Direct drive cylinders for smooth and reliable operation
- Electrical override automatic safety shut-off
- ISO 9001 and CE Certified/Compliant
- Included:
- Mounting hardware
- Truck adapters included
- Warranty:
- One-year parts warranty and five-year structural warranty
- Quick 40-second lift time for efficient workflow
- Designed for installation on a 6" concrete slab with 4,000 PSI strength
Triump NTO-20S Documentation:
Triumph NTO-20S 2 Post Lift Installation Instruction
This Item has a FLAT RATE SHIPPING FEE: $799*
Warehouse Pickup locations (No shipping charge):
- Columbus, OH
- Fort Worth, TX
- North Las Vegas, NV
*An additional $200 freight fee is required for locations in Northern CA, OR, WA, SD, ND, MT, WY. After initial purchase, a separate link will be sent to complete your transaction.
