Triumph NSS8X-1, (X1) 8,000lb Parking Lift

SKU NSS8X-1
by Triumph
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
Save $111.00
Original Price $3,400.00
Current Price $3,289.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

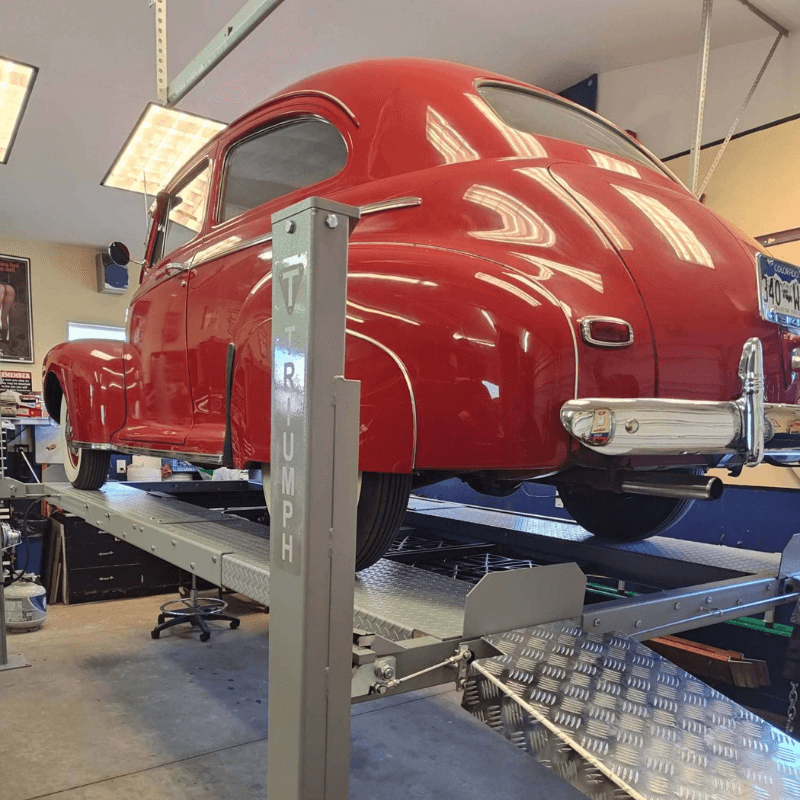

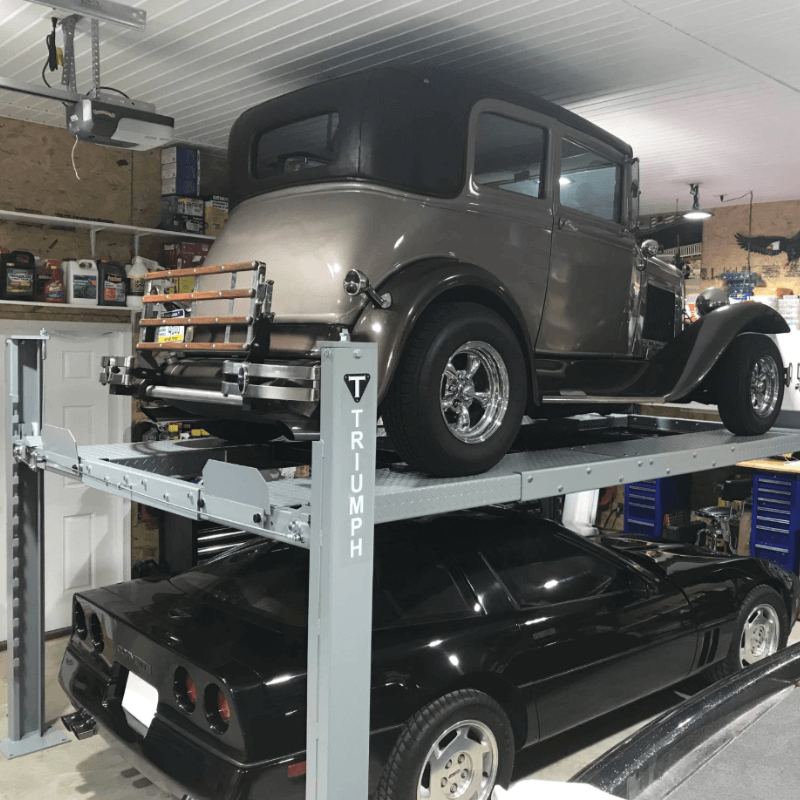

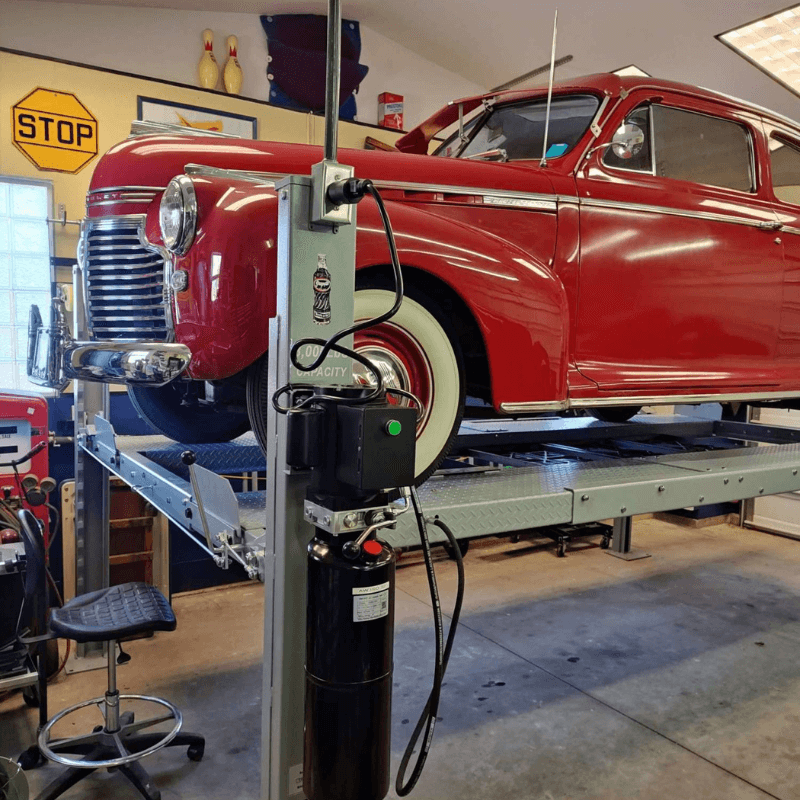

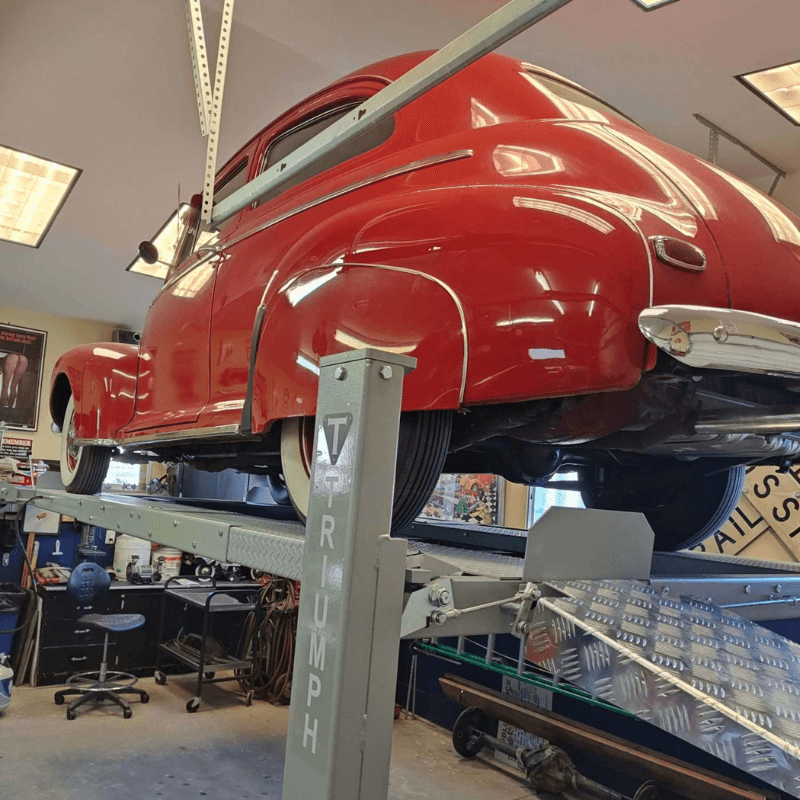

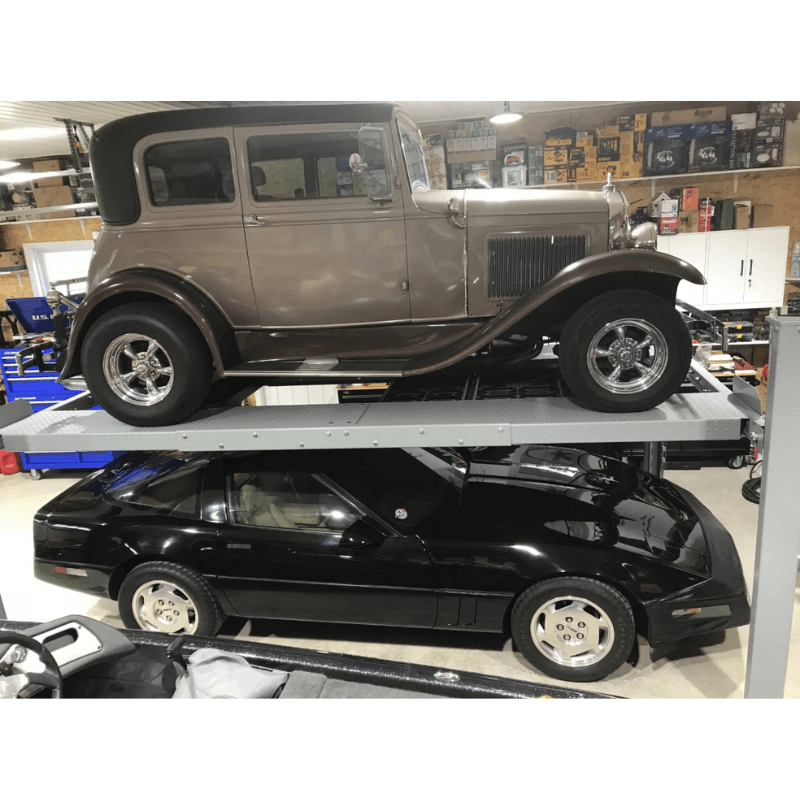

NSS8X-1 Parking Lift by Triumph

Is your cramped garage leaving you feeling like you're stuck in rush hour traffic - without the actual traffic? The Triumph NSS8X-1 Easy Park lift is your express lane to automotive nirvana. Its 8,000 lb capacity elevates your ride to a lofty 72", creating a two-car oasis in a one-car space. With 10 secure locking positions and reinforced construction, it's as dependable as a trusty old Chevy.

Say goodbye to oil-stained floors with three included drip trays, and hello to easy maintenance with the built-in jack tray. The NSS8X-1 rolls in like a NASCAR hauler, no forklift required, and sets up easier than changing a tire. Its 175" x 106" footprint fits most garages, while the 93" drive-thru width welcomes vehicles of all sizes. It's backed by a 1-year parts warranty, so you can sleep like a baby at night.

Parking Lift Triumph NSS8X-1 Specifications

  • Capacity: 8,000 lbs.
  • Overall Height: 84"
  • Overall Length: 175"
  • Overall Width: 106"
  • Lift Height: 72"
  • Height Under Runway: 69"
  • Runway Length: 165"
  • Drive Thru Width: 93"
  • Runway Width: 18"
  • Lowered Height: 5"
  • Locking Positions: 10
    • First Lock: 17" - Every 4", up to 68"
  • Base Plate Size: 12" x 12"
  • Lock Release: Single Point
  • Lift Time: 40 Seconds
  • Voltage: 110 Volts (30 amp breaker)
  • Shipping Weight: 1,600 lbs. - Ships in 2 Packages
    • Available to unload via Lift Gate!
  • Pallet Dimension:
    • 84.5" x 21" x 29"
    • 84.5" x 21" x 29"

NSS8X-1 8,000lb Parking Lift Special Features

  • No Forklift Required: Packaged for easy unloading at your location.
  • Includes:
    • Caster Kit: For easy movement around the garage.
    • Jack Tray: Allows for lifting one end of the vehicle with a bottle or floor jack.
    • Drip Trays: Prevents fluid from dripping onto the lower vehicle.
  • Reinforced Structure: Runways and cross rails are reinforced for added strength.
  • Aluminum Ramps
  • Automatic Locking: Engages at 10 positions for secure operation.
  • Easy Assembly: Can be set up by two people without heavy machinery.
  • Warranty: 1 year parts only
  • Optional Item (Sold Separate)

Triumph NSS8X-1 Documentation

NSS8X-1 Parking Lift Assembly Manual   Triumph NSS8X-1 Parking Lift Assembly Manual
