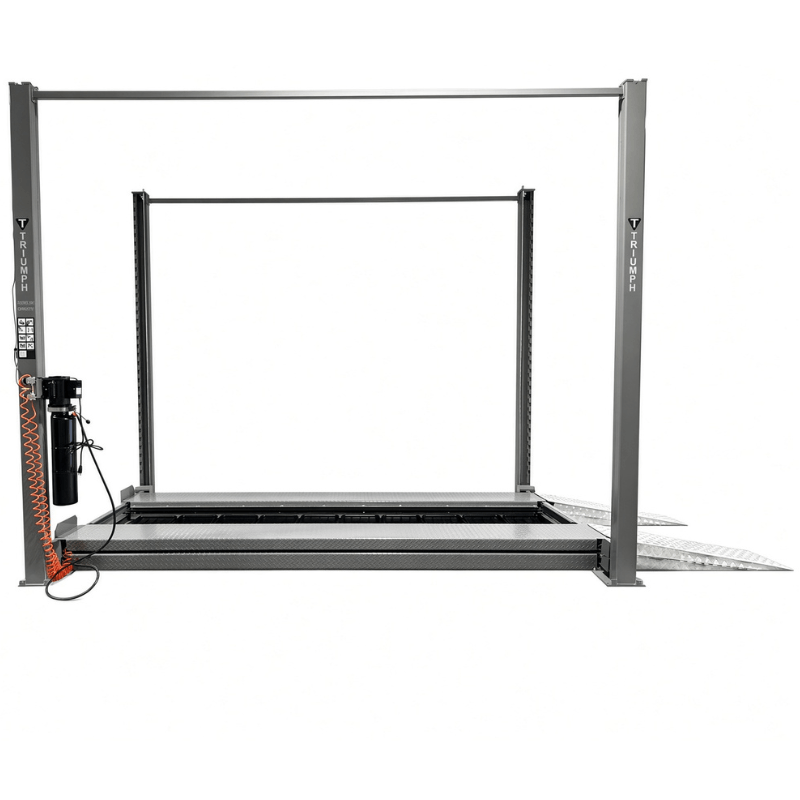

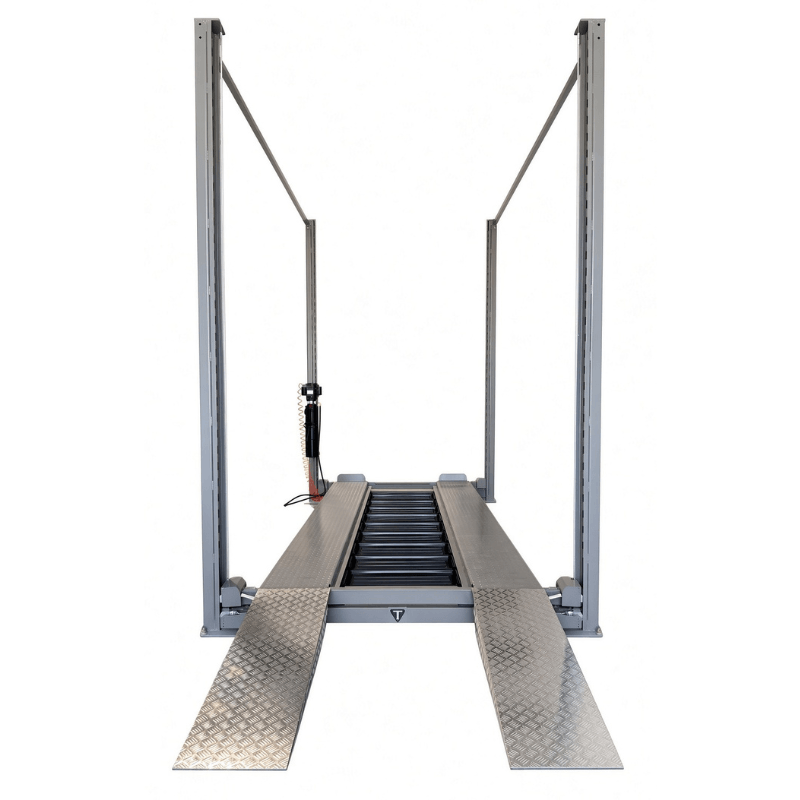

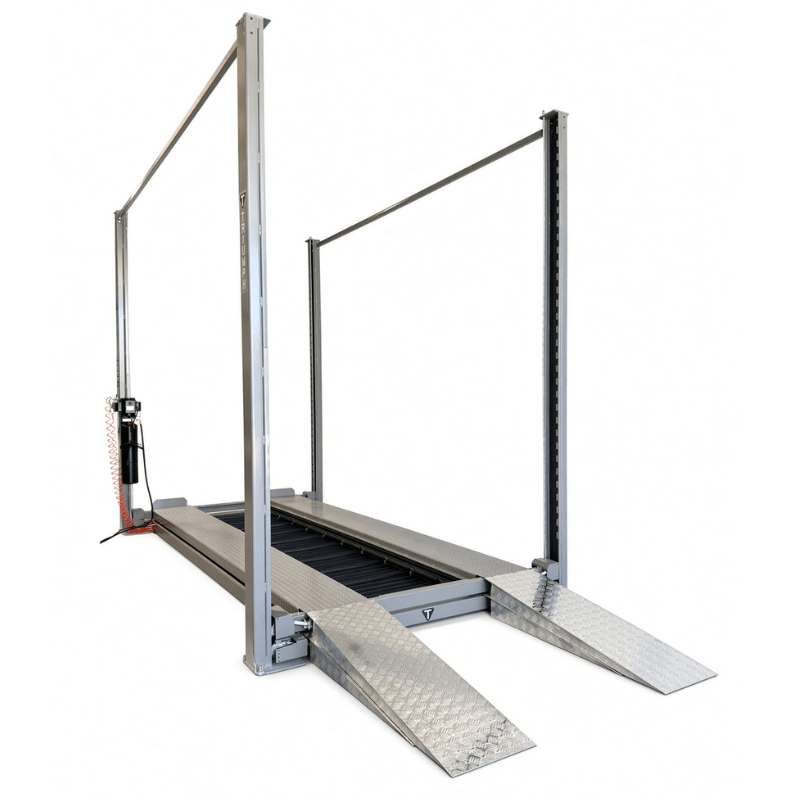

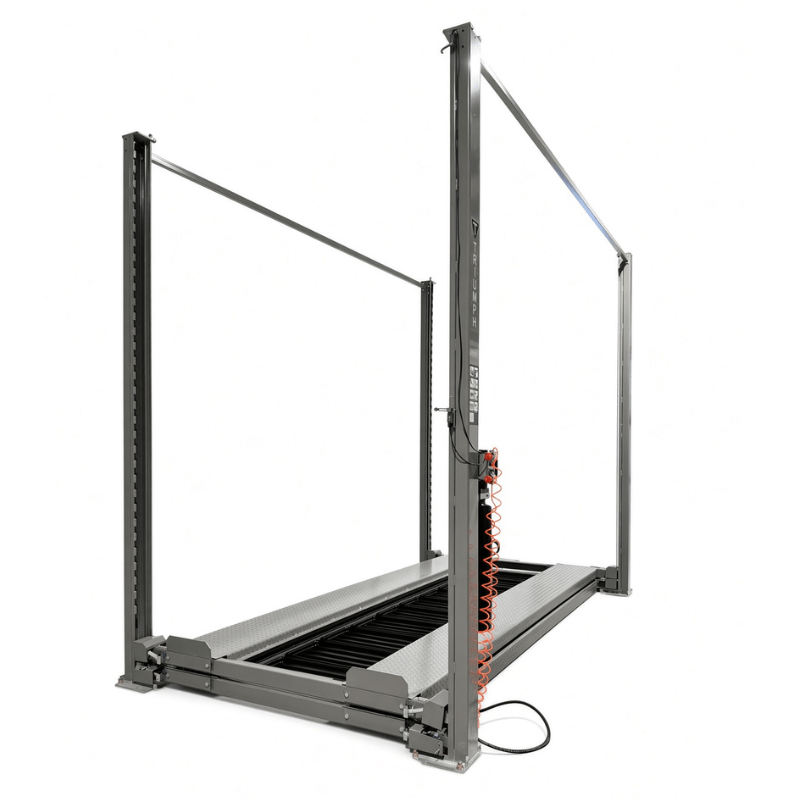

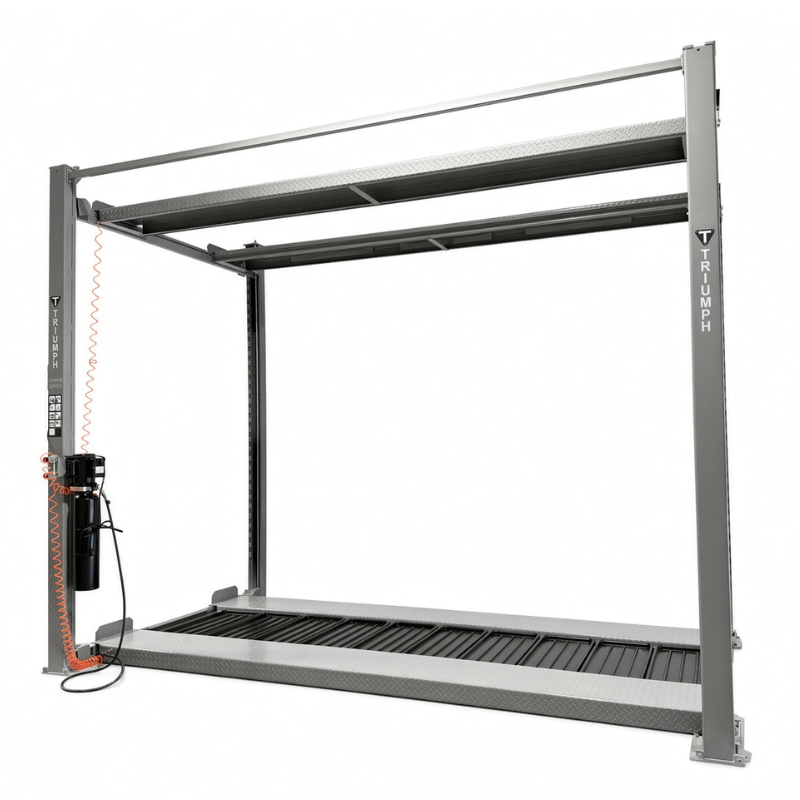

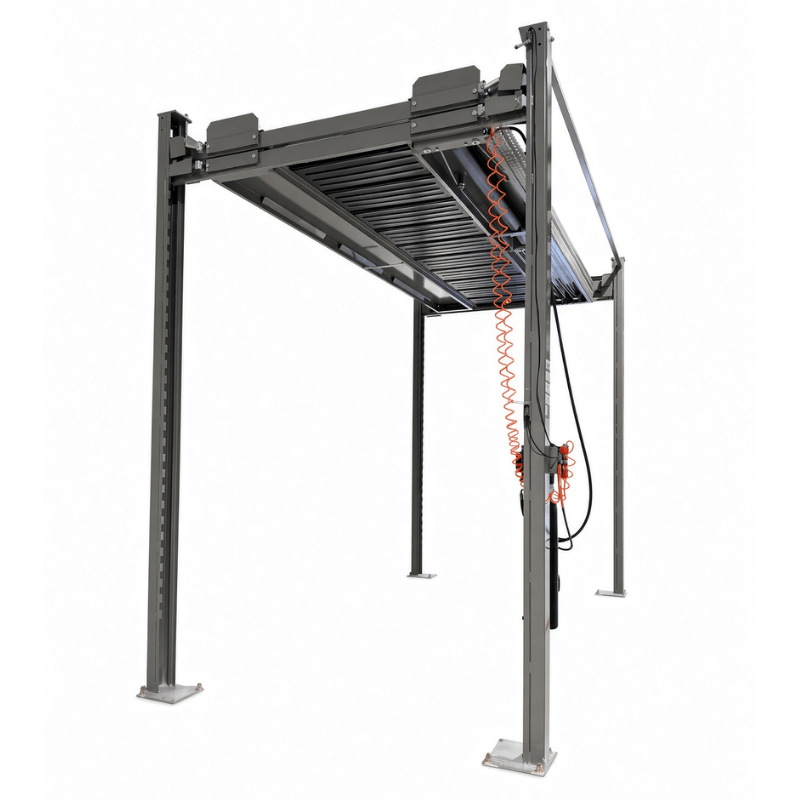

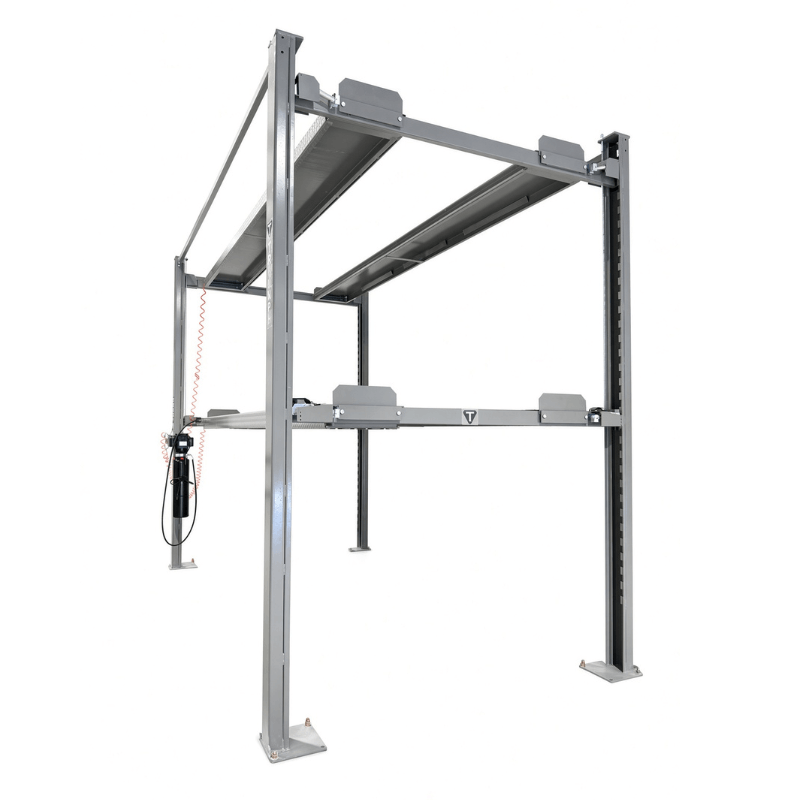

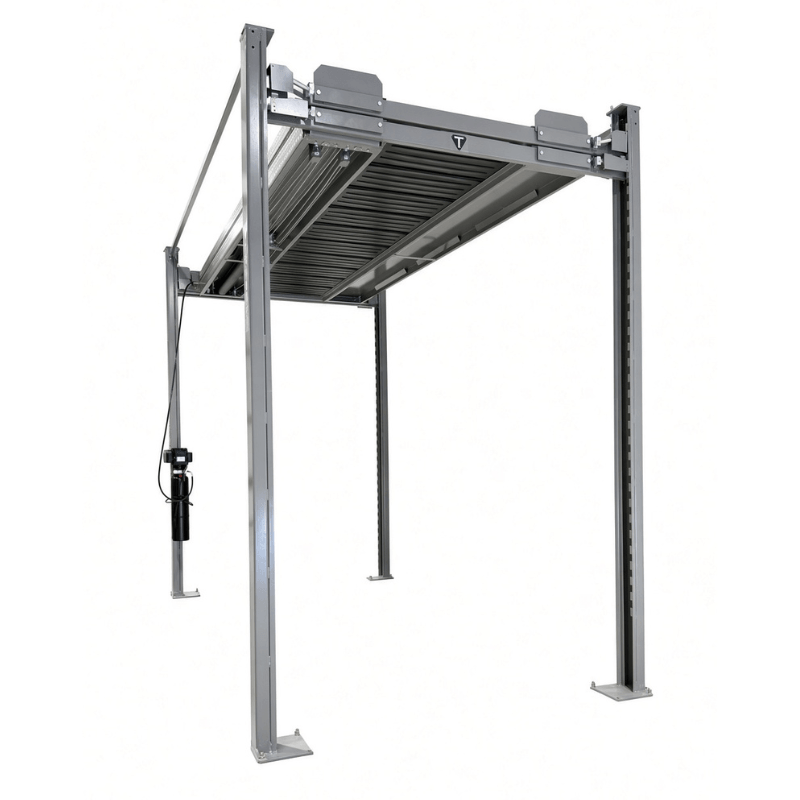

Triumph NSS-5x2 10,000 lb 3 Car Four Post Lift

NSS-5x2 10,000lb Storage Lift

Running out of parking or storage space can make managing multiple vehicles frustrating and inefficient. Traditional parking setups waste valuable floor space, limiting how many cars you can safely store or display in your garage, showroom, or service facility.

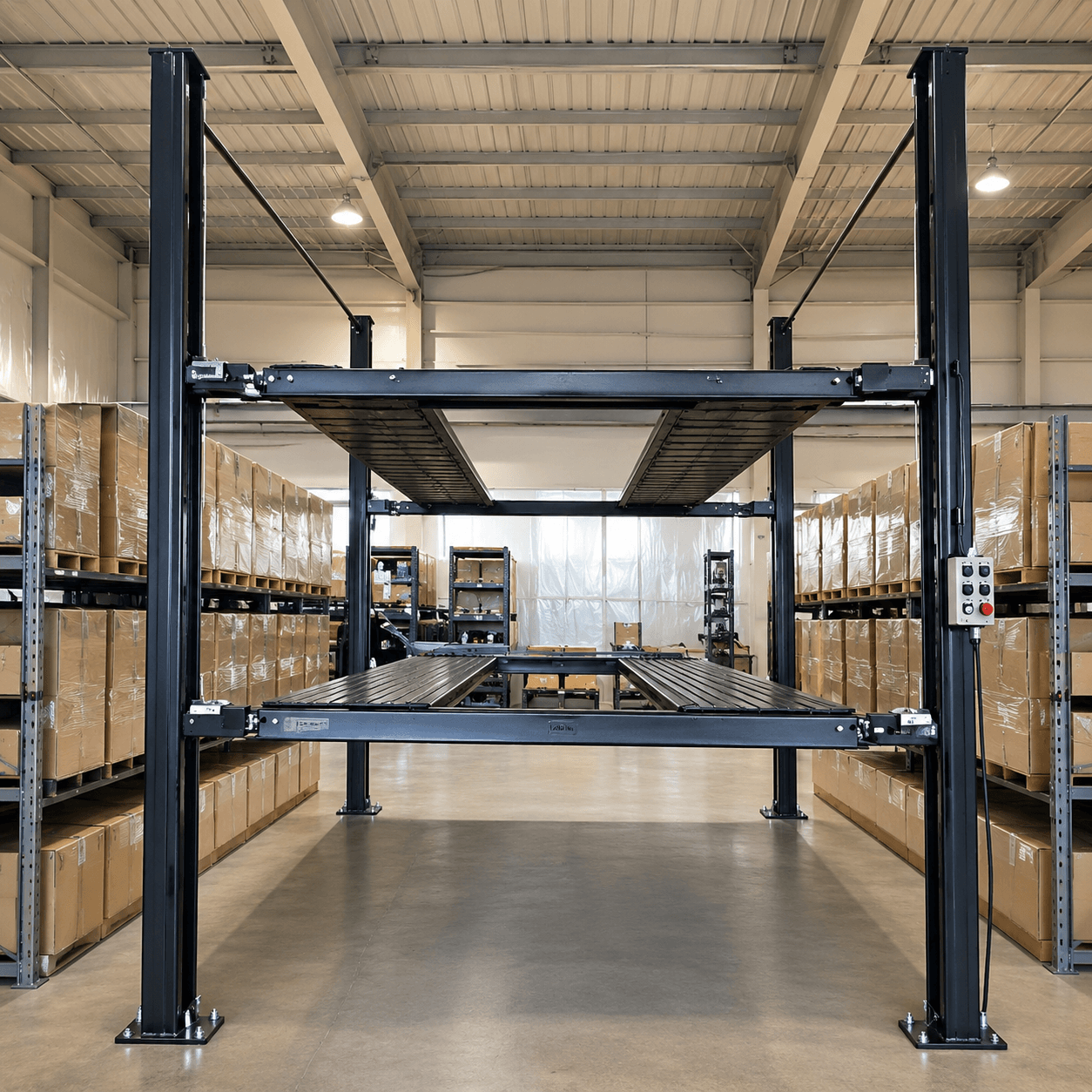

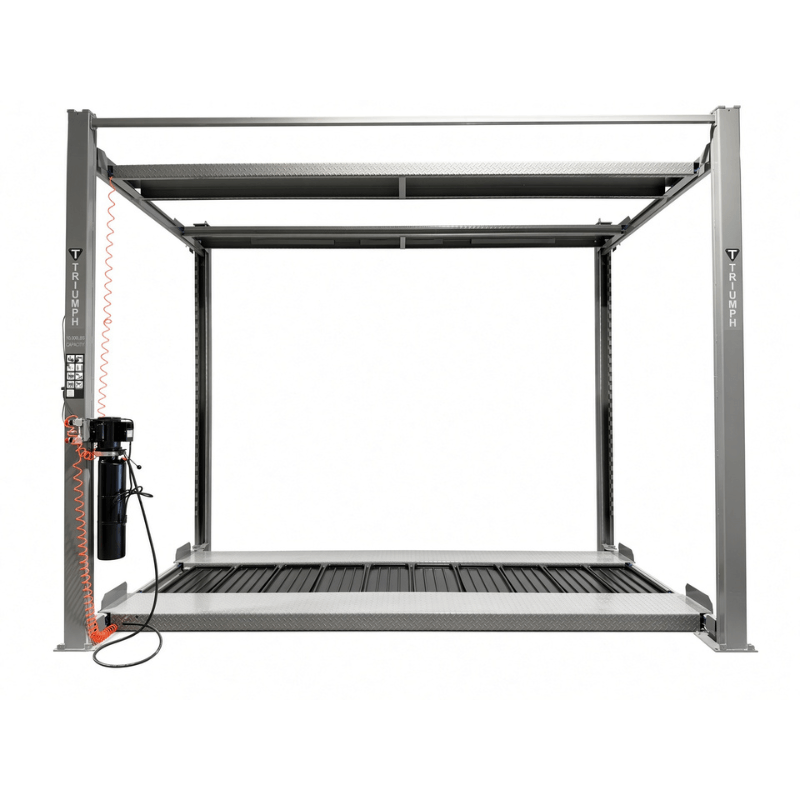

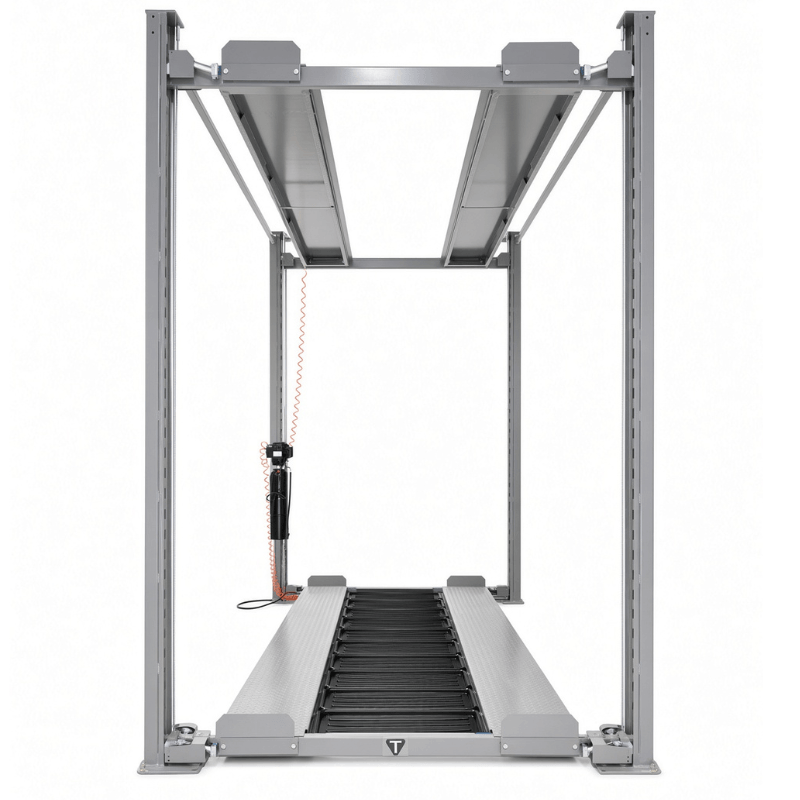

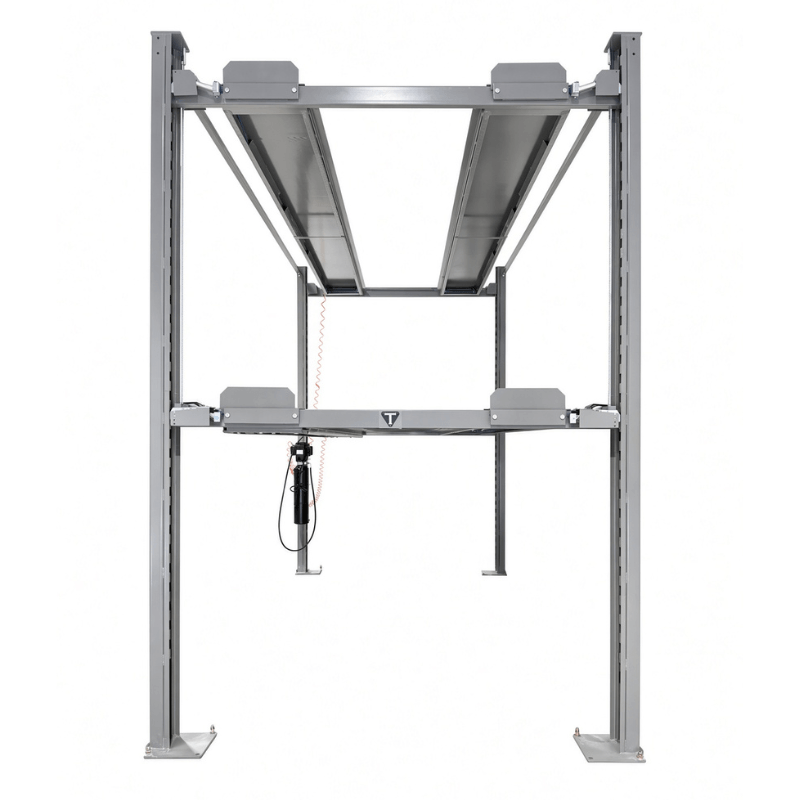

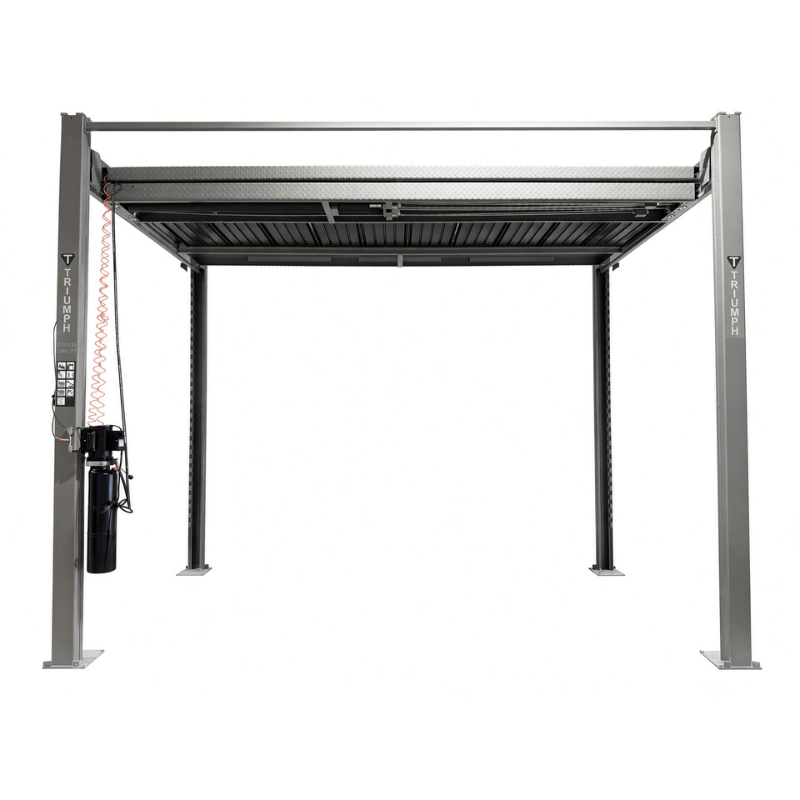

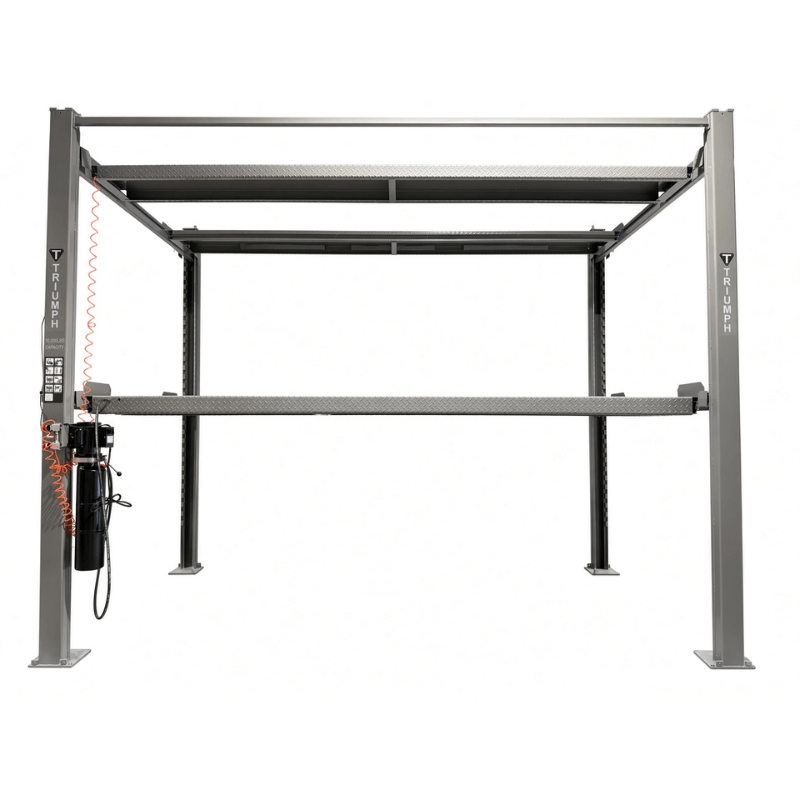

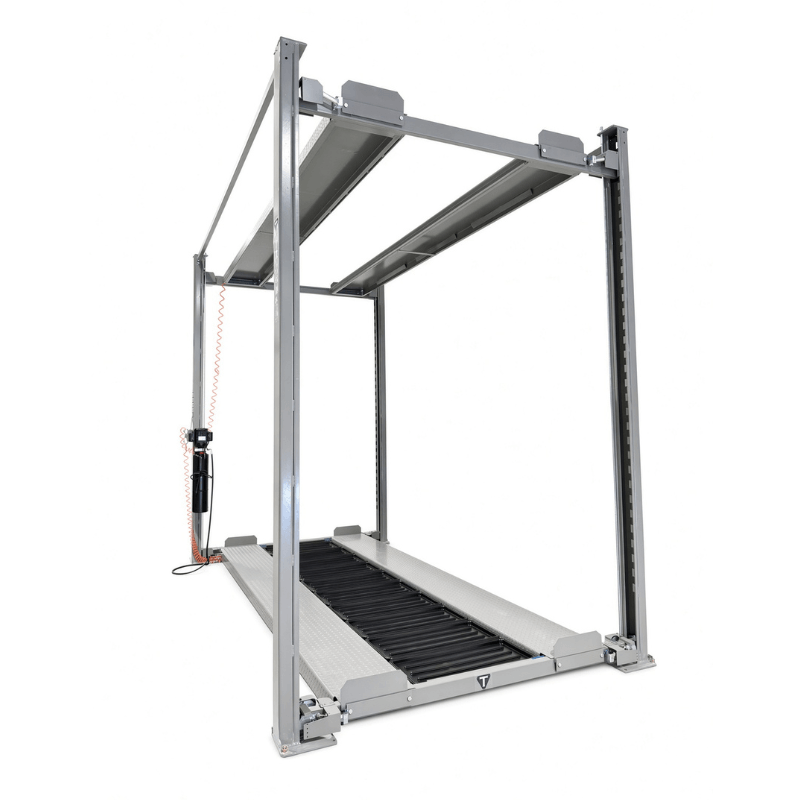

The Triumph NSS-5x2 Double Stacker Four Post Automotive Lift is the perfect solution for maximizing space while adding service convenience. Designed to hold three vehicles in one footprint, this innovative lift stores two vehicles above ground and one below. With a 5,000 lb capacity per platform, included drip trays, automatic electric locking system, and drive-on convenience, it delivers safe, efficient, and space-saving performance for collectors, dealerships, and busy garages.

NSS-5x2 Specifications:

• Model: NSS-5x2

• Total Capacity: 10,000 lbs (5,000 lbs per vehicle platform)

• Vehicle Capacity: 5,000 lbs each upper level

• Overall Height: 147"

• Overall Length Without Ramps: 199"

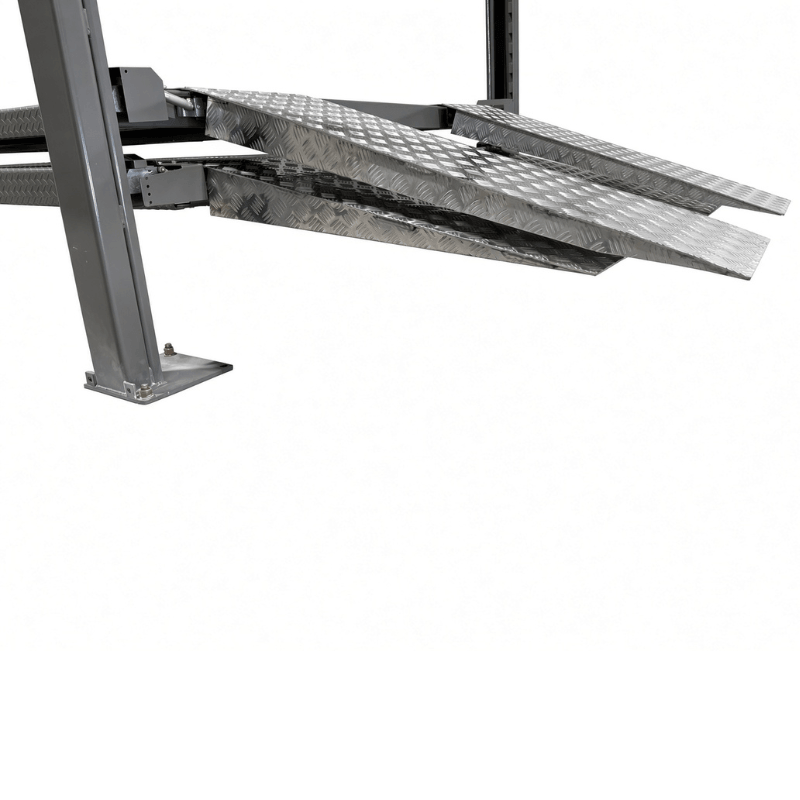

• Overall Length With Ramps: 225"

• Overall Width: 101"

• Lift Height - Top Vehicle: 143"

• Lift Height - Middle Vehicle: 71"

• Height Under Runway: 65.5"

• Runway Length: 180"

• Runway Width: 19"

• Width Between Runways: 37.5"

• Drive Thru Width: 93"

• Lowered Height: 5"

• Lock Release: Single Point 24 Volt Electric

• Lift Time: 125 Seconds

• Voltage: 110 Volts

• Shipping Weight: 3,500 lbs

• Standard Color: Grey

• Hydraulic Fluid Requirement: AW32

Triumph Triple Lift Special Features:

• Stores 3 vehicles in the space of 1 parking area

• 5,000 lb capacity per vehicle platform

• Total 10,000 lb upper storage capacity

• Four-post double stacker design for superior stability

• Includes 6 drip trays to protect lower vehicles

• Automatic electric locks engage during lifting

• Single-point 24V electric lock release

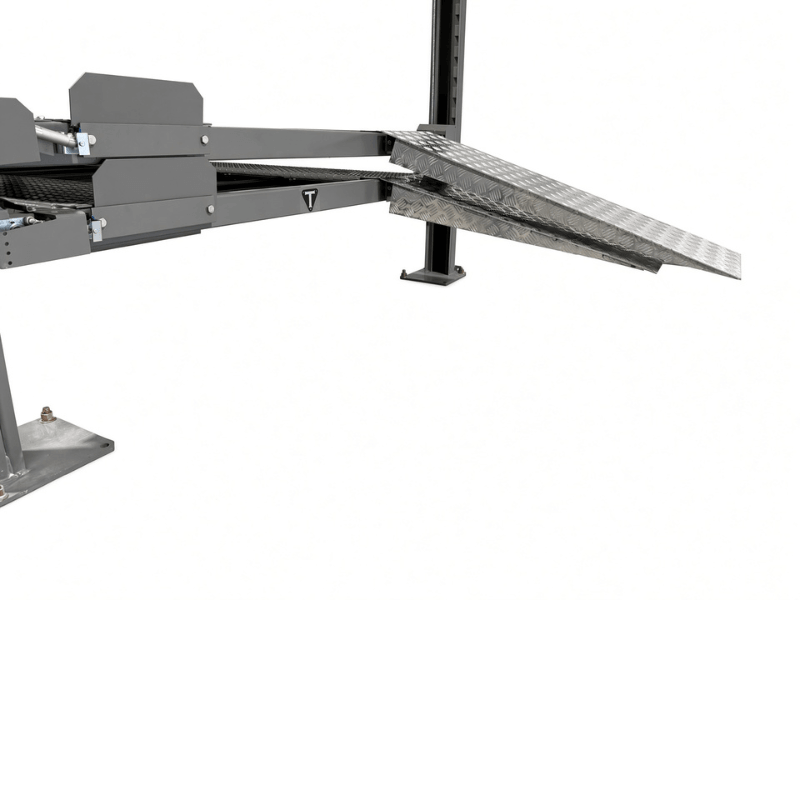

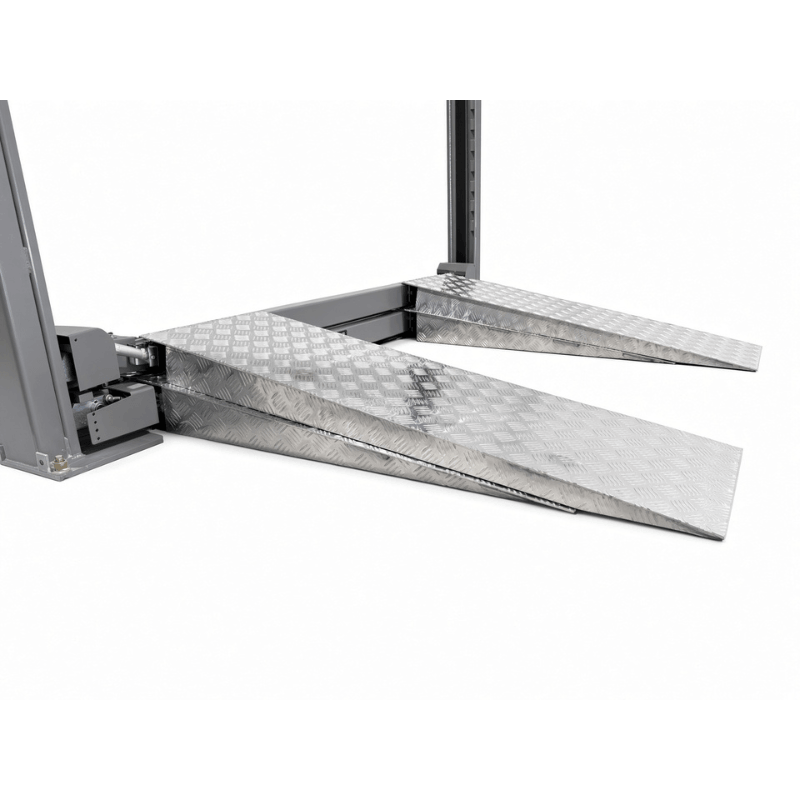

• Drive-on design for easy loading and unloading

• 110V power for convenient installation

• Ideal for collectors, dealerships, garages, and storage facilities

• Durable steel construction for long-term use

• Standard grey finish for professional appearance

Triumph NSS-5x2  Manual

Coming Soon
