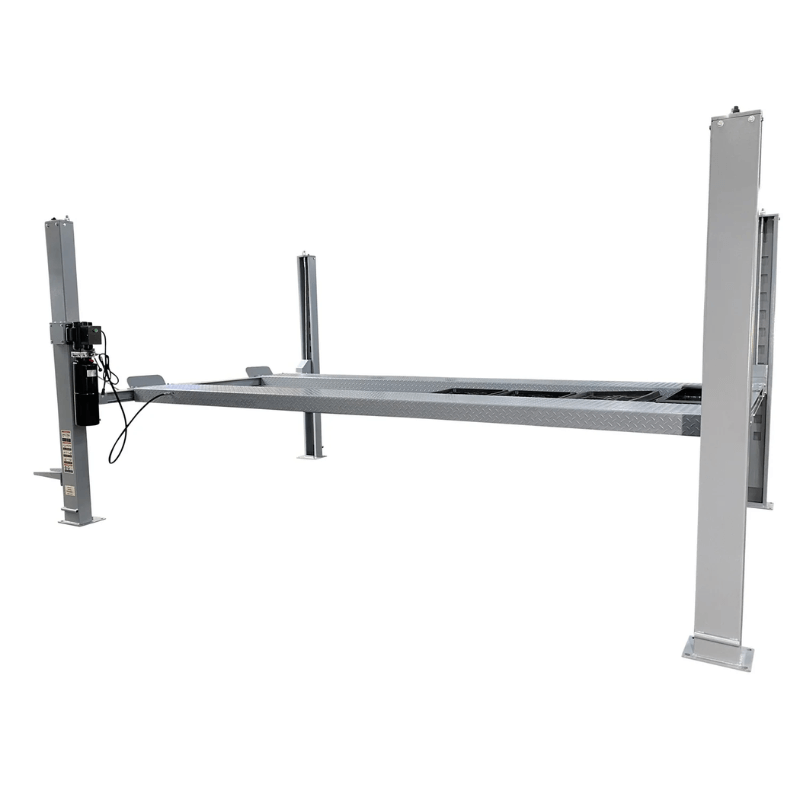

Triumph NSS-11 11,000lb 4 Post Lift

NSS11000 11,000lb 4 Post Lift by Triumph

Meet Triumph's NSS11000, the heavyweight champion of automotive lifts. This 11,000 lb capacity titan stands ready to elevate your garage game to new heights - 86.5 inches to be exact. With a runway length that rivals a dragstrip at 196 inches, it's ready to handle everything from compact sports cars to full-size pickup trucks.

This lift isn't just strong; it's smarter than a Tesla's autopilot. Featuring 11 locking positions, a lightning-fast 40-second lift time, and a single-point lock release, it's as user-friendly as a '57 Chevy. The included caster kit lets you choreograph your garage space like a pit crew chief, while the jack tray and six drip trays keep your workspace cleaner than a Concours d'Elegance show car. Powered by a standard 110-volt supply, the NSS11000 is your ticket to automotive paradise.

NSS-11 Specifications:

• Lifting Capacity: 11,000 lbs

• Overall Height: 95.5"

• Overall Length (Without Ramps): 216"

• Overall Width: 130"

• Maximum Lift Height: 86.5"

• Height Under Runway: 81"

• Runway Length: 196"

• Runway Width: 19.5"

• Drive-Thru Width: 105.125


• Width Between Columns: 118.125"


• Width Between Runways: 39" or 44.5"

• Lowered Height: 5"

• Locking Positions: 11

• Base Plate Size: 11.5" × 9.75"

• Lock Release: Single-point

• Lift Time: 40 seconds

• Power Requirement: 110V (30-amp breaker)

• Motor: 3 HP

• Shipping Weight: 2,400 lbs

• Pallet Dimensions: 196" × 23" × 31"

• Hydraulic Fluid Requirement: AW32

Triumph NSS-11 4 Post Lift Special Features:

• Includes caster kit for portability

• Includes jack tray

• Includes (3) drip trays to prevent fluid transfer between vehicles

• Aluminum ramps—lighter and easier to handle than steel

• Portable, space-saving design

• Proven design with over 20 years of reliable use

• Automatic locking system with 11 positions for safety

• Default color: Grey

• Optional Item (Sold Separate)
  • RJ-5000 - 5,000lb Rolling Jack - Perfect match for your NSS11000, 11,000 lb 4 Post Lift
