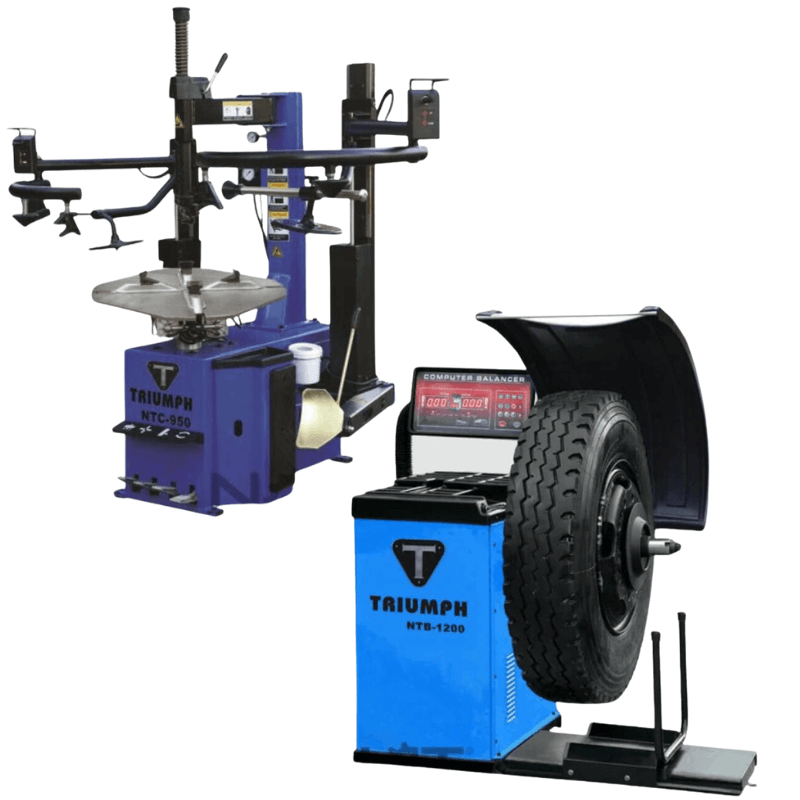

NTC-950-2 Tire Changer with NTB- 1200 Wheel Balancer Combo by Triumph
Feeling the pressure to handle bigger and more complex tire jobs? The Triumph NTC-950-2 Tire Changer and NTB-1200 Wheel Balancer combo is built for the task. The NTC-950-2 features dual pneumatic assist arms to make switching out wide profile, low profile, and run-flat tires quick and efficient, while the bead blast technology guarantees a perfect bead fit every time. A robust bead breaker force of 5,500 lbs, combined with a wide clamping range up to 28 inches, means you're always ready for the next job without delay.
And when it comes to balancing, the NTB-1200 is your go-to solution for heavy-duty performance. It handles everything from truck wheels to passenger tires with a 1/3 HP motor, balancing up to 350 lbs with ease. The auto measuring system minimizes errors, while a rapid 8-second cycle time keeps you moving at top speed. From fast setups to precise measurements, this combo cuts through the most challenging jobs.
Tire Changer and Wheel Balancer Triumph NTC-950-2 and NTB-1200 Specification
NTC-950-2
- Inside Clamping: 16-28"
- Outside Clamping: 14-26"
- Max Wheel Width: 15"
- Max Tire Diameter: 43"
- Bead Breaker Force: 5,500 lbs
- Max PSI: 120 PSI
- Horsepower: 1.5 HP
- Voltage: 110V
- Assembled Size: 56x93x80"
- Shipping Size: 38x65x51"
- Shipping Weight: 900 lbs
NTB- 1200
- Wheel Size Range: 10-28"
- Max Tire Diameter: 51"
- Rim Width: 1.5-20"
- Max Weight: 350 lbs
- Shaft Size: 42 mm
- Automatic Data Entry: No
- Display: Standard or Metric
- Accuracy: ±1 Gram (standard), ±10 Gram (heavier weights)
- Cycle Time: 8 Sec
- Horsepower: 1/3 HP
- Voltage: 110 Volt
- Shipping Size: 47x39x50"
- Shipping Weight: 720 lbs
NTC-950-2 Tire Changer Machine Special Features
NTC-950-2
- Dual Pneumatic Assist Arms: Provide extra support for changing wide profile, low profile, and run-flat tires.
- Bead Blast Technology: Delivers a powerful air burst to assist in bead setting and tire inflation.
- Side-Mounted Bead Breaker: Applies 5,500 lbs of force to easily break tire beads.
- Comprehensive Tool Set: Includes a steel and plastic mount/demount head, plastic wheel clamp covers, a soap tank with an application brush, and a tire tool bar.
- Wide Clamping Range: Suitable for a variety of tire sizes, accommodating inside clamping up to 28" and outside clamping up to 26".
- High Capacity: Handles wheel widths up to 15" and tire diameters up to 43".
- Powerful Motor: Equipped with a 1.5 HP motor for reliable and efficient operation.
- Standard Voltage: Operates on a 110V power supply, compatible with most shop environments.
- Sturdy Construction: Weighs 900 lbs, ensuring durability and stability for high-volume use.
NTB- 1200
- Heavy-Duty Performance: Designed for both large truck wheels and smaller passenger wheels.
- Auto Measuring: Simplifies the balancing process with automatic distance and wheel diameter measuring.
- Protective Cover: Includes a cover to protect the machine and extend its lifespan.
- High Capacity: Handles wheel sizes up to 28 inches and tire diameters up to 51 inches.
- Fast and Accurate: Provides precise balancing with a cycle time of 8 seconds and high accuracy.
- 1 year warranty parts only
Triumph NTC-950-2 with NTB-1200 Documentation
No Available
NTC-950-2 Tire Changer with NTB-1200 Wheel Balancer Optional Item Sold Separately
This Item has a FLAT RATE SHIPPING FEE: $399*
Warehouse Pickup locations (No shipping charge):
- Columbus, OH
- Fort Worth, TX
- North Las Vegas, NV
*An additional $200 freight fee is required for locations in Northern CA, OR, WA, SD, ND, MT, WY. After initial purchase, a separate link will be sent to complete your transaction.
