Triumph NTR-24 24,000lb 4 Post Car Lift

SKU NTR-24
by Triumph
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
Save $811.00
Original Price $15,201.00
Current Price $14,390.00

Delivery Options

Notify me when back in stock

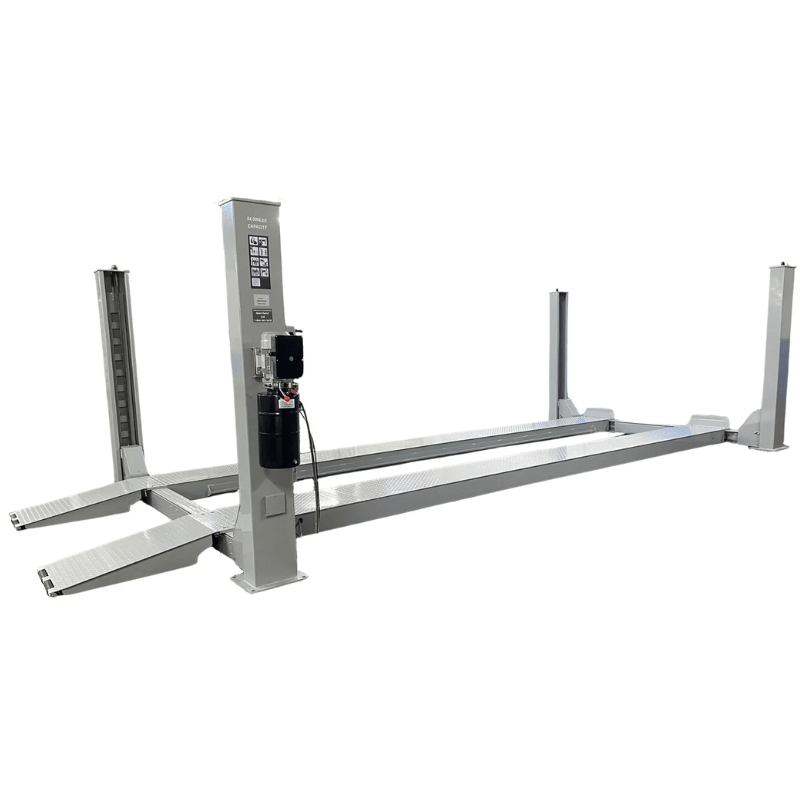

NTR-24 24,000 lb Four Post Auto Lift by Triumph

Need a lift that can handle the big boys? Meet the NTR-24, Triumph’s heavy-duty four-post powerlifter with an impressive 24,000 lb lifting capacity. Whether it’s a commercial truck, a bus, or a beastly fleet vehicle, this lift raises it all without breaking a sweat. With a maximum lifting height of 70.8 inches and 9 lock positions, you’ll have the perfect height and security for every job. The spacious runways, adjustable from 45.3 to 49.2 inches apart, ensure a snug fit for larger vehicles, making maintenance a breeze.

Built tough for demanding environments, the NTR-24 combines durability and efficiency in one sleek package. Its 220V single-phase electrical system powers smooth and reliable operation, while the 9-inch minimum runway height makes loading even the heaviest vehicles easy. Plus, with a total length of over 338 inches with ramps and a shipping weight of a whopping 6,614 lbs, this lift isn’t just sturdy—it’s a mammoth built for real-world heavy lifting.

4 Post Lift NTR-24 Specifications

  • Lifting Capacity: 24,000 lbs
  • Overall Height: 93.1"
  • Overall Length Without Ramps: 300"
  • Overall Length With Ramps: 338.9"
  • Overall Width: 150.1"
  • Minimum Runway Height: 9"
  • Maximum Lifting Height: 70.8"
  • Runway Length: 289.9"
  • Runway Width: 24"
  • Width Between Runways: 45.3" - 49.2"
  • Width Between Columns: 131.8"
  • Number of Lock Positions: 9
  • Electrical Requirement: 220V Single Phase
  • Shipping Weight: 6,614 lbs
  • Shipping Dimensions: 295x30x43 inches

NTR-24 24,000 lb Four Post Auto Lift Special Features:

  • Heavy-duty construction for handling large commercial vehicles
  • 9 lock positions for secure and adjustable lifting heights
  • Wide 24" runways to support a variety of large vehicles
  • Adjustable spacing between runways for flexibility and versatility
  • High lifting capacity ideal for trucks, buses, and fleet maintenance
  • 220V single-phase electrical system for consistent and reliable operation
  • Durable steel frame ensures long-lasting performance
  • Spacious design allows for efficient vehicle servicing
  • Precision-engineered for safety, stability, and smooth operation
  • Certification: CE Certified and built in factories with ISO9001 Quality Certification
  • Buy as a Combo Triumph NTR-24 + RJ-15000 Combo

Triumph NTR-24 Documentation

No documents

Triumph NTR-24 24,000 Optional Item (Sold Separately)

This Item has a FLAT RATE SHIPPING FEE: $999

Warehouse Pickup locations (No shipping charge):

  • Columbus, OH
  • Fort Worth, TX
  • North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, OR, WA, SD, ND, MT, WY. After initial purchase, a separate link will be sent to complete your transaction.

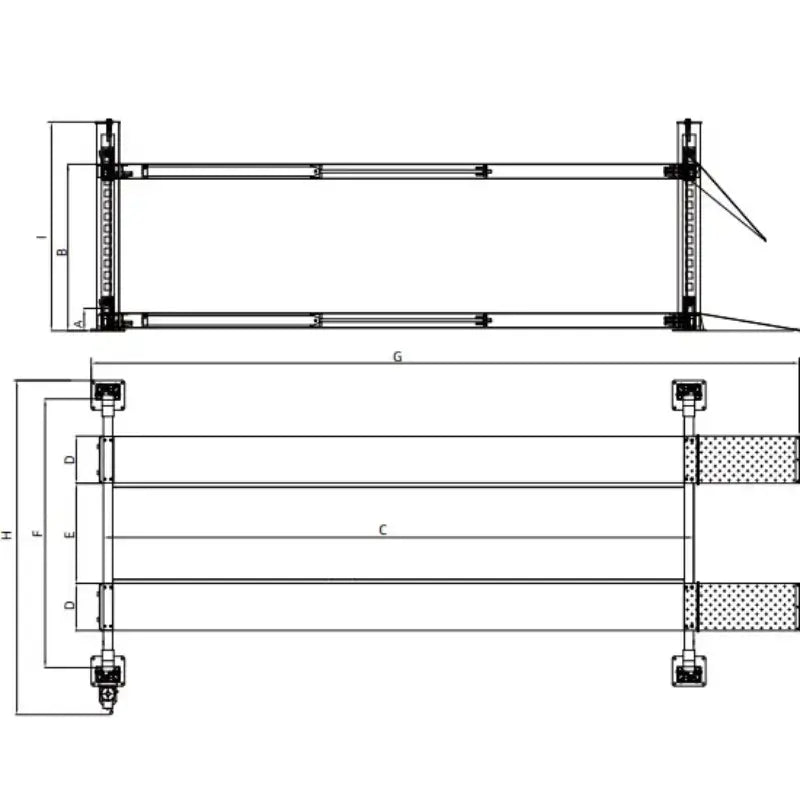

Triumph NTR-24 24,000 lb Four Post Auto Lift Diagram

Triumph NTR-24 24,000 lb Four Post Auto Lift Diagram-1
