Triumph USA8000 8,000lb 4 Post Lift - Made in USA

USA 8000 4 Post Lift

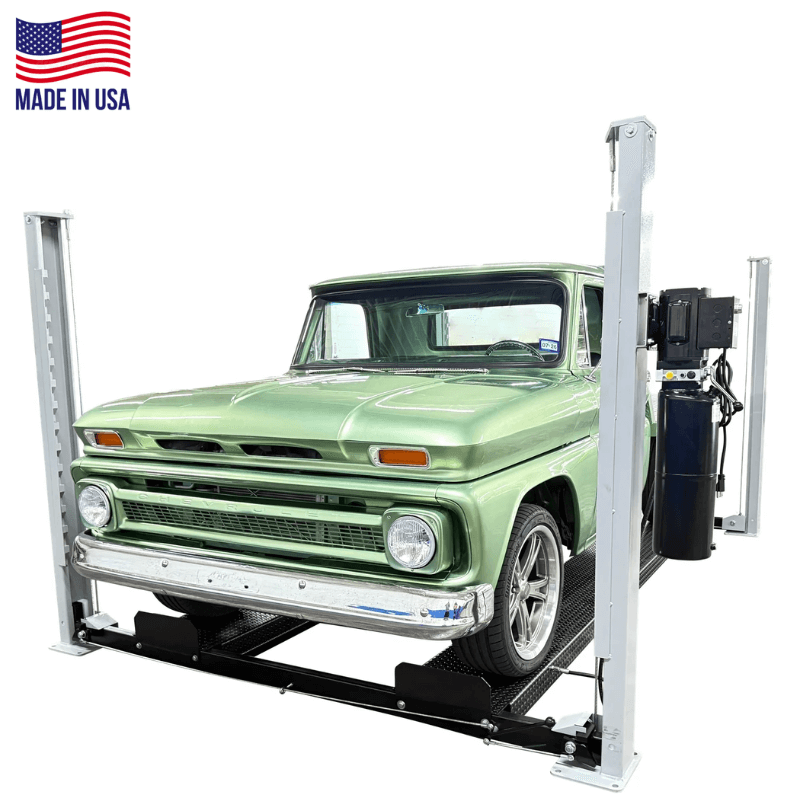

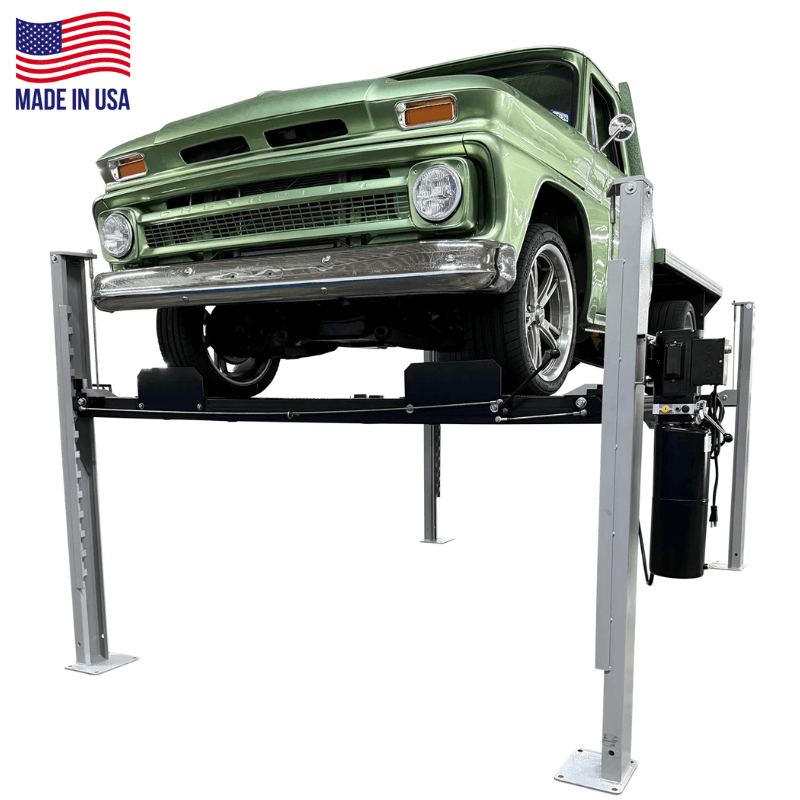

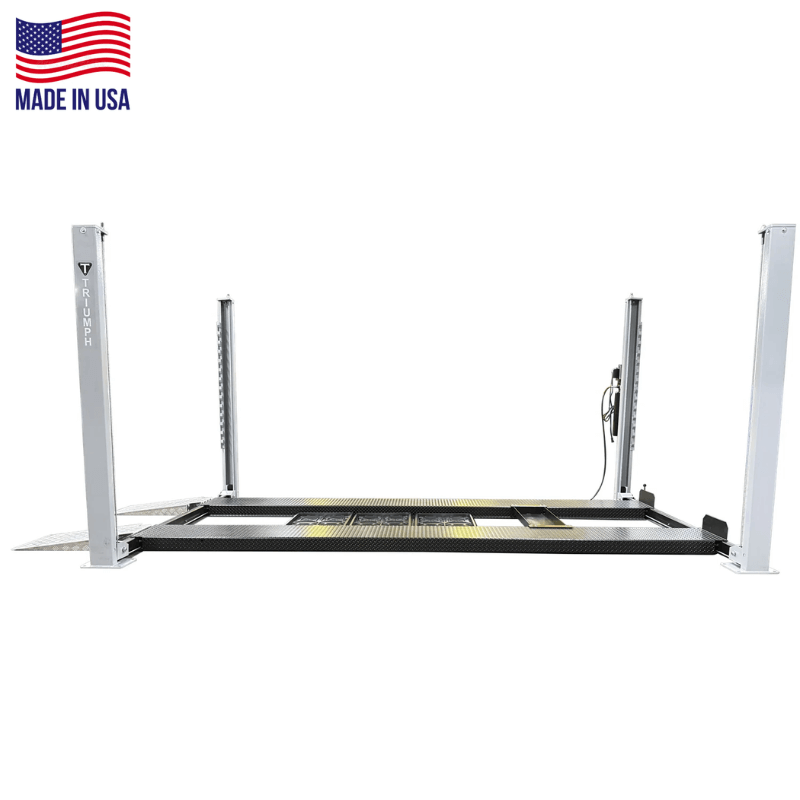

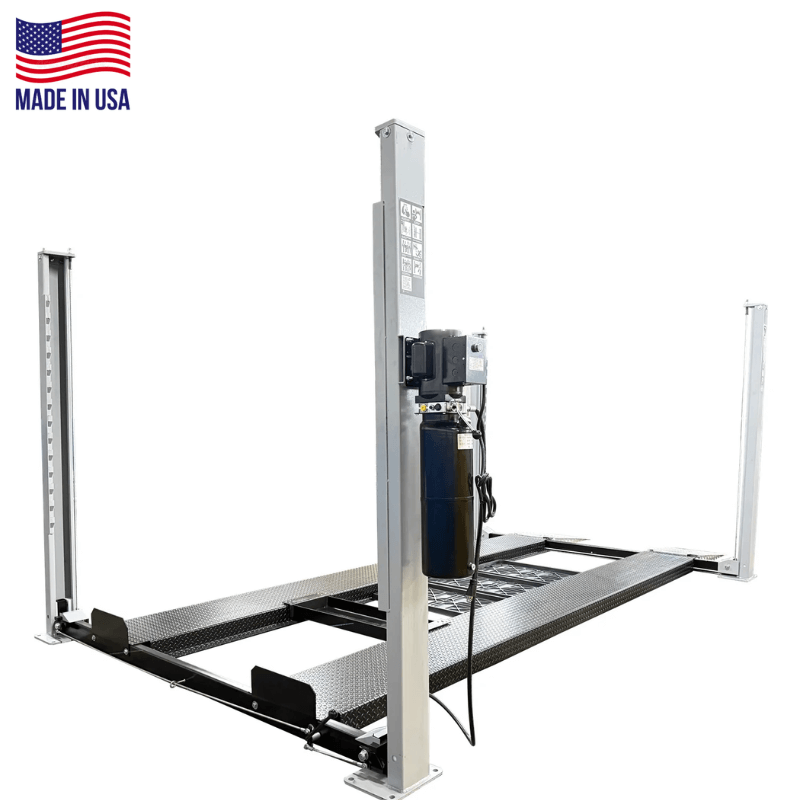

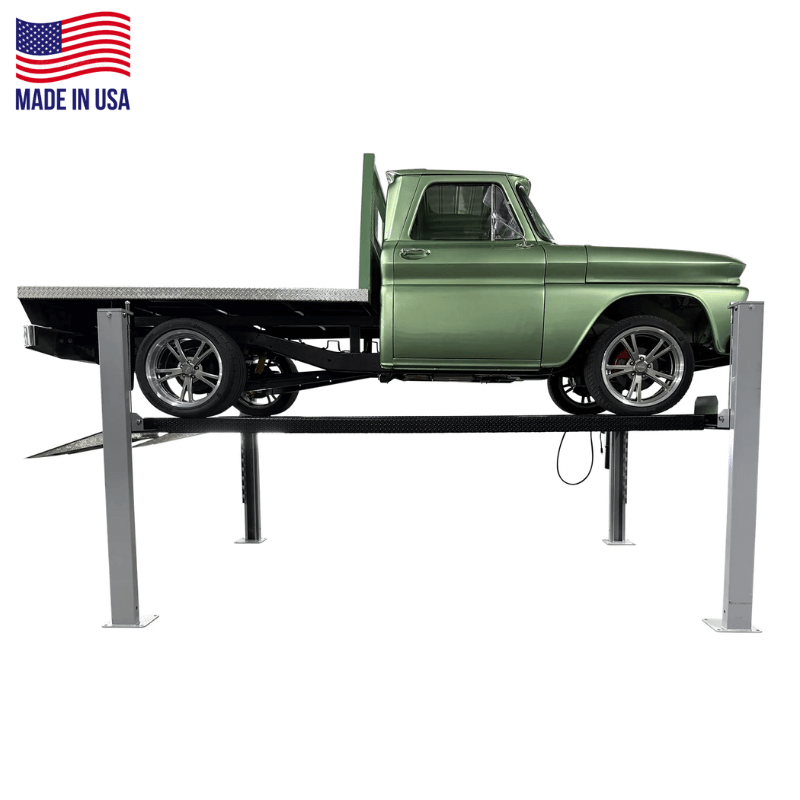

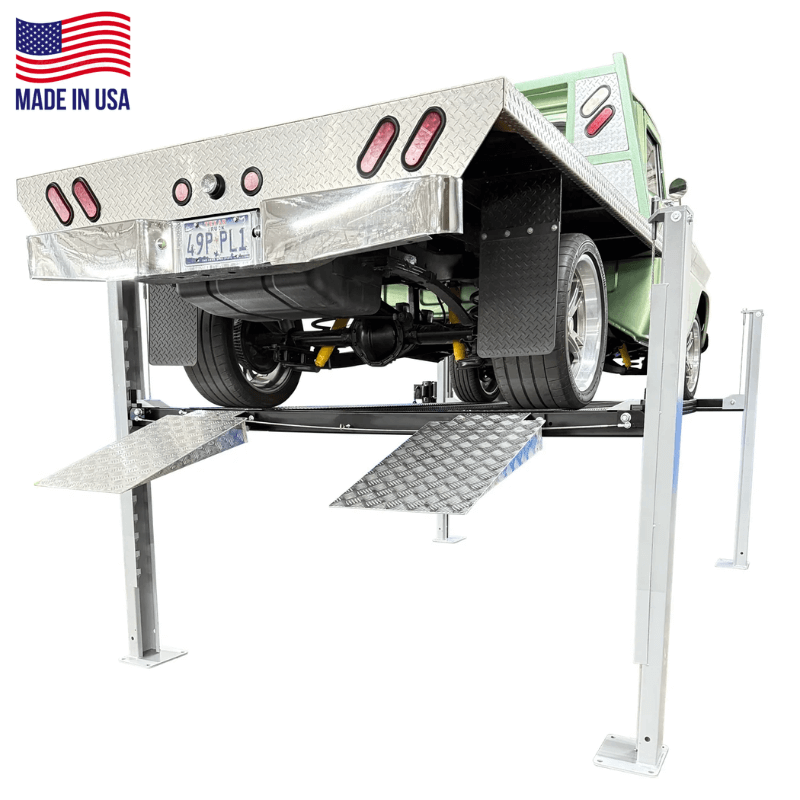

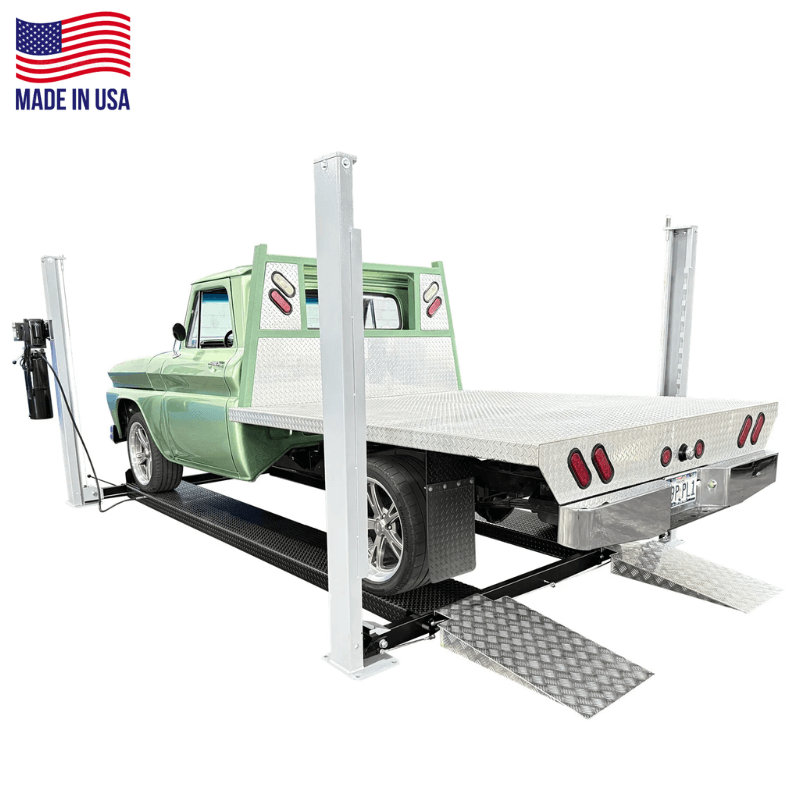

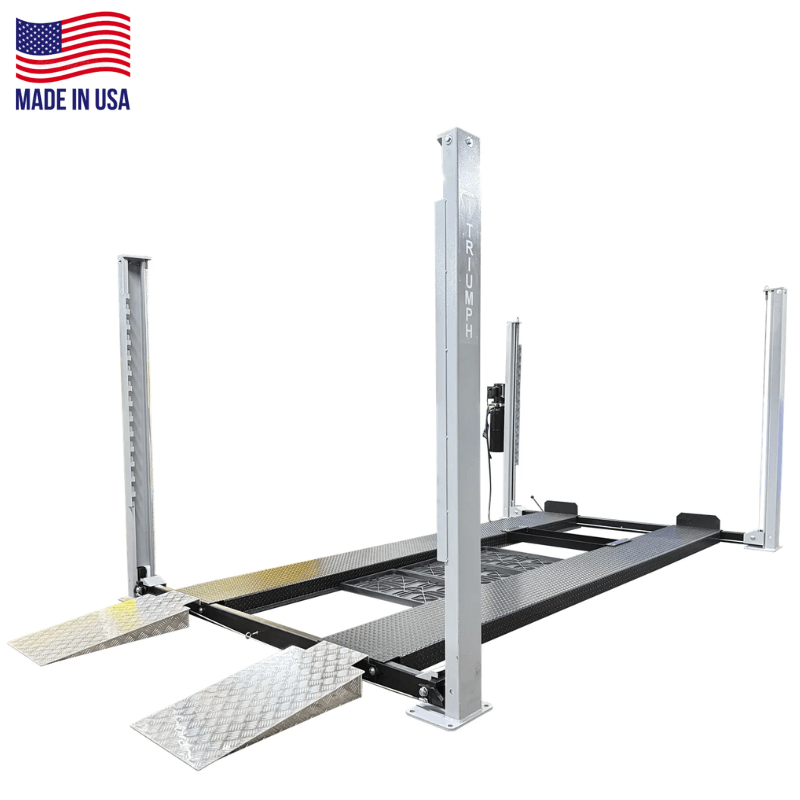

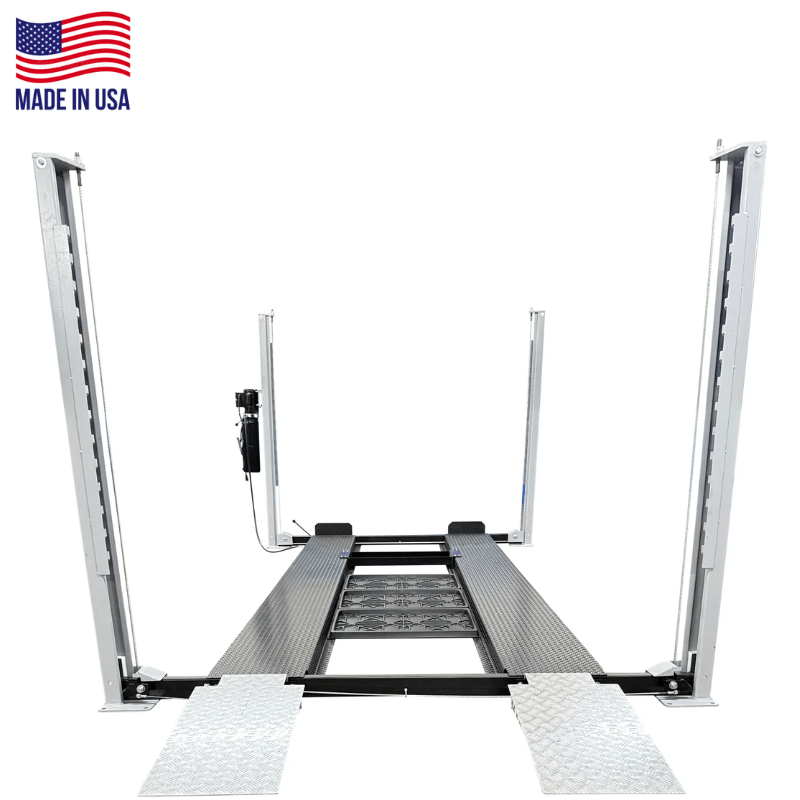

The Triumph USA8000 Four Post Automotive Lift is designed to handle both vehicle service and storage with unmatched reliability. With an 8,000 lb. lifting capacity, it’s strong enough for most cars, trucks, and SUVs while maintaining a compact footprint for home garages or professional shops.

Equipped with a caster kit, jack tray, and three drip trays, this lift provides a complete solution right out of the box. The caster kit makes it portable, the jack tray works with a floor or bottle jack for added lifting, and the drip trays prevent leaks from reaching vehicles stored below. This combination ensures your workspace stays clean and efficient.

USA 8000 Specifications:

• Capacity: 8,000 lbs.

• Overall Height: 82"

• Overall Length (without ramps): 175"

• Overall Length (with ramps): 207"

• Overall Width: 112" (base plate to base plate)

• Overall Width with Power Unit: 124"

• Lift Height: 73"

• Height Under Runway: 69"

• Runway Length: 165"

• Drive Thru Width: 102.5"

• Outside Runway to Outside Runway: 75"

• Runway Width: 19"

• Between Runways: 37"

• Lowered Height: 5"

• Locking Positions: 14

• Base Plate Size: 12" x 10"

• Lock Release: Single Point

• Lift Time: 40 seconds

• Voltage: 110V - 3HP 20AMP (Must be Dedicated Plug)

• Concrete Requirements: Minimum of 4"-3500psi

• Shipping Weight: 1,600 lbs.

• Hydraulic Fluid Requirement: AW32

Triumph USA8000 4 Post Lift Special Features:

• Heavy-duty 8,000 lb. lifting capacity

• Made in the USA with a trusted 20+ year design

• Automatic locking with 14 safety positions

• Single-point lock release for simple operation

• Includes:

  • Caster kit included for easy mobility

  • Jack tray works with bottle or floor jacks

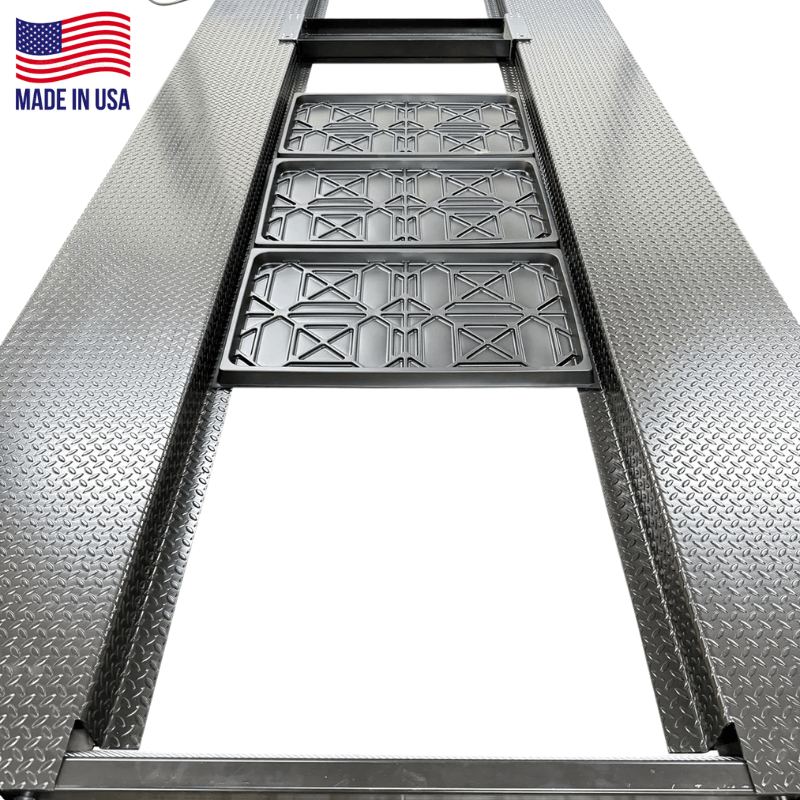

  • Three drip trays prevent leaks onto lower vehicles

• Quick setup and completely portable


• Power Unit is NOT made in the USA

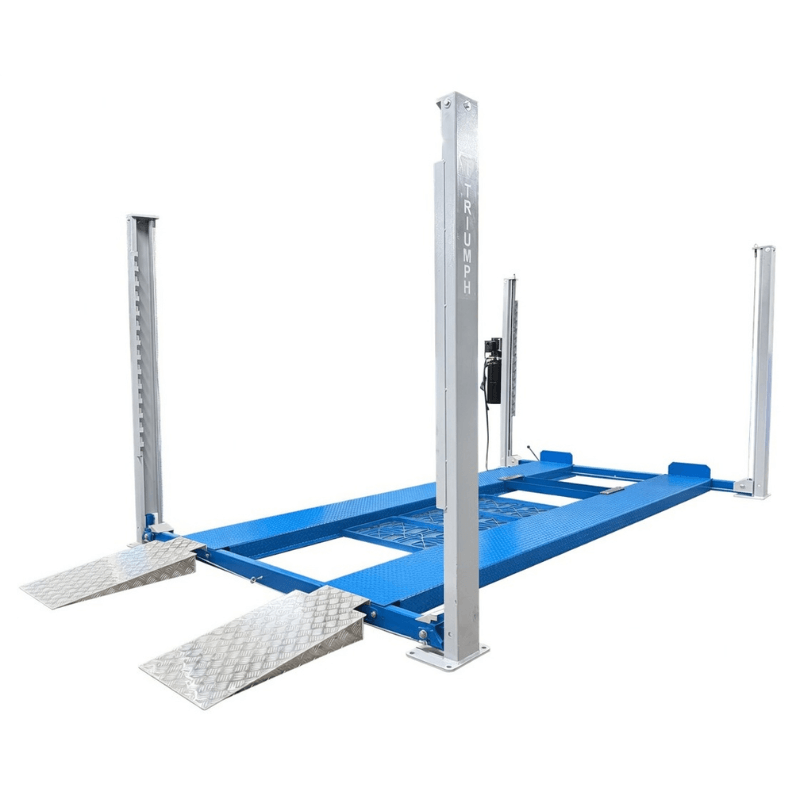

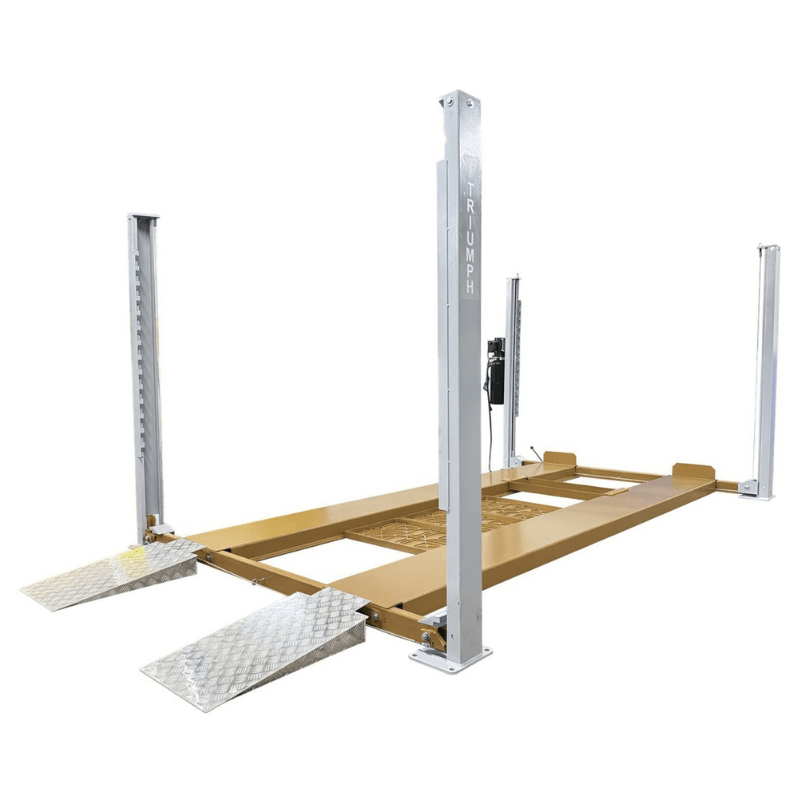

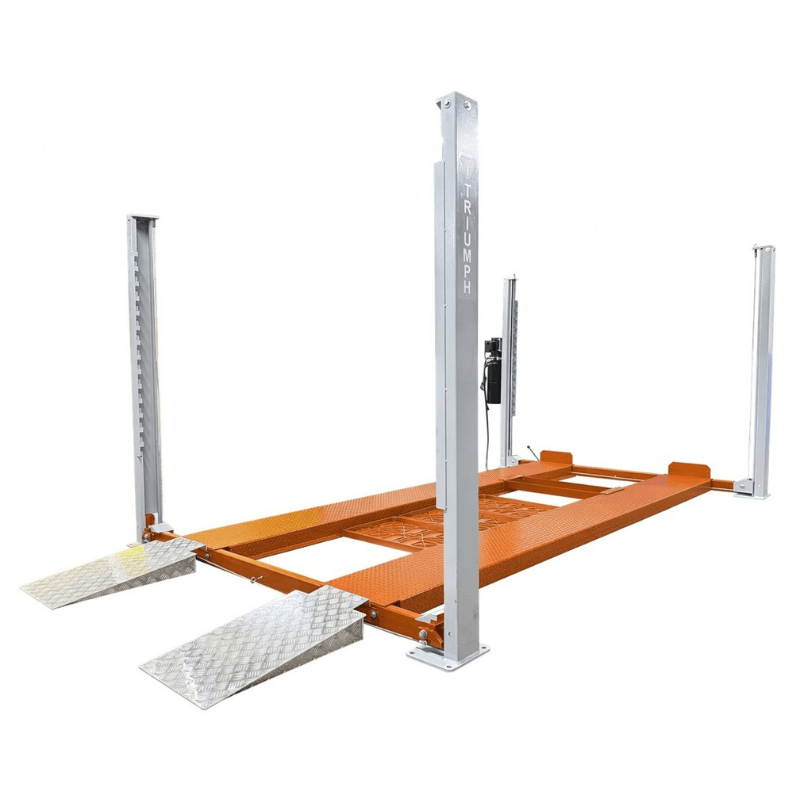

• Ask about customer color options!
  • Color Rules: All Units to have Gray Columns. Cross Rails and Runways can be painted with custom colors.

Triumph USA8000 Manual

  Triumph USA8000 Installation and Operations Manual

Optional Sliding Jack (Not Made in the USA; Currently no USA option available)

• SJ-35 3,500lb sliding jack
