Tuxedo FP8K-DX-XLT, 8,000 lb Deluxe 4 Post Parking Lift Extended Length / Height

SKU FP8K-DX-XLT
by Tuxedo
  • Winter Sale Extended - Ends January 31
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
Save $774.00
Original Price $4,124.00
Current Price $3,350.00
Free Warehouse Pickup Locations*
*Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

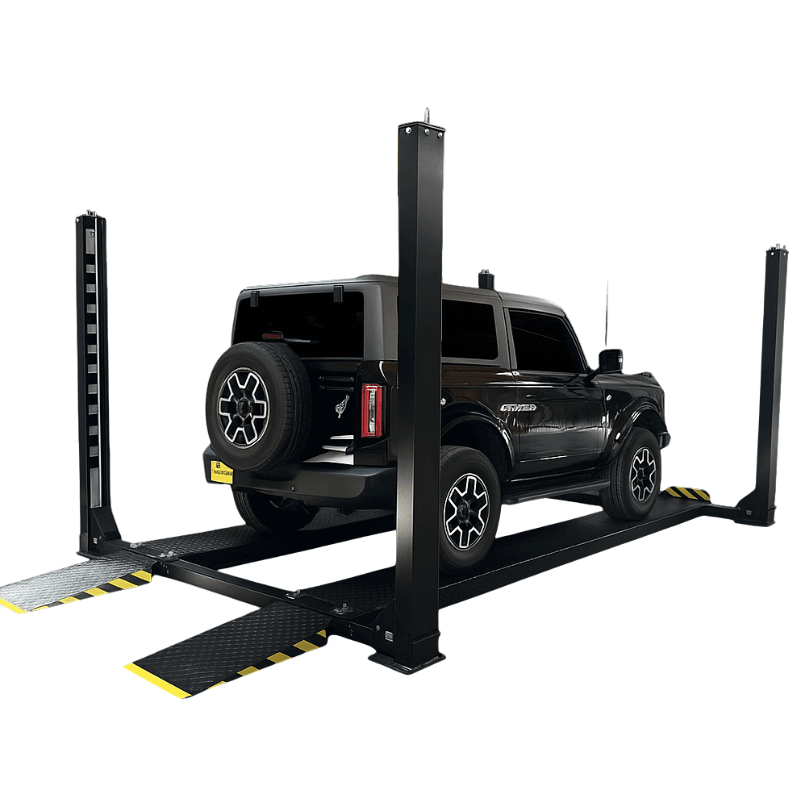

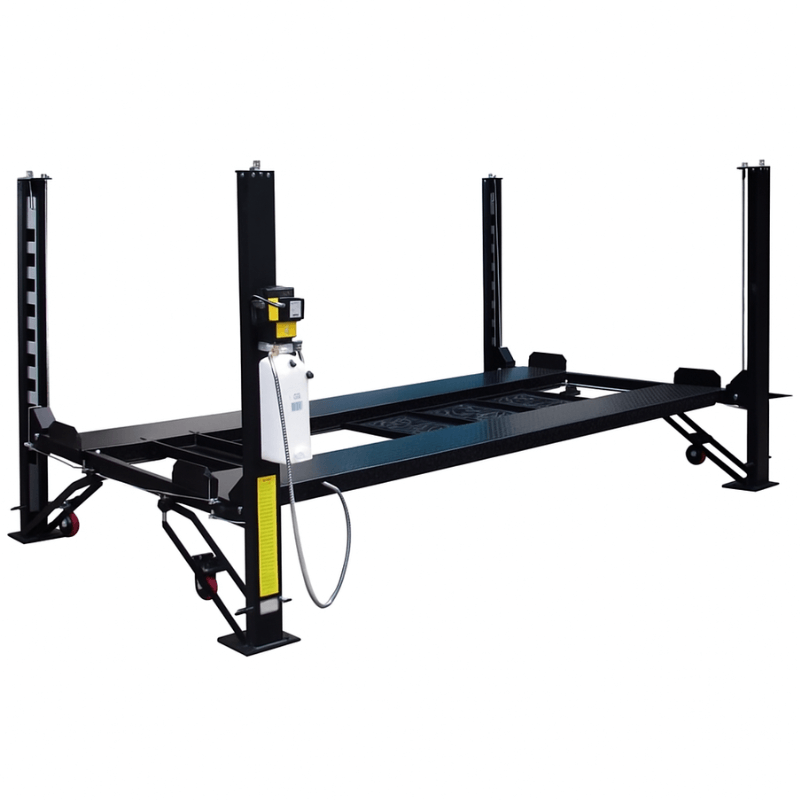

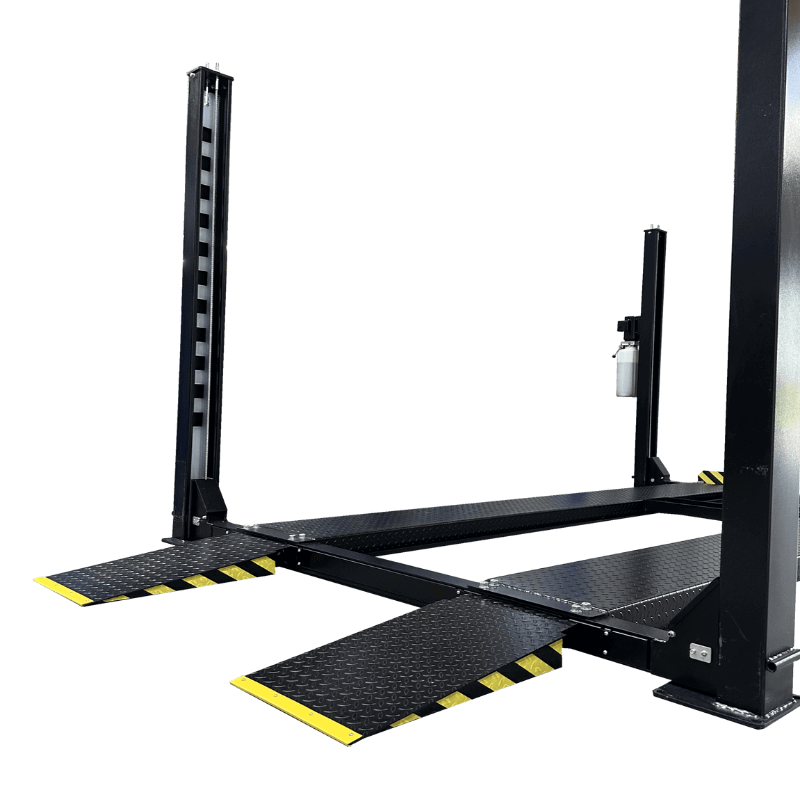

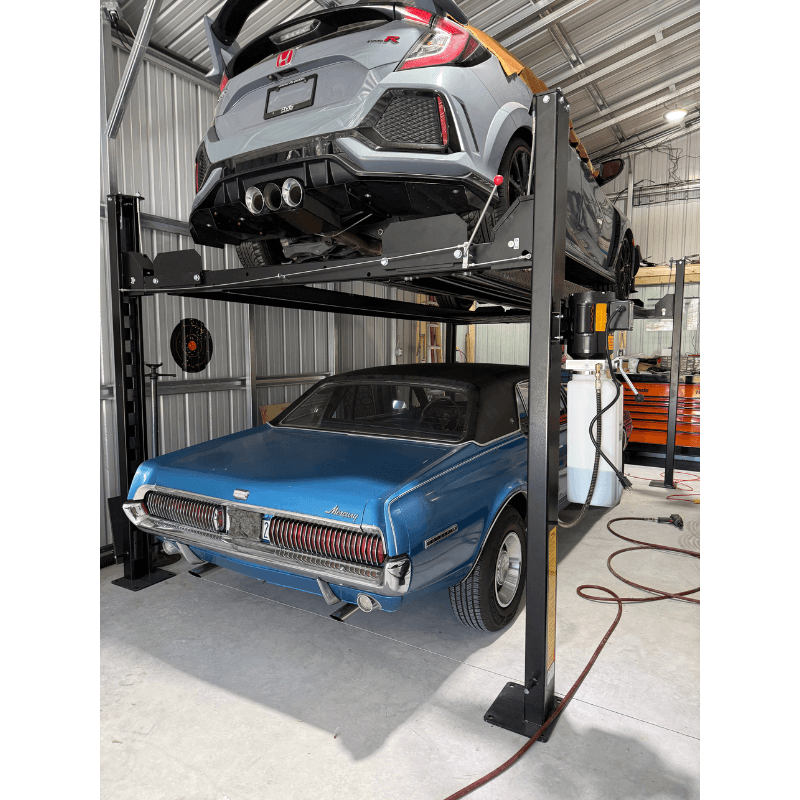

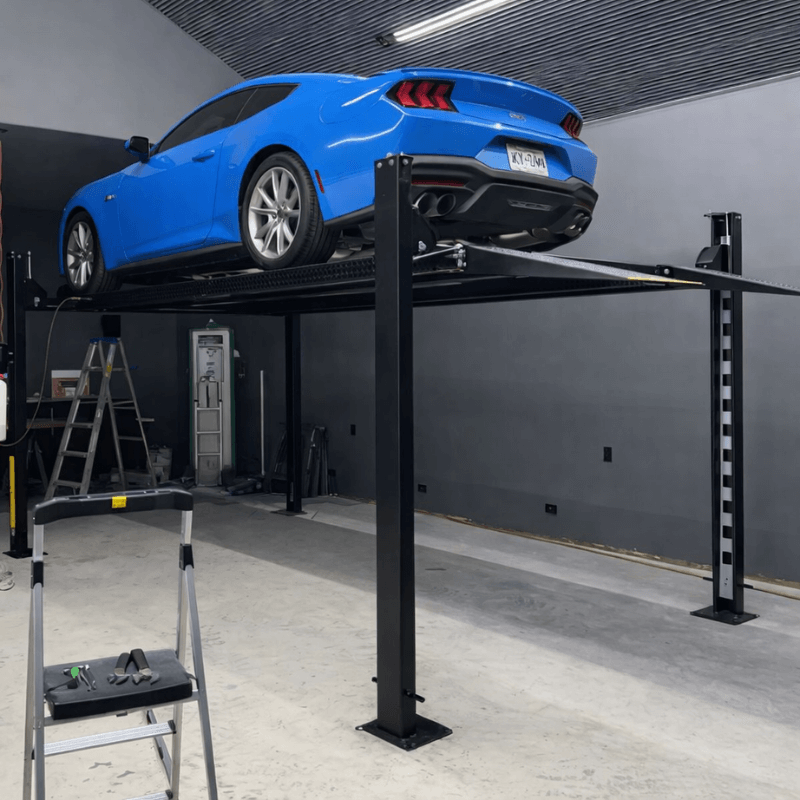

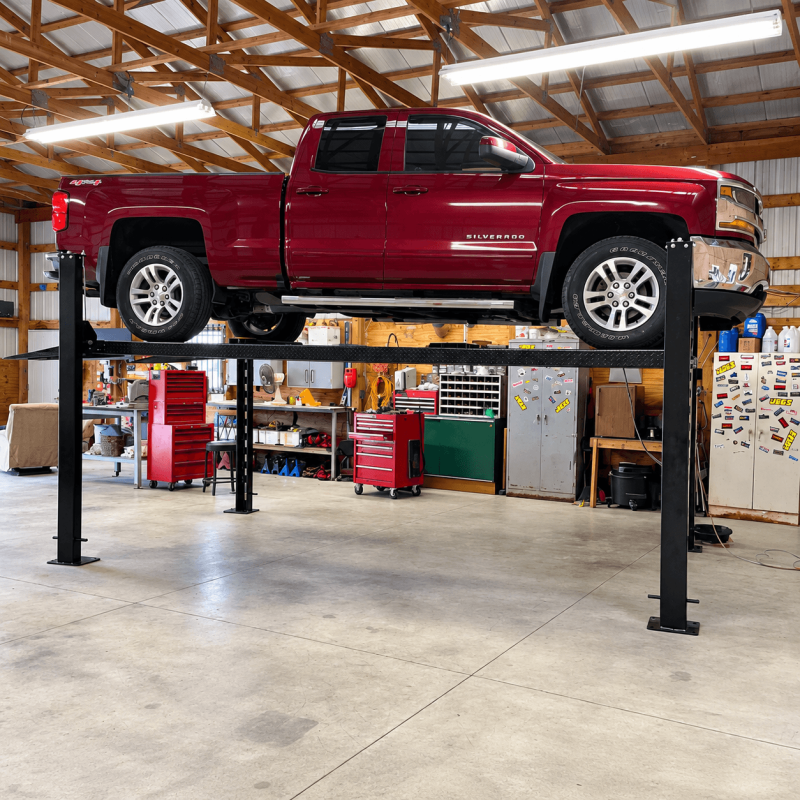

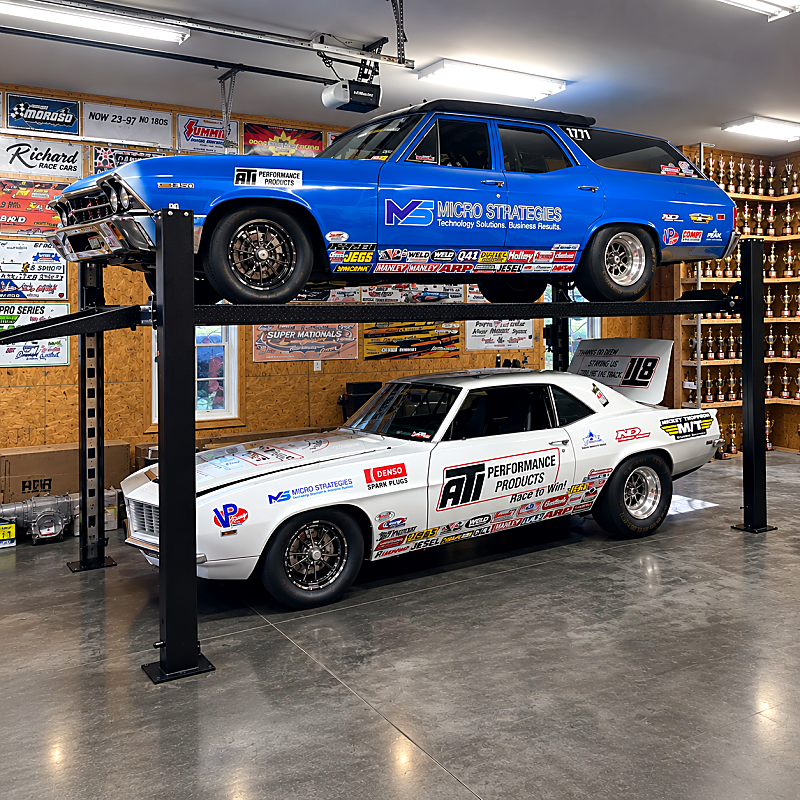

FP8K-DX-XLT Deluxe 4 Post Parking Lift by Tuxedo

Need more space in your garage (without sacrificing the car!)? The FP8K-DX-XLT lift is your secret weapon. This deluxe 8,000 lb capacity beast tackles full-size trucks and SUVs with ease, thanks to its extended length and lift height. No more squeezing or contorting - say hello to a more spacious and organized garage haven. This cable-driven system boasts a user-friendly single-point manual lock release and adjustable locking positions for ultimate control. Plus, safety is paramount with a slack cable feature and sturdy steel approach ramps.

Here's the cherry on top: This lift comes fully loaded with a 5-year warranty on the structure and 1 year for parts, giving you peace of mind. Free up floor space, work comfortably on any vehicle, and experience the ultimate garage transformation.


4 Post Parking Lift FP8K-DX-XLT Specifications:

  • Lifting Capacity: 8,000 lbs.
  • Lifting Height: 82.3"
  • Overall Length with Ramps: 222.5"
  • Overall Length without Ramps: 190.7"
  • Overall Width: 109.4"
  • Runway Tread Width: 18.7"
  • Runway Length: 180.5"
  • Runway Height: 4.3"
  • Top of Runway to Ground: 4.8"
  • Column Height: 94"
  • Clearance between Columns: 100.3"
  • Clearance between Runways: 42.2"
  • Outside Runway to Outside Runway: 80.7"
  • Clearance under Runways: 78"
  • Drive Thru Width: 87.2"
  • Locking Positions: 12
  • Base Plate Size: 10" x 12"
  • Power: 115V-20 Amp / 1PH
  • Ship Weight: 1,805lbs
  • Pallet Dimensions: 182"L 22"W 41"H

FP8K-DX-XLT, 8,000 lb Deluxe 4 Post Storage Lift Special Features

  • Capacity: 8,000 lbs
  • Length (w/ ramps): 222-1/2"
  • Runway Length: 180-1/2"
  • Width Between Posts: 100-1/4"
  • Clearance Under Track: 78"
  • Cable driven
  • Manual Lock Release - Single Point
  • Locking Positions come adjustable
  • Slack Cable Safety
  • Steel Ramps
  • Fits in most residential garages
  • Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
  • Includes Drip Trays, Jack Tray & Poly Caster Kit

Tuxedo FP8K-DX-XLT 4 Post Documentation:

Storage Lift FP8K-DX-XLT Product Manual   Tuxedo FP8K-DX-XLT Storage Lift Product Manual

FP8K-DX-XLT Deluxe Storage Lift Extended Length / Height Optional Items (sold separately):

  • SJ-35 Sliding Jack
  • Aluminum Drive-On Ramps: No. FP7K-4023

20% DISCOUNT on Scratch & Dent Units:

  • Contact Us today if your item is available
  • Pictures of units can be shared upon request
  • For on-sale items, discount comes off of regular price
  • All refurbished items ship from Texas warehouse or can be picked up at no additional cost
    FP8K-DX-XLT Storage Lift by Tuxedo Diagram

    This Item has a FLAT RATE SHIPPING FEE: $499

    Warehouse Pickup locations (No shipping charge):

    • Temecula, CA 92590
    • Orlando, FL 32824
    • Kennesaw, GA 30144
    • Elwood, IN 46036
    • Maple Grove, MN 55311
    • Reidsville, NC 27320
    • Bohemia, NY 11715
    • Reading, PA 19605
    • Alvarado, TX 76009
    • West Valley City, UT 84119
    Storage Lift FP8K-DX-XLT Diagram 1 Storage Lift FP8K-DX-XLT Diagram 2 Storage Lift FP8K-DX-XLT Diagram 3
