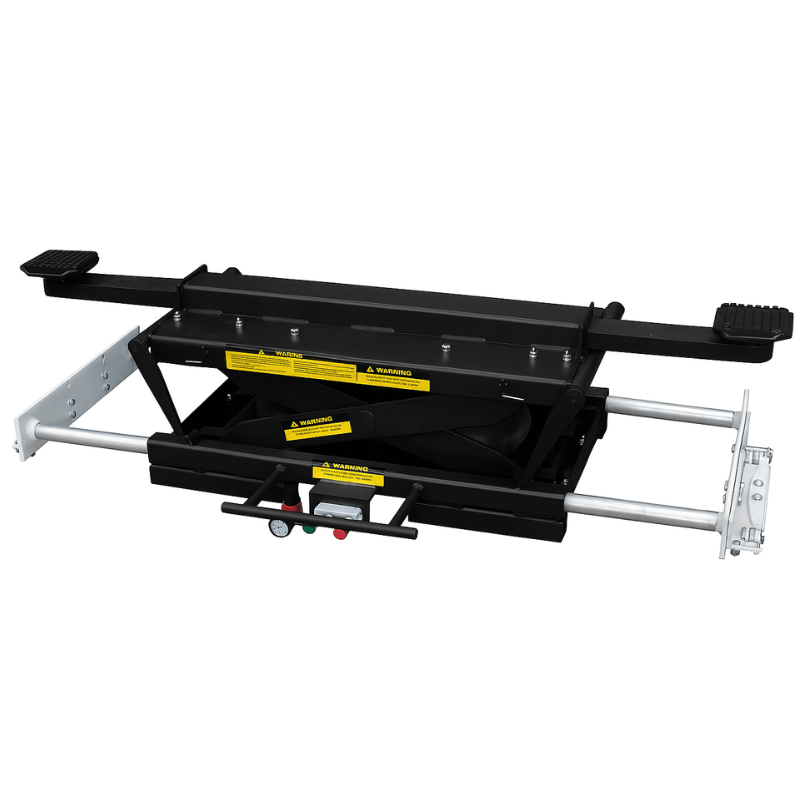

Tuxedo RAJ-8K-L, Rolling Air Jack 8,000 lb - Low Mount

RAJ-8K-L Rolling Air Jack by Tuxedo

Introducing our Heavy-Duty Telescopic Lift System, built to effortlessly handle loads up to 8,000 lbs. With telescoping support arms ranging from 38-3/8” to 60” and lifting arms spanning 35-7/16” to 57-1/2”, it accommodates various vehicle sizes. Achieve precise lifting heights from 6-9/16” to 14-7/8”, while adjustable roller body bracket heights and stackable adaptors ensure adaptability. Safety is paramount with a locking position, and powering requires 100 – 125 PSI / 10 – 20 CFM. Despite its power, it's portable with a ship weight of 426 lbs. and a compact package size of 43”L x 29” W x 12” H.

Advanced Lift System with features that make lifting a breeze. Its Universal Roller Body design allows for easy adjustment between Low, Medium, and High Jack Rail configurations. The Low Profile design ensures seamless integration into any workspace, while its ability to roll on the Jack Rail's top edge ensures smooth maneuverability. Equipped with Dual Height Telescoping Support Arms and operated pneumatically with an adjustable Pressure Regulator, precision lifting is simple. Dual Air Bags provide stability, and Stackable Pad & Height Adaptors offer versatility. Shipped in a sturdy Wooden Crate, our Lift System is ready to deliver reliable performance.

Rolling Air Jack RAJ-8K-L Specifications:

• Lift Capacity: 8,000 lbs.

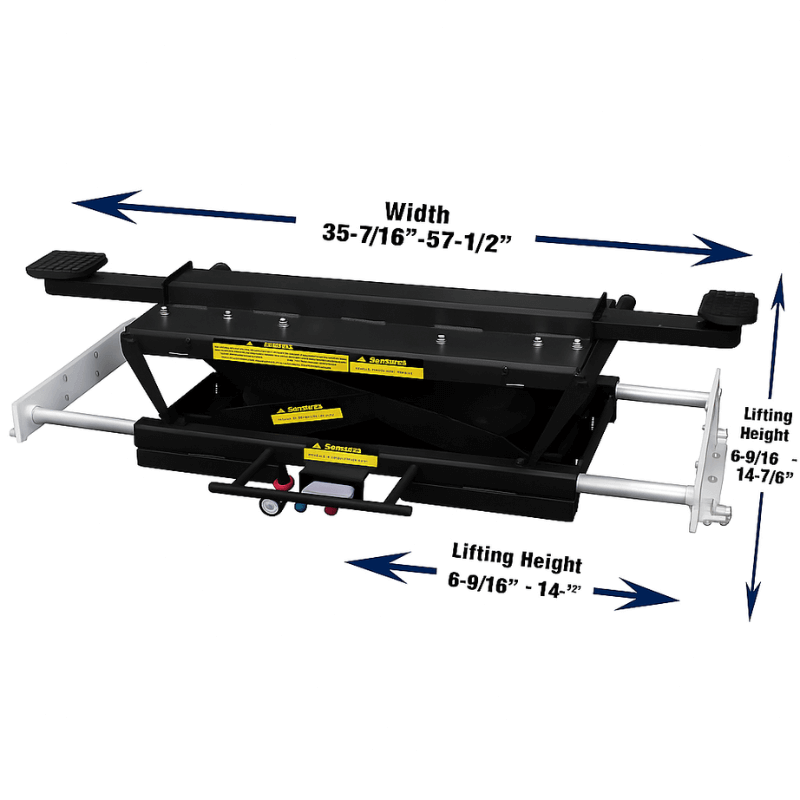

• Telescoping Support Arms – Min/Max: 38-3/8” – 60” (Roller Body wheel center)
• Lifting Arms – Min / Max: 35-7/16” – 57-1/2” (Pad center)
• Lifting Height – Min/Max: 6-9/16” – 14-7/8” (Pad Adaptor only)
• High Mount – adjustable Roller Body Bracket Height: 1”
• Low Mount – adjustable Roller Body Bracket Height: 1”
• Stackable Adaptor Heights: 1-5/16” & 5” (1 Pair)
• Locking Positions: 1ea
• Required Power: 100 – 125 PSI / 10 – 20 CFM
• Ship Weight: 426 lbs.
• Package Size: 43”L x 29” W x 12” H

Rolling Air Jack RAJ-8K-L Special Features:

• Universal Roller Body design with dual ‘spring loaded’ precision Roller Bearing & Side Guide Wheels with adjustable Height for Low, Medium & High Jack Rail configurations.
• Low Profile configuration
• Rolls on top edge of Jack Rail for smooth maneuverability
• Dual Height Telescoping Support Arms
• Pneumatic operation w/ adjustable Pressure Regulator
• Dual Air Bags
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
• Stackable Pad & Height Adaptors – 1-5/16” & 5” Height Adaptors (1 Pair each)
• Ships in durable Wooden Crate

• Telescoping Support Arms - Min/Max: 38-3/8” – 60” (Roller Body Wheel center)
• Lifting Arms - Min/Max: 35-7/16” – 57-1/2” (Pad center)
• Lifting Height - Min/Max: 6-9/16” – 14-7/8” (Pad Adaptor only)
• ‘Low Mount’ - adjustable Roller Body Bracket Height: 1”
• Stackable Adaptor Heights: 1-5/16” & 5” (1 Pair)
• Locking Positions: 1ea
• Required Power: 100 - 125 PSI / 10 - 20 CFM
• Shipping Weight: 426 lbs.
• Package Size: 43”L x 29” W x 12” H

Tuxedo RAJ-8K-L Documentation:

   Tuxedo RAJ-8K-L Rolling Air Jack Product Manual

Recommended Models:

• FP14K

Acceptable Models:

• FP12K-K
