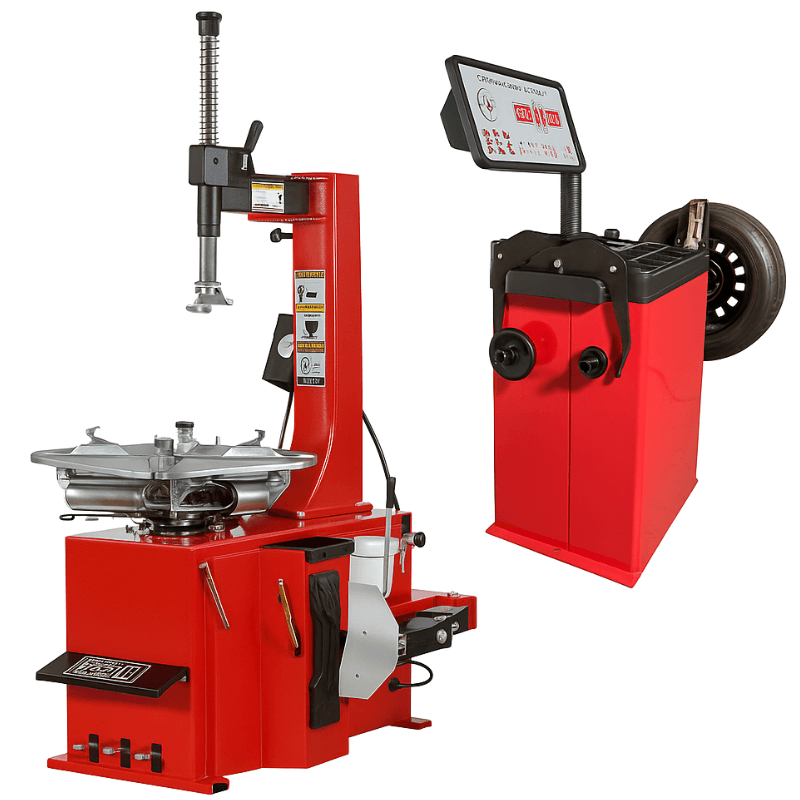

Tuxedo TC-530 Tire Changer With WB-953-B Wheel Balancer Combo

TC-530 Tire Changer With WB-953-B Wheel Balancer Combo by Tuxedo

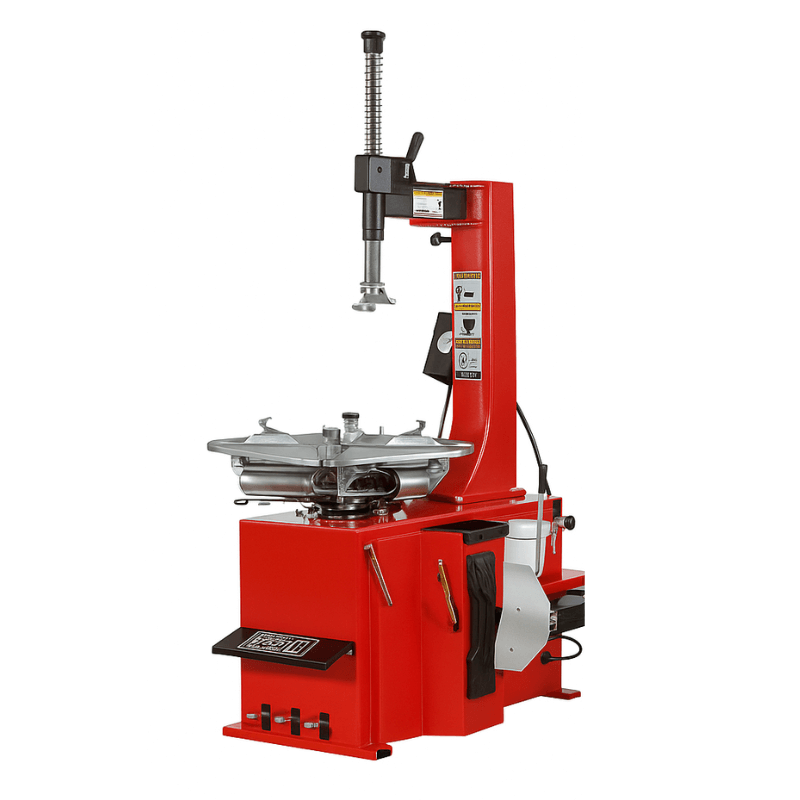

Introducing the Tuxedo TC-530 Tire Changer, a versatile and powerful tool for changing tires. It can handle wheel sizes up to 38 inches in diameter and 12 inches in width. With its secure grip, it works for rims ranging from 10 to 23 inches. Powered by a standard 110V outlet, it operates smoothly at 125 psi pressure. Despite its strength, it's portable at 560 lbs, making tire changes easy and efficient for both professionals and enthusiasts alike.

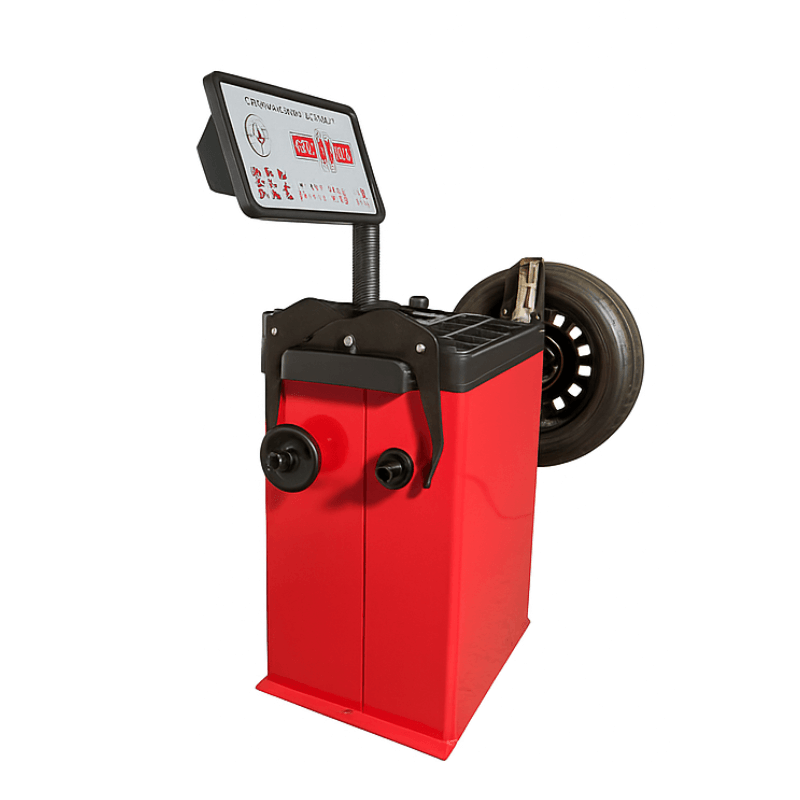

The Tuxedo WB-953-B Wheel Balancer is your go-to for easy and precise wheel balancing. It can handle wheels up to 39 inches in diameter and rim widths from 1.5 to 20 inches, with a weight capacity of 150 pounds. Powered by a reliable 110V system, it weighs 305 pounds, providing stability and portability. The LED touch-panel keypad simplifies operation with clear icons, making balancing wheels up to 24 inches in diameter effortless. Whether for cars or motorcycles, this balancer is your ultimate balancing companion.

The Tuxedo TC-530 Tire Changer is designed for versatility, handling tires up to 38 inches in diameter and 12 inches in width, making it suitable for various vehicles. It features an efficient swing arm design and integrated bead seating inflation jets for quick and safe tire inflation. With twin clamping cylinders, it provides a strong grip for challenging rims without causing damage. The TC-530 also includes a powerful bead breaker and a non-contact design to prevent rim damage. Its sturdy build ensures stability, with features like a pressure limiter, water separator, and oiler for smooth operation and longevity. In summary, the TC-530 offers convenience, reliability, and efficiency for all your tire-changing needs.

The WB-953-B makes wheel balancing easy and accurate with manual input and multiple balancing modes. It's self-calibrating and diagnosing, saving time and hassle. Two operators can work simultaneously with individual settings, thanks to its multi-user support. Mounting wheels is fast and secure with its heavy-duty shaft and Speed-Nut technology. Organize your workspace effortlessly with its multi-pocket weight shelf and pegs for cones and calipers. With the WB-953-B, balancing wheels is smooth sailing from start to finish.

Combo TC-530 & WB-953-B Specifications:

Tuxedo TC-530 Tire Changer

• Tire Changer Model: TC-530
• Max Wheel Diameter: 38”
• Wheel Width: 3” – 12”
• Inside – Rim Clamp Range: 12” – 23”
• Outside – Rim Clamp Range: 10” – 20”
• Power: 110V – 15 Amp – 1PH
• Working Pressure: 125 psi
• Ship Weight: 560 lbs

Tuxedo WB-953-B Tire Changer

• Wheel Balancer Model: WB-953-B
• Data Entry: Keypad
• Max Wheel Diameter: 39”
• Rim Width: 1.5” – 20”
• Rim Diameter: 10” – 24”
• Wheel Weight Capacity: 150 lbs
• Accuracy: 1 gram
• Power: 110V – 15 Amp – 1PH
• Ship Weight: 305 lbs

Combo TC-530 & WB-953-B Special Features:

Tuxedo TC-530 Tire Changer

• Swing arm design
• Handles tires to 38″ diameter and rim widths to 12″
• Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation
• Twin clamping cylinders provide more power to hold the most difficult rims
• Conveniently located and powerful bead breaker
• No scratching. Machine never contacts rim eliminating accidental damage
• Large diameter hex mount / demount shaft for extra rigidity
• Pressure limiter, water separator and oiler are standard

Tuxedo WB-953-B Tire Changer - No Hood

• User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
• Large Rim Diameter Balancing – able to balance up to 24” Rim diameter & 39” overall Wheel Diameter.
• Multi-Mode Vehicle Balancing – standard with Car & Motorcycle balancing modes.
• Ease-Of-Use – with manual measurement input for distance & diameter with Static / Dynamic & 3 ALU modes.
• Self-Calibrating & Self Diagnosis – for improved efficiency & serviceability.
• Integrated Measurement Indicator – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
• Multi-User Operation – allows two operators to work simultaneously with different settings.
• Integrated Centering Spring – to assist with quick and proper wheel mounting on balancing shaft.
• Electronic Braking System – conveniently slows wheel down after balancing cycle.
• Heavy Duty Balancing Shaft – 36mm diameter balancing shaft accommodates wide range of wheels of different sizes and shapes.
• Speed-Nut Mounting – the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
• Multi Pocket Wheel Weight Shelf – 23 articulated pockets, over 1.5” deep, allowing plenty of storage weights, tooling & cones.
• Storage Pegs – for convenient storing of balancer cones & caliper on side of housing.
• Tuxedo Warranty:
•      One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.

Tuxedo TC-530 & WB-953-B Combo Documentation:

 Tuxedo TC-530 Tire Changer Product Manual

 Tuxedo WB-953-B Wheel Balancer Product Manual

TC-530 & WB-953-B Combo Optional Items (sold separately):

• Tire Changer TC-530
• Wheel Balancer WB-953-B
