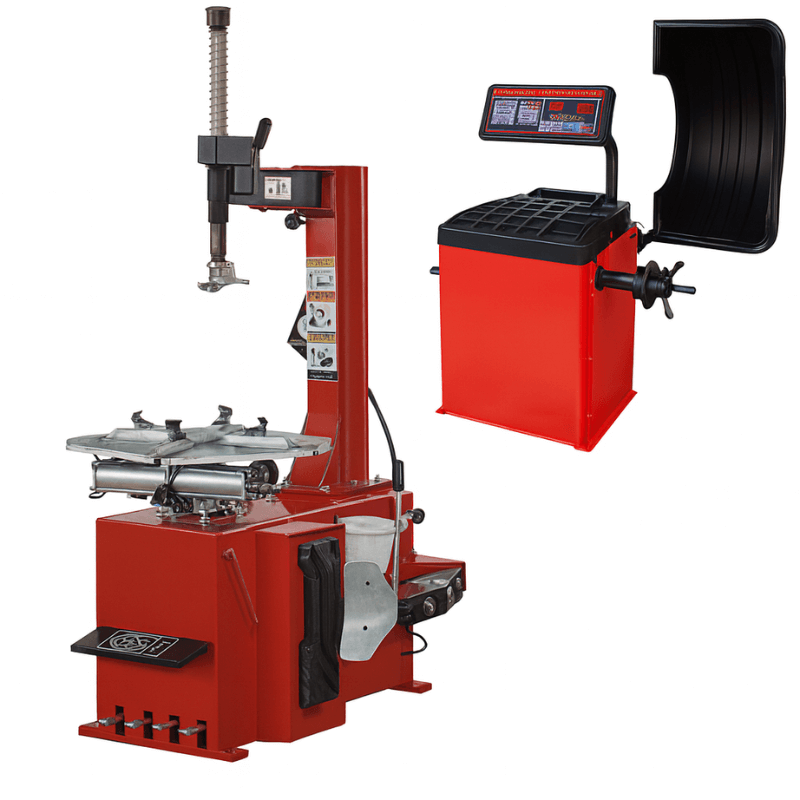

TC-530 Tire Changer With WB-953 Wheel Balancer Combo by Tuxedo
Tired of wrestling with tires? The Tuxedo Tire Service Package throws in the towel for you, offering both muscle and precision for a complete tire care experience. The TC-530 Tire Changer tackles even the biggest brutes, handling tires up to 38 inches tall. Don't worry about rim size, this beast chomps through options from 10 to 23 inches, all with a secure grip that won't leave a mark. Plus, it runs on a regular 110V outlet and weighs a manageable 560 lbs, so you won't need a superhero to move it around.
For the finishing touch, the WB-935 Wheel Balancer ensures a smooth, balanced ride. This machine tackles whoppers – wheels up to 39 inches in diameter! It even handles rims from tiny motorcycles to hefty truck tires with laser-like precision, down to a single gram. No more feeling like you're on a bumpy carnival ride! The user-friendly LED touch panel makes it easy to use, even for those less tech-savvy. Weighing in at 335 lbs, it's built to last, making it the perfect sidekick for both seasoned mechanics and weekend warriors. This package is your one-stop shop for complete tire care.
Combo TC-530 & WB-953 Specifications:

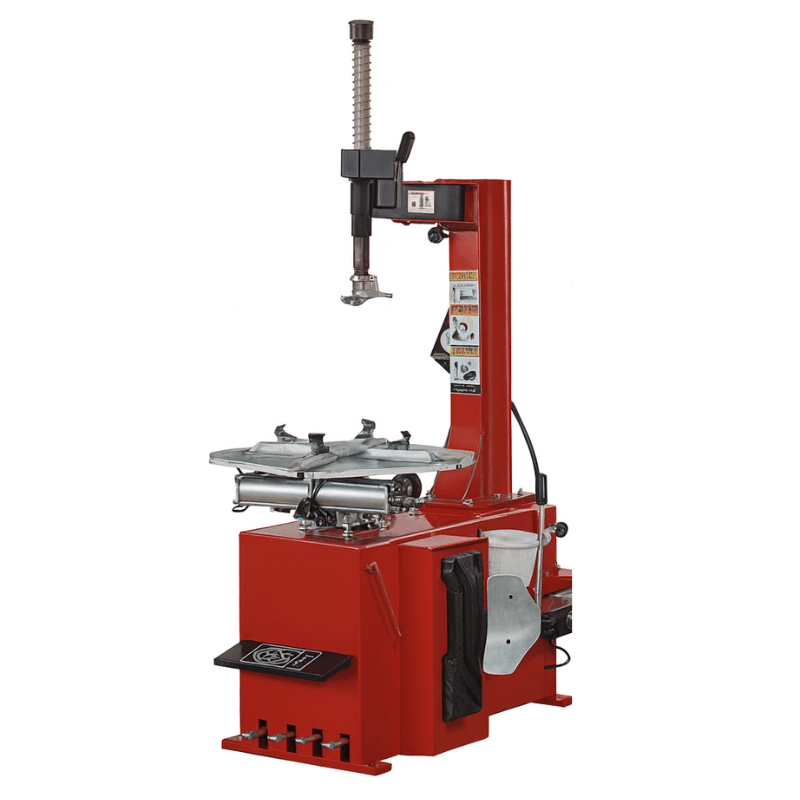

Tuxedo TC-530 Tire Changer
- Tire Changer Model: TC-530
- Max Wheel Diameter: 38”
- Wheel Width: 3” – 12”
- Inside – Rim Clamp Range: 12” – 23”
- Outside – Rim Clamp Range: 10” – 20”
- Power: 110V – 15 Amp – 1PH
- Working Pressure: 125 psi
- Ship Weight: 560 lbs
Tuxedo WB-953 Tire Changer

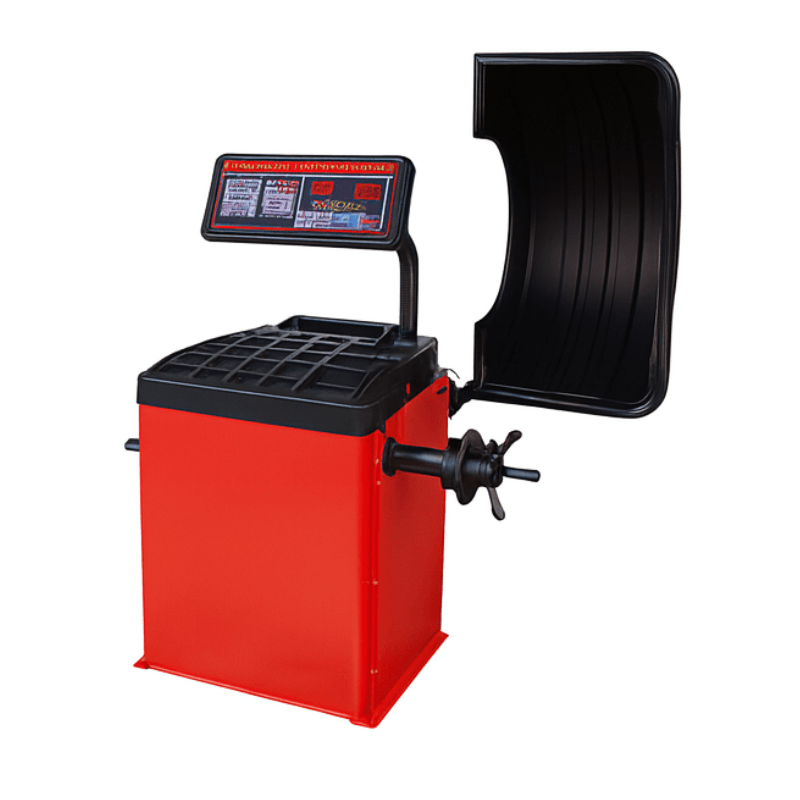

- Wheel Balancer Model: WB-953
- Data Entry: Keypad
- Max Wheel Diameter: 39”
- Rim Width: 1.5” – 20”
- Rim Diameter: 10” – 24”
- Wheel Weight Capacity: 150 lbs
- Accuracy: 1 gram
- Power: 110V – 15 Amp – 1PH
- Ship Weight: 335 lbs
Combo TC-530 & WB-953 Special Features:
Tuxedo TC-530 Tire Changer
- Swing arm design
- Handles tires to 38″ diameter and rim widths to 12″
- Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation
- Twin clamping cylinders provide more power to hold the most difficult rims
- Conveniently located and powerful bead breaker
- No scratching. Machine never contacts rim eliminating accidental damage
- Large diameter hex mount / demount shaft for extra rigidity
- Pressure limiter, water separator and oiler are standard
Tuxedo WB-953 Tire Changer
- User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
- Large Rim Diameter Balancing – able to balance up to 24” Rim diameter & 39” overall Wheel Diameter.
- Multi-Mode Vehicle Balancing – standard with Car & Motorcycle balancing modes.
- Ease-Of-Use – with manual measurement input for distance & diameter with Static / Dynamic & 3 ALU modes.
- Self-Calibrating & Self Diagnosis – for improved efficiency & serviceability.
- Integrated Measurement Indicator – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
- Multi-User Operation – allows two operators to work simultaneously with different settings.
- Integrated Centering Spring – to assist with quick and proper wheel mounting on balancing shaft.
- Electronic Braking System – conveniently slows wheel down after balancing cycle.
- Heavy Duty Balancing Shaft – 36mm diameter balancing shaft accommodates wide range of wheels of different sizes and shapes.
- Speed-Nut Mounting – the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
- Multi Pocket Wheel Weight Shelf – 23 articulated pockets, over 1.5” deep, allowing plenty of storage weights, tooling & cones.
- Large Wheel Hood – the large 38” hood / shroud prevents debris from flying off the tire while in use.
- Storage Pegs – for convenient storing of balancer cones & caliper on side of housing.
- Tuxedo Warranty:
One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.
Tuxedo TC-530 & WB-953 Combo Documentation:
Tuxedo TC-530 Tire Changer Product Manual
Tuxedo WB-953 Wheel Balancer Product Manual
