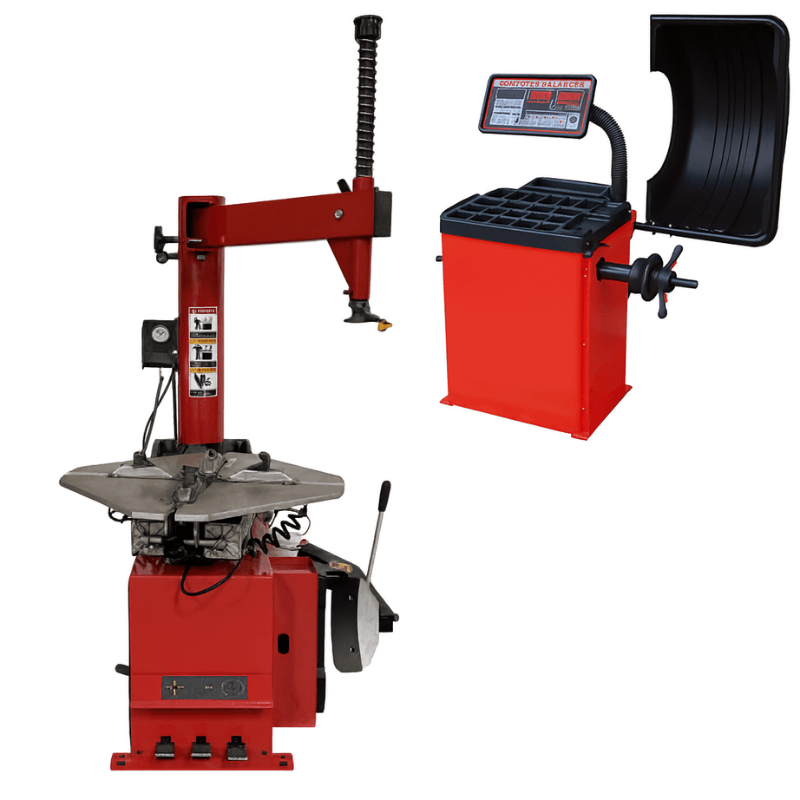

TC-950 Tire Changer and WB-953 Wheel Balancer Combo by Tuxedo
Prepare to be blown away by the Tuxedo TC-950 Tire Changer and WB-953 Wheel Balancer Combo, a dynamic duo that's about to revolutionize the way you operate. This powerhouse of a machine can handle tires up to 47 inches in diameter and 15 inches in width, thanks to its versatile inside and outside rim clamp ranges of 15 to 28 inches and 13 to 24 inches, respectively. And don't even get us started on the WB-953's ability to balance wheels up to 24 inches in rim diameter and 39 inches in overall diameter – it's a tire technician's dream come true!
But wait, there's more! The TC-950's swing arm design optimizes tire changing efficiency while ensuring stability and control, and the integrated bead seating inflation jets in the clamping jaws make quick and safe tire inflation a breeze. Meanwhile, the WB-953's user-friendly operation, with its LED touch-panel keypad and easy-to-read icons, will have you balancing tires like a pro in no time. So, what are you waiting for? Ditch your outdated equipment and upgrade to the Tuxedo TC-950 and WB-953 Combo. Trust us, your customers will thank you, and your competition will be green with envy.
TC-950 & WB-953 Combo Specifications:

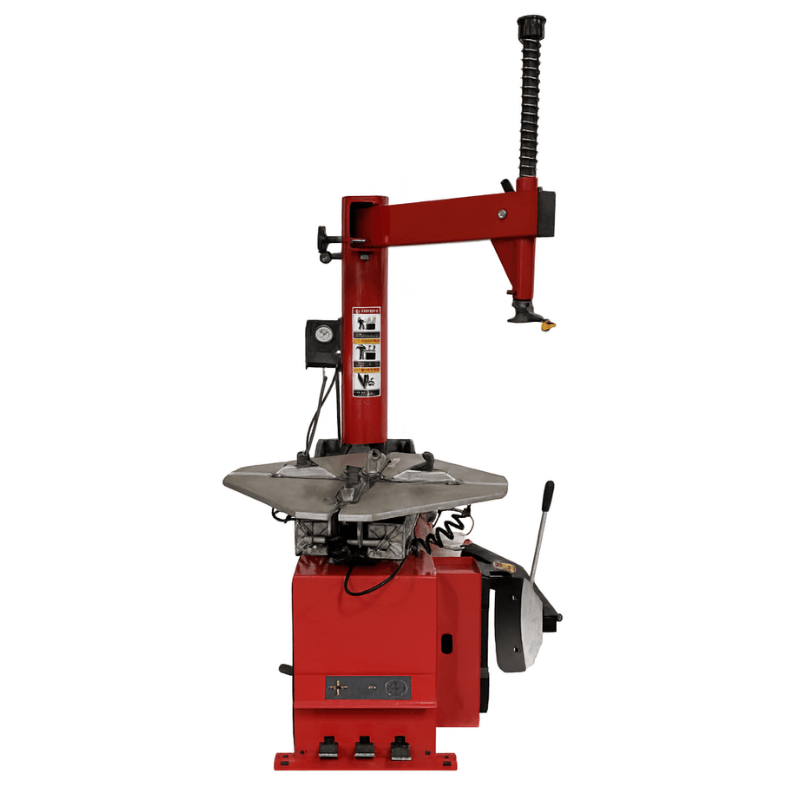

Tuxedo TC-950 Tire Changer
- Max Wheel Diameter 47”
- Wheel Width 3” – 15”
- Inside – Rim Clamp Range 15” – 28”
- Outside – Rim Clamp Range 13” – 24”
- Power 110V – 15 Amp – 1PH
- Working Pressure 125 psi
- Ship Weight 640 lbs
Tuxedo WB-953 Tire Changer

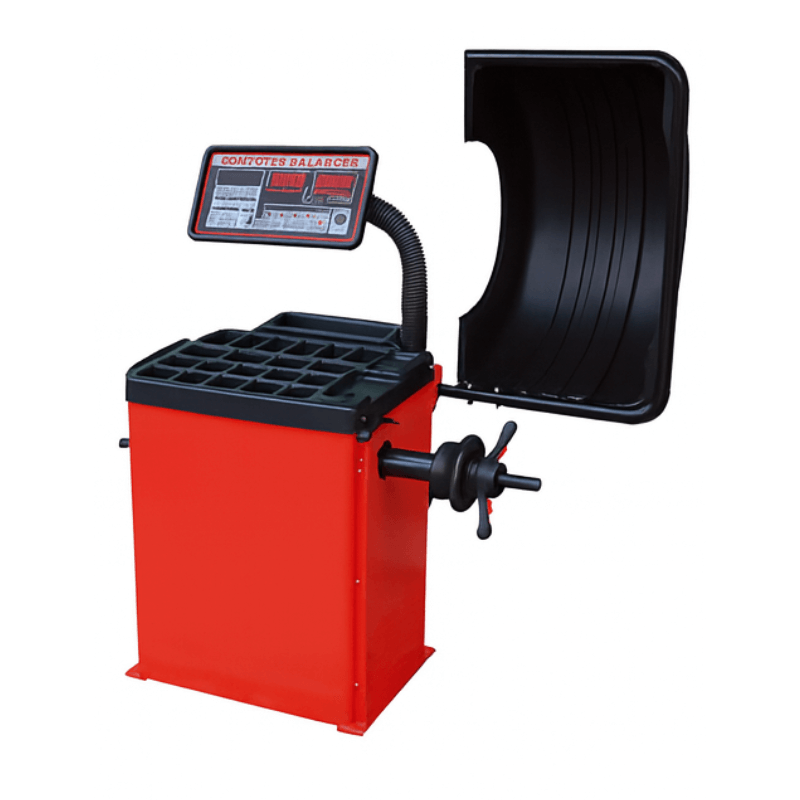

- Wheel Balancer Model: WB-953
- Data Entry: Keypad
- Max Wheel Diameter: 39”
- Rim Width: 1.5” – 20”
- Rim Diameter: 10” – 24”
- Wheel Weight Capacity: 150 lbs
- Accuracy: 1 gram
- Power: 110V – 15 Amp – 1PH
- Ship Weight: 335 lbs
- Pallet Dimensions: 37"L 87"W 46"H
TC-950 & WB-953 Combo Special Features:
Tuxedo TC-950 Tire Changer
- Swing arm design
- Handles tires to 47” diameter and rim widths to 15”
- Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation
- Twin clamping cylinders provide more power to hold the most difficult rims
- Conveniently located and powerful bead breaker
- No scratching. Machine never contacts rim eliminating accidental damage
- Large diameter hex mount / demount shaft for extra rigidity Pressure limiter, water separator and oiler are standard
Tuxedo WB-953 Tire Changer
- User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
- Large Rim Diameter Balancing – able to balance up to 24” Rim diameter & 39” overall Wheel Diameter.
- Multi-Mode Vehicle Balancing – standard with Car & Motorcycle balancing modes.
- Ease-Of-Use – with manual measurement input for distance & diameter with Static / Dynamic & 3 ALU modes.
- Self-Calibrating & Self Diagnosis – for improved efficiency & serviceability.
- Integrated Measurement Indicator – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
- Multi-User Operation – allows two operators to work simultaneously with different settings.
- Integrated Centering Spring – to assist with quick and proper wheel mounting on balancing shaft.
- Electronic Braking System – conveniently slows wheel down after balancing cycle.
- Heavy Duty Balancing Shaft – 36mm diameter balancing shaft accommodates wide range of wheels of different sizes and shapes.
- Speed-Nut Mounting – the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
- Multi Pocket Wheel Weight Shelf – 23 articulated pockets, over 1.5” deep, allowing plenty of storage weights, tooling & cones.
- Large Wheel Hood – the large 38” hood / shroud prevents debris from flying off the tire while in use.
- Storage Pegs – for convenient storing of balancer cones & caliper on side of housing.
- Tuxedo Warranty:
One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.
TC-950 & WB-953 Combo Documentation:
TC-950 Product Manual
WB-953 Product Manual
Combo TC-950 & WB-953 Optional Items (sold separately):
