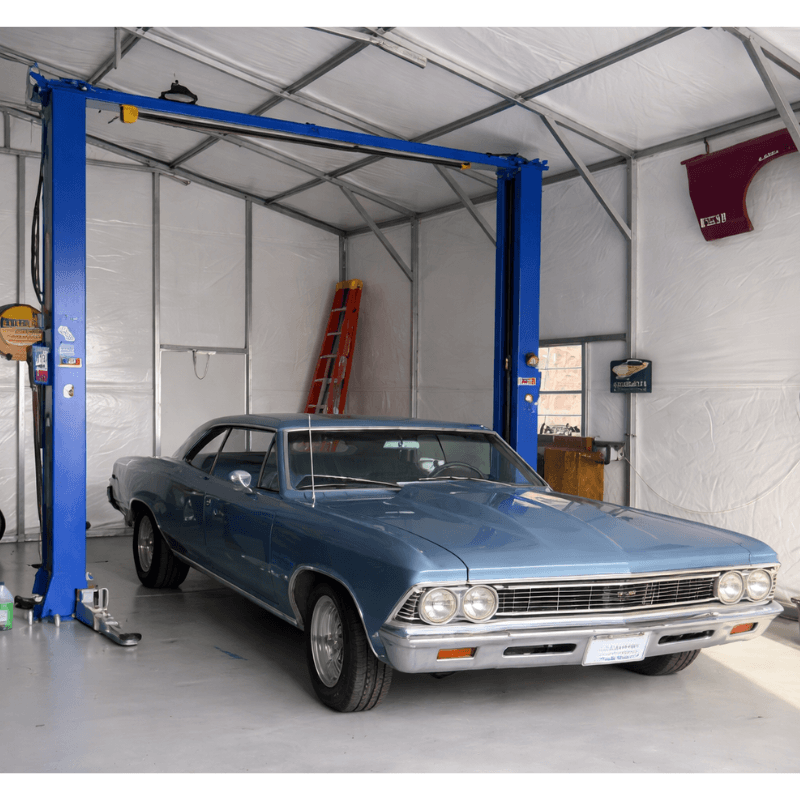

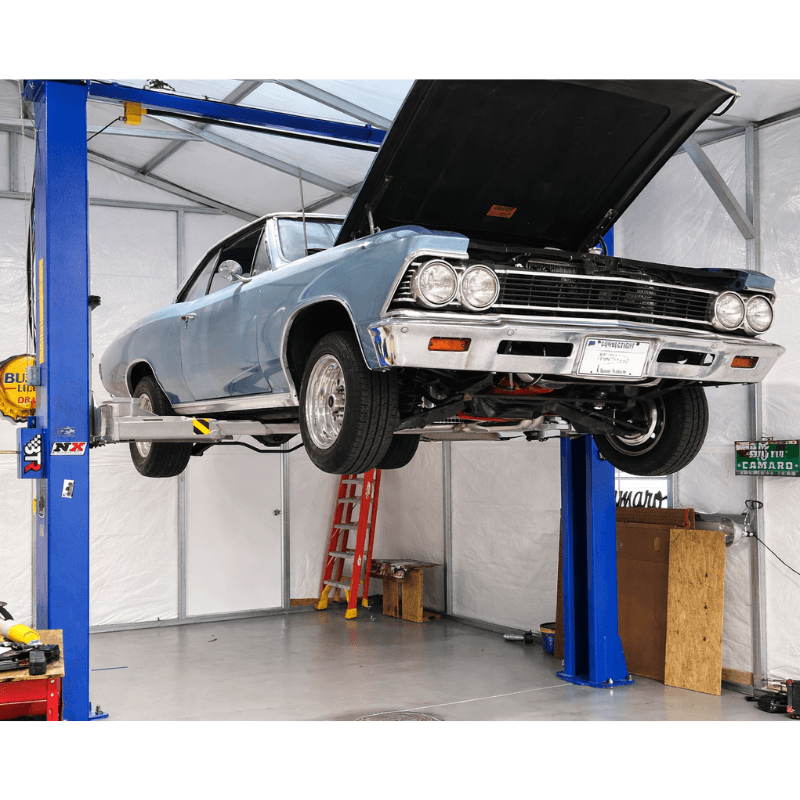

Tuxedo TP11KC DX 11000 lb 2 Post Car Lift

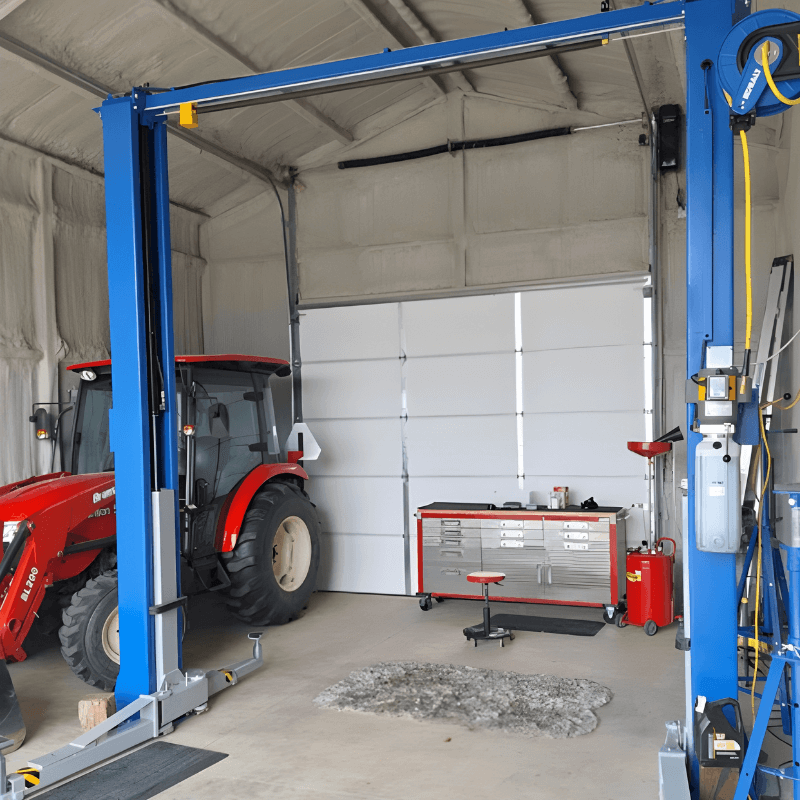

Tuxedo TP11KC DX 2 Post Lift

Tired of struggling with heavy-duty lifts that feel more like chores than helpers? Get ready to meet your new garage MVP: the Tuxedo TP11KC-DX. This isn't your average car lift. With a jaw-dropping 11,000-pound lift capacity, it can handle anything you throw at it at an economical price that won't break the bank.

Its imposing stature,144 inches tall and 145.5 inches wide, provides ample workspace, while the 71-inch max lift height ensures you can reach every corner of your vehicle. The impressive drive-thru clearance of 104 inches allows for easy vehicle positioning and maneuverability.

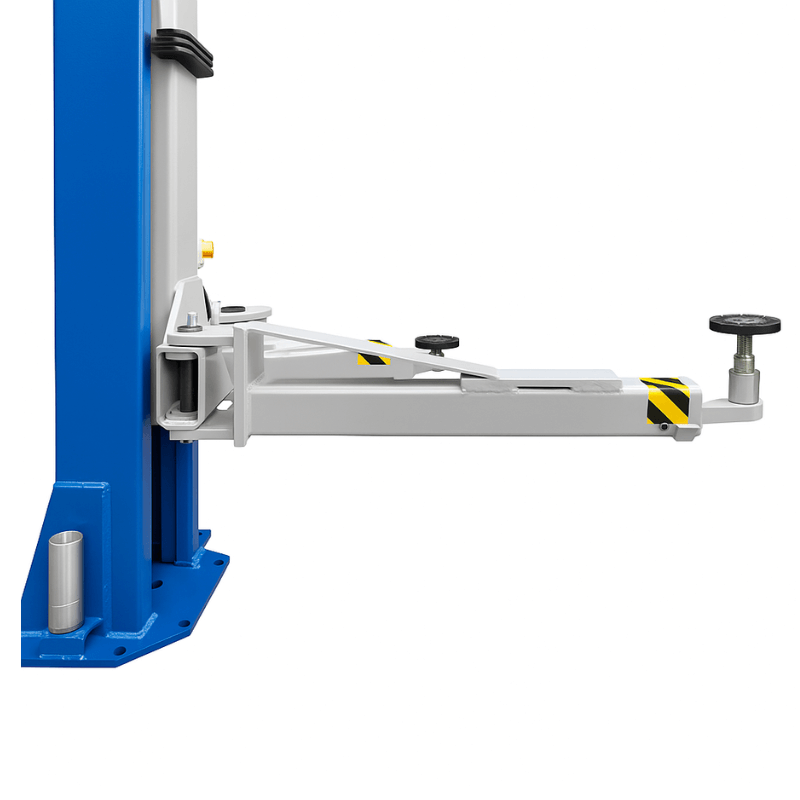

Imagine a lift that’s as smart as it is strong. The TP11KC-DX offers adjustable arms ranging from 23 to 45 inches short and 41 to 57 inches long, ensuring a perfect fit for any vehicle. The innovative bi-symmetric and asymmetric arm configuration provides ultimate flexibility for various vehicle types.

Plus, features like rubber door guards and spin-up low-profile lift pads, single-point lock release, and stackable truck adapters included make every lift a breeze. The 3-stage front arms extend your reach for optimal vehicle support, while the symmetric columns with single-piece construction ensure stability.

Slider blocks and additional safety features make this one of the most versatile Tuxedo Lifts on the market. Make a better garage. Upgrade to the TP11KC-DX and experience the difference a top-tier lift can make.

See our full line of Tuxedo Lifts.

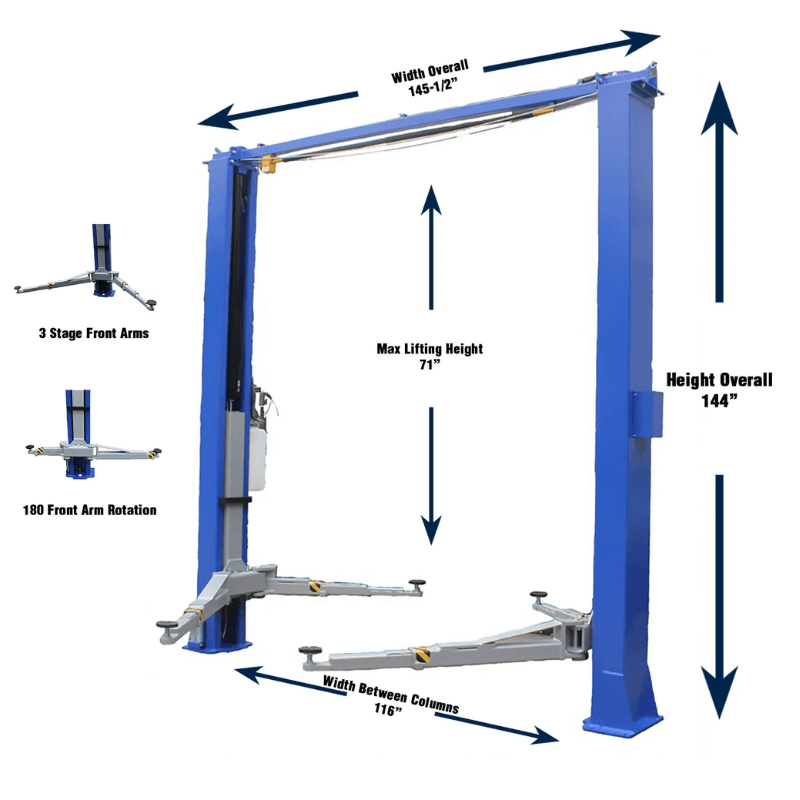

Tuxedo TP11KC-DX Lift Specifications:

• Capacity: 11,000 lbs (Max load)
• Height overall: 144″
• Width overall with power unit: 145-1/2″
• Maximum lift height: 71″
• Width between columns: 116″
• Minimum pad height: 4″
• Drive-thru clearance: 104″
• Lifting speed: 50 seconds

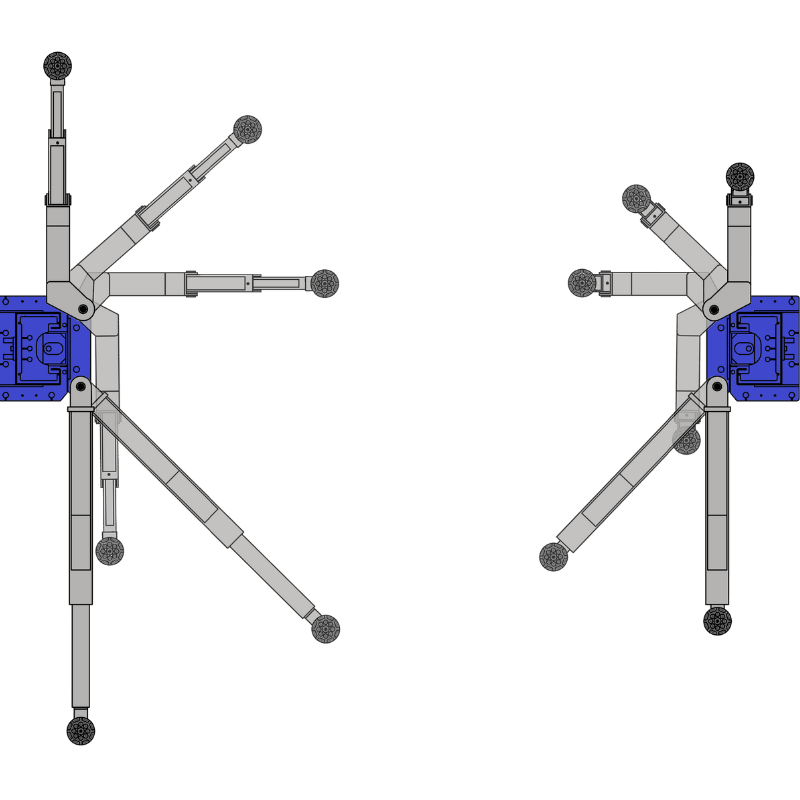

• Arm configuration: asymmetric/symmetric (bi-symmetric capability)

• Short arm reach (min/max): 23″ – 45″
• Long arm reach (min/max): 41″ – 57″

• Max load per arm: 2,750 lbs

• Warranty: 1 Year Parts Only

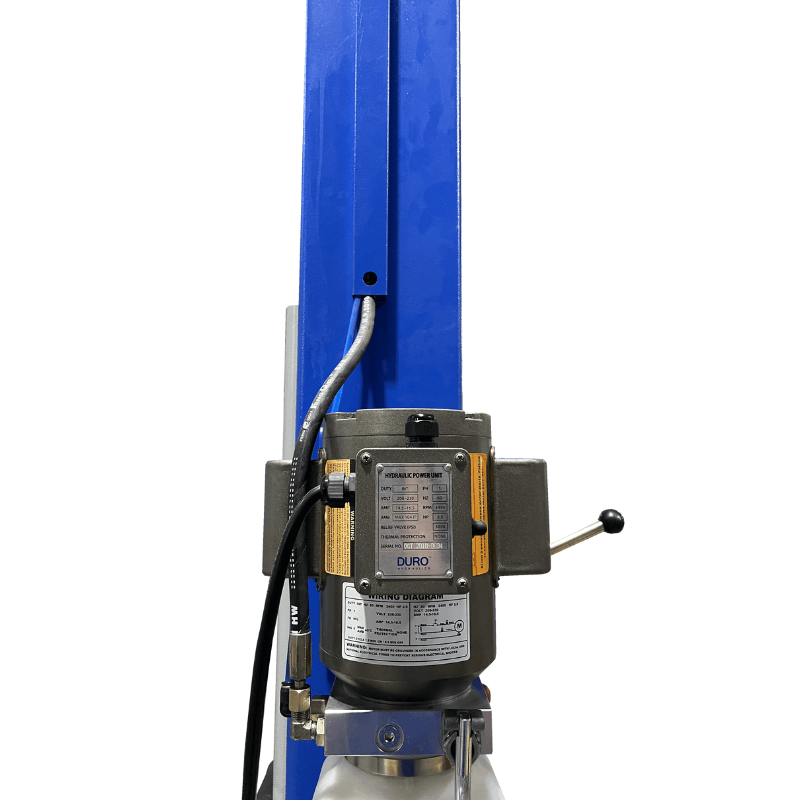

• Power requirement: 220V, 20 AMP, single phase
• Concrete Requirements: Minimum of 4.25"-3000psi
• Shipping Dimensions: 144"L x 21"W x 53" H - 1,705 lbs

TP11KC DX Special Features:

• 11,000 lbs lifting capacity
• Bi-symmetric arm design for flexible vehicle positioning

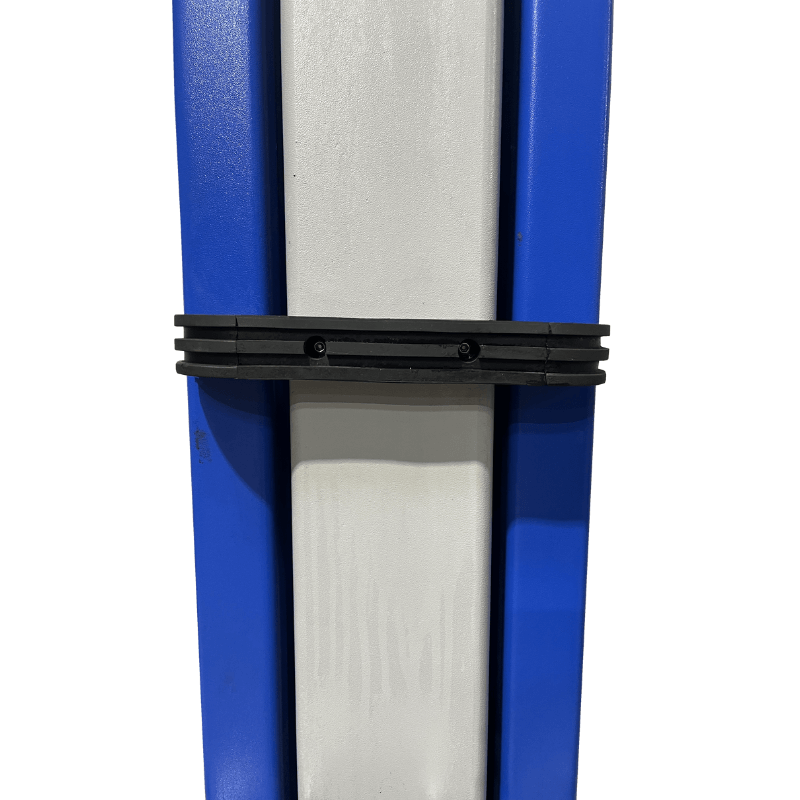

• Rubber door guards for added vehicle protection

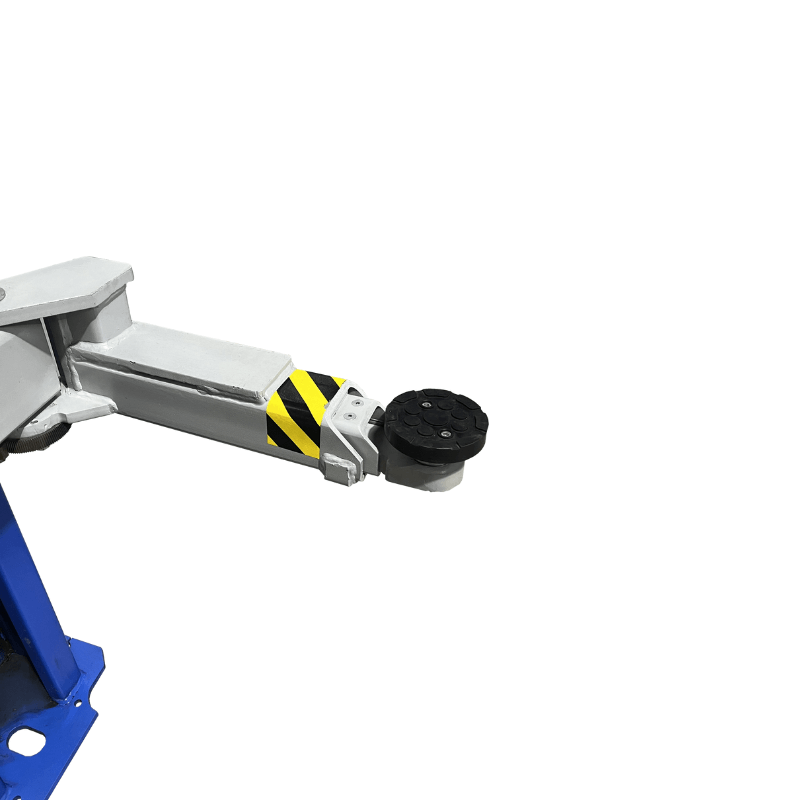

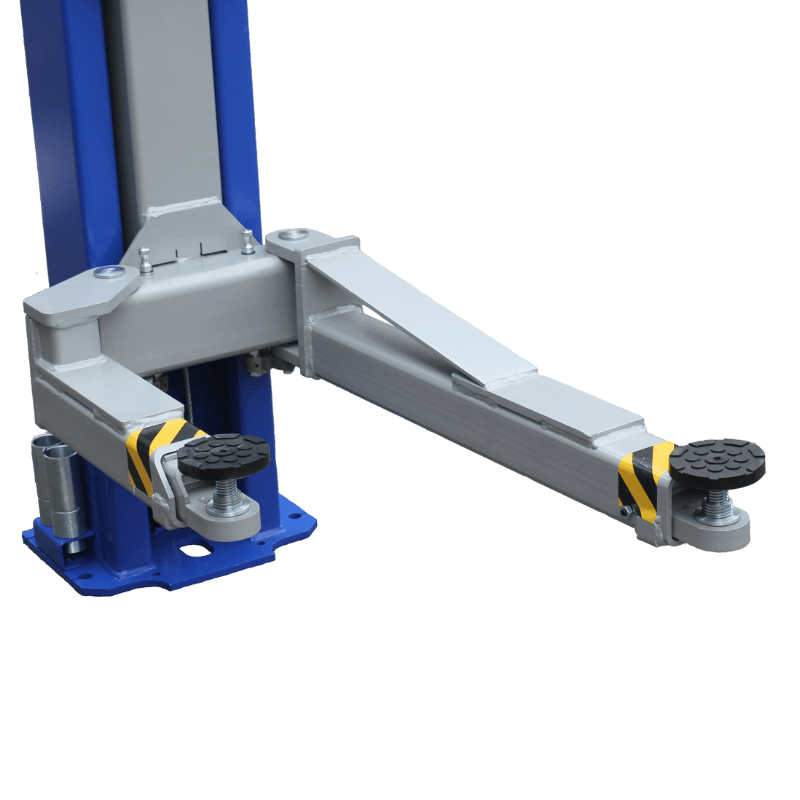

• 3-stage front arms for extended reach
• Single-piece column construction
• Direct drive pull cylinders
• Single-point lock release system
• Heavy-duty arm restraint system

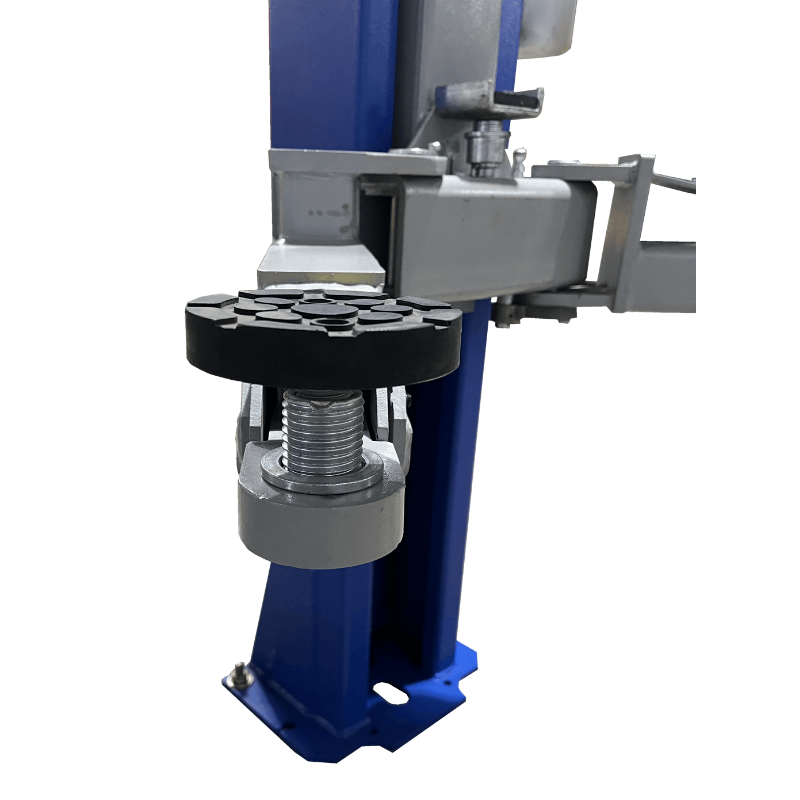

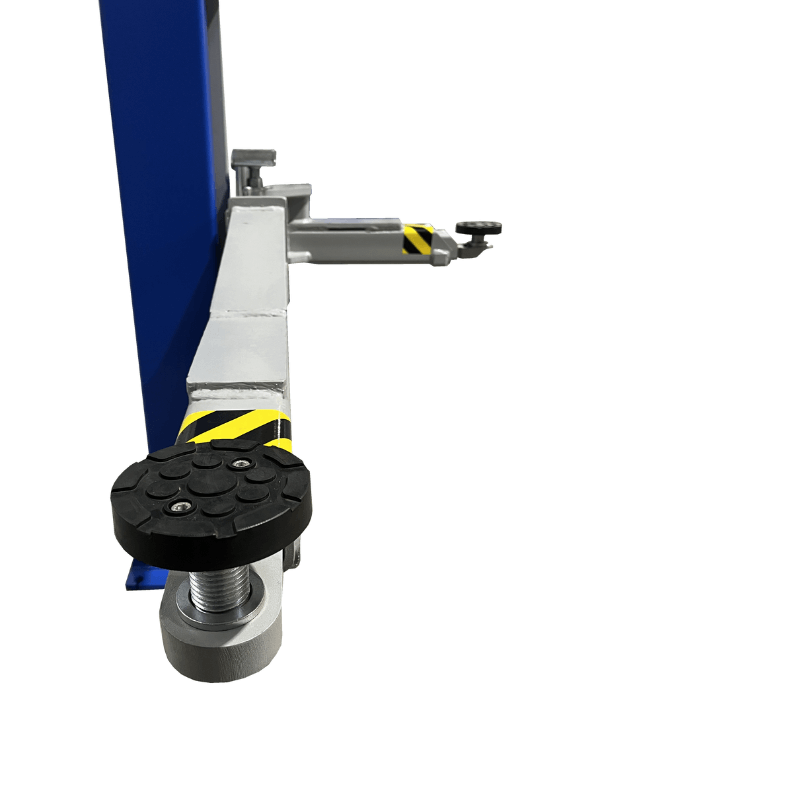

• Spin-up low-profile lift pads

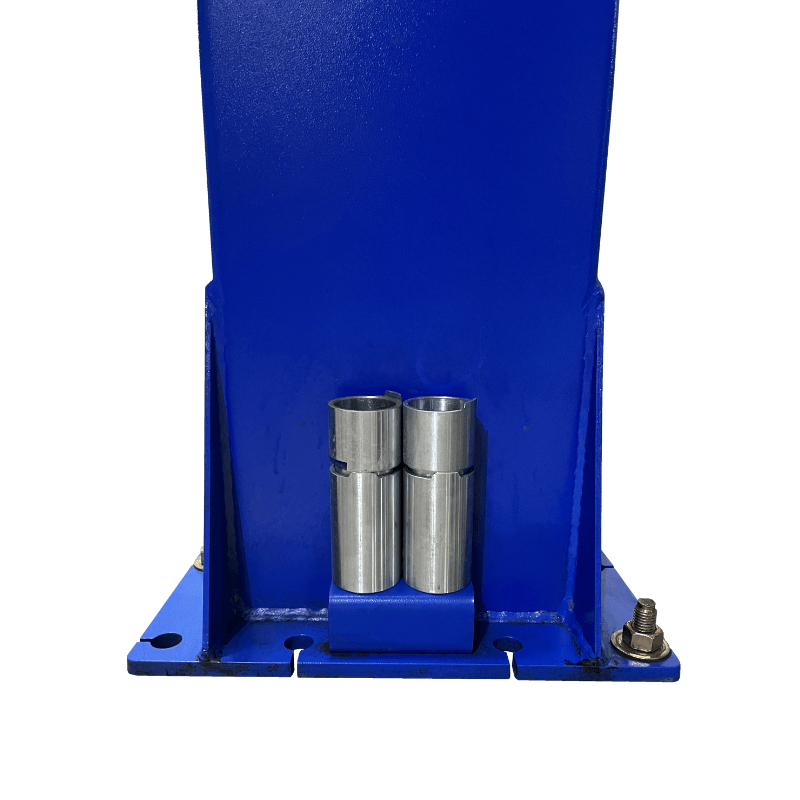

• Stackable adapters included (stackable truck adapters available)
• External hose guards for added durability

• Optional Accessories (Sold Separately):
• Spin up Cradle Adapters (TP11DX-SPNCA)
• Truck Spin up Adapters (TP11DX-GM19-SPNCA)

TP11KC DX Manual:

  Tuxedo TP11KC-DX Manual

  Tuxedo TP11KC-DX Brochure
