Tuxedo TP12KFX, 12,000 lb 2 Post Floor Plate Car Lift

SKU TP12KFX
by Tuxedo
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$6,359.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

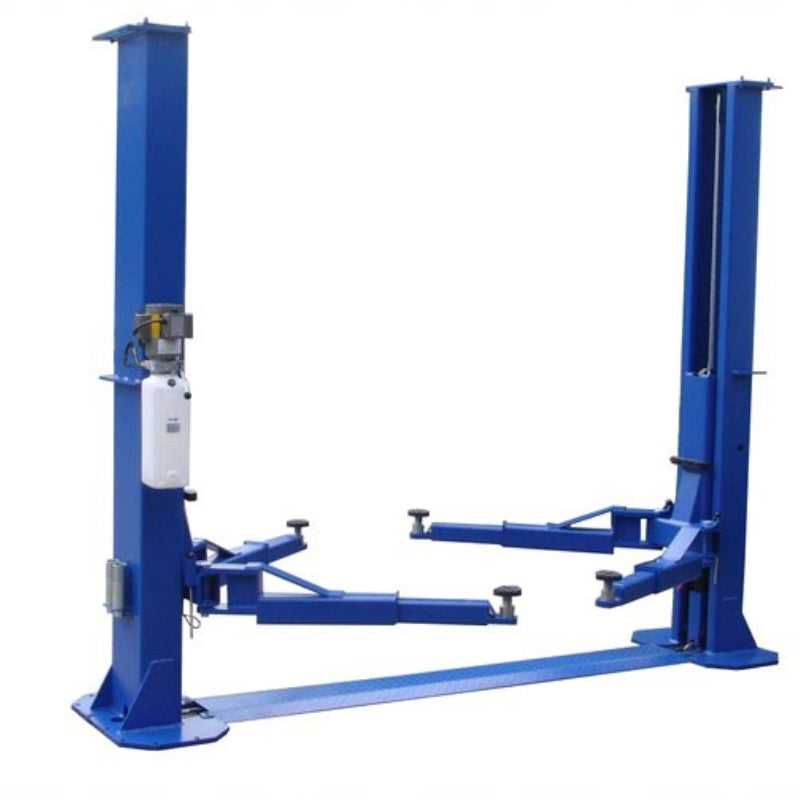

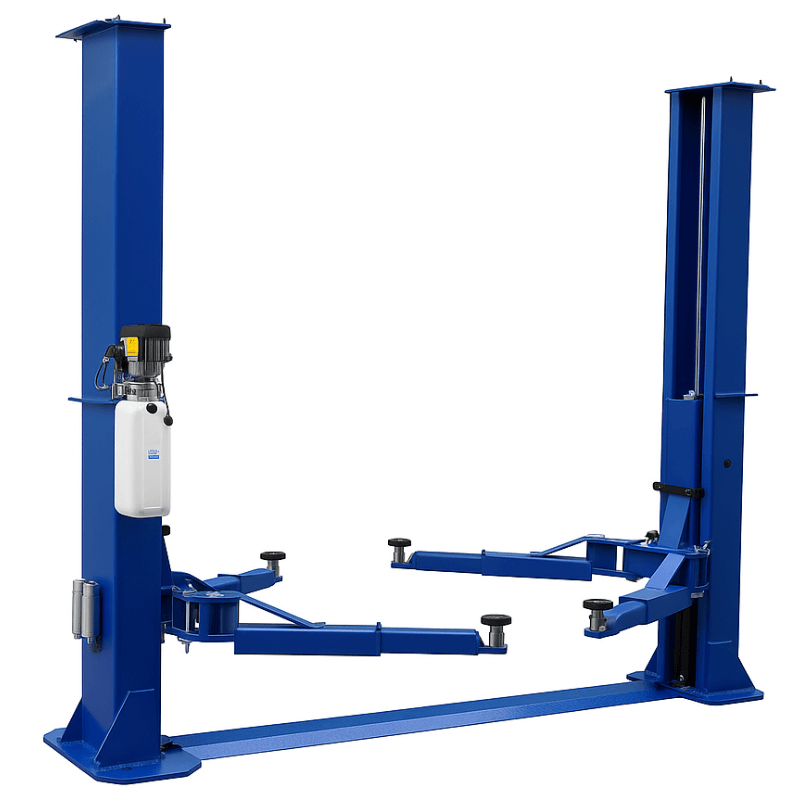

TP12KFX 2 Post Floor Plate Car Lift by Tuxedo

Your current lift not lifting enough weight? Picture the lost productivity and potential revenue when your equipment breaks down in the middle of a job. Raise your standards with the Tuxedo TP12KFX 2 Post Car Lift, the ultimate solution for heavy-duty vehicle lifting. This beast of a lift is engineered to deliver exceptional performance and reliability, with an impressive 12,000 lbs capacity that can handle anything from cars to trucks. With an overall height of 121-1/2 inches and a width of 147-7/8 inches, this lift is designed to fit seamlessly into your garage. It achieves a maximum lift height of 76-1/2 inches, providing ample clearance for under-vehicle maintenance.

With a lifting speed of just 45 seconds, efficiency and productivity in your workshop will no longer be a questionable affair. The symmetric arm design ensures balanced support and stability during lifting, while the floor plate configuration adds to the structural integrity, making the lift robust and reliable. This lift is the perfect addition to any professional workshop, combining robust construction with user-friendly features to meet all your needs - and wants.

Tuxedo TP12KFX Specifications:

  • Capacity: 12,000 lbs.
  • Height Overall: 121-1/2″
  • Width Overall w/ Power Unit: 147-7/8″
  • Max Lift Height: 76-1/2″
  • Width Between Columns: 120-5/16″
  • Min. Pad Height: 5″
  • Drive Thru Clearance: 109″
  • Lifting Speed: 45 seconds
  • Asymmetric / Symmetric: Symmetric
  • Clear Floor / Floor Plate: Floor Plate
  • Short Arm Reach – min/max: 37″ – 52-1/2″
  • Long Arm Reach – min/max: 37″ – 52-1/2″
  • Narrow Bay Setting: Not applicable
  • Max Load Per Arm: 3,000 lbs.
  • Power: 220V – 20 AMP – 1 PH
  • Ship Weight: 2,460 lbs.
  • Pallet Dimensions: 126" 35" 51"

Tuxedo TP12KFX Special Features:

  • 12,000 lbs Capacity

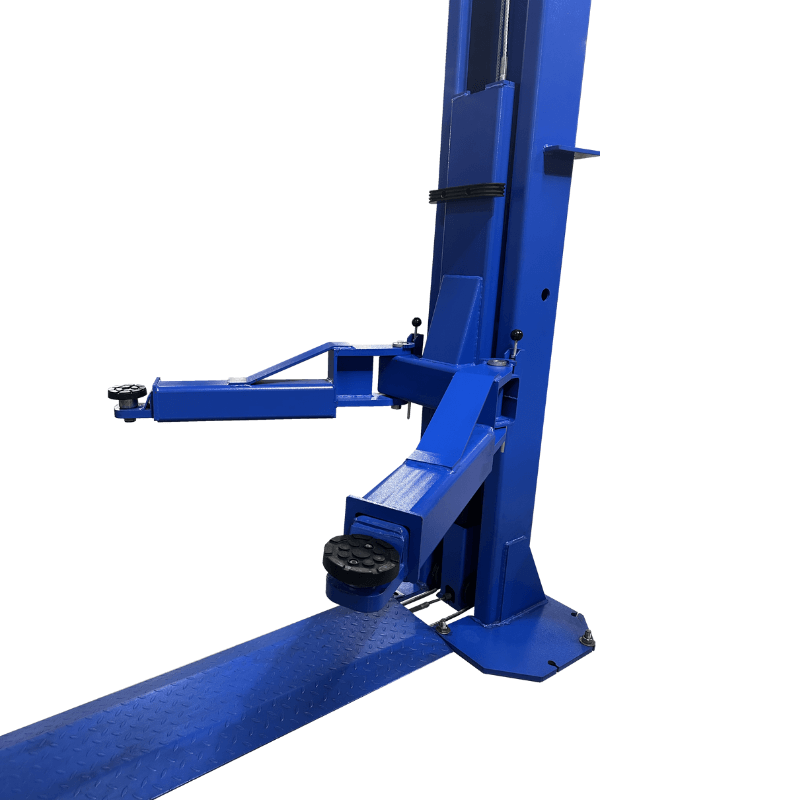

  • Symmetric Arms
  • Rubber Door Guards

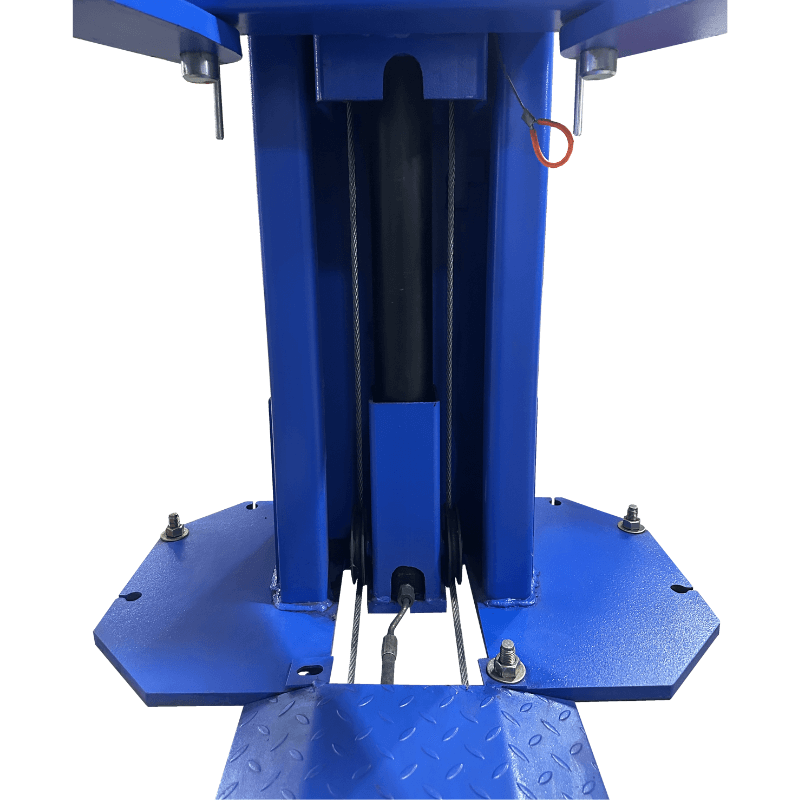

  • Chain Drive Cylinders
  • Dual Point Lock Release

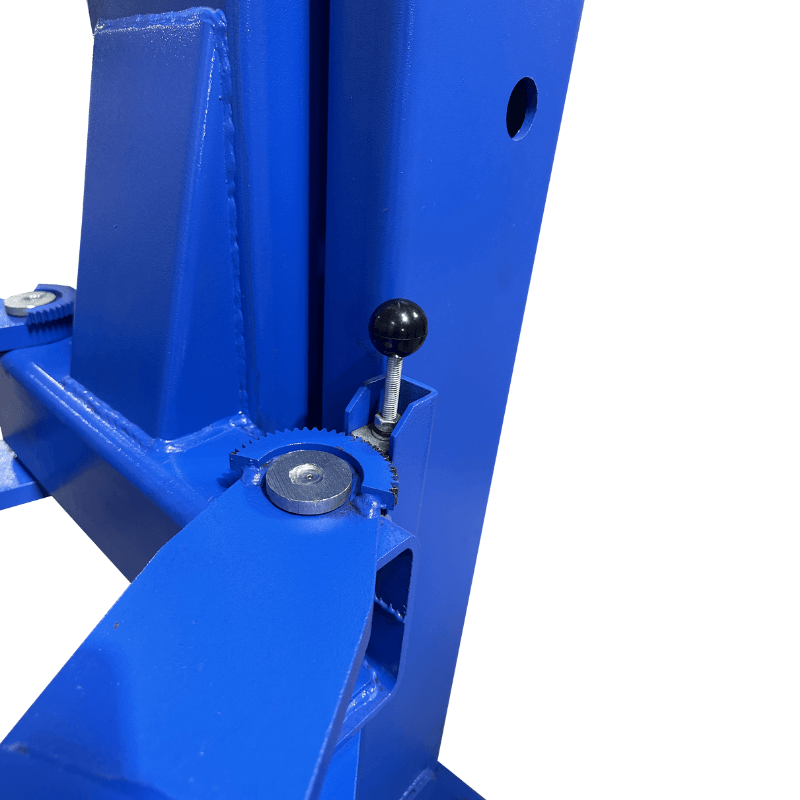

  • Auto Arm Restraint System

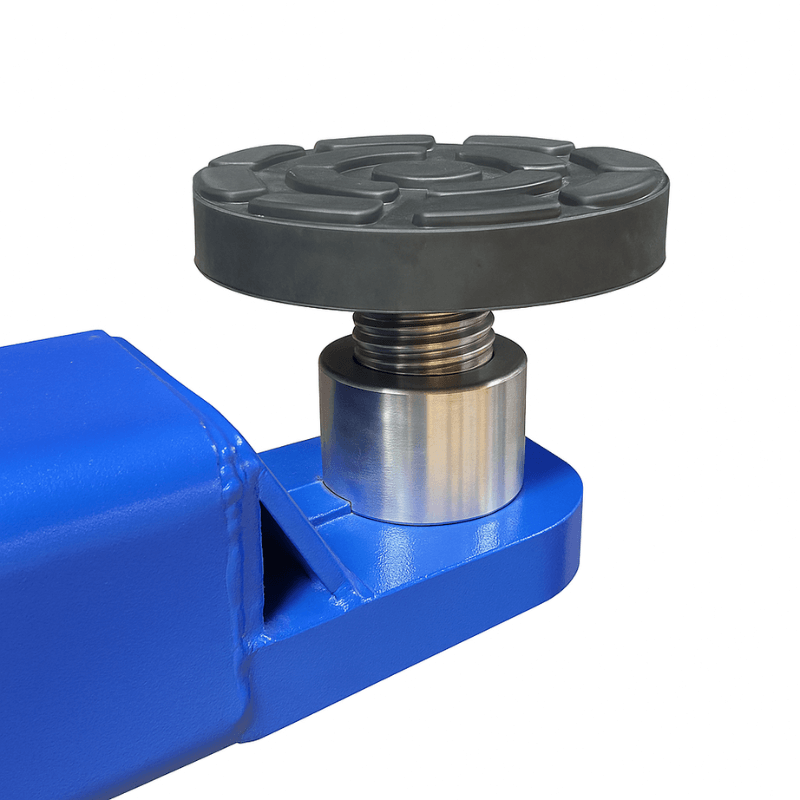

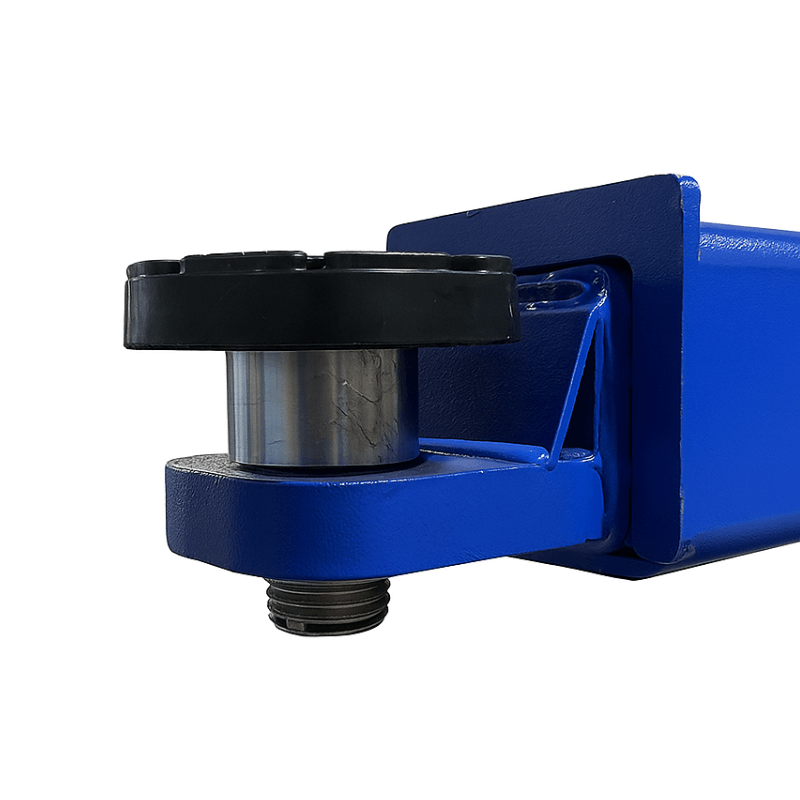

  • Spin Up Lift Pads

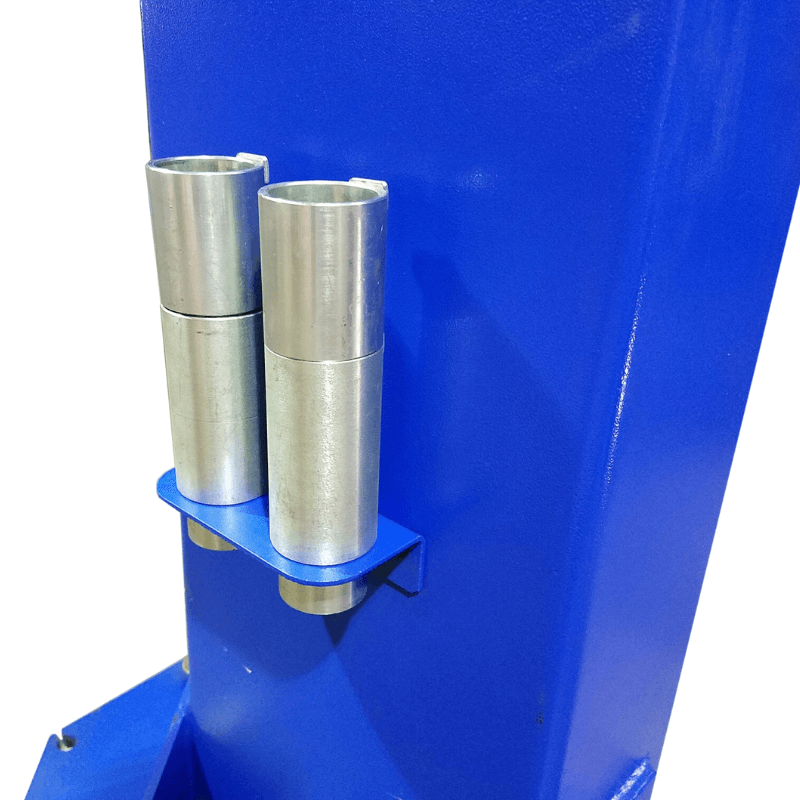

  • Stackable Adapters Included
  • Internal Hose routing
  • Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

Tuxedo TP12KFX Documentation:

Car Lift  TP12KFX Product Manual     Tuxedo TP12KFX Product Manual

20% DISCOUNT on Scratch & Dent Units:

  • Contact Us today if your item is available
  • Pictures of units can be shared upon request
  • For on-sale items, discount comes off of regular price
  • All refurbished items ship from Texas warehouse or can be picked up at no additional cost

This Item has a FLAT RATE SHIPPING FEE: $699

Warehouse Pickup locations (No shipping charge):

  • Temecula, CA 92590
  • Orlando, FL 32824
  • Kennesaw, GA 30144
  • Elwood, IN 46036
  • Maple Grove, MN 55311
  • Reidsville, NC 27320
  • Bohemia, NY 11715
  • Reading, PA 19605
  • Alvarado, TX 76009
  • West Valley City, UT 84119
TP12KFX 2-Car lift by Tuxedo Diagram 2 Car Lift  TP12KFX Diagram
