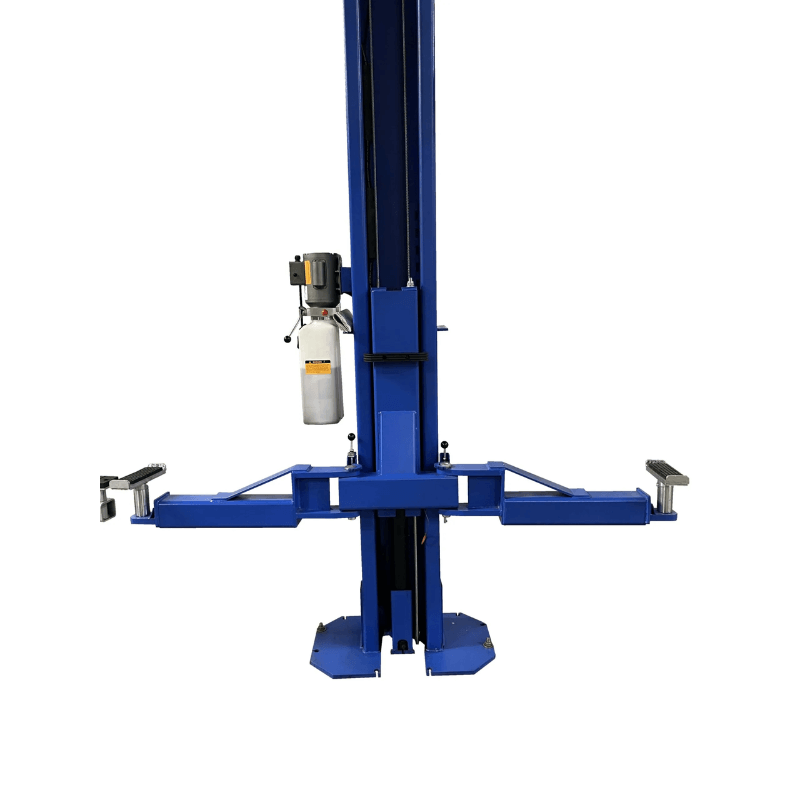

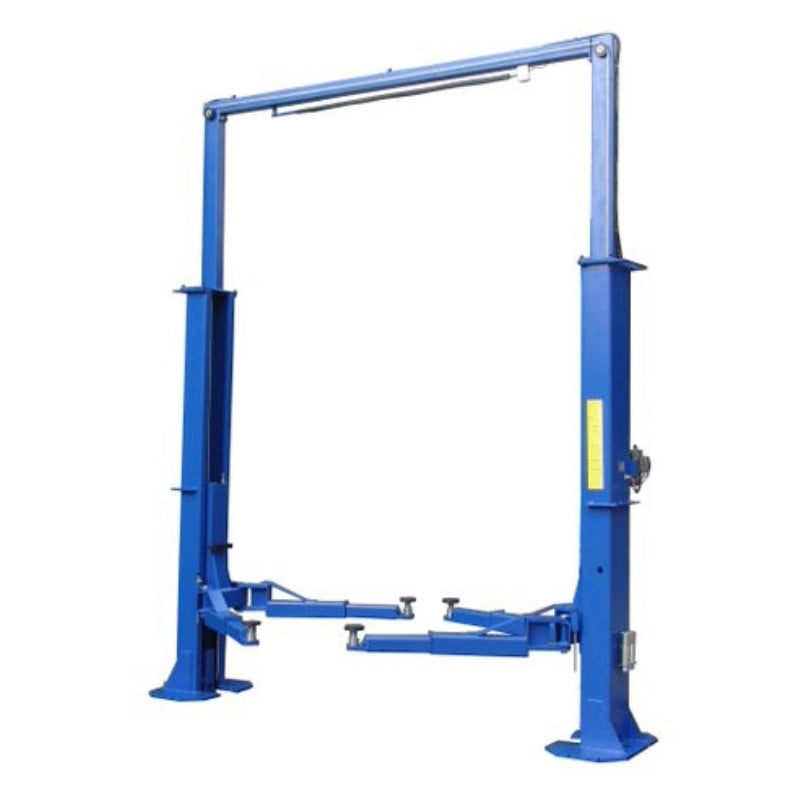

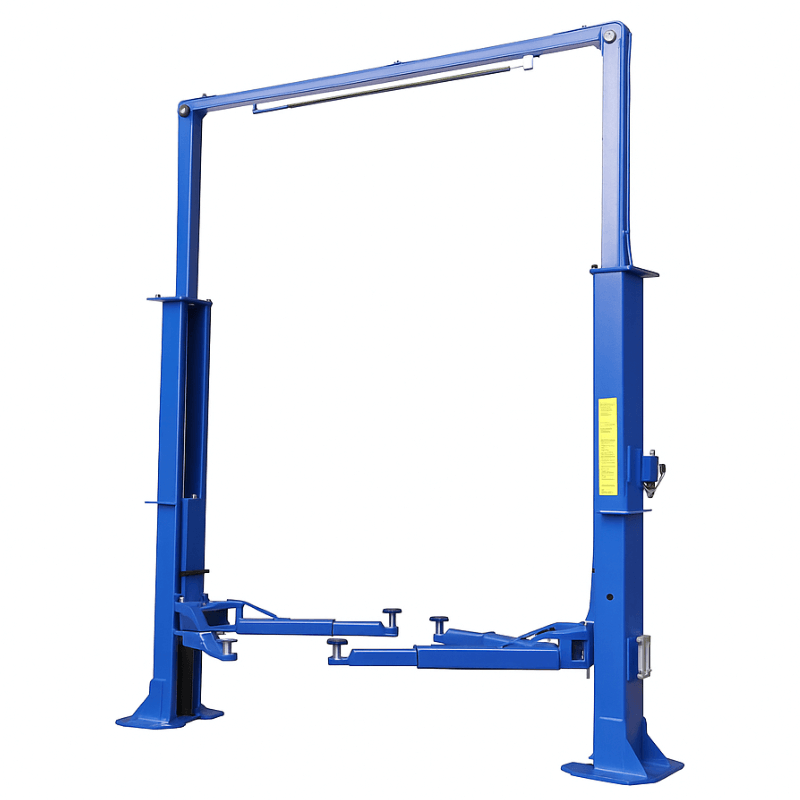

Tuxedo TP15KCX, 15,000 lb Heavy Duty 2 Post Car Lift

TP15KCX 2 Post Car Lift by Tuxedo

The Tuxedo TP15KCX, 15,000 lb Heavy Duty 2 Post Car Lift, is engineered to handle heavy-duty lifting with a maximum capacity of 15,000 lbs. This robust lift stands at an overall height of 179-3/8" and a width of 148-3/8" with the power unit. It features a symmetric design with a max lift height of 76-1/2" and a clear floor, providing ample space for various automotive maintenance tasks. The width between columns is 120-3/4", and the drive-thru clearance is 109-3/8", offering easy access and maneuverability. The lift operates at a speed of 45 seconds, ensuring efficient lifting and lowering, while the minimum pad height is just 5", accommodating a wide range of vehicles.

The Tuxedo TP15KCX, 15,000 lb Heavy Duty 2 Post Car Lift, is equipped with several safety and convenience features, including chain drive cylinders, dual point lock release, and an auto arm restraint system. The rubber door guards and internal hose routing enhance durability and safety. With spin-up lift pads and stackable adapters included, this lift is versatile and user-friendly. The short and long arm reach both span from 37" to 52", and each arm can handle a maximum load of 3,750 lbs. Powered by a 220V – 20 AMP – 1 PH system, this lift is a reliable addition to any garage or automotive workshop, designed to meet the demands of heavy-duty lifting with ease and efficiency.

Car Lift TP15KCS Specifications:

• Capacity: 15,000 lbs.
• Height Overall: 179-3/8″
• Width Overall w/ Power Unit: 148-3/8″
• Max Lift Height: 76-1/2″
• Width Between Columns: 120-3/4″
• Min. Pad Height: 5″
• Drive Thru Clearance: 109-3/8″
• Lifting Speed: 45 seconds
• Asymmetric / Symmetric: Symmetric
• Clear Floor / Floor Plate: Clear Floor

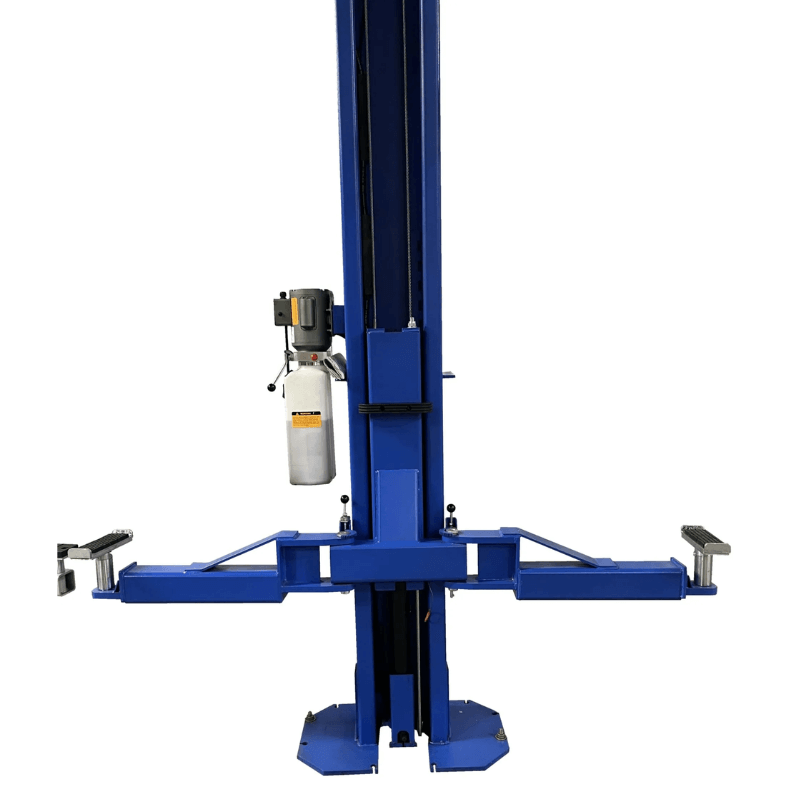

• Short Arm Reach – min/max: 37″ – 52″
• Long Arm Reach – min/max: Same
• Narrow Bay Setting: N/A
• Max Load Per Arm: 3,750 lbs.
• Ship Weight: 2,575 lbs.

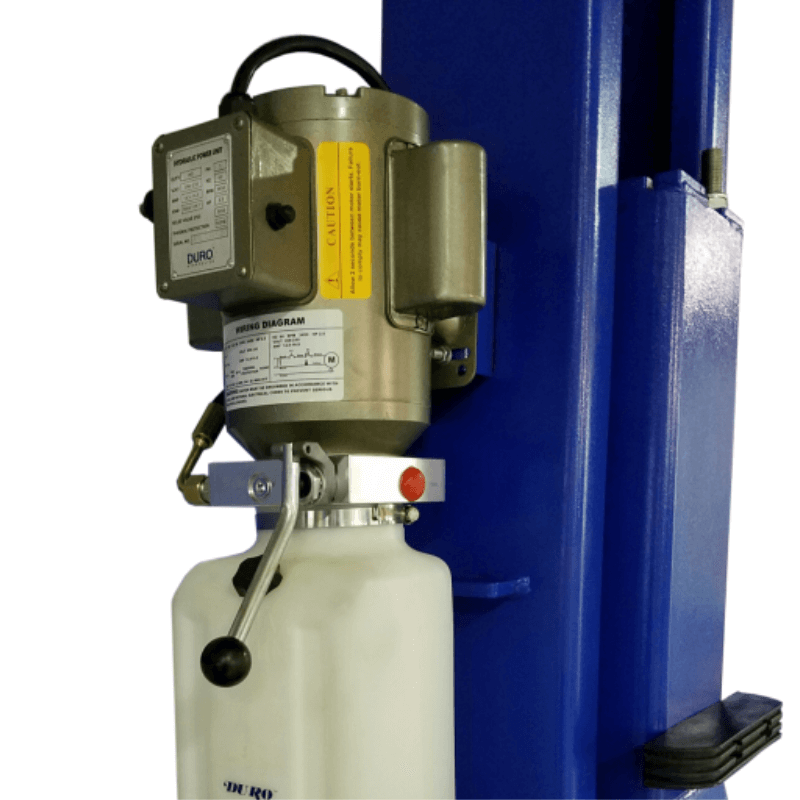

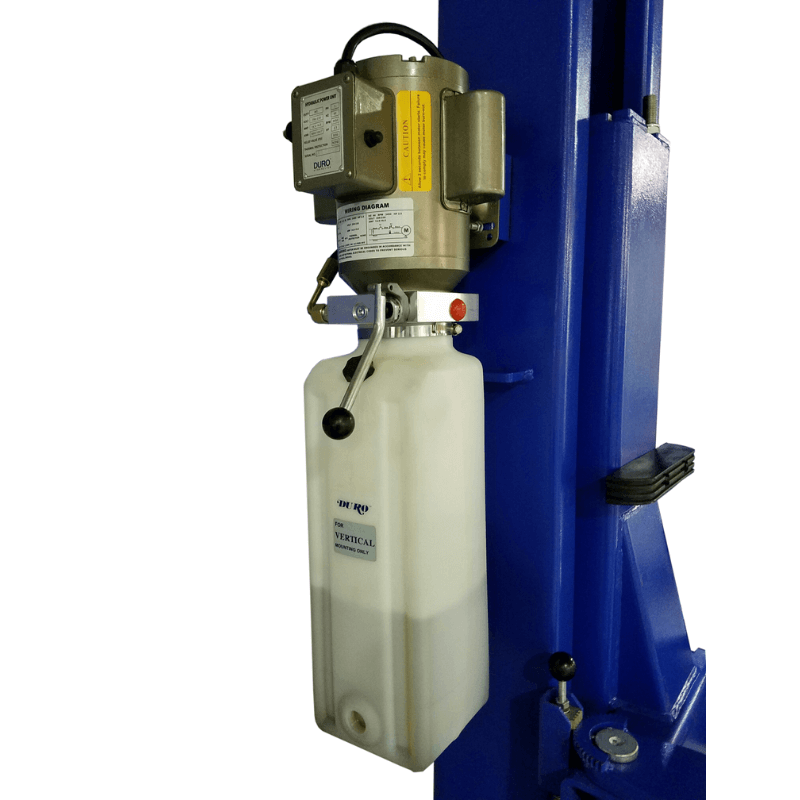

• Power: 220V – 20 AMP – 1 PH

TP15KCS 15,000 lbs Car Lift Special Features:

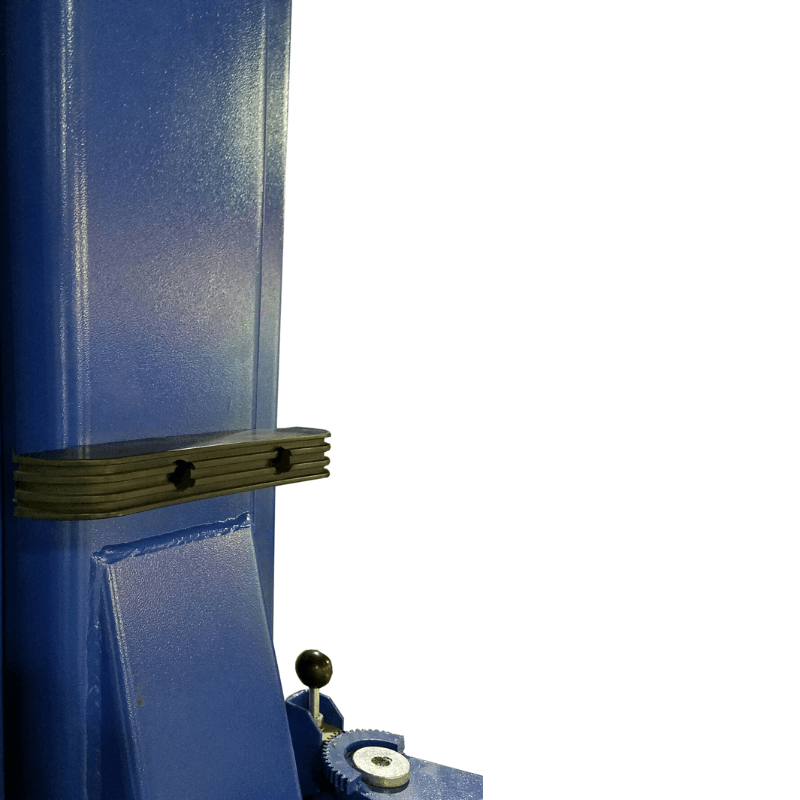

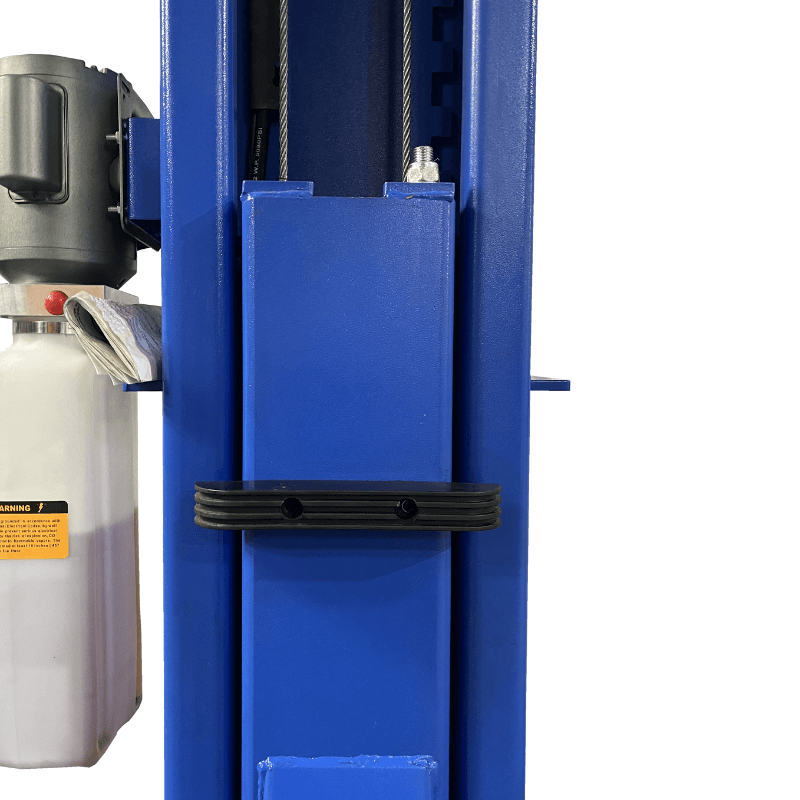

• Rubber Door Guards
• Chain Drive Cylinders
• Dual Point Lock Release
• Auto Arm Restraint System

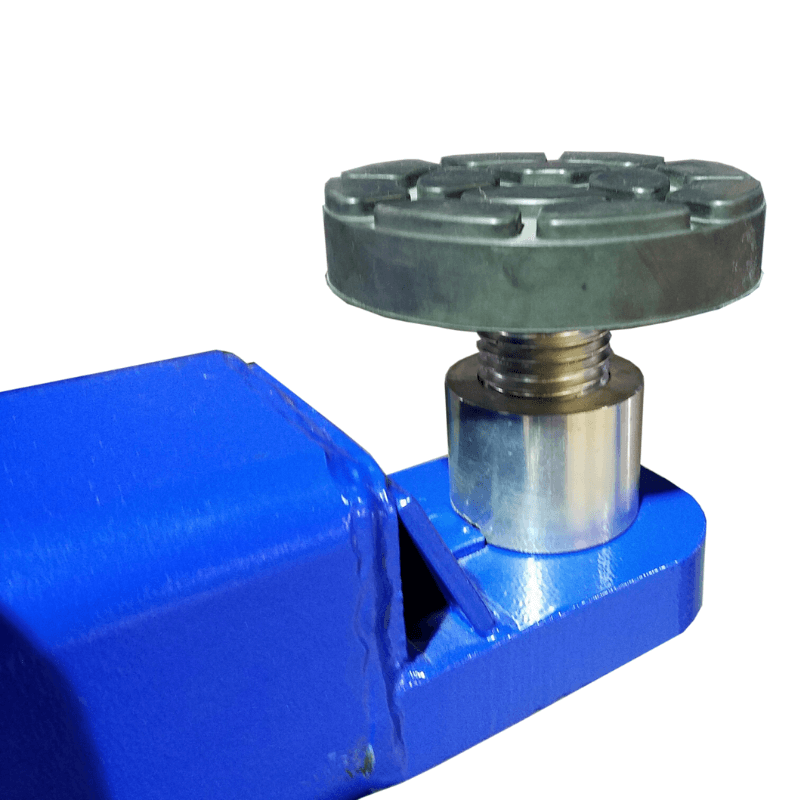

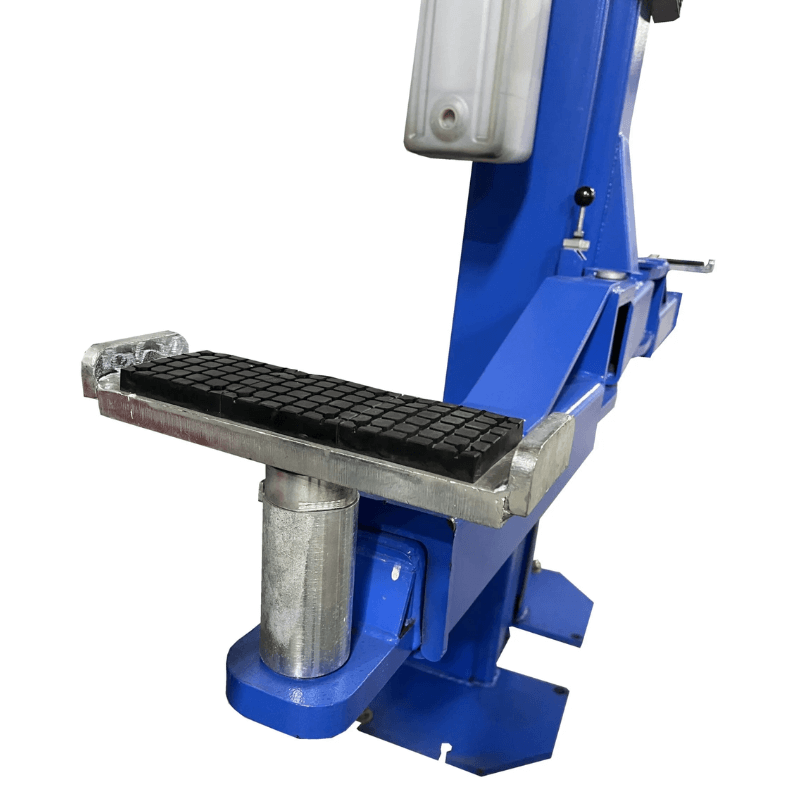

• Spin Up Lift Pads

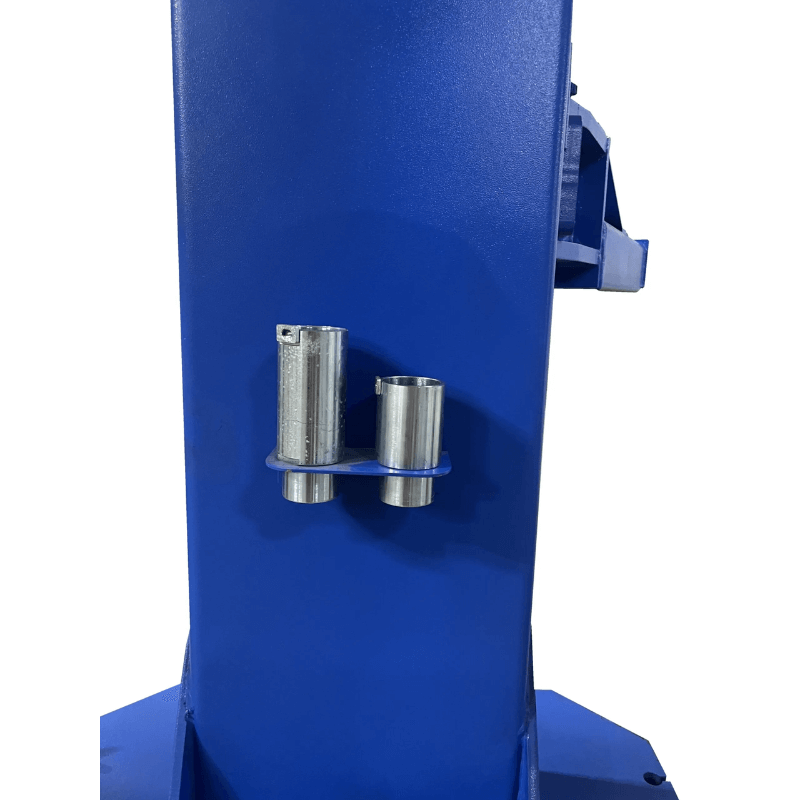

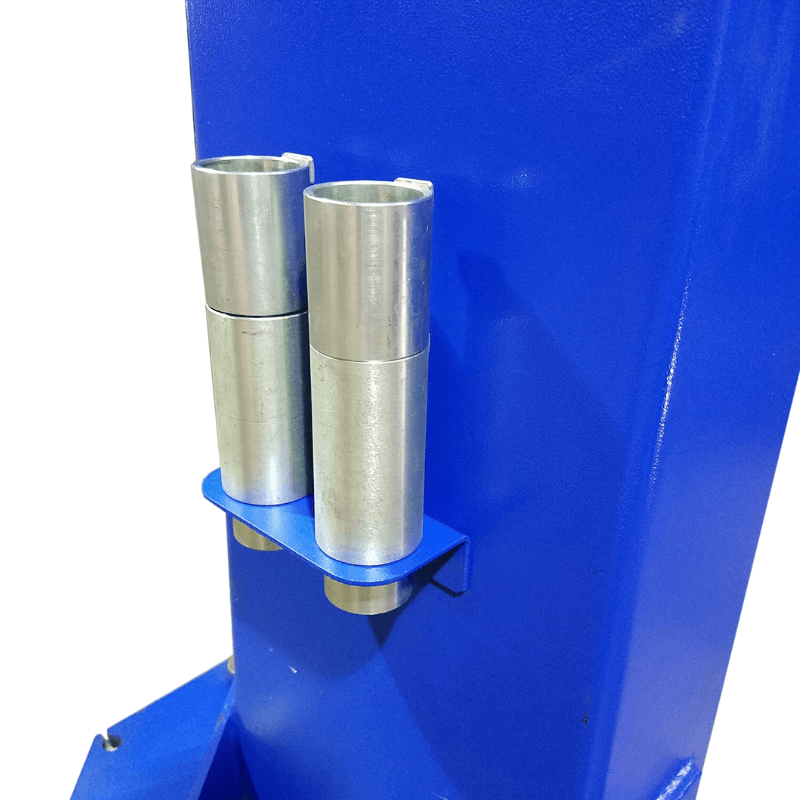

• Stackable Adapter Included

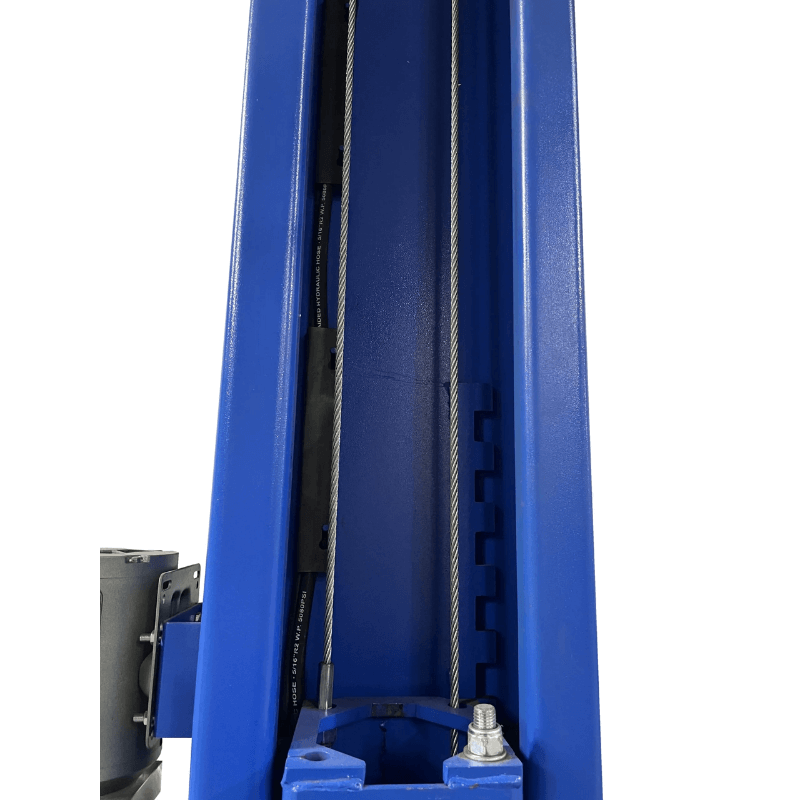

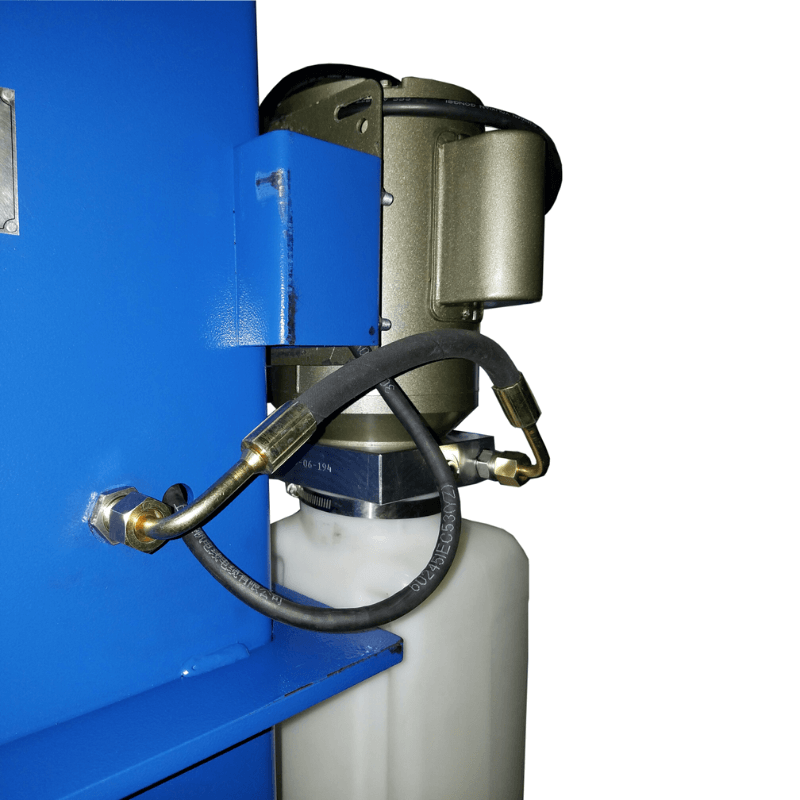

• Internal Hose routing
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

Tuxedo TP15KCX Product Manual:

   Tuxedo TP15KCX Car lift Product Manual

20% DISCOUNT on Scratch & Dent Units:

• Contact Us today if your item is available
• Pictures of units can be shared upon request
• For on-sale items, discount comes off of regular price
• All refurbished items ship from Texas warehouse or can be picked up at no additional cost
