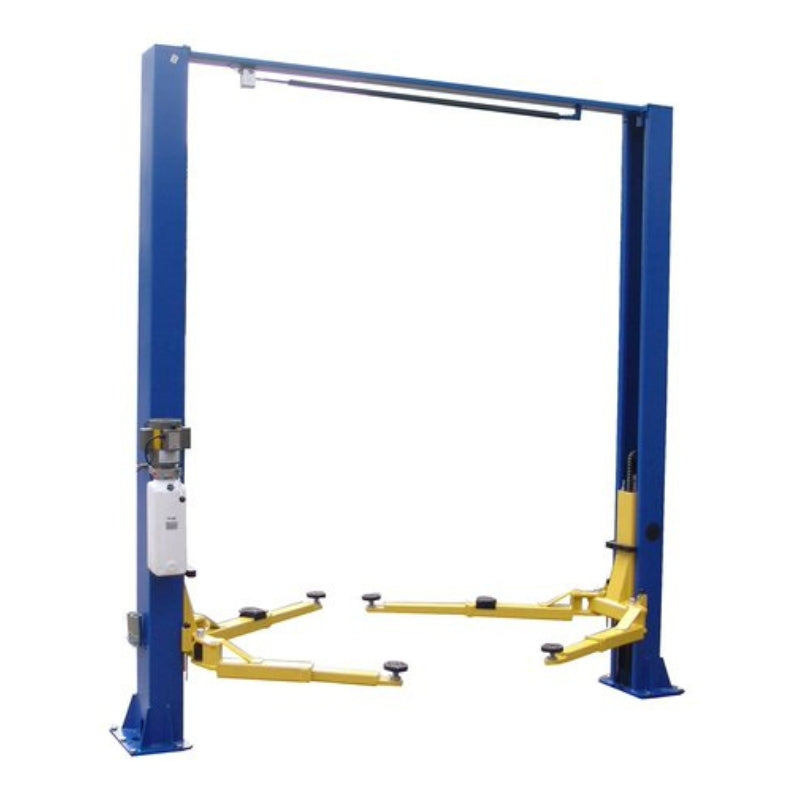

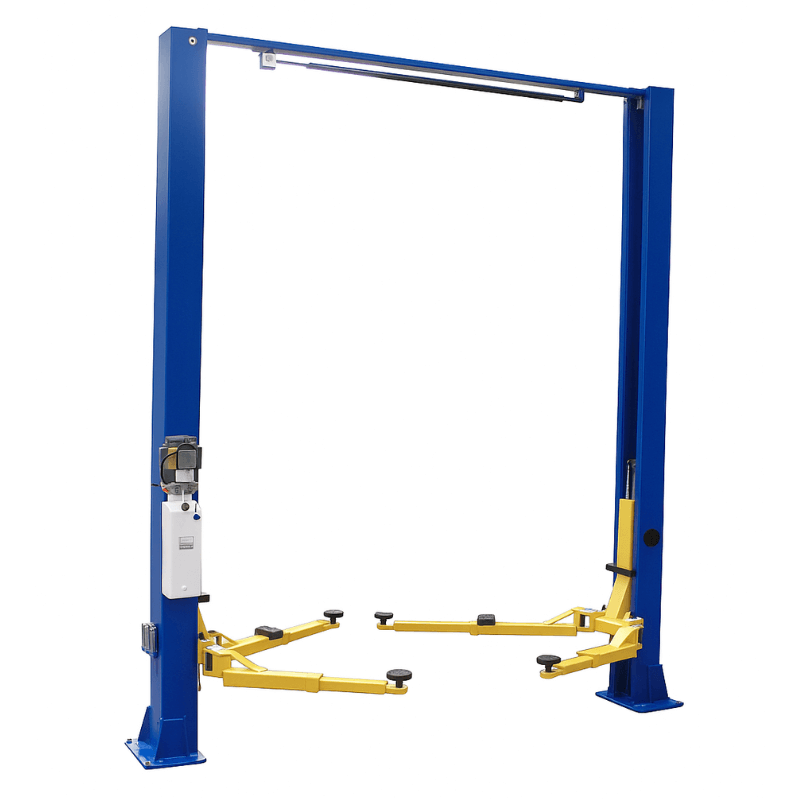

Tuxedo TP9KACX, 9,000 lb 2 Post Car Lift Clear Floor - Asymmetric

TP9KACX, 2 Post Car Lift by Tuxedo

The Two Post Clear Floor Lift, the perfect blend of performance, durability, and convenience for any automotive maintenance and repair shop. This lift boasts a robust 9,000 lbs capacity, accommodating a wide range of vehicles with ease. With an overall height of 142-7/8 inches and a width of 138 inches, including the power unit, it is designed to fit comfortably in various garage settings. The maximum lift height of 72 inches and the width between columns of 113-5/8 inches ensure efficient space utilization and flexibility for different vehicle sizes.

The lift features a minimum pad height of 4 inches, allowing it to accommodate low-clearance vehicles, and a drive-thru clearance of 96 inches, providing ample space for easy vehicle maneuvering. The lifting speed of 50 seconds ensures quick and efficient operation. Designed with asymmetric arms, this lift offers better access to vehicle interiors, making repairs and maintenance tasks more manageable. The clear floor design adds to the convenience by eliminating obstructions and providing a clutter-free workspace.

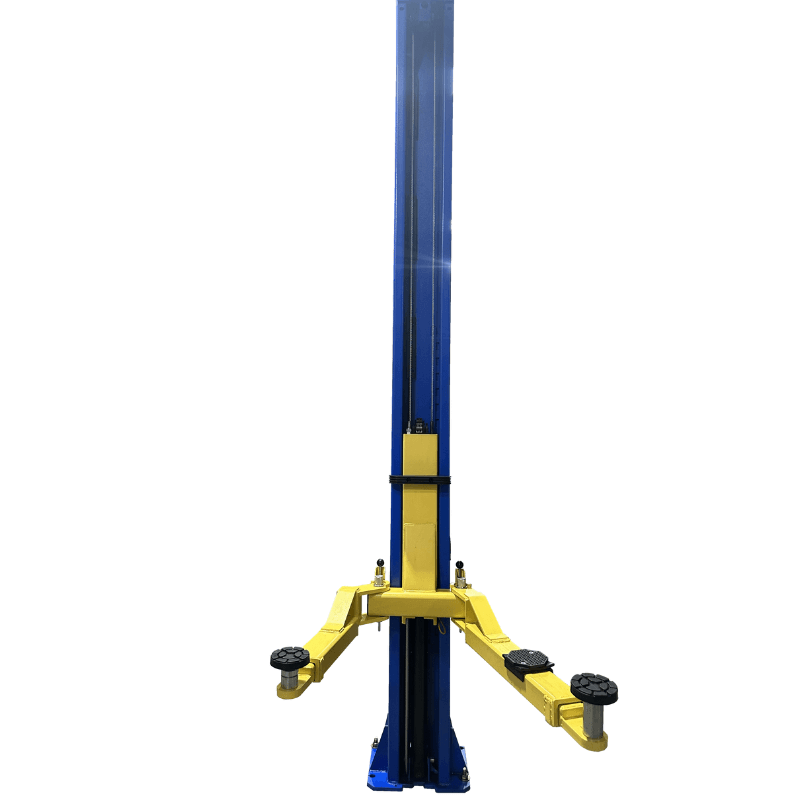

The short arm reach ranges from 29 to 41 inches, while the long arm reach extends from 37 to 57 inches, offering versatile lifting options for various vehicle types. Each arm can handle a maximum load of 2,250 lbs, ensuring safe and secure lifting operations. The lift has a shipping weight of 1,370 lbs and operates on 220V, 20 AMP, single-phase power, making it a reliable and powerful addition to any garage.

This Two Post Clear Floor Lift combines superior lifting capabilities with a user-friendly design, making it an indispensable tool for any automotive maintenance and repair facility. Invest in quality, efficiency, and safety with this essential piece of equipment.

2 Post Car Lift TP9KACX Specification:

• Capacity: 9,000 lbs.
• Height Overall: 142-7/8″
• Width Overall w/ Power Unit: 138″
• Max Lift Height: 72″
• Width Between Columns: 113-5/8″
• Min. Pad Height: 4″
• Drive Thru Clearance: 96″
• Lifting Speed: 50 seconds
• Asymmetric / Symmetric: Asymmetric
• Clear Floor / Floor Plate: Clear Floor
• Short Arm Reach – min/max: 29″-41″
• Long Arm Reach – min/max: 37″-57″
• Narrow Bay Setting: Not applicable
• Max Load Per Arm: 2,250 lbs.
• Ship Weight: 1,370 lbs.
• Power: 220V – 20 AMP – 1 PH

2 Post Car Lift TP9KACX Special Features:

• 9,000 lbs capacity
• Asymmetric Arms
• Rubber Door Guards
• Chain Drive Cylinders
• Dual Point Lock Release

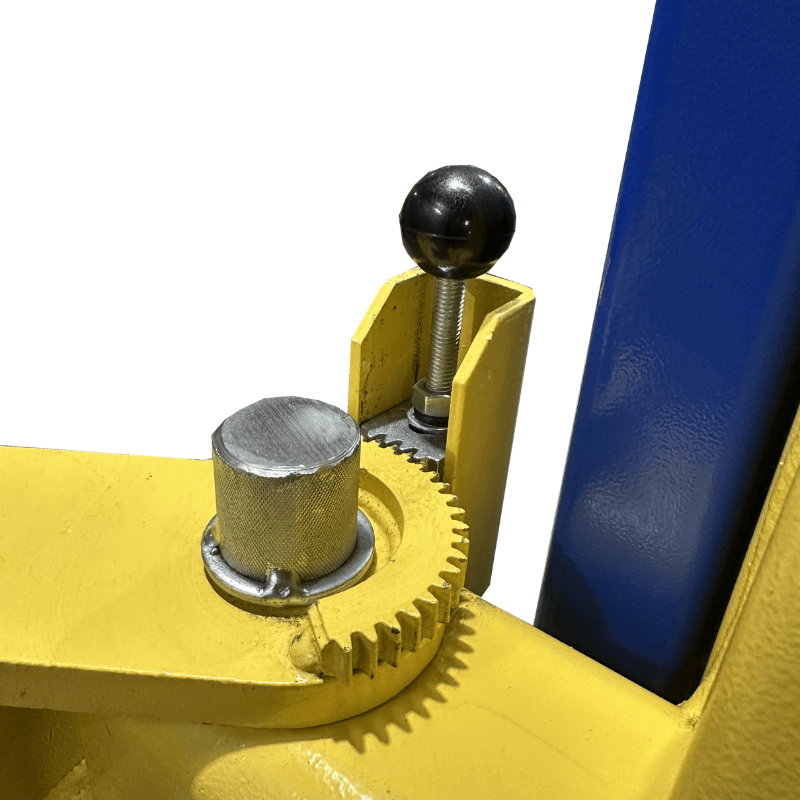

• Auto Arm Restraint System
• Single Piece Column
• Internal Hose routing

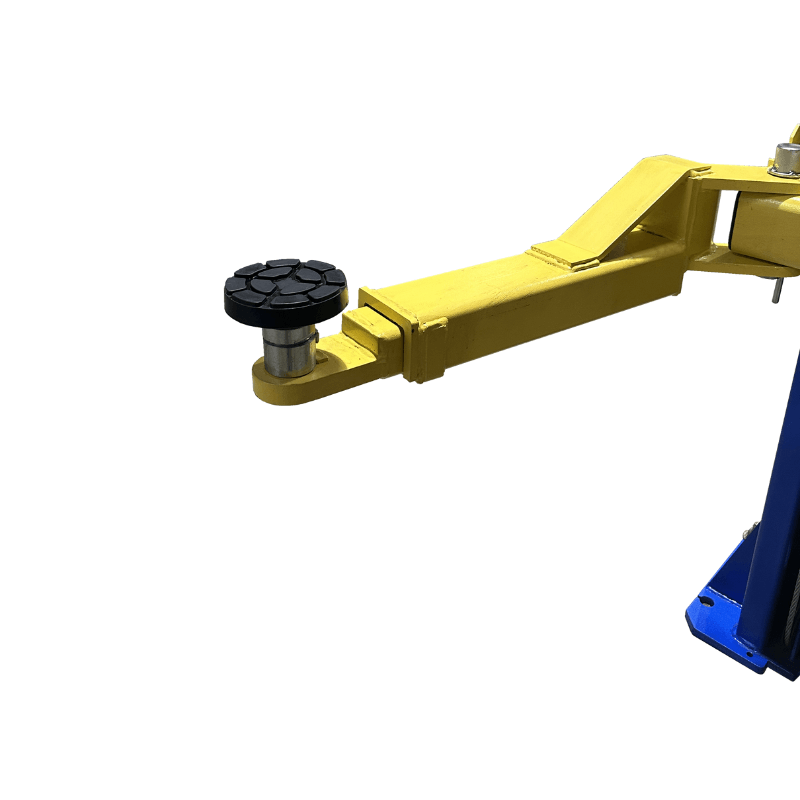

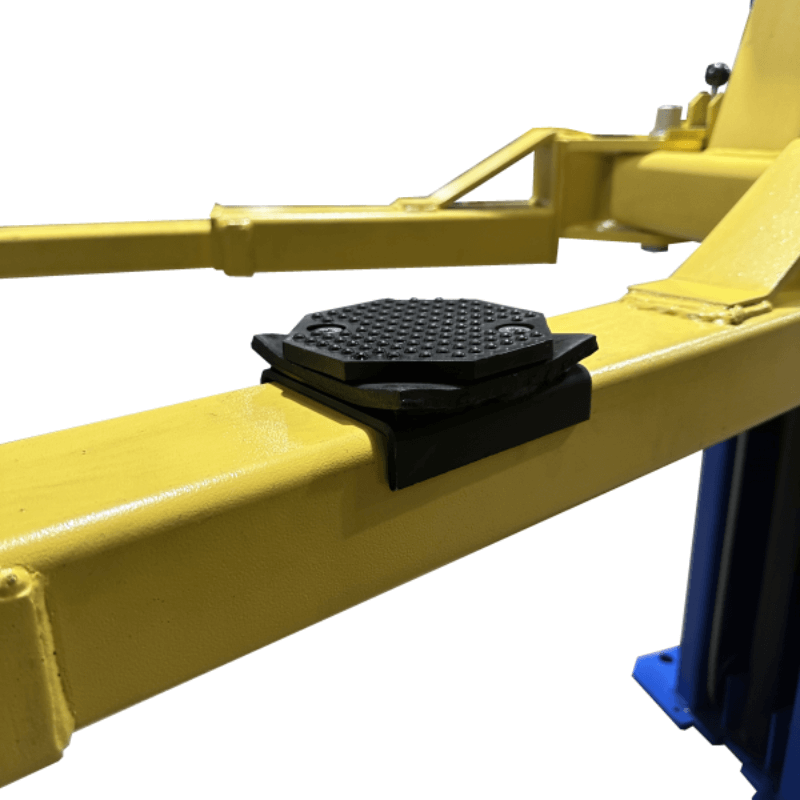

• Low profile Spin Up Lift Pads

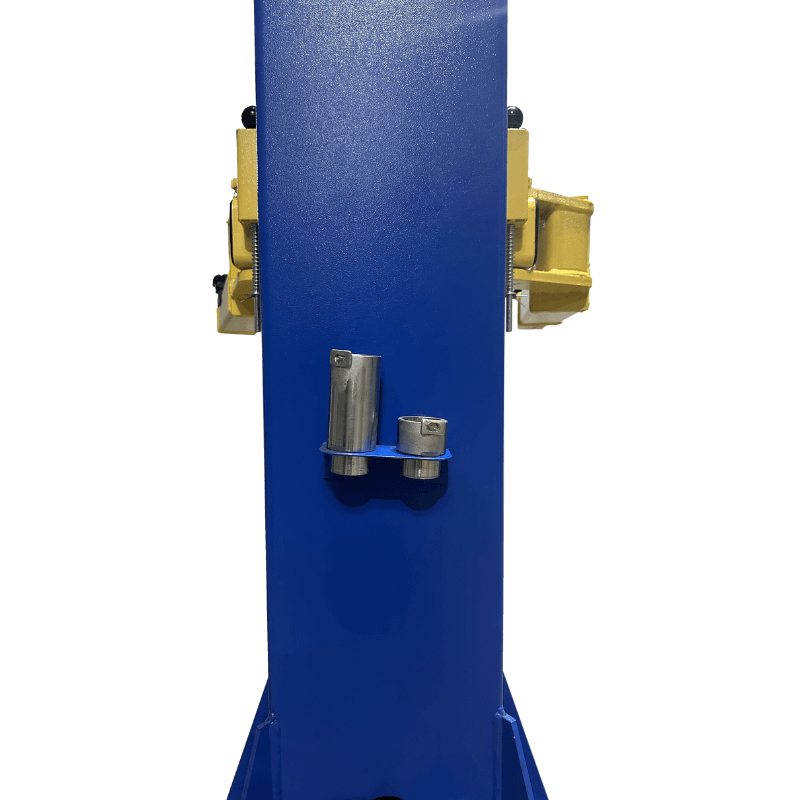

• Stackable Adapters Included
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

Tuxedo TP9KACX Documentation:

    Tuxedo TP9KACX Product Manual

20% DISCOUNT on Scratch & Dent Units:

• Contact Us today if your item is available
• Pictures of units can be shared upon request
• For on-sale items, discount comes off of regular price
• All refurbished items ship from Texas warehouse or can be picked up at no additional cost

This Item ships for FREE - Thru July 31, 2024
