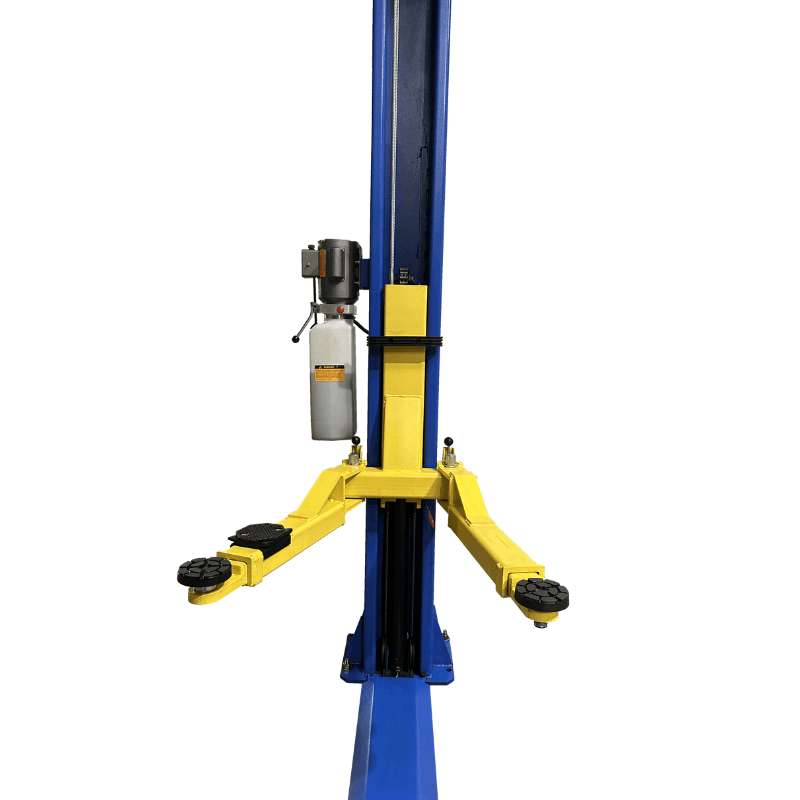

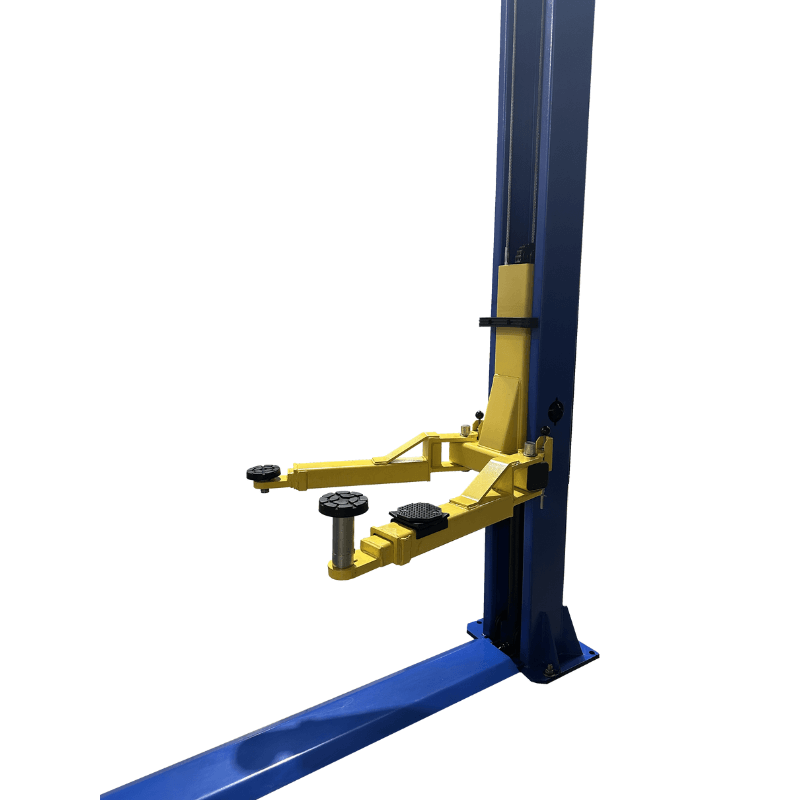

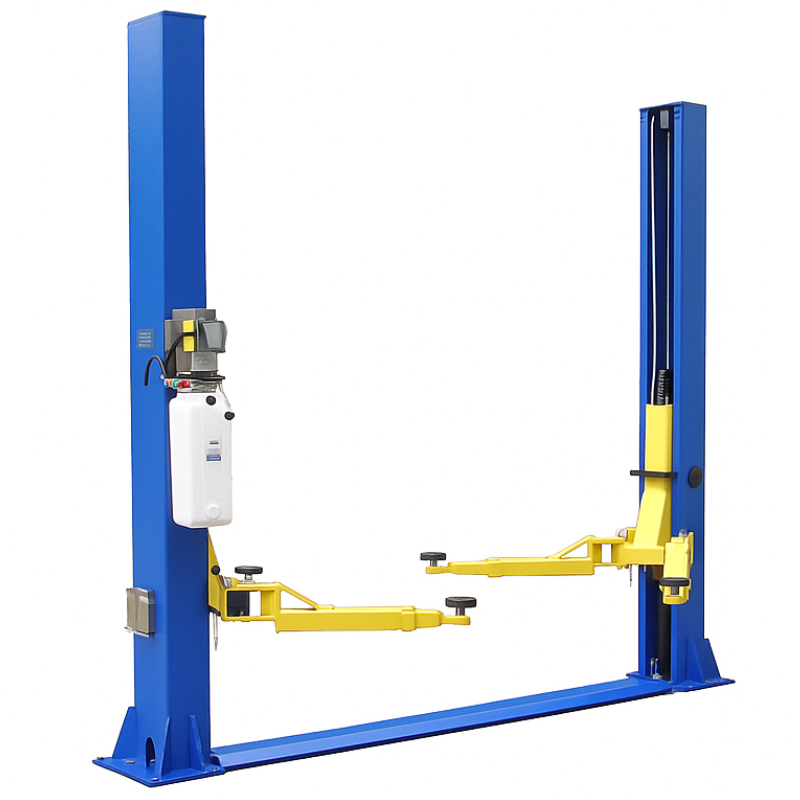

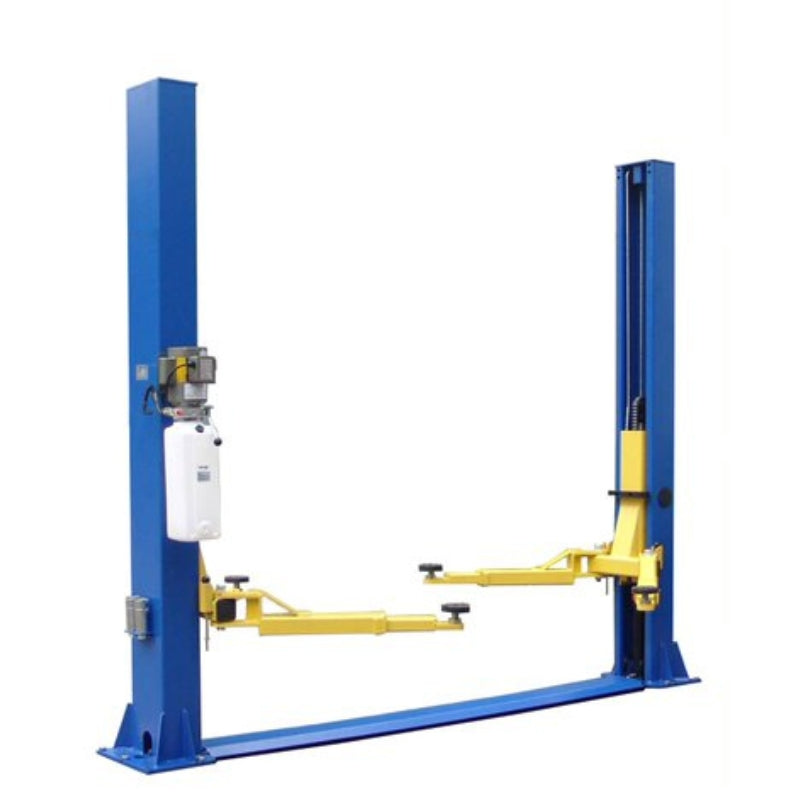

Tuxedo TP9KFX, 9,000 lb 2 Post Car Lift Floor Plate - Symmetric

TP9KFX 2 Post Car Lift by Tuxedo

When it comes to automotive maintenance, you need a lift that can handle the toughest jobs with ease. Enter the Two Post Floor Plate Lift – a true workhorse that boasts an impressive 9,000 lb lifting capacity. Whether you're servicing a compact sedan or a heavy-duty truck, this lift has got your back. Designed with symmetric arms, this lift provides balanced support for your vehicles, ensuring a smooth and stable lift every time. And the cherry on top? The included rubber door guards protect your precious rides from any unwanted scratches or dings during the servicing process.

With a maximum lift height of 72 inches and a drive-thru clearance of 101 inches, it can accommodate a wide range of vehicle sizes. Plus, the low-profile spin-up lift pads and the included stackable adapters make it easy to adjust the height to suit your specific needs, whether you're working on a low-riding sports car or a towering SUV. At just 1,270 lbs, this Two Post Floor Plate Lift is a powerhouse that won't weigh down your garage. Powered by a 220V, 20 AMP, single-phase system, it's ready to take on any job you throw its way.

2 Post Car Lift TP9KFX Specification:

• Capacity: 9,000 lbs
• Height Overall: 111-7/8"
• Width Overall with Power Unit: 134-5/8"
• Max Lift Height: 72"
• Width Between Columns: 110-3/8"
• Min. Pad Height: 4"
• Drive Thru Clearance: 101"
• Lifting Speed: 50 seconds
• Asymmetric / Symmetric: Symmetric
• Clear Floor / Floor Plate: Floor Plate
• Short Arm Reach – Min/Max: 31" - 45"
• Long Arm Reach – Min/Max: Same
• Narrow Bay Setting: N/A
• Max Load Per Arm: 2,250 lbs
• Ship Weight: 1265 lbs

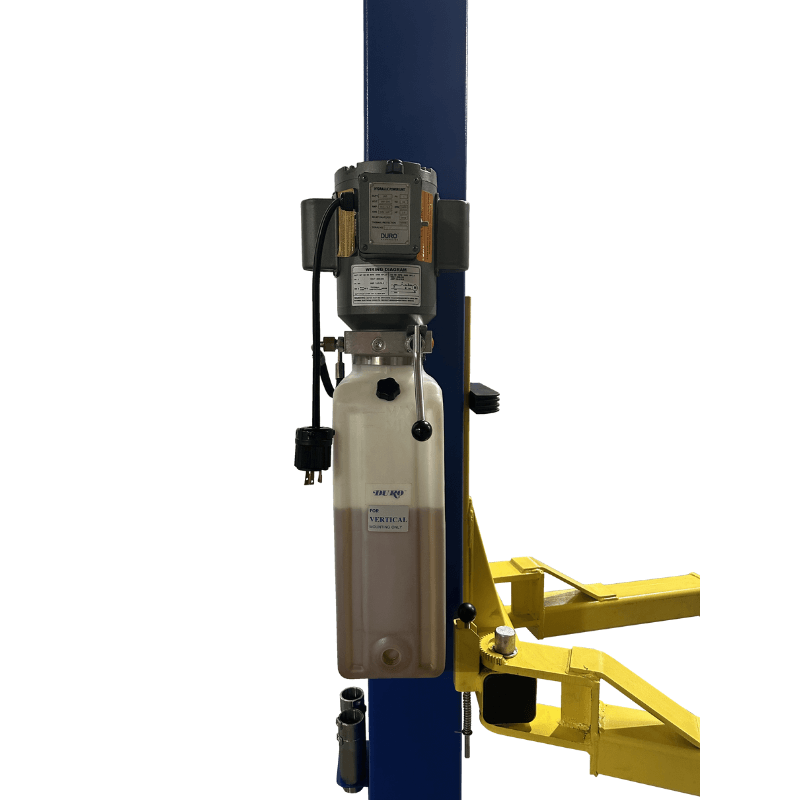

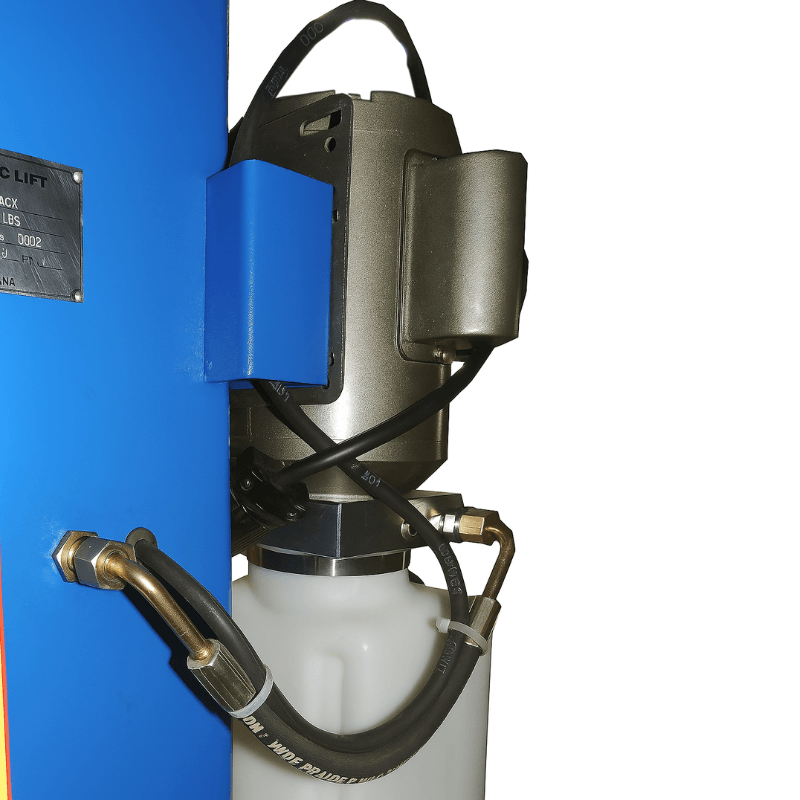

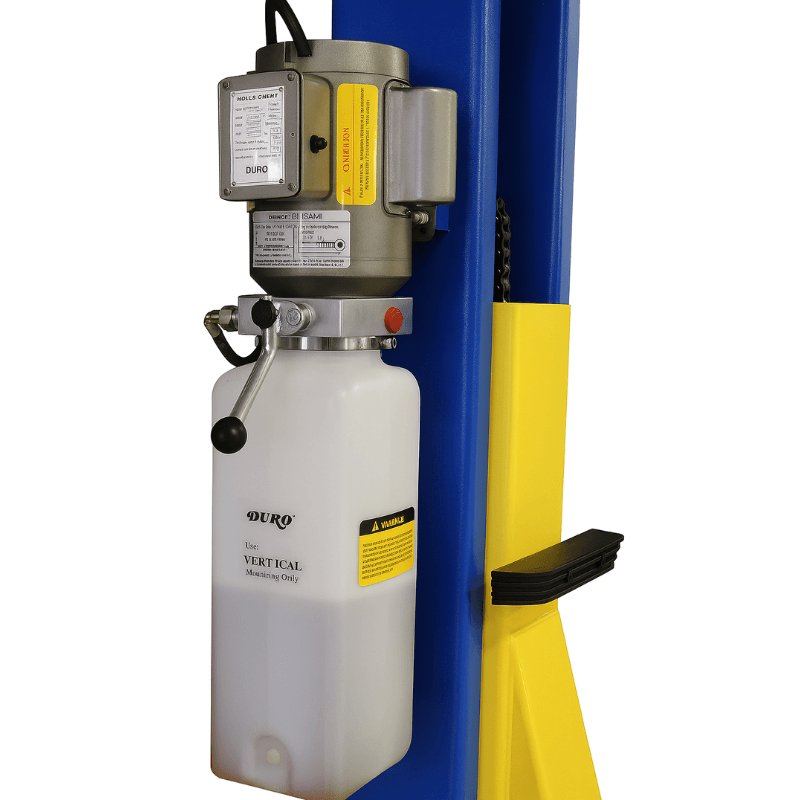

• Power: 220V – 20 AMP – 1 PH
• Pallet Dimensions: 117" 18" 42"

TP9KFX, 9,000 lb 2 Post Car Lift Special Features:

• 9,000 lbs capacity
• Symmetric Arms

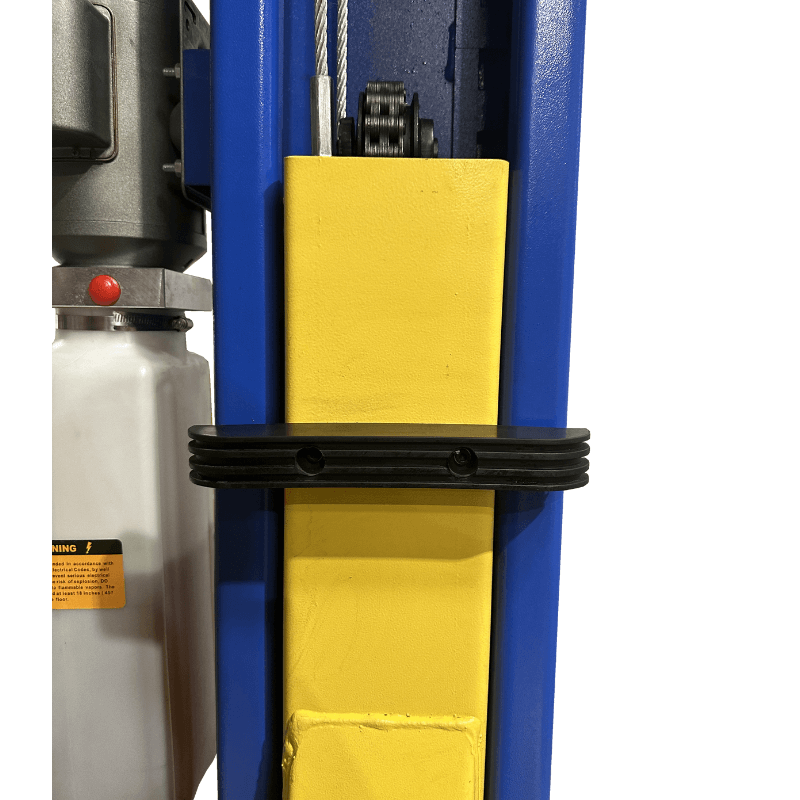

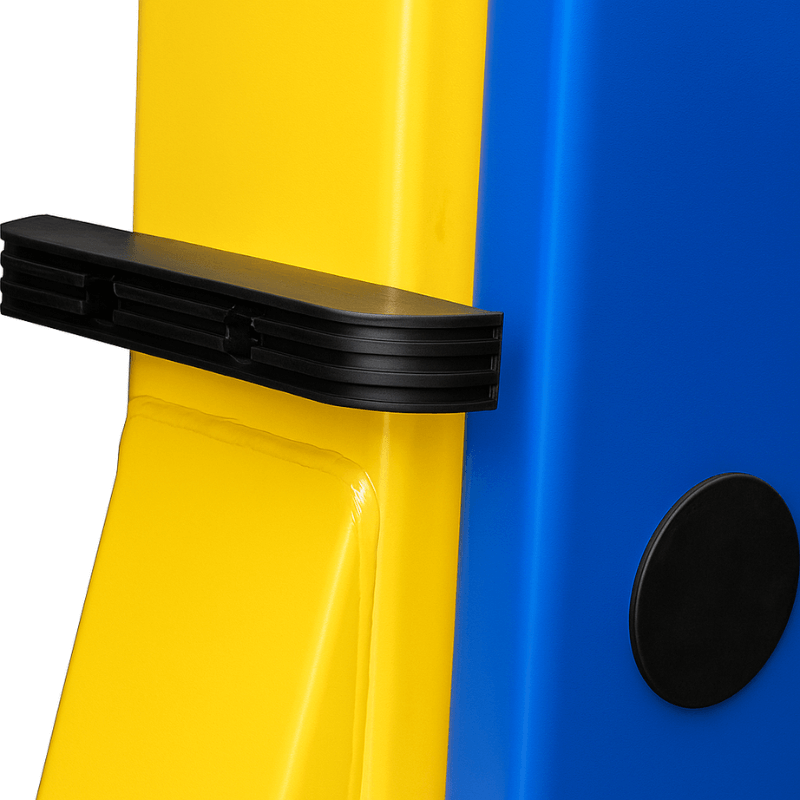

• Rubber Door Guards
• Chain Drive Cylinders
• Dual Point Lock Release

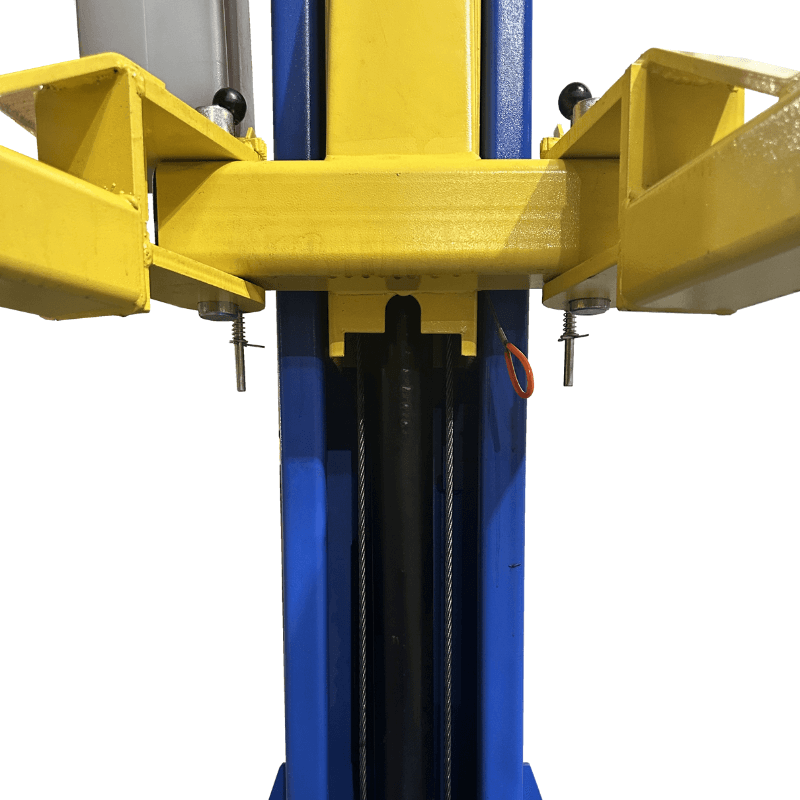

• Auto Arm Restraint System
• Internal Hose routing

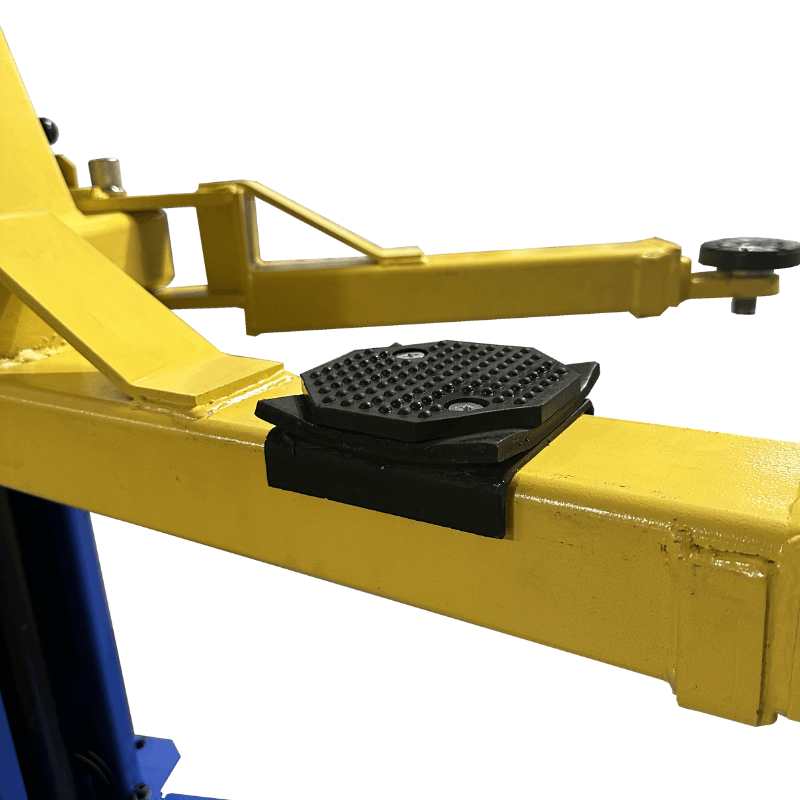

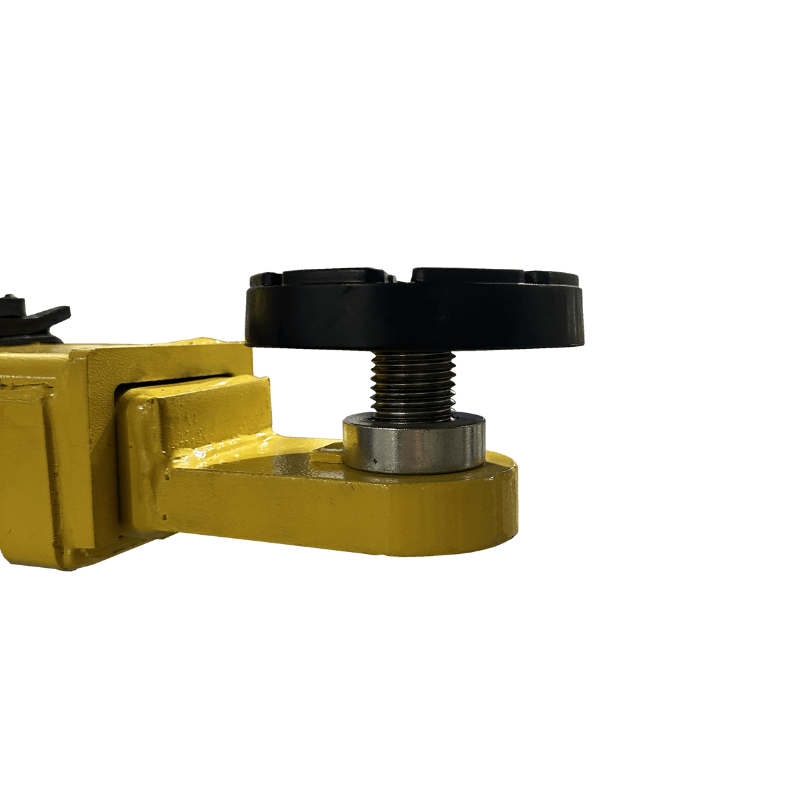

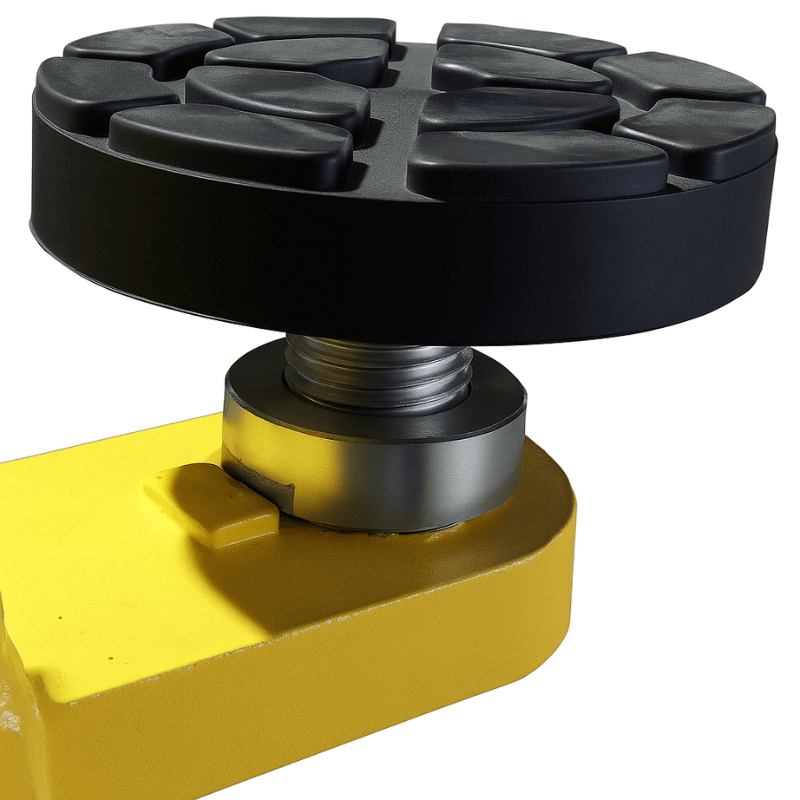

• Low profile Spin Up Lift Pads

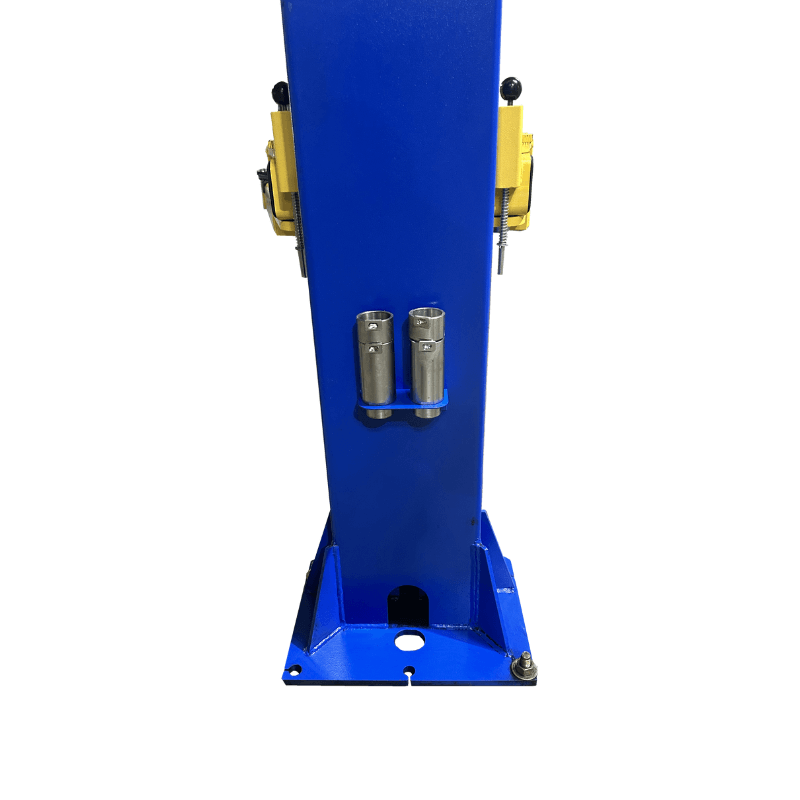

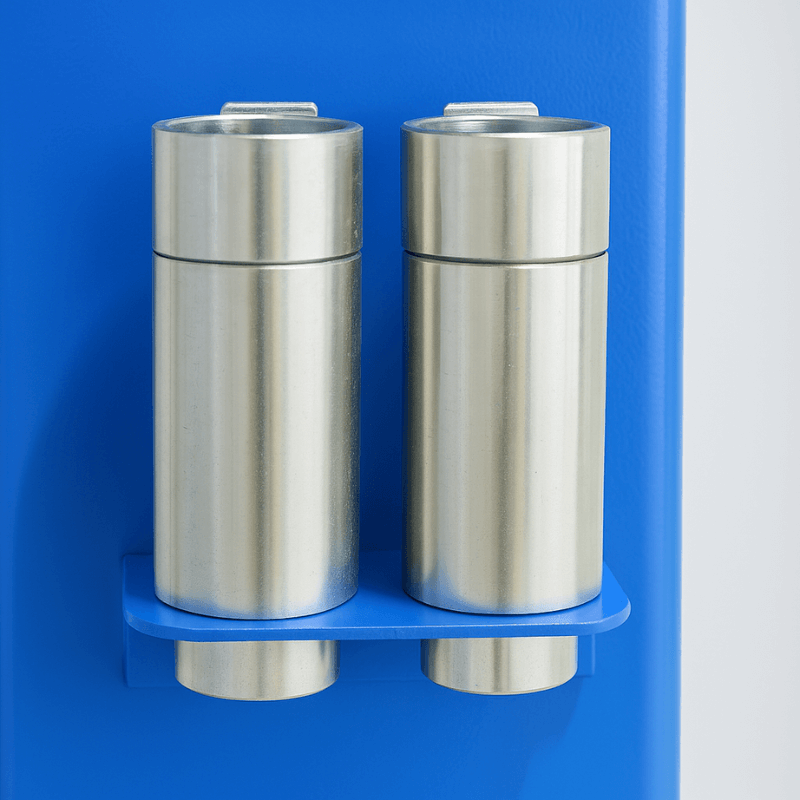

• Stackable Adapters Included
• Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use

Tuxedo TP9KFX Documentation

     Tuxedo TP9KSCX 2 Post Car Lift Product Manual

20% DISCOUNT on Scratch & Dent Units:

• Contact Us today if your item is available
• Pictures of units can be shared upon request
• For on-sale items, discount comes off of regular price
• All refurbished items ship from Texas warehouse or can be picked up at no additional cost

This Item has a FLAT RATE SHIPPING FEE: $399

Warehouse Pickup locations (No shipping charge):

• Temecula, CA 92590
• Orlando, FL 32824
• Kennesaw, GA 30144
• Elwood, IN 46036
• Maple Grove, MN 55311
• Reidsville, NC 27320
• Bohemia, NY 11715
• Reading, PA 19605
• Alvarado, TX 76009
• West Valley City, UT 84119

Tuxedo TP9KFX Video
