Tuxedo WB-CB66-VE Wheel Balancer

WB-CB66-VE Wheel Balancer by Tuxedo

The Tuxedo WB-CB66-VE Wheel Balancer, engineered to elevate your wheel balancing experience with precision, versatility, and user-friendly features.

With a maximum wheel diameter of 44 inches and a rim width ranging from 1.5 to 20 inches, the WB-CB66-VE accommodates a wide range of wheel sizes. Its impressive rim diameter range of 10 to 28 inches allows for balancing of various wheel types, including larger rims up to 28 inches in diameter.

Designed for ease of use, the WB-CB66-VE features a user-friendly LED touch-panel keypad with intuitive icons, ensuring effortless operation. The multi-mode vehicle balancing capability includes SUV, car, and motorcycle modes, catering to diverse balancing needs.

Operating at a low 140 RPM, the WB-CB66-VE ensures extended machine life and precise wheel balancing, while its manual measurement input option allows for flexibility and customization in balancing modes.

Enhancing accuracy, the WB-CB66-VE is equipped with an exclusive laser indicator that lights up at the unbalanced weight position. The integrated measurement acquisition wand enables easy data acquisition, streamlining the balancing process.

Ensuring safety and efficiency, the foot pedal braking system secures the wheel in the unbalanced position for accurate weight application. The machine features an extra-long balancing shaft and speed-nut mounting for quick and efficient wheel mounting.

With a multi-pocket wheel weight shelf and large wheel shroud to prevent debris from flying off the tire during operation, the WB-CB66-VE offers convenience and reliability. Additionally, its power-saving mode automatically switches to standby mode after 5 minutes of non-usage, conserving energy.

Wheel Balancer WB-CB66-VE Specification:

• Wheel Balancer Model WB-CB66-VE
• Data Entry Keypad
• Max Wheel Diameter 44″
• Rim Width 1.5″ – 20″
• Rim Diameter 10″ – 28″
• Wheel Weight Capacity 150 lbs
• Accuracy 1 gram
• Power 110V – 15 Amp – 1PH
• Ship Weight 352 lbs

WB-CB66-VE from Tuxedo Special Features:

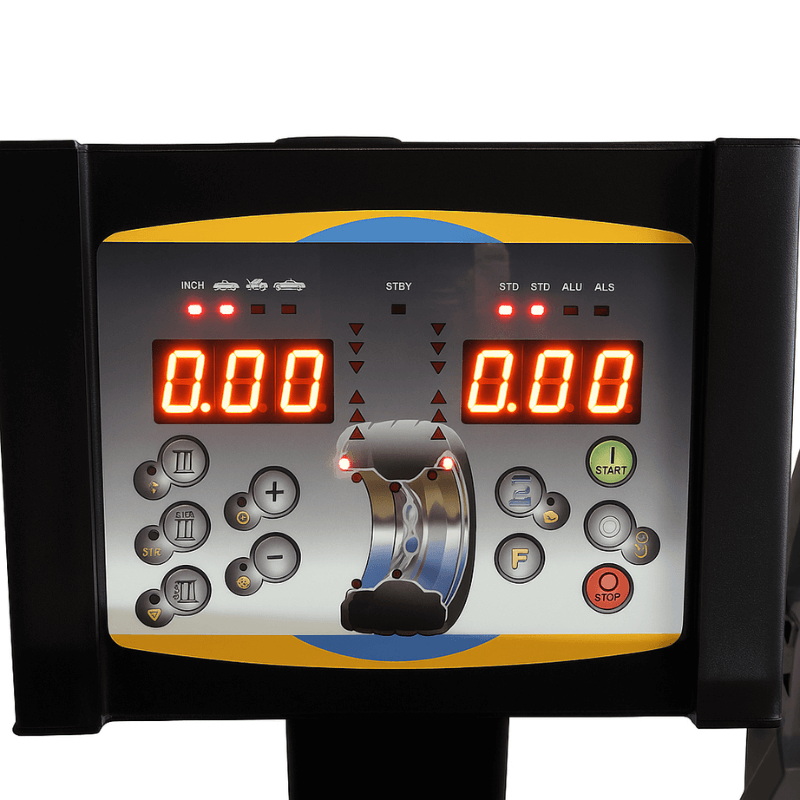

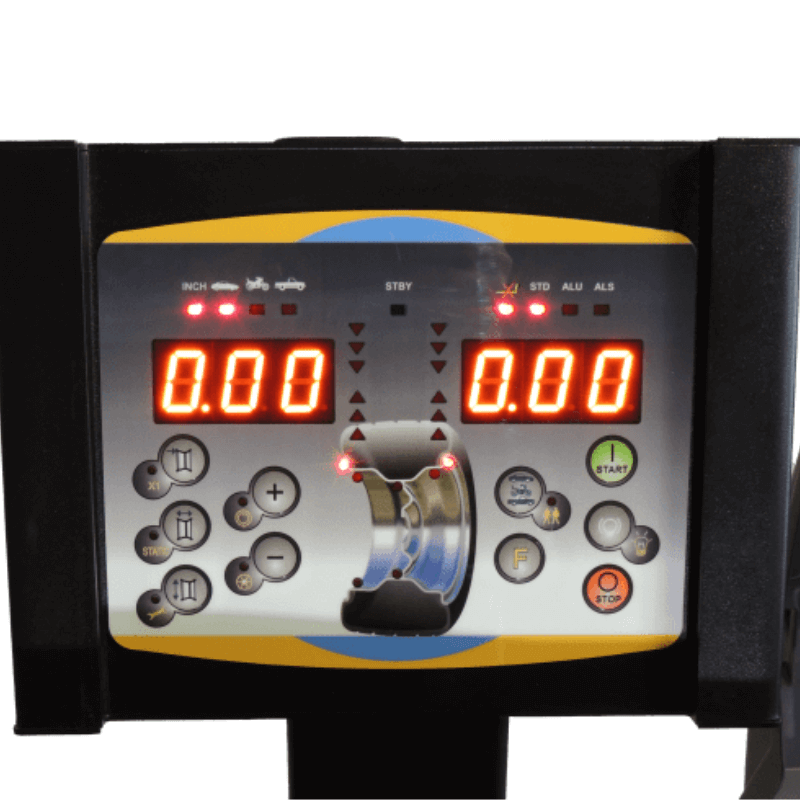

• User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
•  Large Rim Diameter Balancing – able to balance up to 28” Rim diameter & 44” overall Wheel Diameter.
•  Multi-Mode Vehicle Balancing – standard with SUV, Car & Motorcycle balancing modes.
•  Low-RPM Operation – at 140 RPM, the balancer’s life is further extended for sensitive electronics & moving components, all while providing highly accurate wheel balancing.
•  Ease-Of-Use – with manual measurement input for distance & diameter with 5 ALU Standard modes and 2 ALU Smart modes.
•  Exclusive Laser Indicator – lights up automatically at the unbalance weight position under ALUS mode in the 6 o’clock wheel position.
• Integrated Measurement Acquisition Wand – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
• Light Indicator – illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.
•  Foot Pedal Braking System – conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.

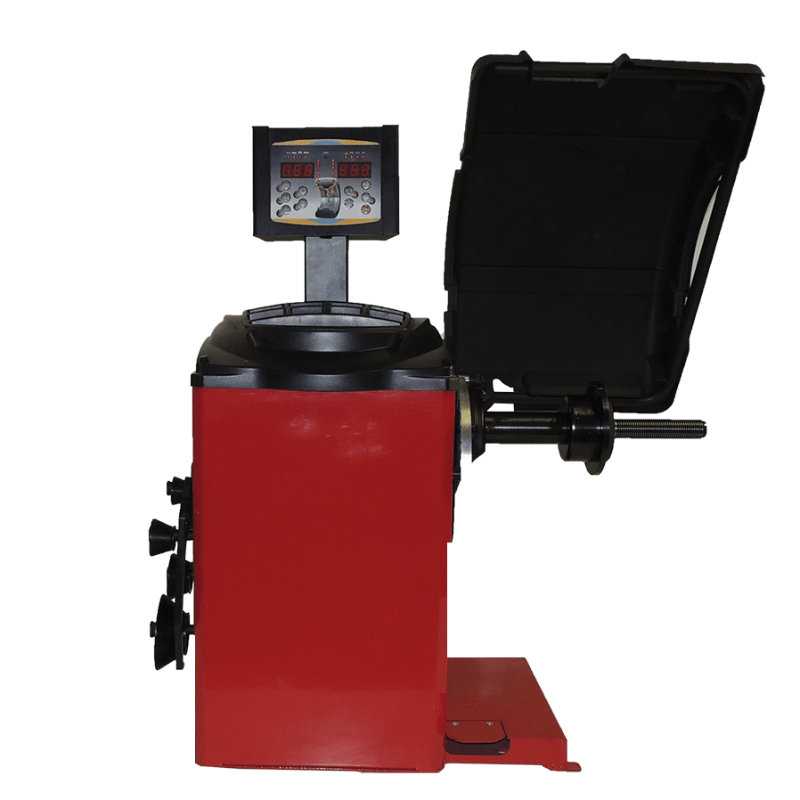

• Extra Long, Heavy Duty Balancing Shaft – the 12″ long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes & shapes.

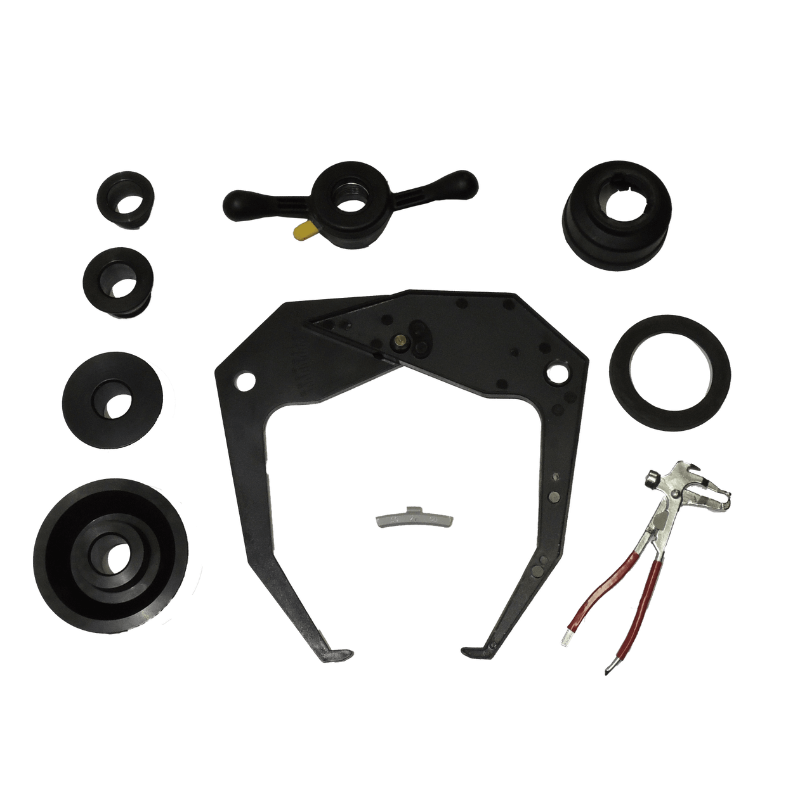

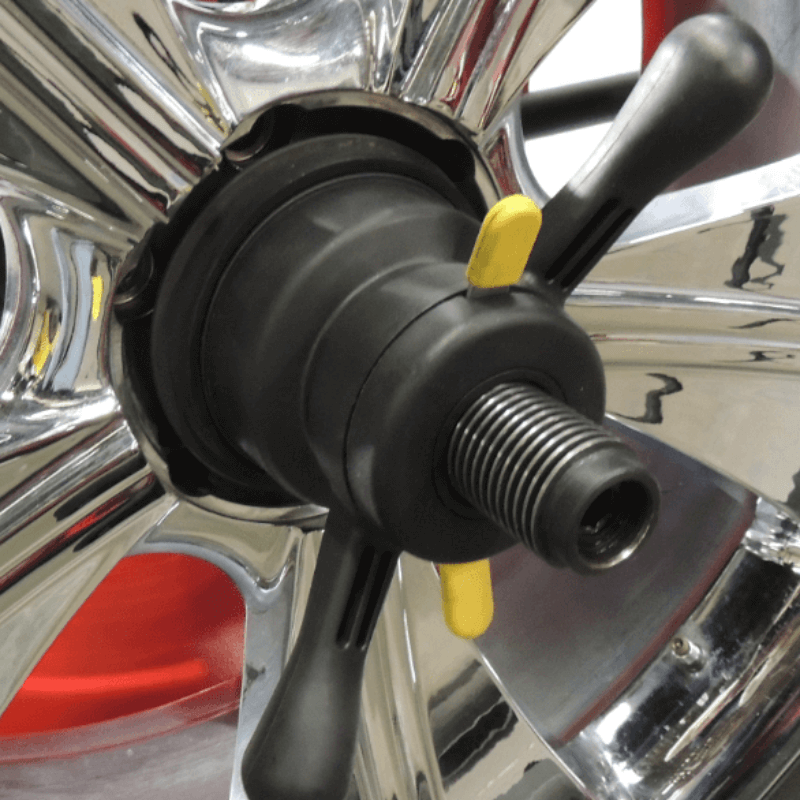

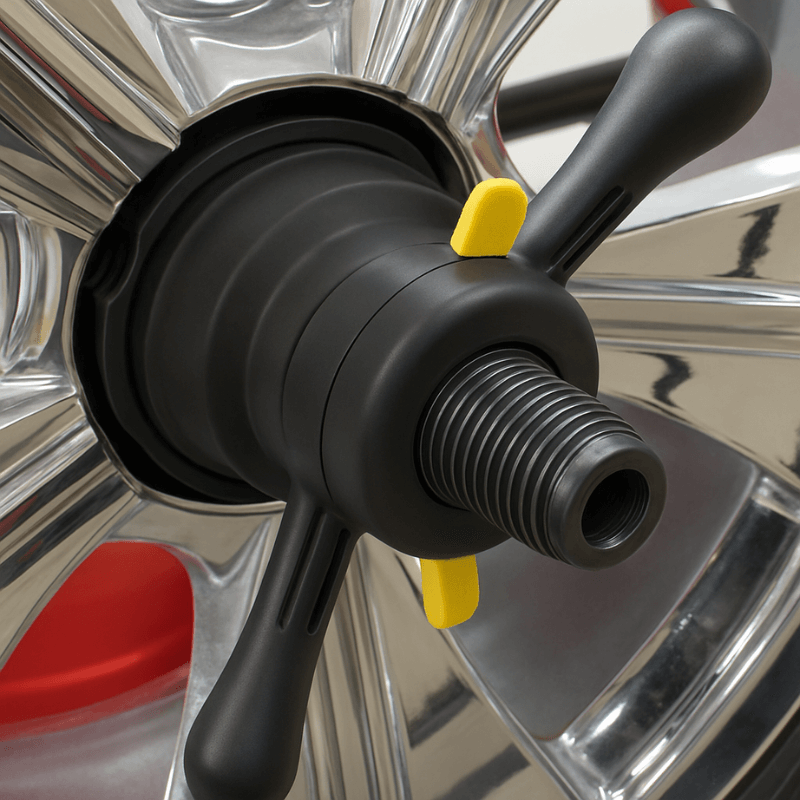

• Speed-Nut Mounting – the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
• Multi Pocket Wheel Weight Shelf – 14 articulated pockets, over 1.5″ deep, allowing plenty of storage for weights & tooling.

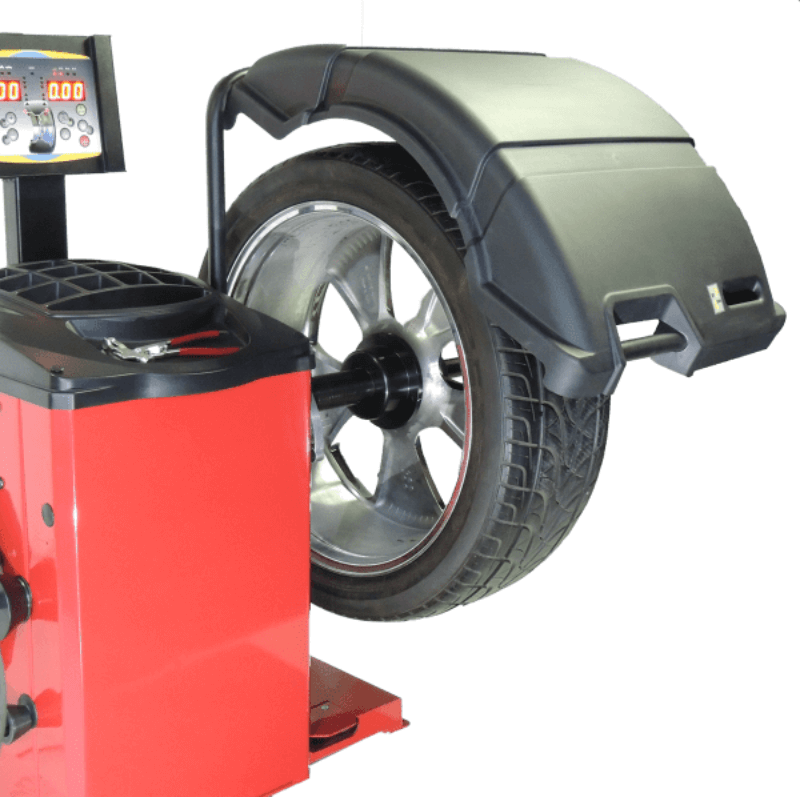

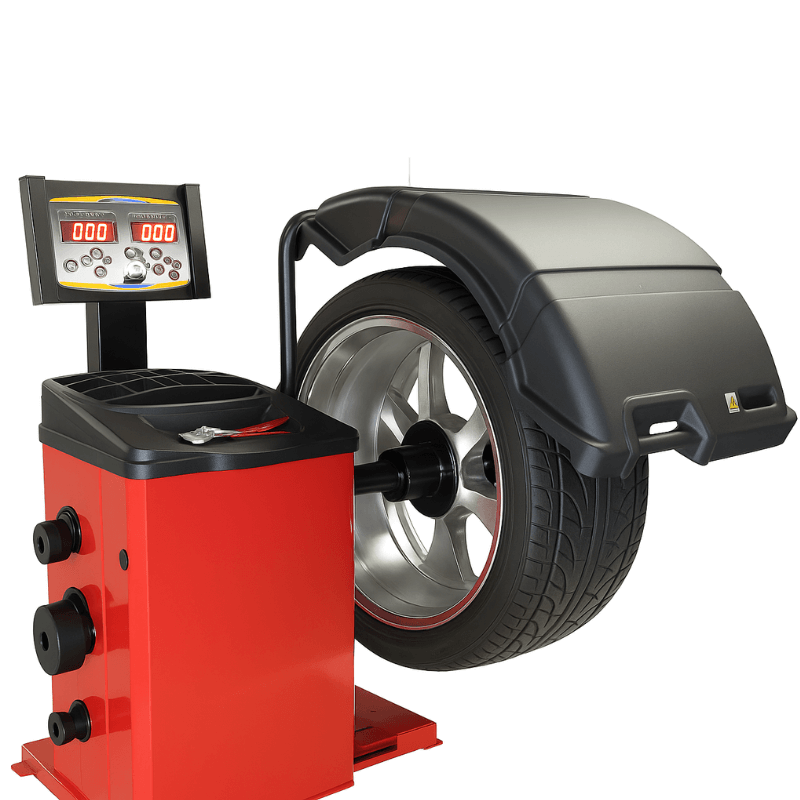

• Large Wheel Shroud – the large 38” wheel hood prevents debris from flying off the tire while in use.
• Power Saving Mode – automatically puts machine in stand-by mode after 5 minutes of non-usage.
• Tuxedo Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
