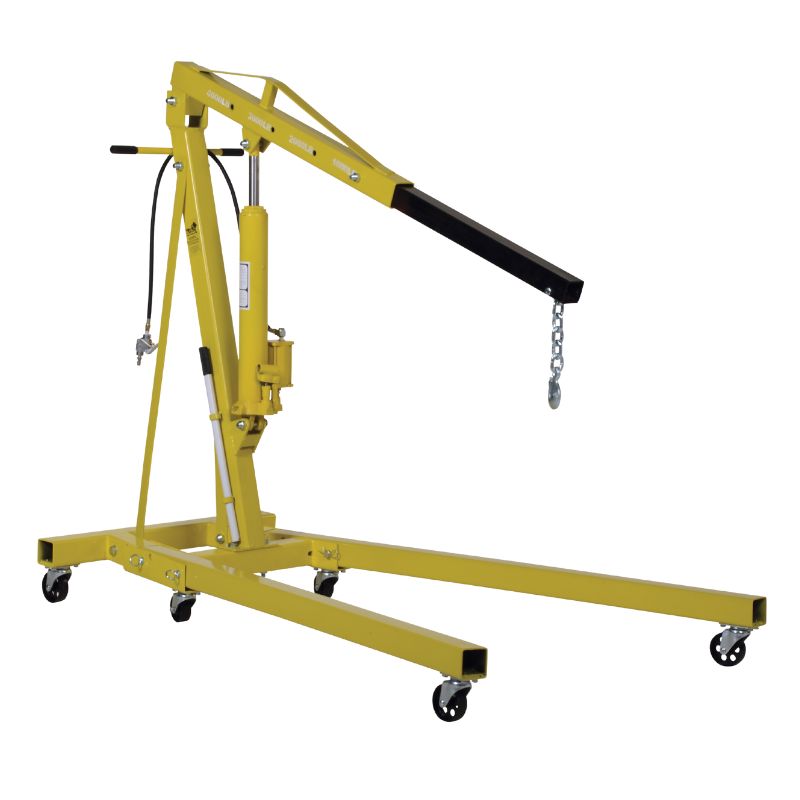

This crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." Cast steel casters, (4) swivel in back (2) rigid in front. The hoist offers heavy-duty lifting power, while optimizing space when in the folded position.
Shop Crane EHN-40-C-AH Specifications:
Uniform Capacity (lb.): 4,000
Leg Design: Foldable
4,000 Capacity Reach (in.): 39
4,000 Capacity Boom Height (in.): 21 to 86
3,000 Capacity Reach (in.): 46
3,000 Capacity Boom Height (in.): 15 to 91
2,000 Capacity Reach (in.): 53
2,000 Capacity Boom Height (in.): 9 to 97
1,000 Capacity Reach (in.): 61
1,000 Capacity Boom Height (in.): 3 to 102
(2) Front and (2) Rear Caster Diameter (in.): 3-1/2
(2) Front and (2) Rear Caster Width (in.): 1-1/4
Middle Caster Diameter (in.): 3
Middle Caster Width (in.): 1-1/4
Caster Type: Swivel
Caster Material: Cast Steel
Chain Length w/ Hook (in.): 11
Collapsed Width (in.): 32
Collapsed Length (in.): 22
Collapsed Height (in.): 66
EHN-40-C-AH 4000 Lb. Shop Crane Special Features:
Telescopic boom with four settings for different lifting heights and capacities
Boom is raised and lowered with a manual hydraulic hand pump
High-capacity hydraulic cylinder provides for faster lifting action
Features a large diameter ram to withstand angled loads when lifting
