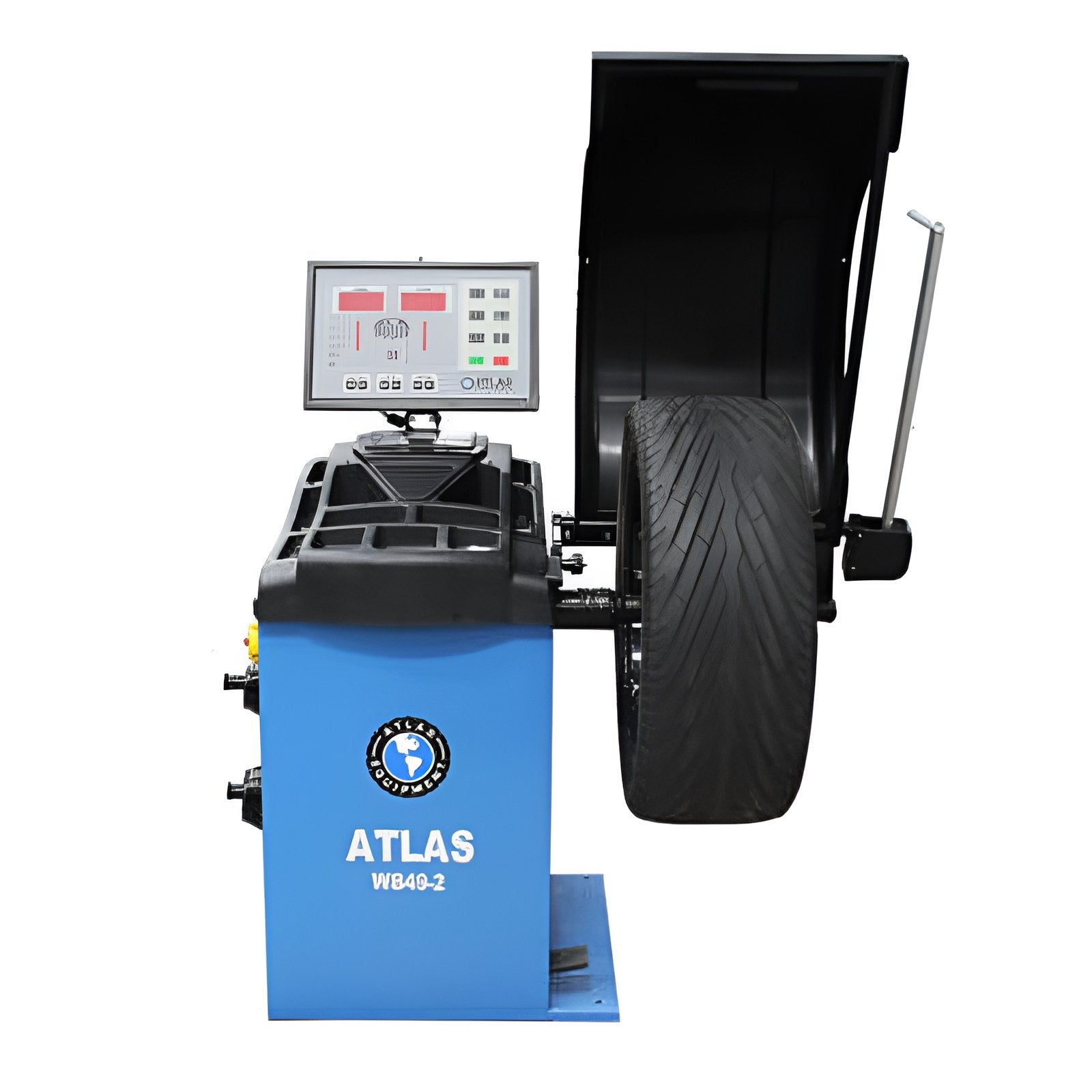

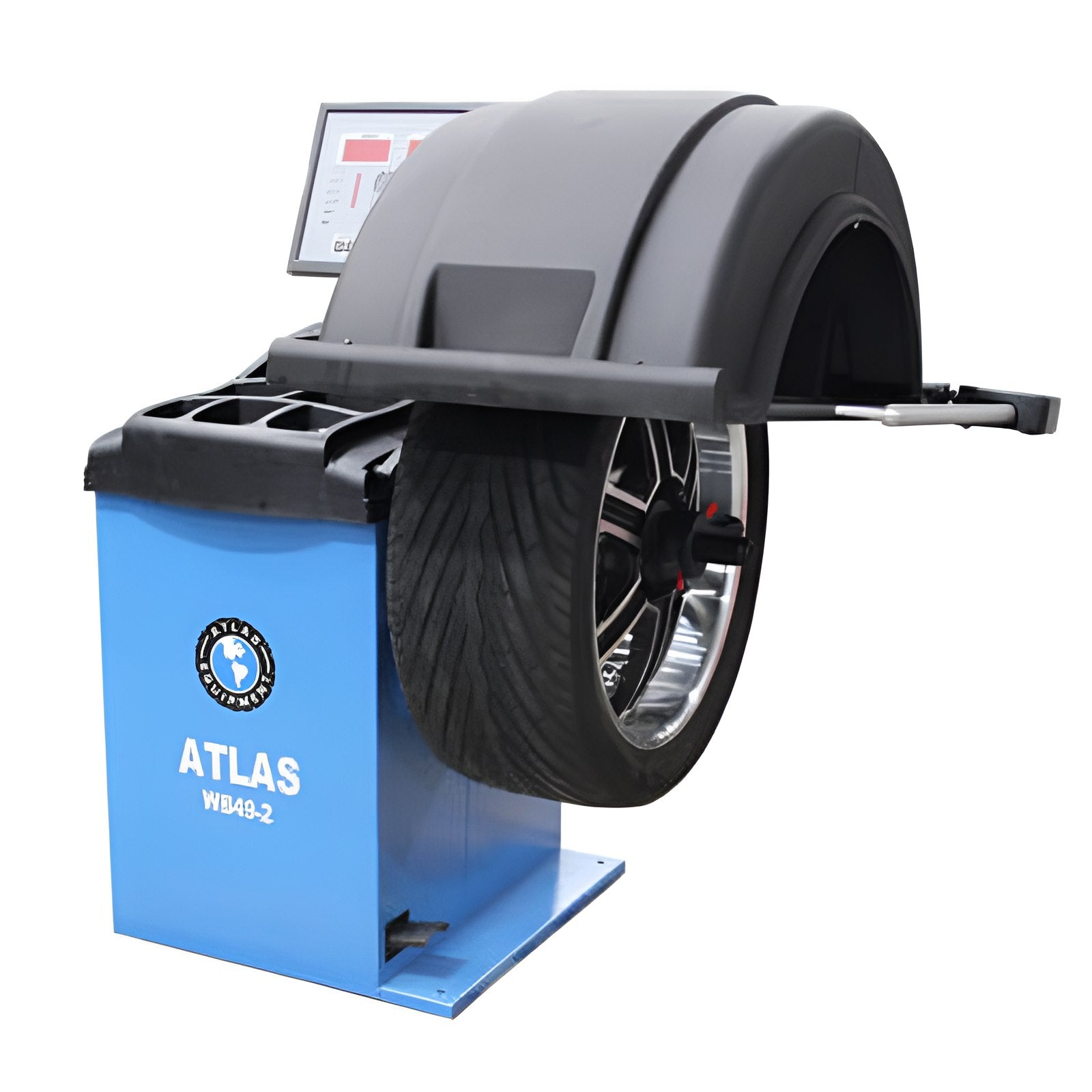

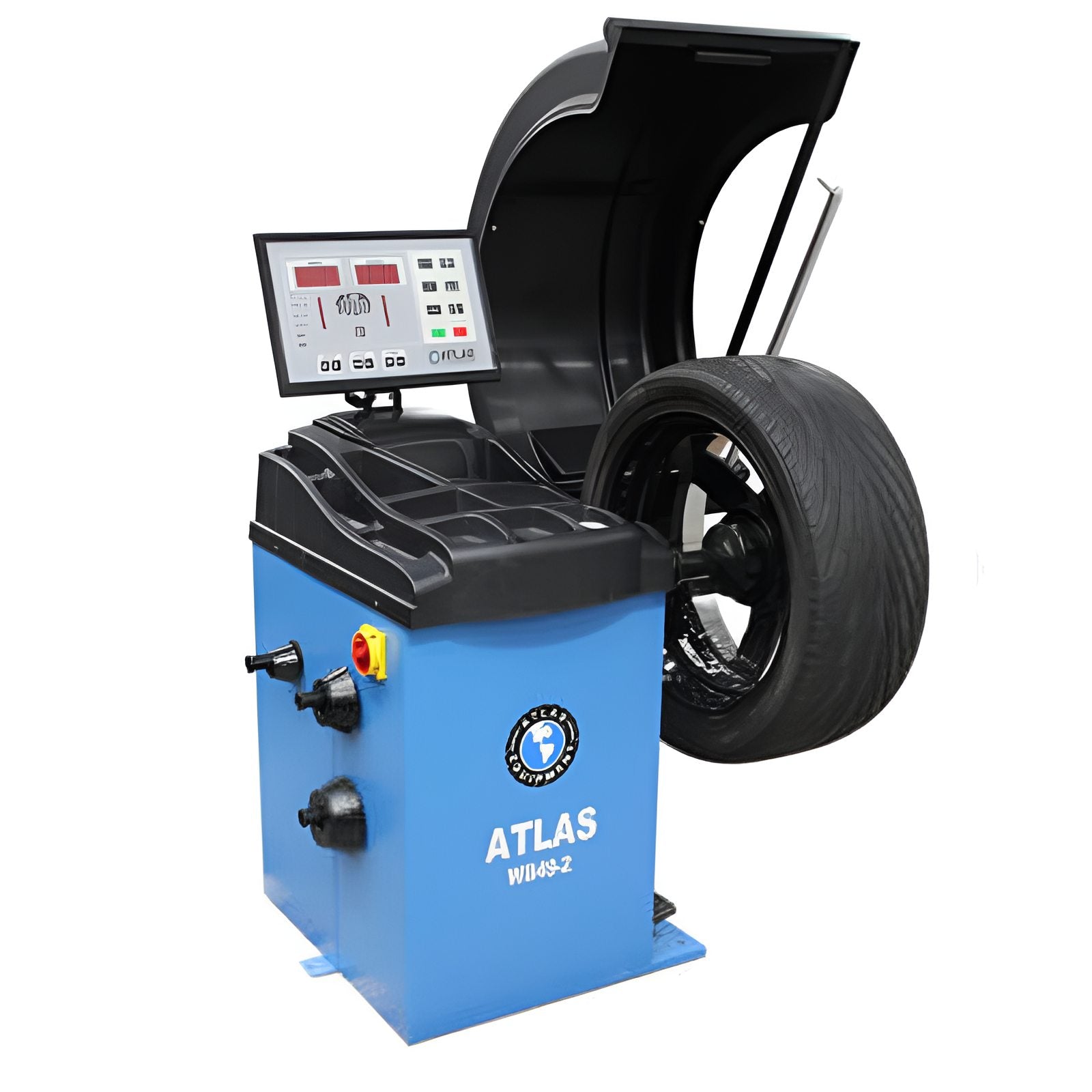

WB49-2 PRO Wheel Balancer by Atlas

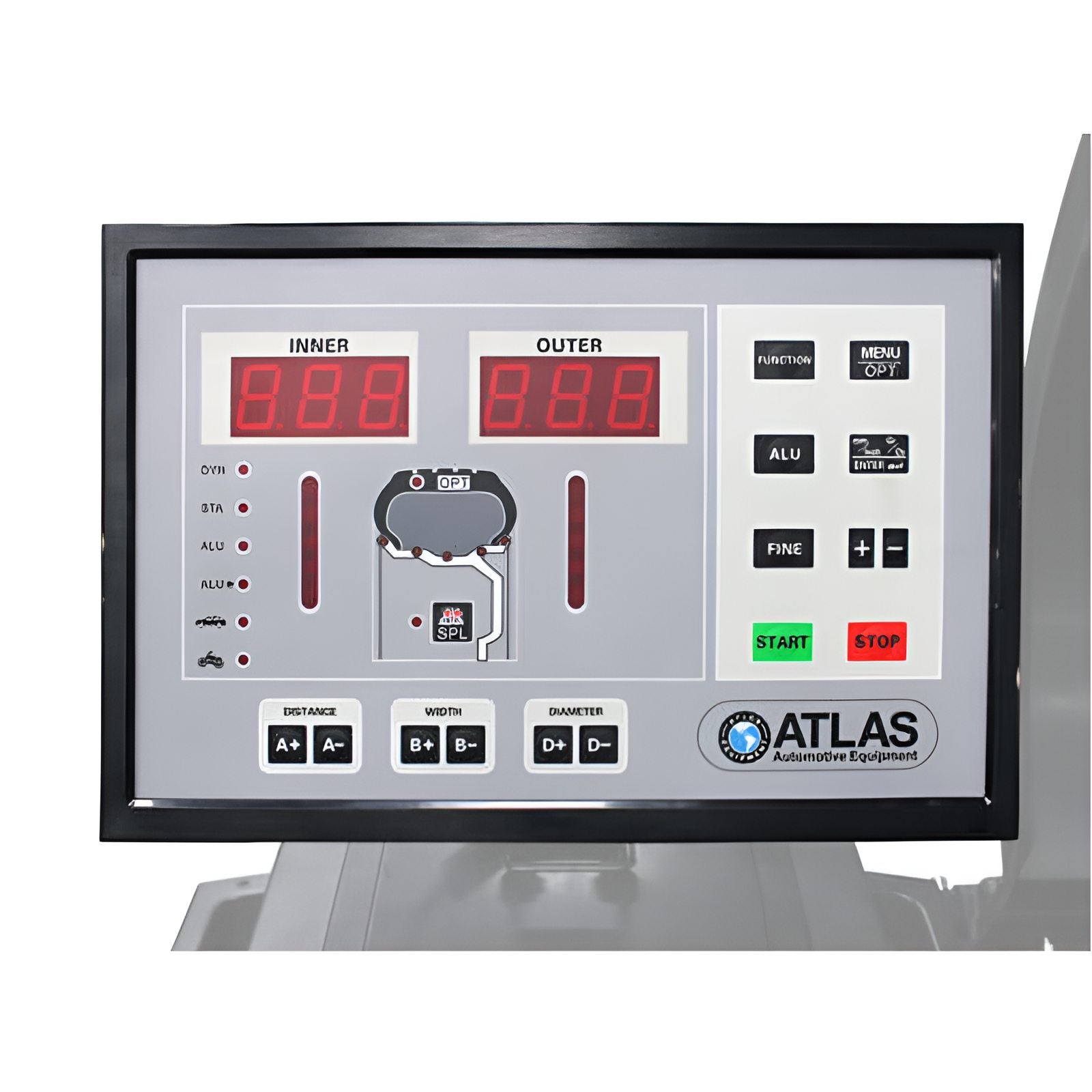

Presenting the Atlas WB49-2-PRO, an enhancement of the already exceptional Atlas® WB49-2 wheel balancer. This premium iteration integrates an additional gauge for automatic rim width measurement, streamlining the balancing process by automatically inputting all three necessary dimensions. The WB49-2-PRO features the same sleek LED display monitor style and practical, aesthetically pleasing chassis as its predecessor, the WB49-2.
Luxury features abound in the WB49-2-PRO, including the Split-Weight Function for discreet weight placement behind spokes and an automatic LED light illuminating the rim interior during weight application.
Similar to its predecessors, the Atlas® WB49-2-PRO boasts self-diagnostic capabilities, empowering operators to swiftly identify and address issues with displayed error codes, eliminating the need for costly service technicians. Versatile and accommodating, it handles a wide array of wheels up to 32" in diameter, supported by a set of four cones catering to center holes ranging from 1.75" to 5.18".
The Atlas® WB49-2-PRO excels in balancing wheels weighing up to 150 lbs, ensuring precision and accuracy beyond mere weight support. This distinction underscores its reliability and performance, setting it apart in the realm of wheel balancers.
Wheel Balancer WB49-2 PRO Specification:
- Max Tire Diameter: 39" (3" 6')
- Rim Sizes (Cars & Light Trucks): 10"-32"
- Rim Width: 1 1/2"-20"
- Shaft Size: 40mm
- Max. Wheel Weight: 150 lbs.
- Balancing Speed: 150 rpm
- Data Entry: Automatic 3D Optional
- Measurements: Standard Or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/4 HP
- Power Supply: 110volt
- Shipping Weight: 400 lbs.
WB49-2 PRO Wheel Balancer Special Features:
- Computer Controlled Motorized Spin Balancer
- Raised, Easy to Read Display
- Large Wheel Weight Tray
- Automatic 3D Data Entry
- Split-Weight Function for hiding weights behind spokes
- Automatic LED Light
- Auto-Positioning
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
Atlas WB49-2 PRO Documents:
Atlas WB49-2 PRO Wheel Balancer Product Manual
