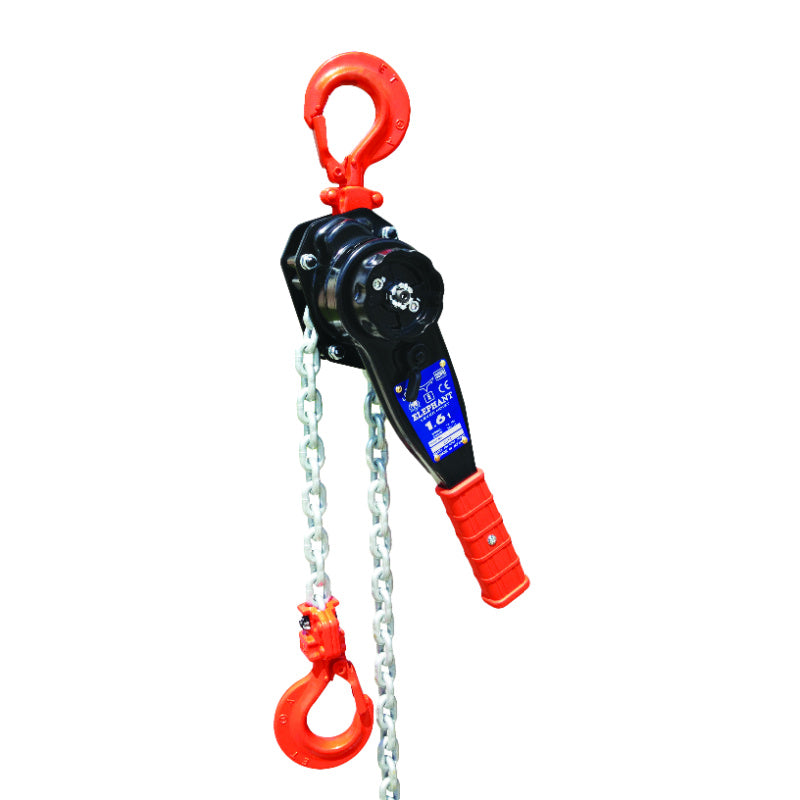

Elephant YA Lever Chain Hoist 3,400 lb

YA Lever Chain Hoist by Elephant Lifting Products

The Elephant YA Lever Chain Hoist is a robust lifting solution designed for efficiency and durability. With a lifting capacity of 3,400 pounds and available lift heights of 5, 10, 15, or 20 feet, it offers versatility to meet various industrial needs. Its rounded lever design ensures smooth operation against flat surfaces, enhancing user control during lifting and lowering operations. Compliant with the stringent German DIN 5684 standard, the hoist features a Grade 105 galvanized load chain for reliable performance under heavy loads. Safety is prioritized with a redesigned hook equipped with a tip-supporting safety latch, while the electro-deposited black finish on the hoist body provides excellent corrosion resistance, extending its lifespan even in challenging environments.

Manufactured in Japan to premium quality standards, this hoist incorporates advanced features such as true one-touch free spooling, which automatically engages brakes upon load application, ensuring precise load control and operator safety. Internally, hardened steel bushings support the load sheave and pinion, while electro-deposited coatings on critical components like pinions, pawls, and pawl springs further protect against corrosion. Nickel-plated internal disc hubs and ratchet wheels contribute to its durability and reliability in temperatures ranging from -20°C to +130°C (-4°F to +266°F), making it a dependable choice for demanding industrial applications where performance and longevity are paramount.

Lever Chain Hoist YA Specifications:

• Capacity: 3,400 LBS
• Lift Heights: 5', 10', 15', or 20'

YA 3,400 lb Lever Chain Hoist Special Features:

• Rounded lever design for smooth operation when placed against flat surfaces
• Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
• True one touch free spooling which automatically brakes when a load is applied
• Redesigned hooks with tip supporting safety latch
• Hoist body has an electro-deposited black finish for corrosion resistance
• Ratchet recovery of 16.5o for 0.8t~1t and 14o for 1.6t~12t
• Internal side plates have hardened steel bushings for excellent load sheave & pinion support
• Internal side plates, pinion, pawls, and pawl springs have an electro-deposited coating that helps resist corrosion
• Internal disc hub and ratchet wheel are nickel plated for corrosion resistance
• Suitable for operation within a -20o to +130o C,  -4o to +266o F temperature range
• Manufactured in Japan - Premium Quality
• THIS ITEM SHIPS FOR FREE!

Elephant YA Documentation:

   Elephant YA Lever Chain Hoist Product Manual
  Elephant YA Lever Chain Hoist Product Catalog
  Elephant YA Lever Chain Hoist Product Breakdown
  Elephant YA Lever Chain Hoist Product Promotional
