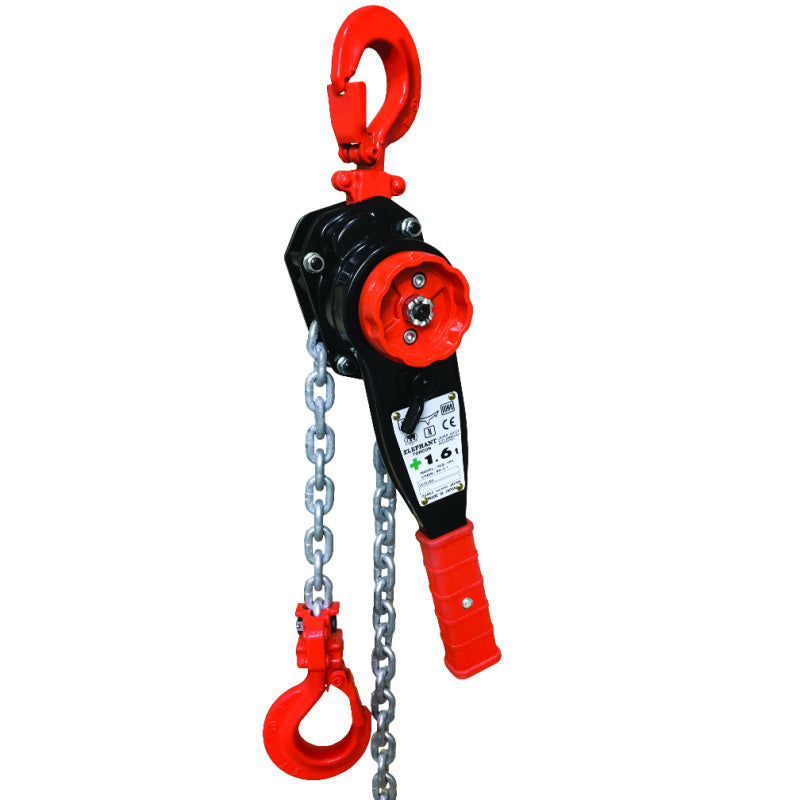

Elephant YAIII Lever Hoist 2,200 lb

YAIII Lever Hoist Elephant Lifting Products

Looking for a hoist that’s as tough as your job but doesn’t feel the need to show off? Enter the Elephant YAIII Lever Hoist—with a humble capacity of 2,200 lbs and lift heights up to 20 feet, it’s ready to handle whatever you throw at it (within reason, of course). And if you accidentally try to push it too hard, no worries! The torcon overload protection kicks in, protecting you from yourself by politely refusing to lift beyond its limit.

And just when you thought it couldn’t get more impressive, it throws in one-touch free spooling with an automatic braking system. That’s right—this hoist will do all the heavy lifting and then stop itself just to show how easy it is. For those who like a dash of elegance with their industrial gear, the hoist body flaunts an electro-deposited black finish for corrosion resistance because, yes, it’s tough but also stylish. Nickel-plated components and hardened steel bushings keep the inner workings smooth and corrosion-free, making this hoist as reliable as it is good-looking... and it doesn't mind extreme weather, too.

Lever Hoist YAIII Specifications:

• Capacity: 2,200 LBS
• Lift Heights: 5', 10', 15', or 20'

YAIII 2,200 lb Lever Hoist Special Features:

• The torcon overload protection safety device engages when the hoist is overloaded, helping to prevent damage to the hoist, as well as injury to personnel.
• Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard.
• True one touch free spooling, which automatically brakes when a load is applied.
• Redesigned hooks with tip supporting safety latch
• Hoist body has an electro-deposited black finish for corrosion resistance
• Ratchet recovery of 16.5o for 0.8t~1t and 14o for 1.6t~12t
• Internal side plates have hardened steel bushings for excellent load sheave & pinion support
• Internal side plates, pinion, pawls, and pawl springs have an electro-deposited coating that helps resist corrosion
• Internal disc hub and ratchet wheel are nickel plated for corrosion resistance
• Suitable for operation within a -20o to +130o C,  -4o to +266o F temperature range
• Manufactured in Japan - Premium Quality

Elephant YAIII Documentation:

   Elephant YAIII Lever Hoist Product Manual
  Elephant YAIII Lever Hoist Product Catalog
  Elephant YAIII Lever Hoist Product Breakdown
