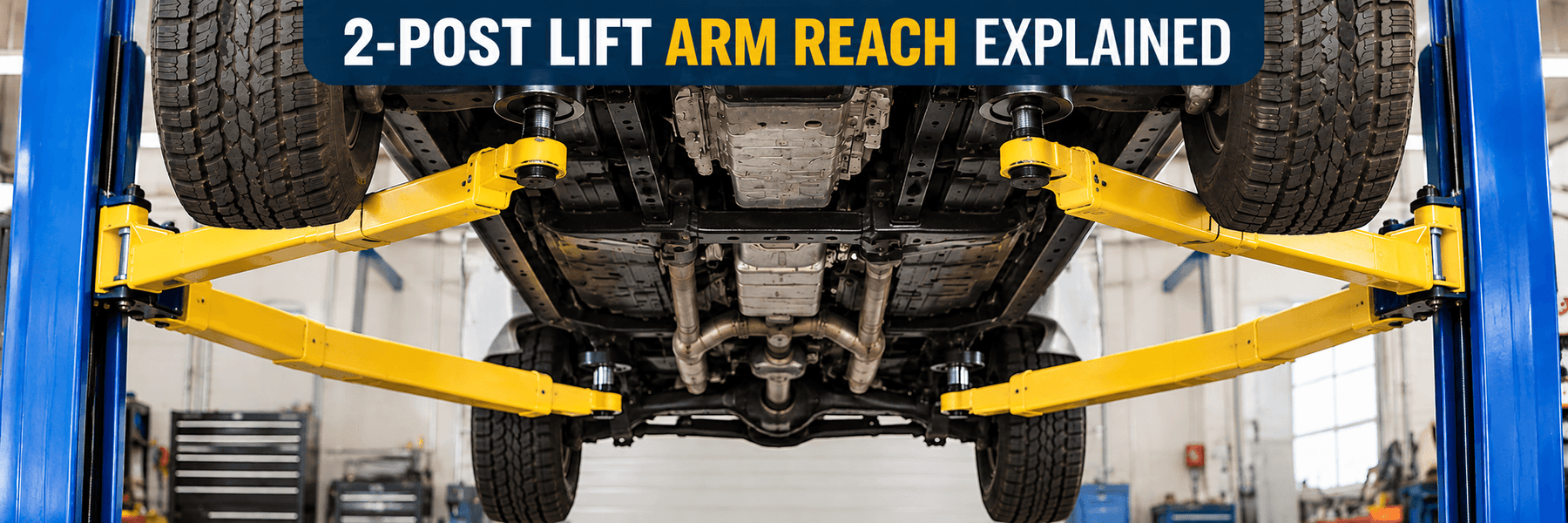

2-Post Lift Arm Reach Explained: Will a Lift Fit Your Vehicle?

When shopping for a 2-post car lift, lifting capacity is usually one of the first specifications people look at. If your vehicle weighs 6,500 pounds, it may seem reasonable to assume that any 9,000- or 10,000-pound lift will work.

But capacity is only part of the equation.

The lift arms also need to properly reach the approved lifting locations on your vehicle. Depending on the vehicle and lift, differences in arm length, arm configuration, vehicle wheelbase, vehicle positioning, pad height, and adapters can all affect compatibility.

This is especially important if you plan to lift several different vehicles, such as a sports car, SUV, and full-size pickup on the same lift.

At HeavyLift Direct, we're a family-owned and operated automotive equipment dealer, and we've sold thousands of vehicle lifts to customers across the country. One thing we've learned from helping customers choose lifts is that the capacity printed on the side of the lift doesn't tell you everything you need to know about vehicle compatibility. Arm reach and configuration are important parts of the equation.

Here's how to understand 2-post lift arm reach before choosing a lift.

What Is 2-Post Lift Arm Reach?

A 2-post lift uses four adjustable arms that swing underneath the vehicle. Each arm has a minimum and maximum reach.

For example, a lift might list:

• Front Arm Reach: 24"–45"
• Rear Arm Reach: 36"–58"

Those measurements tell you the approximate adjustment range of the arms.

The goal isn't simply for an arm to physically extend underneath the vehicle. The arms need to be capable of properly positioning the lift pads at the vehicle manufacturer's approved lifting locations while the vehicle is correctly positioned on the lift.

If you're trying to determine where the approved lifting locations are on your vehicle, that's a separate topic. See our Car Jacking Points guide for more information.

This article focuses on a different question: Does the 2-post lift you're considering have the arm range and configuration necessary to reach those locations?

Why Lift Capacity Doesn't Tell the Whole Story

A common mistake when shopping for a 2-post lift is looking only at capacity.

Suppose your truck weighs approximately 7,000 pounds. A 10,000-pound lift may have enough rated lifting capacity, but that doesn't automatically mean every 10,000-pound lift is appropriate for that particular truck.

You also need to consider:

• Vehicle wheelbase
• Manufacturer-approved lifting locations
• Front and rear arm reach
• Arm configuration
• Vehicle weight distribution
• Minimum pad height
• Required adapters or extensions
• Width between the lift columns
• Manufacturer requirements and restrictions

This is why two lifts with the same 10,000-pound capacity can have very different arm designs and may not be equally suited to the same mix of vehicles.

How Do You Read 2-Post Lift Arm Reach Specifications?

Most 2-post lift specifications provide a minimum and maximum arm reach.

For example:

Arm Reach: 24"–44"

This means the arm can retract to approximately 24 inches and extend to approximately 44 inches.

But don't automatically assume that gives you a simple 20-inch compatibility window for every vehicle.

You also have to consider where the vehicle sits relative to the columns, where its approved lifting locations are positioned, and how the individual arms are designed to move.

Some lifts also use different front and rear arms. A lift may have relatively short front arms and substantially longer rear arms, while another lift may use four arms with similar adjustment ranges.

Those differences matter when comparing lifts for a particular vehicle or combination of vehicles.

Why Do Some 2-Post Lifts Have Short and Long Arms?

Different arm lengths allow the lift to accommodate different vehicle positions and lifting-point layouts.

For example, some asymmetric 2-post lifts use shorter front arms and longer rear arms. This can allow the vehicle to sit farther back relative to the columns while still allowing the four pads to reach the manufacturer's approved lifting locations.

Other lifts use a more symmetrical arm arrangement.

Neither design is automatically better for every application. What matters is whether the arm configuration works with the vehicles you intend to service.

If you're comparing these two lift styles, see our Symmetric vs. Asymmetric 2-Post Lift guide.

What Are 2-Stage and 3-Stage Lift Arms?

You'll also see 2-post lifts advertised with 2-stage, 3-stage, or telescoping arms.

The stages refer to the telescoping sections of the arm. A multi-stage design can provide a broader adjustment range, but the actual minimum and maximum dimensions of the specific lift are what you should compare.

A broader arm range can be particularly useful in a home garage or repair shop where the lift needs to accommodate very different vehicles, such as:

• Compact cars
• Sports cars
• Crossovers and SUVs
• Full-size pickups
• Crew-cab trucks
• Long-wheelbase vehicles

Don't assume that "3-stage arms" automatically means a lift will work with every vehicle. Always compare the actual arm dimensions and follow the lift manufacturer's requirements.

Does Vehicle Wheelbase Affect 2-Post Lift Arm Reach?

Yes, although wheelbase by itself doesn't determine whether a vehicle is compatible with a 2-post lift.

A long-wheelbase vehicle changes the relationship between the lift columns, the vehicle's center of gravity, and the locations the arms need to reach.

This deserves particular attention with vehicles such as:

• Crew-cab pickups
• Long-bed trucks
• Extended-wheelbase vans
• Heavy-duty pickups

A truck can be comfortably below a lift's rated capacity and still require more attention to arm geometry than a shorter passenger vehicle.

That's another reason we don't recommend choosing a lift based on vehicle weight alone.

Are Longer Lift Arms Always Better?

No. This is an important point that is easy to overlook.

It might seem like the lift with the longest arms would automatically accommodate the most vehicles, but minimum arm reach matters too.

Imagine comparing two lifts:

• Lift A: 30"–60" arm reach
• Lift B: 23"–45" front arms and 36"–58" rear arms

Lift A has the greater maximum reach.

But Lift B has front arms that retract considerably shorter. Depending on the vehicle and its required positioning, that shorter minimum reach could be important.

The goal isn't to find the lift with the longest arms. It's to find the lift with the appropriate range of arm movement for the vehicles you plan to lift.

Why Full-Size Trucks Require More Attention

Full-size and heavy-duty trucks are some of the vehicles where we most often need to look beyond the capacity number.

Vehicles such as the Ford F-150, F-250 and F-350; Chevrolet Silverado and GMC Sierra 2500/3500; and Ram 2500/3500 can vary substantially depending on configuration.

Differences can include:

• Cab configuration
• Bed length
• Wheelbase
• 2WD versus 4WD
• Single rear wheel versus dually
• Installed equipment or accessories
• Actual vehicle weight

That's why telling us simply, "I have an F-350" isn't always enough to confidently evaluate a lift.

A crew-cab, long-bed F-350 dually can present a very different lifting application than another F-350 configuration.

When you're purchasing a lift primarily for trucks, compare the complete vehicle configuration with the complete lift specifications, rather than looking only at lifting capacity.

Don't Forget About Lift Pad and Adapter Height

Horizontal arm reach isn't the only arm-related measurement that matters.

The lift pads also need to properly contact the vehicle at the manufacturer's approved locations.

A low sports car may require a lift with a low minimum pad height so the arms and pads can physically get underneath the vehicle.

A truck or SUV with a higher frame may require adapters or extensions.

Before purchasing, check:

• Minimum pad height
• Included adapters
• Available adapter extensions
• Manufacturer-approved adapter configurations
• Vehicle ground clearance
• Vehicle manufacturer lifting instructions

This becomes especially important if you want one lift to handle both low cars and taller trucks.

One Lift for Multiple Vehicles: Arm Range Becomes Even More Important

Many HeavyLift Direct customers aren't buying a lift for just one vehicle.

You might have something like:

Corvette + Tahoe + F-150

or:

Mustang + Jeep + F-250

A professional shop may need the same lift to accommodate dozens of different vehicle configurations.

In those situations, don't choose a lift based solely on your largest or heaviest vehicle. Think about the entire range of vehicles you expect to put on the lift.

You may need:

• Short minimum arm reach for smaller vehicles
• Longer maximum arm reach for pickups
• Low-profile pads for sports cars
• Truck adapters for SUVs and pickups
• A versatile arm configuration for different vehicle positions

This is one reason comparing the complete arm specifications between different 2-post lifts can be more useful than simply comparing capacity and price.

Real-World Example: How Much Can Arm Reach Vary?

Arm dimensions can vary substantially even among lifts designed for similar applications.

For example, the Forward I10 10,000 lb 2-Post Lift lists a front arm reach of approximately 23"–44.5" and a rear arm reach of approximately 36"–58".

A different design, such as the Forward I12PRO 12,000 lb 2-Post Lift, lists approximately 27.625"–59" of reach on both the front and rear arms.

Those differences illustrate why looking only at a lift's capacity doesn't tell you how its arms are configured or how versatile that configuration may be for your vehicles.

Always verify the current manufacturer's specifications and requirements for the exact lift model before making a final compatibility decision.

How Do I Know if a 2-Post Lift Will Work With My Vehicle?

Before purchasing a lift, gather information about both your vehicle and the lift you're considering.

Vehicle Information to Gather

• Year
• Make
• Model
• Exact vehicle configuration
• Vehicle weight
• Wheelbase
• Manufacturer-approved lifting locations
• Ground clearance
• Modifications affecting ride height or weight

For trucks, include the cab, bed, drivetrain, and rear-wheel configuration whenever possible.

For example, instead of:

Ford F-350

provide something like:

2019 Ford F-350 Crew Cab, 8-foot bed, 4x4, single rear wheel.

That additional information can make a significant difference when evaluating compatibility.

Lift Specifications to Check

• Rated lifting capacity
• Front arm minimum and maximum reach
• Rear arm minimum and maximum reach
• Arm configuration
• Width between columns
• Drive-through clearance
• Minimum pad height
• Available adapters and extensions
• Maximum load per arm, when specified
• Manufacturer vehicle-positioning requirements

Don't rely on any single specification by itself.

Why Experience Matters When Choosing a Car Lift

Specifications are important, but knowing how those specifications work together is where experience becomes valuable.

HeavyLift Direct is a family-owned and operated company, and we've sold thousands of vehicle lifts nationwide to homeowners, automotive repair shops, dealerships, fleets, schools, municipalities, and other facilities.

We've worked through these compatibility questions many times. Customers call us with everything from Corvettes and classic cars to SUVs, full-size pickups, long-bed work trucks, and heavy-duty vehicles.

That experience has taught us that choosing a lift isn't simply:

"My truck weighs 7,500 pounds, so I'll buy a 10,000-pound lift."

The better question is:

"Will this particular lift work with my particular vehicle, in my particular garage or shop?"

Capacity, arm reach, arm configuration, lifting-point locations, pad height, adapters, vehicle dimensions, ceiling height, concrete, and available space can all be part of that answer.

That's also why we carry 2-post lifts from multiple manufacturers rather than trying to make one lift work for every customer.

Need Help Checking Your Vehicle Against a Lift?

If you're unsure whether a particular 2-post lift will work with your vehicle, contact HeavyLift Direct before ordering.

Send us:

• Your vehicle's year, make, and model
• Exact vehicle configuration
• The lift or lifts you're considering
• Your ceiling height
• Any unusual vehicle modifications

If you're shopping for a truck lift, also tell us whether the truck is regular cab, extended cab, or crew cab; short or long bed; 2WD or 4WD; and single rear wheel or dually.

If the lift needs to work with multiple vehicles, send us information for all of them. We can help you compare the lifts around your complete vehicle mix rather than just your largest vehicle.

Shop 2-Post Car Lifts at HeavyLift Direct

Frequently Asked Questions About 2-Post Lift Arm Reach

What does arm reach mean on a 2-post lift?

Arm reach is the minimum-to-maximum distance that a lift arm can extend. The proper arm range helps the lift pads reach the vehicle manufacturer's approved lifting locations when the vehicle is correctly positioned.

Does a higher-capacity lift have longer arms?

Not necessarily. Capacity and arm reach are separate specifications. A higher-capacity lift may have longer, shorter, or differently configured arms than a lower-capacity model.

Are 3-stage lift arms better?

3-stage arms can provide a broad adjustment range, which can be useful when lifting different vehicle sizes. However, the actual minimum and maximum arm reach of the specific lift is more important than the number of stages alone.

Can a 10,000-pound lift handle any vehicle under 10,000 pounds?

No. Rated capacity is only one compatibility factor. Arm reach, lifting-point locations, vehicle dimensions, weight distribution, pad height, adapters, and manufacturer requirements also need to be considered.

Do long-wheelbase trucks need longer lift arms?

Not automatically. Long-wheelbase trucks can require different vehicle positioning and arm geometry, so the exact vehicle configuration and lift specifications should be checked rather than assuming longer arms are always required.

Can one 2-post lift work with both cars and trucks?

Yes, many 2-post lifts are designed to accommodate a range of cars, SUVs, and trucks. When choosing a lift for multiple vehicles, look carefully at minimum and maximum arm reach, pad height, available truck adapters, lift capacity, and the manufacturer's approved applications.

How do I find the correct lifting points on my vehicle?

Refer to your vehicle manufacturer's lifting instructions for the approved locations. You can also read our Car Jacking Points guide for more information about common lifting-point locations and safe lifting practices.

The Bottom Line

When determining whether a 2-post lift will work with your vehicle, don't stop at lifting capacity.

Arm reach is one of several specifications that can determine how well a lift accommodates a particular vehicle. Pay attention to the lift's minimum and maximum arm reach, front and rear arm configuration, vehicle wheelbase, pad height, adapters, vehicle positioning, and manufacturer requirements.

And remember that finding the correct lifting locations and determining whether a lift can reach them are two different questions.

If you need help locating the approved lifting areas, start with the vehicle manufacturer's instructions and our Car Jacking Points guide.

Once you know where the vehicle should be lifted, you can determine whether the 2-post lift you're considering has the arm range and configuration needed to properly reach those locations.
