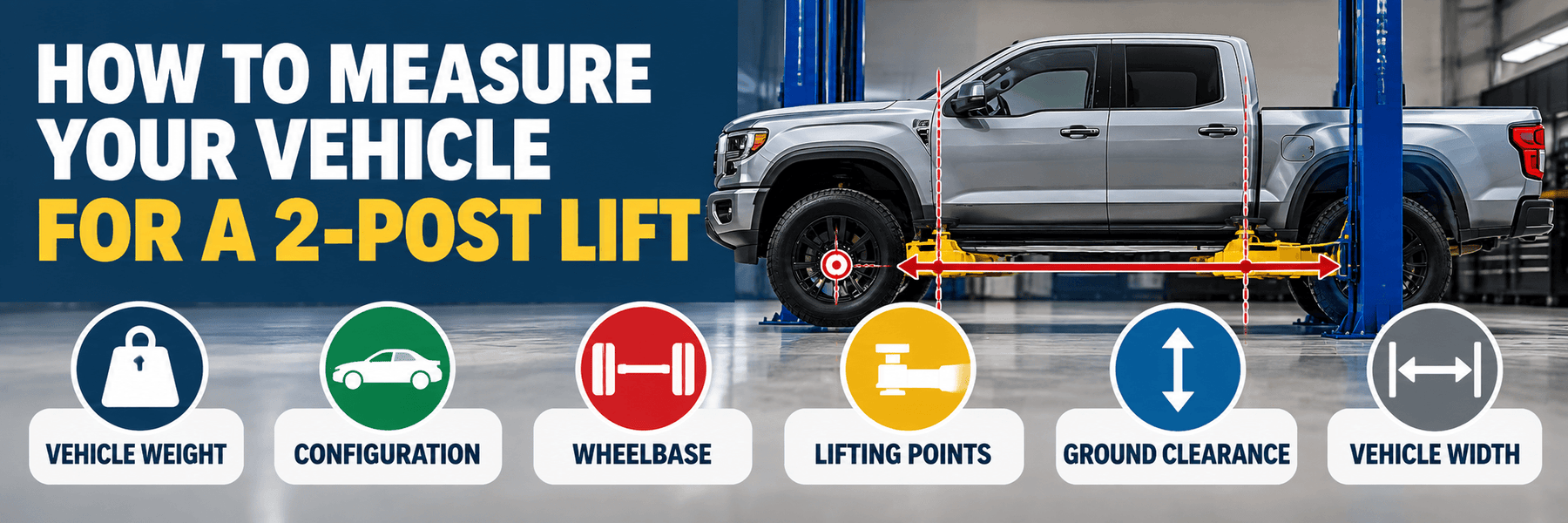

How to Measure Your Vehicle for a 2-Post Car Lift

One of the most common questions we hear from customers shopping for a 2-post car lift is:

“Will this lift work with my vehicle?”

It's an important question—and lifting capacity alone doesn't answer it.

A 10,000-lb lift may have more than enough rated capacity for a 6,000-lb truck, but the lift still needs to properly accommodate the vehicle's manufacturer-approved lifting points. Arm reach, vehicle dimensions, ground clearance, weight distribution, vehicle configuration, and the lift's design can all matter.

The good news is that you don't need to guess.

If you're trying to determine whether a particular 2-post lift will work with your car, truck, SUV, or van, this guide explains the information and measurements you should gather before choosing a lift.

HeavyLift Direct is a family-owned and operated automotive equipment dealer, and we've sold thousands of vehicle lifts nationwide. We've helped customers work through fitment questions involving everything from Corvettes and compact cars to SUVs, crew-cab pickups, long-bed trucks, duallys, vans, and commercial vehicles.

Here is how we approach vehicle fitment.

Quick Answer: What Do I Need to Know Before Choosing a 2-Post Lift?

Before evaluating a 2-post lift for a particular vehicle, gather these seven pieces of information:

1. Exact year, make, model, and vehicle configuration

2. Vehicle weight and applicable weight ratings

3. Wheelbase

4. Manufacturer-approved lifting-point locations

5. Ground clearance at the lifting areas

6. Vehicle width and overall configuration

7. Any modifications or permanently installed equipment that affect weight, height, or lifting-point access

You then compare that information with the specifications and instructions for the specific lift model you're considering, including rated capacity, arm reach, arm configuration, pad height, column spacing, adapters, and manufacturer restrictions.

A vehicle being lighter than a lift's rated capacity does not, by itself, confirm compatibility.

Why Vehicle Fitment Is More Than Weight Capacity

Weight capacity is the obvious place to start.

If a vehicle exceeds a lift's rated capacity, that lift isn't appropriate for the vehicle.

But the reverse isn't necessarily true.

A vehicle being below the rated capacity does not automatically mean the lift is suitable for it.

For a 2-post lift, four arms must be positioned so the lift pads properly engage the vehicle at approved lifting locations while the vehicle is positioned according to the lift and vehicle manufacturers' instructions.

That means you're really answering several different questions:

• Can the lift safely handle the vehicle's weight and loading?

• Where is this vehicle approved to be lifted?

• Can all four lift arms properly reach those locations?

• Can the arms and pads physically get underneath the vehicle?

• Can the vehicle be positioned correctly between the columns?

• Does the lift manufacturer allow the vehicle/application you're considering?

That's why we recommend looking at the entire fitment picture rather than shopping by capacity alone.

If your primary question is how much lifting capacity you need, see our Car Lift Weight Capacity guide.

This article focuses specifically on gathering the vehicle information needed to evaluate fitment.

Step 1: Identify Your Exact Vehicle Configuration

Start with more than the model name.

“Ford F-350” isn't enough information to properly evaluate a lift.

A better description would be:

2022 Ford F-350 Crew Cab, 8-foot bed, 4x4, single rear wheel

Or:

2021 Chevrolet Silverado 3500 Crew Cab, long bed, diesel, dually

Why does this matter?

The same vehicle model can be available with different:

• Cab configurations

• Bed lengths

• Wheelbases

• Engines

• Drivetrains

• Single or dual rear wheels

• Curb weights and weight ratings

• Chassis configurations

• Factory suspension packages

Those differences can change the dimensions, weight distribution, lifting-point locations, and overall fitment considerations.

Information to Record

Before shopping for a lift, write down:

Year:
Make:
Model:
Trim/configuration:
Cab:
Bed length, if applicable:
2WD/4WD/AWD:
Single or dual rear wheel:
Gas/diesel/EV:
Major modifications:

The more specific you are, the easier it is to evaluate a lift.

Step 2: Determine Your Vehicle's Weight

Next, determine the weight of the vehicle you're actually planning to lift.

Don't rely on a generic internet result for the model if you can obtain information for your exact configuration. Vehicle weight can vary significantly based on engine, drivetrain, cab, bed, options, equipment, and modifications.

Also understand the difference between terms such as curb weight and GVWR.

Curb weight generally describes the vehicle itself with standard operating fluids and equipment, while GVWR is the manufacturer's maximum allowable loaded vehicle weight. They are not interchangeable.

For lift selection, follow the lift manufacturer's capacity and loading requirements and account for the vehicle's actual configuration and anything that adds meaningful weight.

Examples include:

• Service bodies

• Toolboxes and tools

• Snowplows

• Replacement bumpers

• Winches

• Auxiliary fuel tanks

• Toppers

• Racks

• Mounted equipment

• Cargo

• Aftermarket batteries or EV battery weight

• Other permanent equipment

For commercial and heavily modified vehicles, actual scale weight may provide useful information when manufacturer specifications don't accurately represent the vehicle as currently equipped.

Don't Stop at Total Weight

A 2-post lift supports a vehicle at four contact points.

That makes weight distribution and vehicle positioning important, not just total vehicle weight.

A diesel pickup with a heavy engine over the front axle presents a different loading situation than a similarly weighted vehicle with more evenly distributed weight.

Always follow the lift manufacturer's instructions concerning capacity, vehicle positioning, loading, and any applicable per-arm limitations.

Step 3: Measure or Confirm the Vehicle's Wheelbase

Wheelbase is the distance between the centers of the front and rear axles.

For most vehicles, you can obtain this specification from the manufacturer rather than physically measuring it.

If you do measure it, measure approximately:

Center of front wheel → center of rear wheel

Record:

Wheelbase: ______ inches

Wheelbase matters because it affects the relationship between the vehicle, its lifting points, its center of gravity, and the lift columns.

Long-wheelbase vehicles deserve additional attention, including:

• Crew-cab long-bed pickups

• Extended-cab trucks

• Full-size vans

• Extended-wheelbase vans

• Commercial vehicles

But wheelbase is not a standalone compatibility specification.

A 157-inch wheelbase doesn't automatically tell you which lift will fit. Two vehicles with the same wheelbase can have different lifting-point locations and weight distribution.

Think of wheelbase as one piece of the fitment puzzle.

Step 4: Find the Manufacturer-Approved Lifting Points

This is one of the most important steps.

A 2-post lift doesn't simply pick up the vehicle wherever the four arms happen to reach.

The lift pads need to engage approved lifting locations appropriate for the vehicle and lifting method.

Depending on the vehicle, those locations may involve reinforced unibody areas, frame locations, or manufacturer-specified contact points.

Don't guess based on what looks strong underneath the vehicle.

Consult the vehicle manufacturer's service information, owner's documentation when applicable, or other manufacturer-approved lifting information for your exact vehicle.

Record or photograph the approved lifting locations so you understand where all four lift pads need to reach.

For more information about identifying lifting locations, see our Car Jacking Points guide.

Jacking Points and 2-Post Lift Fitment Are Related—but Different Questions

This distinction is important.

Question #1: Where is my vehicle supposed to be lifted?

That's a lifting-point question.

Question #2: Can the arms on this particular 2-post lift properly reach those approved locations?

That's an arm-reach and fitment question.

You need to answer both.

Once you've identified the correct lifting areas, our 2-Post Lift Arm Reach guide explains how arm dimensions and configuration affect compatibility.

Step 5: Understand the Distance and Relationship Between the Lifting Points

This is where many customers understandably get confused.

It can be tempting to crawl under the vehicle, measure between four lifting points, compare those measurements directly with the arm lengths listed for a lift, and declare that it fits.

It usually isn't that simple.

The published arm reach of a 2-post lift describes the adjustment range of the arms themselves. Vehicle fitment also depends on:

• Where the columns sit relative to the vehicle

• Where the vehicle is positioned fore/aft

• How the arms pivot

• Front versus rear arm configuration

• Vehicle center of gravity

• Manufacturer-required positioning

• Pad and adapter configuration

So the measurements you gather from the vehicle are valuable, but they should be evaluated with the geometry and instructions of the specific lift.

Don't assume:

“My lifting points are X inches apart and the lift arms extend X inches, so it fits.”

Instead, use your vehicle measurements to evaluate whether the entire arm arrangement can correctly reach all four approved lifting locations.

Step 6: Check Ground Clearance at the Lifting Areas

A lift can have adequate capacity and sufficient arm reach but still present another problem:

Can the arms and lift pads actually get underneath the vehicle?

This is particularly important with:

• Corvettes

• Sports cars

• Lowered vehicles

• Vehicles with side skirts

• Performance cars

• Modified suspension

• Certain EVs

• Vehicles with low underbody panels

Look at the lift's minimum pad height and arm construction.

Then inspect the vehicle at the areas where the arms need to travel underneath it.

Record approximately:

Lowest relevant clearance: ______ inches

Remember that the arm itself may also need clearance as it swings under the vehicle.

Some applications may require appropriate low-profile pads, adapters, ramps, or other manufacturer-approved accessories.

Never improvise a lifting setup or use unapproved spacers simply to make a vehicle fit.

Step 7: Check Vehicle Width and Available Space Between the Columns

Next, look at vehicle width in relation to the lift.

Important lift specifications can include:

• Overall width

• Width between columns

• Drive-through clearance

• Column orientation

• Door-opening clearance

For a large truck, van, or dually, width can become particularly important.

For passenger vehicles, door access may influence whether a symmetric, asymmetric, or combination-style lift is more convenient.

Measure the vehicle at the relevant widest areas and compare those dimensions with the lift manufacturer's drawings and specifications.

But don't confuse vehicle width with garage width.

The lift itself also needs adequate room in your building. That's a separate installation question involving column placement, walls, garage doors, workbenches, and other obstructions.

Step 8: Identify Anything That's Different About Your Vehicle

If your vehicle isn't stock, say so when asking whether a lift will work.

Modifications can affect fitment.

Examples include:

• Lift kits

• Lowering kits

• Oversized tires

• Running boards

• Side steps

• Rock sliders

• Aftermarket exhaust

• Body kits

• Plows

• Service bodies

• Utility beds

• Toolboxes

• Auxiliary tanks

• Heavy bumpers

• Winches

• Camper equipment

• Battery modifications

• Commercial equipment

Some modifications add weight.

Others change ground clearance.

Others can obstruct normal lifting locations.

And some do all three.

A lift recommendation that works perfectly for a stock truck may require another look when that truck has a service body, plow, equipment, and several hundred pounds of tools.

Your 2-Post Lift Vehicle Measurement Checklist

Before comparing lifts or contacting HeavyLift Direct, gather as much of this information as possible:

Vehicle Information	What to Record
Year	__________
Make	__________
Model	__________
Exact configuration	__________
Cab/bed	__________
Drivetrain	__________
SRW/dually	__________
Vehicle weight information	__________
Wheelbase	__________ in.
Approved front lifting areas	__________
Approved rear lifting areas	__________
Ground clearance at lifting areas	__________ in.
Vehicle width	__________ in.
Modifications/accessories	__________
Other vehicles you want to lift	__________

You may not need to physically measure every specification. Manufacturer-published dimensions are preferable when they're available and clearly apply to your exact vehicle configuration.

The purpose of this checklist is to make sure you're evaluating the actual vehicle, rather than choosing a lift based only on a model name and approximate weight.

What Lift Specifications Should You Compare Against Your Vehicle?

Once you've gathered the vehicle information, look at the lift.

For a 2-post lift, important specifications and documentation can include:

Lift Specification	Why It Matters
Rated capacity	Must be appropriate for the vehicle and application
Front arm reach	Helps determine access to front lifting areas
Rear arm reach	Helps determine access to rear lifting areas
Minimum arm reach	Important for shorter/narrower applications
Maximum arm reach	Important for larger/longer applications
Arm configuration	Affects vehicle positioning and reach
Minimum pad height	Important for low-clearance vehicles
Width between columns	Affects vehicle positioning and clearance
Drive-through width	Important for wide vehicles
Available adapters	May be needed for certain frames or heights
Manufacturer instructions	Defines proper use, positioning and restrictions

Don't choose a lift based on one row of this table.

Vehicle compatibility comes from how these specifications work together.

Symmetric vs. Asymmetric Arms: Does It Matter for Vehicle Fitment?

It can.

A symmetric lift generally positions the vehicle differently relative to the columns than a traditional asymmetric lift. Combination or versatile arm designs may allow multiple approved positioning arrangements depending on the specific lift.

This can affect:

• Arm reach

• Door access

• Vehicle center-of-gravity positioning

• Accommodation of cars versus trucks

• How the vehicle sits between the columns

But don't assume that “asymmetric is for cars” and “symmetric is for trucks” is enough to choose a lift.

There are many different arm designs and positioning requirements.

Compare the actual lift with the actual vehicles you intend to service.

For a deeper explanation, read our Symmetric vs. Asymmetric Lift guide.

What If I Need One Lift for Several Different Vehicles?

This is extremely common.

You might need one lift for:

• A Corvette

• A daily-driver SUV

• An F-150

• A classic car

Or perhaps:

• Customer sedans

• SUVs

• Half-ton pickups

• ¾-ton trucks

In that situation, don't measure only the largest vehicle.

The largest vehicle may determine the capacity and maximum reach you need, while the smallest or lowest vehicle may determine the minimum arm reach and minimum pad height you need.

That's why longer arms aren't automatically better.

A versatile lift often needs both:

Enough maximum reach for your larger vehicles AND sufficiently short minimum reach for smaller vehicles.

If you're buying one lift for multiple vehicles, give us the information for the largest/heaviest vehicle and the smallest/lowest vehicle you expect to lift.

That gives us a much better picture of the range the lift needs to accommodate.

Special Considerations for Full-Size and Heavy-Duty Trucks

Trucks are where providing the exact configuration becomes especially important.

Instead of telling us:

“I have an F-350.”

Tell us:

“I have a 2021 F-350 Crew Cab, 8-foot bed, 4x4 diesel, single rear wheel.”

For full-size trucks, pay particular attention to:

• Exact vehicle weight/configuration

• Weight distribution

• Wheelbase

• Cab and bed combination

• Frame lifting locations

• Front/rear arm reach

• Available truck adapters

• Vehicle width

• Single versus dual rear wheels

• Permanently installed equipment

Heavy-duty trucks can vary significantly within the same model line.

Don't assume that a lift working with one F-350, Silverado 3500, or Ram 3500 configuration proves that it will work with every configuration of that model.

Special Considerations for Corvettes, Sports Cars, and Low Vehicles

Low vehicles create almost the opposite challenge.

Capacity usually isn't the difficult part.

Instead, look closely at:

• Minimum arm height

• Minimum pad height

• Underbody clearance

• Side skirts

• Lifting-point accessibility

• Short minimum arm reach

• Manufacturer-specified adapters or pucks

A lift designed primarily around trucks may have plenty of capacity and reach but may not be the best choice for a very low sports car.

This is why customers who want to lift both a Corvette and a full-size truck should tell us about both vehicles.

The best lift for that garage needs a sufficiently broad fitment range to handle both ends of the spectrum.

Special Considerations for EVs

Electric vehicles deserve extra attention because of their battery placement, vehicle weight, and manufacturer-specific lifting instructions.

Never assume that an area underneath an EV is safe for lift contact.

Use the vehicle manufacturer's designated lifting locations and any specified adapters or procedures.

Also verify the weight of the exact vehicle and configuration. Some EVs are substantially heavier than similarly sized gasoline vehicles.

When evaluating a lift for an EV, the question isn't simply:

“Does it have enough capacity?”

It is:

“Does this lift have the appropriate capacity, contact-point access, pad/adapter arrangement, and manufacturer-approved setup for this vehicle?”

Do I Really Have to Measure All of This Myself?

Not necessarily.

Many vehicle dimensions can be found in manufacturer specifications and service information.

The goal isn't to make buying a lift complicated.

It's actually the opposite:

Gathering the right information before you buy removes uncertainty.

For many common vehicles, determining fitment may be relatively straightforward. More detailed measurements become valuable when you're dealing with unusual configurations, long-wheelbase vehicles, very low cars, heavily modified vehicles, multiple dramatically different vehicles, or a lift whose arm range is close to the limits of what your vehicle requires.

If you're uncertain, that's exactly when you should ask before ordering.

What Information Should I Send HeavyLift Direct?

If you'd like help determining which 2-post lift may be appropriate for your vehicle, start by sending us:

1. Year
2. Make
3. Model
4. Exact configuration
5. Cab and bed length for trucks
6. 2WD/4WD/AWD
7. SRW or dually
8. Major modifications or permanently installed equipment
9. Any other vehicles you also want the lift to accommodate

If there's an unusual fitment concern, photographs or additional measurements may also help.

You shouldn't have to choose between dozens of 9,000-, 10,000-, 12,000-, and 15,000-lb lifts based on specifications you aren't sure how to interpret.

Our team works with these questions every day.

A Real-World Example: Why the Exact Vehicle Matters

Consider a customer shopping for a 2-post lift who says:

“I need to lift an F-350.”

That's a starting point, but it isn't enough to make a confident recommendation.

We would want to know whether it's a regular cab or crew cab, short or long bed, gas or diesel, 2WD or 4WD, single rear wheel or dually, and whether it has equipment or modifications adding weight or changing access underneath the truck.

Now consider another customer:

“I need a lift for a Corvette and an F-250.”

That creates a different challenge.

The F-250 may drive the capacity and maximum arm-reach requirements.

The Corvette may drive the minimum arm reach, pad height, and low-clearance requirements.

The best lift isn't necessarily the one optimized for either vehicle individually. It's the lift that can properly accommodate the entire range of vehicles the customer intends to service.

That's why we ask questions before recommending a lift.

The Most Common Mistake: Choosing a Lift by Capacity Alone

If there's one thing to remember from this guide, it's this:

A 10,000-lb vehicle lift is not automatically compatible with every vehicle weighing less than 10,000 lbs.

Capacity tells you how much the lift is rated to handle under the manufacturer's specified conditions.

It does not, by itself, tell you:

• Whether the arms reach your lifting points

• Whether the arms retract sufficiently

• Whether the pads fit under the vehicle

• Whether appropriate adapters are available

• Whether the vehicle can be correctly positioned

• Whether weight distribution meets the lift's requirements

• Whether the manufacturer approves the application

Those questions require looking at the vehicle and lift together.

How HeavyLift Direct Helps Determine Vehicle Fitment

HeavyLift Direct is a family-owned and operated automotive equipment dealer based in Michigan, and we've sold thousands of vehicle lifts nationwide.

One advantage of carrying 2-post lifts from multiple manufacturers is that we don't have to try to make one lift fit every customer.

We can compare different:

• Capacities

• Arm ranges

• Arm configurations

• Column widths

• Pad heights

• Adapters

• Lift heights

• Certifications

• Price points

That matters because the right answer isn't always:

“Buy a bigger lift.”

Sometimes the better solution is a lift with a wider arm-reach range.

Sometimes it's a different arm configuration.

Sometimes minimum pad height matters more.

Sometimes the vehicle requires more capacity.

And sometimes the lift a customer initially selected simply isn't the best match for the vehicles they want to service.

Our goal is to help identify those issues before the lift arrives at your garage or shop.

Final Vehicle Fitment Checklist

Before ordering a 2-post lift, make sure you can answer these questions:

✓ Is the lift appropriately rated for my vehicle's weight and loading?

✓ Do I know my vehicle's manufacturer-approved lifting locations?

✓ Can the lift's arm configuration properly reach those locations?

✓ Can the arms and pads get underneath my vehicle?

✓ Is the lift suitable for my vehicle's wheelbase and configuration?

✓ Are the necessary manufacturer-approved adapters available?

✓ Will the lift accommodate the other vehicles I plan to use on it?

✓ Have I reviewed the lift manufacturer's instructions and restrictions?

If you can't confidently answer one of these questions, don't guess.

Gather the vehicle information above and contact HeavyLift Direct. We can help you compare the specifications of the lifts you're considering and narrow down which models make the most sense for your application.

Frequently Asked Questions

How do I know if a 2-post lift will fit my vehicle?

Start by checking the vehicle's exact configuration, weight, manufacturer-approved lifting locations, wheelbase, ground clearance, and dimensions. Then compare that information with the specific lift's capacity, arm reach, arm configuration, pad height, column spacing, adapters, and manufacturer requirements. Capacity alone does not confirm fitment.

Does wheelbase determine whether a vehicle will fit on a 2-post lift?

No. Wheelbase is an important vehicle dimension, especially for long trucks and vans, but it does not determine fitment by itself. The location of the approved lifting points, vehicle positioning, arm reach, weight distribution, and lift design also matter.

How do I measure wheelbase?

Wheelbase is the distance between the centers of the front and rear axles. Manufacturer-published specifications are usually the easiest way to determine the wheelbase for your exact vehicle configuration.

How do I know whether the lift arms will reach my vehicle?

First identify the vehicle manufacturer's approved lifting locations. Then evaluate those locations against the lift's front and rear arm ranges, arm configuration, vehicle positioning requirements, pad height, and available adapters. Read our 2-Post Lift Arm Reach guide for a more detailed explanation.

Is a 10,000-lb lift enough for a 6,000-lb truck?

It may have sufficient total rated capacity, but weight alone does not establish compatibility. Vehicle weight distribution, arm loading, lifting-point locations, arm reach, positioning, and the lift manufacturer's requirements must also be considered.

Are longer 2-post lift arms always better?

No. Maximum reach matters for larger and longer vehicles, but minimum reach can be just as important for smaller vehicles. If one lift needs to handle both cars and trucks, a broad usable arm range can be more important than simply having the longest arms.

Can one 2-post lift work for both my sports car and my truck?

Possibly. This is a common reason to carefully compare arm range and pad height. The truck may determine the capacity and maximum reach needed, while the sports car may require shorter minimum reach and lower pad height. Evaluate both vehicles before choosing the lift.

Do vehicle modifications affect car lift fitment?

They can. Lift kits, lowering kits, service bodies, plows, bumpers, running boards, rock sliders, toolboxes, auxiliary tanks, oversized tires, and other modifications can affect vehicle weight, ground clearance, weight distribution, or access to lifting locations.

Should I physically measure my vehicle or use manufacturer specifications?

Use manufacturer specifications when reliable information is available for your exact configuration. Physical measurements can be helpful when specifications aren't available or the vehicle has been modified. Manufacturer lifting instructions should be used to identify approved contact locations rather than guessing from measurements alone.

Can HeavyLift Direct tell me which lift will work with my vehicle?

We can help evaluate the available lift options based on your vehicle and application. Provide the exact year, make, model, configuration, cab and bed for trucks, drivetrain, SRW/dually configuration, modifications, and any other vehicles you plan to lift. In some cases, additional measurements or manufacturer information may be needed before determining the appropriate options.
