Amgo 409 DPX, 9000 lb Double Wide - Extra Long/Tall

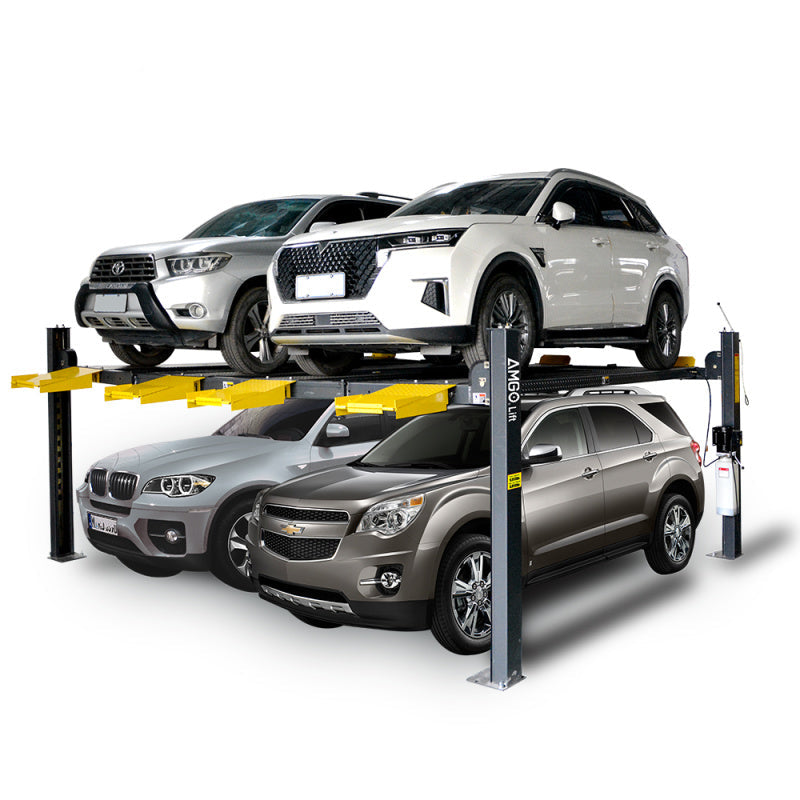

409-DPX Double Vehicle Storage Lift by Amgo

Maximize your garage or service space with the AMGO 409-DPX Double Wide Four Post Lift, designed for versatility and high clearance. With a 9,000 lb lifting capacity, this extra-long and extra-tall model provides the critical clearance needed to park SUVs, light trucks, and other elevated vehicles underneath. Its robust design unlocks greater efficiency and convenience, making it ideal for both storage and service applications.

Built for safety and ease of use, the 409-DPX features AMGO’s patented concealed safety lock control with a manual single-point lock release, foldable drive-on ramps, and multiple lock points to secure vehicles during lifting and storage. The non-slip diamond platforms and double-shaped columns ensure strength and stability under heavy loads. Optional accessories, including caster kits, adjustable jacks, motor protective covers, and extended ramps, make the 409-DPX fully adaptable to your workspace.

Amgo 409DPX Specifications:

• Model: 409-DPX

• Lift Type: Double Parking Four Post Lift

• Lifting Capacity: 9,000 lbs (max car weight: 6,000 lbs)

• Lifting Time: 57 seconds

• Overall Length (Inc Ramps) (A): 238 5/8"

• Outside Edge of Crossbeams (B): 198 1/8"

• Overall Width (C): 190 9/16"

• Width Between Columns (D): 181"

• Drive-Through Width (E): 169 13/16"

• Overall Height (F): 96 5/8"

• Minimum Height (G): 5 15/16"

• Max. Lifting Height (H): 87 7/8"

• Max. Lock Height to Top of Runway: 85 1/8"

• Max. Height Underneath Runway (I): 83 1/8"

• Max. Lock Height Underneath Runway: 80 3/8"

• Width Between Runways (J): 37"

• Overall Width of Single Parking Unit (K): 74 7/16"

• Width Between Two Parking Units (L): 13 3/4"

• Power: 110V or 220V Option

• Motor: 1.0 HP (110V) - Requires 30amp Breaker or


• Motor: 2.0 HP (220V) - Requires Double 30amp Breaker



• Shipping Weight: 3,142 lbs

• Pallet Dimension: 201"L x 21"W x 29"H


Amgo Double Wide Car Lift Special Features:

• 9,000 lb lifting capacity with a max car weight of 6,000 lbs

• Low-profile design allows easy loading for low-clearance vehicles

• AMGO patented concealed safety lock control with manual single-point release

• Foldable drive-on ramps for convenience (each lift includes 2 units)

• Double-shaped columns for increased structural strength

• Non-slip diamond platforms for secure vehicle support

• Multiple lock points ensure vehicles remain secure during lifting and storage

• Pull rope included as standard

• 110V or 220V power unit (lifting time: 120 seconds)

• Optional accessories: caster kits, plastic oil tray, extended aluminum ramps, adjustable jacks, motor protective cover, rubber wheel chocks, storage wave panels, J5H sliding jack with 5,000 lb capacity

409-DPX Manual

Amgo 409-DPX Manual

Amgo 409-DPX Installation Instruction

Amgo Double Wide Lift (sold separately):

• J6H - Pump Rolling Jack

• J6A - Pneumatic Rolling Jack

• Plastic Oil Tray: No. 40806

• Storage Wave Panels: No. 40812

• Motor Protect Cover: No. 40810 (for outdoor use)
