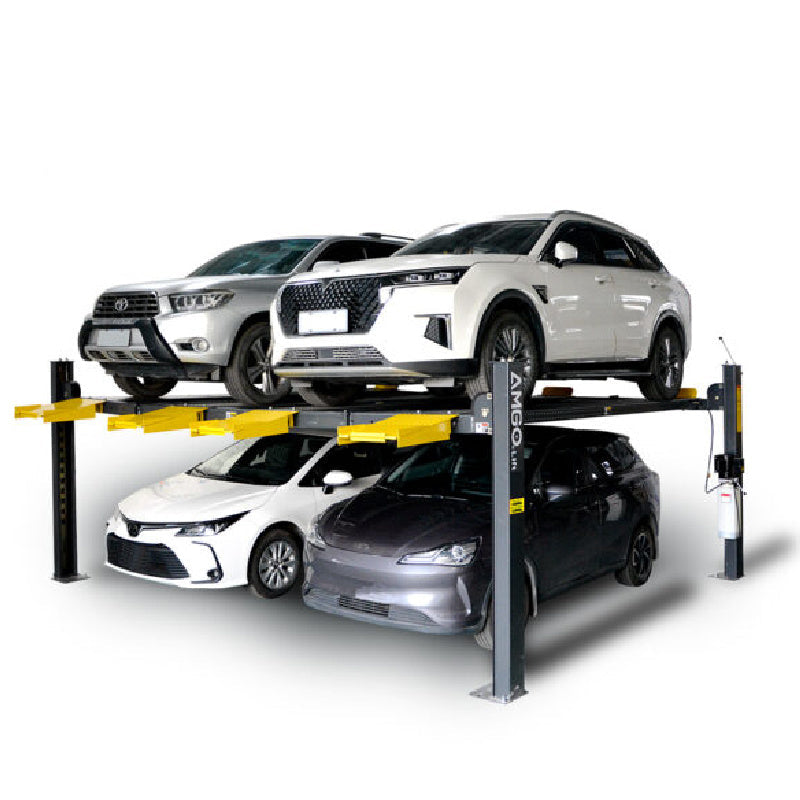

Amgo 409 DP, 9000lb Double Vehicle Storage Lift

409-DP Double Vehicle Storage Lift by Amgo

Maximize your parking and storage space with the AMGO 409-DP Double Vehicle Storage Lift, a low-profile, space-saving solution designed for efficiency and safety. With a 9,000 lb lifting capacity (single vehicle max 6,000 lbs), this lift can accommodate two vehicles simultaneously, making it perfect for garages, service centers, or home workshops. Its robust design, foldable drive-on ramps, and double-shaped columns ensure both strength and stability under heavy loads.

Safety and convenience are built in. The 409-DP features dual safety locks, AMGO’s patented concealed safety lock control, and a single-point manual release for effortless operation. Non-slip diamond platforms provide secure support, while multiple lock points keep vehicles safely in place during lifting and storage. Powered by a reliable 110V or 220V electric unit, the lift operates smoothly and efficiently, with optional accessories available to tailor the lift to your specific needs.

The 5-3-2 warranty guarantees years of reliable performance. Invest in the AMGO 409-DP and experience increased efficiency, happier customers, and a healthier bottom line.

• Model: 409-DP

• Lift Type: Double Parking Four Post Lift

• Lifting Capacity: 9,000 lbs (max car weight: 6,000 lbs)

• Lifting Time: 47 seconds

• Overall Length (Including Ramps) (A): 208 1/16"

• Outside Edge of Crossbeams (B): 167 5/8"

• Overall Width (C): 190 9/16"

• Width Between Columns (D): 181"

• Drive-Through Width (E): 169 13/16"

• Overall Height (F): 82 7/8"

• Minimum Height (G): 5 15/16"

• Max. Lifting Height (H): 73 5/8"

• Max. Lock Height to Top of Runway: 70 7/8"

• Max. Height Underneath Runway (I): 68 7/8"

• Max. Lock Height Underneath Runway: 66 1/8"

• Width Between Runways (J): 37"

• Overall Width of Single Parking Unit (K): 74 7/16"

• Width Between Two Parking Units (L): 13 3/4"

• Gross Weight: 2,771 lbs

• Motor: 2.0 HP

• Power: 110V or 220V

• Shipping Weight: 2,811 lbs

• Pallet Dimensions: 173"L × 21"W × 30"H

Amgo Double Wide Car Lift Special Features:

• 9,000 lb lifting capacity, accommodates two vehicles simultaneously (single max 6,000 lbs)

• Low-profile design allows easy loading for low-clearance vehicles

• AMGO patented concealed safety lock control with single-point manual release

• Foldable drive-on ramps included (2 units per lift)

• Double-shaped columns for increased strength and stability

• Non-slip diamond platforms ensure secure vehicle support

• Multiple lock points for maximum safety during lifting and storage

• Optional accessories: caster kits, plastic oil tray, extended aluminum ramps, adjustable jack tray, motor protective cover, rubber wheel chocks, storage wave panels

• J5H sliding jack with hand pump included, 5,000 lb capacity

• Warranty

  • Steel structure: 5 years

  • Hydraulics, bushings & sliders: 3 years

  • Electrical parts & cables: 2 years

  • Rubber pads: No warranty

409-DP Manual

     Amgo 409-DP Manual

     Amgo 409-DP Installation Instruction

Amgo Double Wide Lift Optional Items (sold separately):

• J5H - Manual Sliding Jack

• J5A - Pneumatic Rolling Jack
•  Plastic Oil Tray: No. 40806
• Storage Wave Panels: No. 40812
• Motor Protect Cover: No. 40810 (for outdoor use)
