4PXW-10 10,000lb Double Wide 4 Post Storage Lift

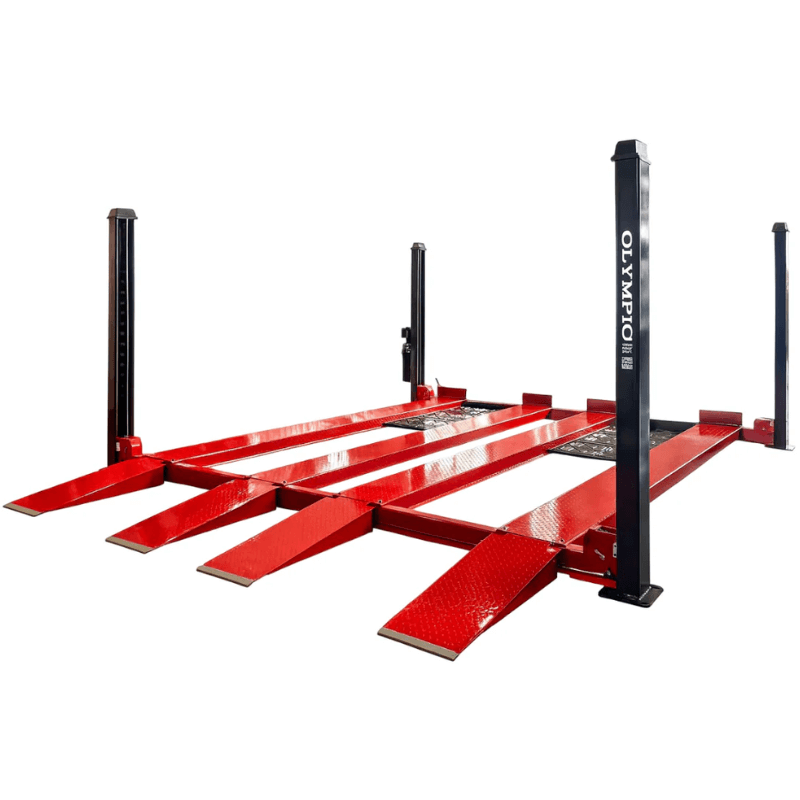

Olympic 4PXW-10 10,000 lb. Double Stacker 4 Post Storage Lift

The Olympic 4PXW-10 “Double Stacker” is a heavy-duty 4-post storage lift engineered to dramatically expand vehicle storage and service capacity. Designed to store or service up to four vehicles in the space of two, this lift is ideal for collectors, professional garages, dealerships, and high-capacity storage facilities handling oversized vehicles.

With a powerful 10,000 lb lifting capacity, an exceptional 173-inch drive-through width, and massive 192-inch spacing between posts, the Double Stacker easily accommodates wide-body cars, trucks, SUVs, and specialty vehicles. Over 78 inches of clearance under the tracks allows a second vehicle to be parked or serviced underneath with confidence and ease.

Built from high-quality Q235 structural steel and finished with a durable powder coat, this lift delivers long-term reliability and safety. Features such as a ladder lock system, single-point lock release, low-profile runways for lowered vehicles, and automatic shutoff at maximum height ensure smooth operation and secure positioning. Certified and tested at 150% of rated capacity and backed by an industry-leading 10-year warranty, the Olympic 4PXW-10 is a premium solution for serious storage demands.

4 Post Lift 4PXW-10 Specification

• Lift Type: 4-Post Storage Lift

• Load Capacity: 10,000 lbs

• Overall Lift Length: 224.37″

• Overall Width: 208.15″

• Overall Height: 91.69″

• Drive-Through Width: 173″

• Width Between Posts: 192.01″

• Runway Length: 228″

• Width Between Tracks: 39″

• Maximum Clearance Under Tracks: 78″

• Resting Deck Height: 7.09″

• Speed of Rise: 60 seconds

• Speed of Lowering: 60 seconds

• Recommended Power Unit: 3 HP, 2.2 kW, Single Phase

• Voltage Options: 110V / 220V

4PXW-10 10,000 lb. 4 Post Lift Special Features

• 10,000 lb capacity for multi-vehicle storage or service

• Stores or services up to four vehicles simultaneously

• Massive 173″ drive-through width for oversized vehicles

• Extra-wide 192″ spacing between posts

• Over 78″ of usable clearance under tracks

• Extra-long runways ideal for low-clearance vehicles

• Low deck runway height of approximately 4.5″ for lowered cars

• Ladder lock safety system with single-point lock release

• Automatic shutoff at maximum lifting height

• Heavy-duty Q235 structural steel construction

• Durable powder-coated finish for corrosion resistance

• Detachable steel ramps and stops included

• Drip trays and mounting hardware included

• Optional portability package, bridge jacks, and aluminum accessories

• Certified and tested at 150% of rated capacity

• Backed by an industry-best 10-year warranty

4PXW-10 Manual

  Olympic 4PXW-10 Spec Sheet
